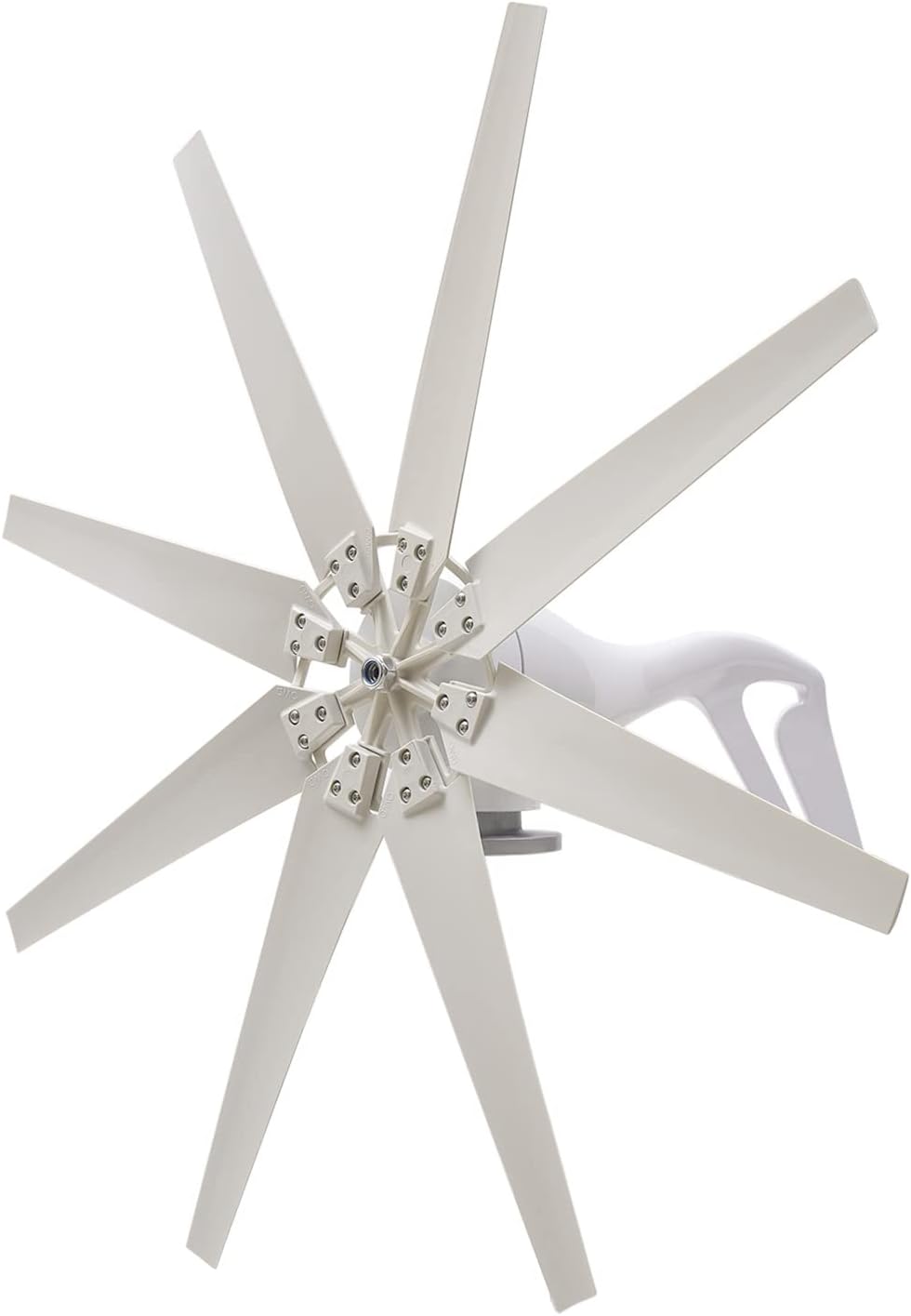

12V Wind Turbine Generator, 600W Wind Turbine Generator Kit for RV Wind Turbine with 8 Blades Wind Turbine Generator Kit for Home Wind Power Generator Kit with Controller

Specifications

Color: White

Material: Nylon Fiber, Die-casting Aluminum Alloy, Neodymium Iron Boron

Process: Plastic Spraying, Die-casting

Shape: Fan-shape, Round

Style: Modern

Special Feature: Durable

Installation Method: Vertical Type

Wind Direction Adjustment: Automatically Adjust the Windward Angle

Generator Type: 3-Phase AC Permanent Magnet Generator

Braking Method: Electromagnetic

Anemometer Battery: One 3V Lithium Battery(Included)

Number of Blades: 8

Voltage: 12V

Rated Power: 600W

Max. Power: 650W

Start-up Wind Speed: 3m/s

Rated Wind Speed: 13m/s

Safe Wind Speed: 50m/s

Max. Wind Speed: 60m/s

Working Temperature: -40 ~ 80 ℃/-40-176℉

Noise: 40db

Blade Length(Each): 40cm/15.7inch

Blade Diameter(Wheel Included): 92cm/36.22inch

Tower Tube Diameter: 42-45mm/1.65-1.77inch(Not Included)

Package Size: 72*28*23cm/30.7*11.02*9.05inch

Gross Weight: 8.2kg/18.07lbs

Package Included

1* Wind Turbine

8* Blades

1* Wind Wheel

1* Controller

1* Anemometer

1* Flange Plate

1* English Manual

Other Accessories for Assembly.

Notes

1. This package does not include a tower tube, and we recommend using a steel pipe or iron pipe of 1.65-1.77" in diameter.

2. The wind turbine should be installed where there is strong wind or without tall buildings and obstacles. If installing it near the obstacles, the position is better as far as possible from obstructions, or the installation height should be 20ft higher than the top of obstructions, which can make full use of the wind power. It should avoid the cliff and the turbulent region.

3. The power of the wind turbine will increase with the wind speed. When the wind speed is very low, the wind wheel of the wind turbine will remain stationary. When the cut-in wind speed is reached (usually 3m/s), the wind wheel starts to rotate and the generator starts to generate electricity. As the wind becomes stronger, the output power will increase. When the wind speed reaches the rated wind speed, the wind turbine will output its rated power. After that, the output power will remain roughly unchanged. When the wind speed increases further and reaches the cut-out wind speed, the wind turbine will brake without power output to avoid damage.

4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
