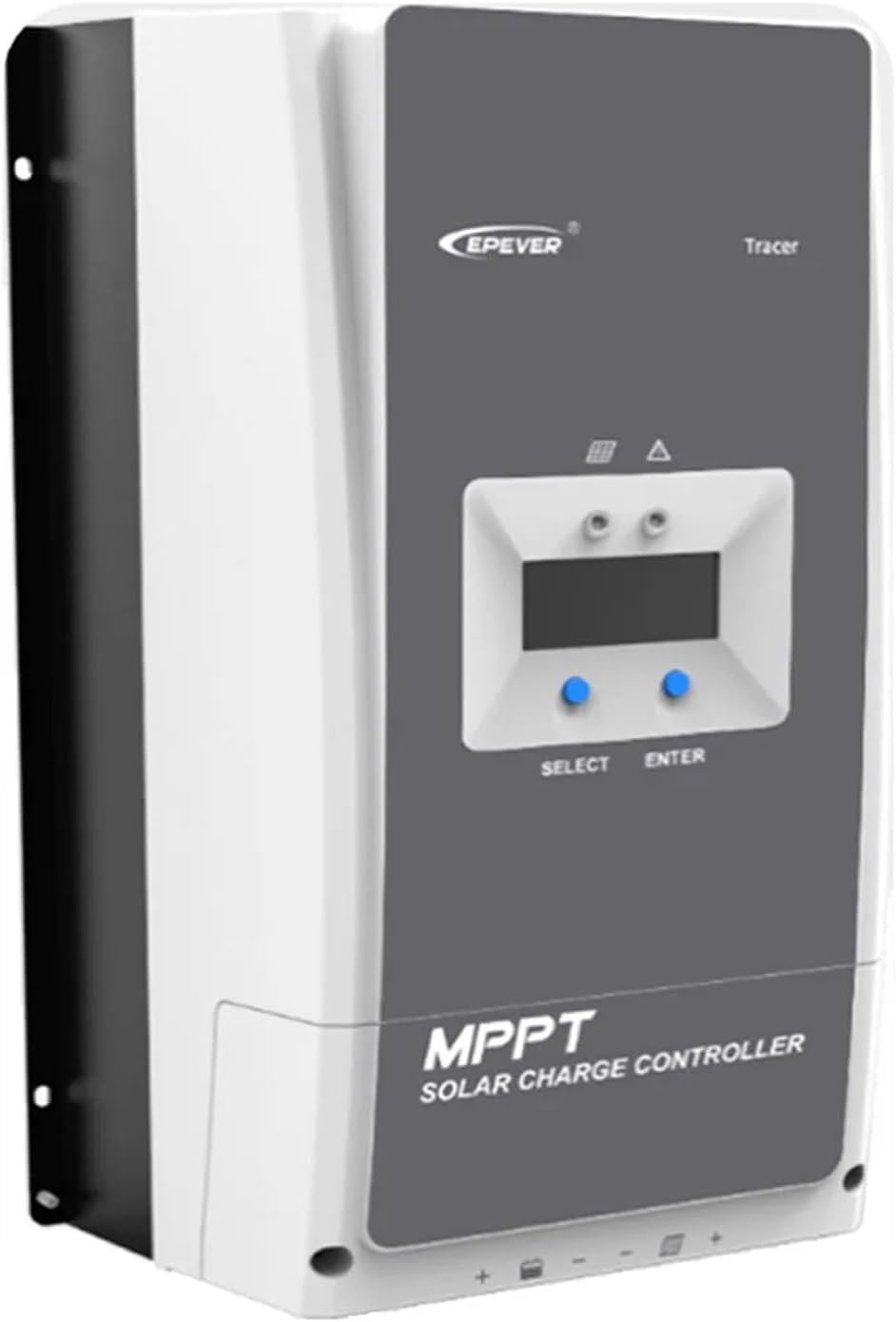

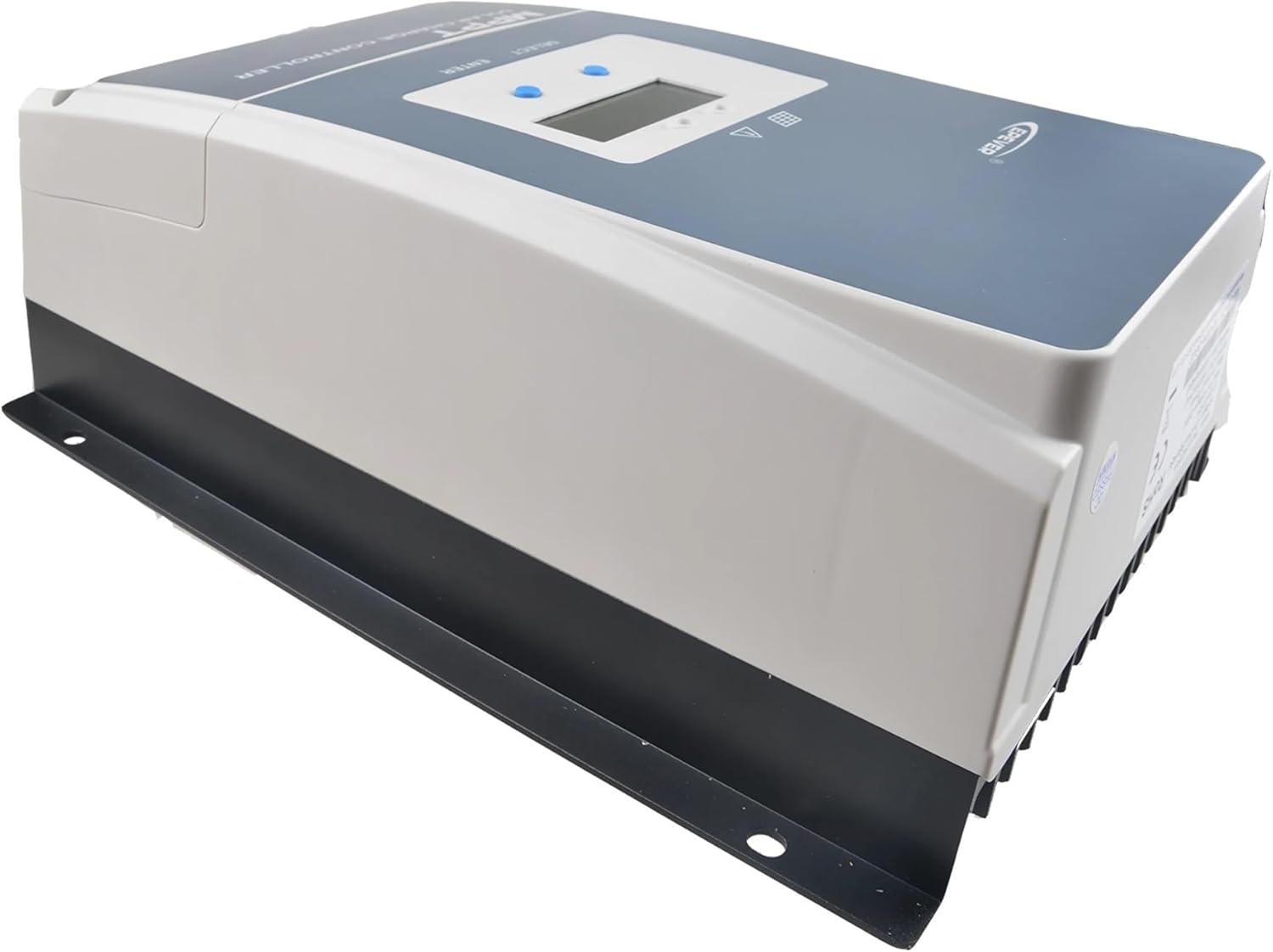

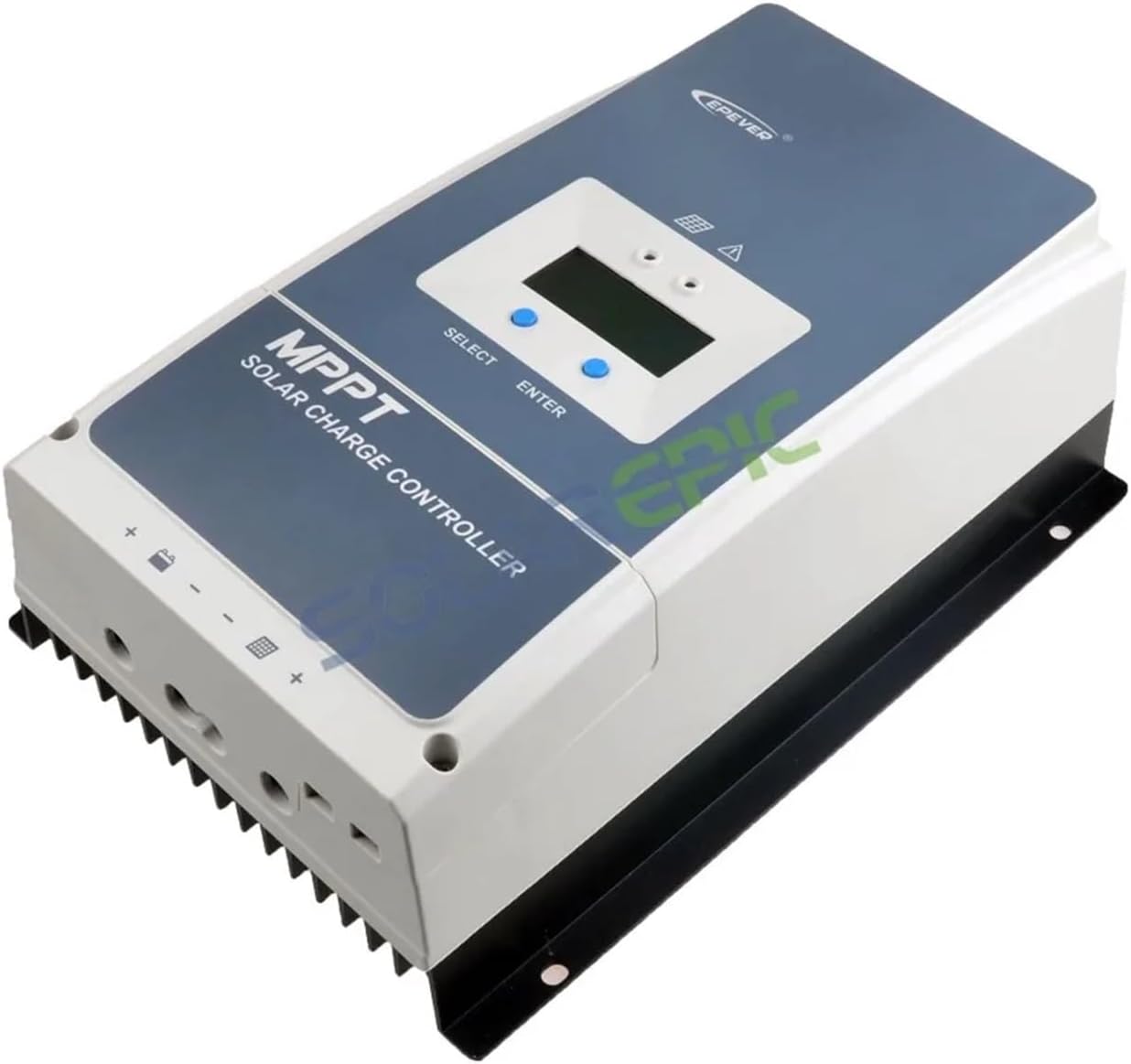

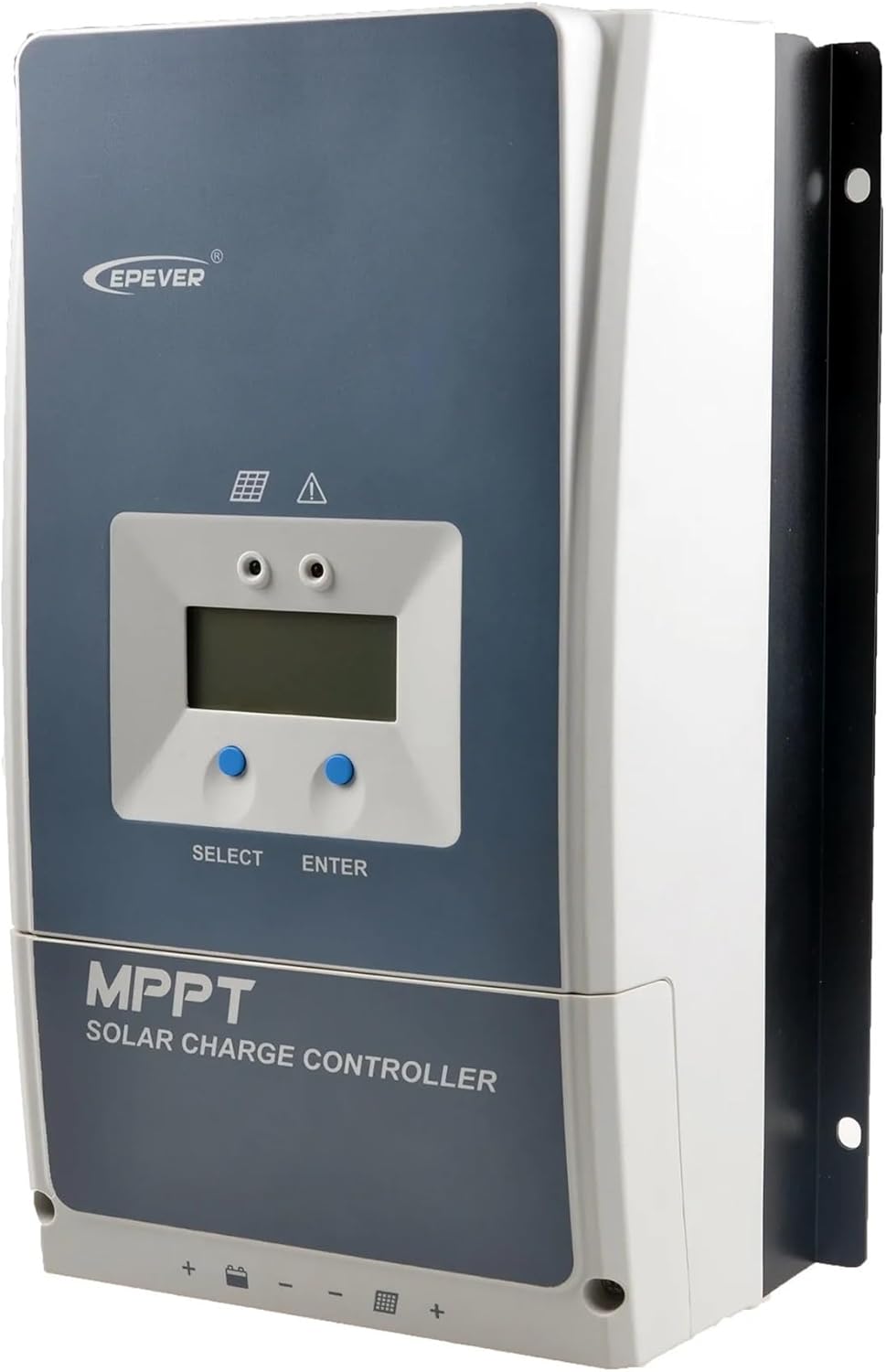

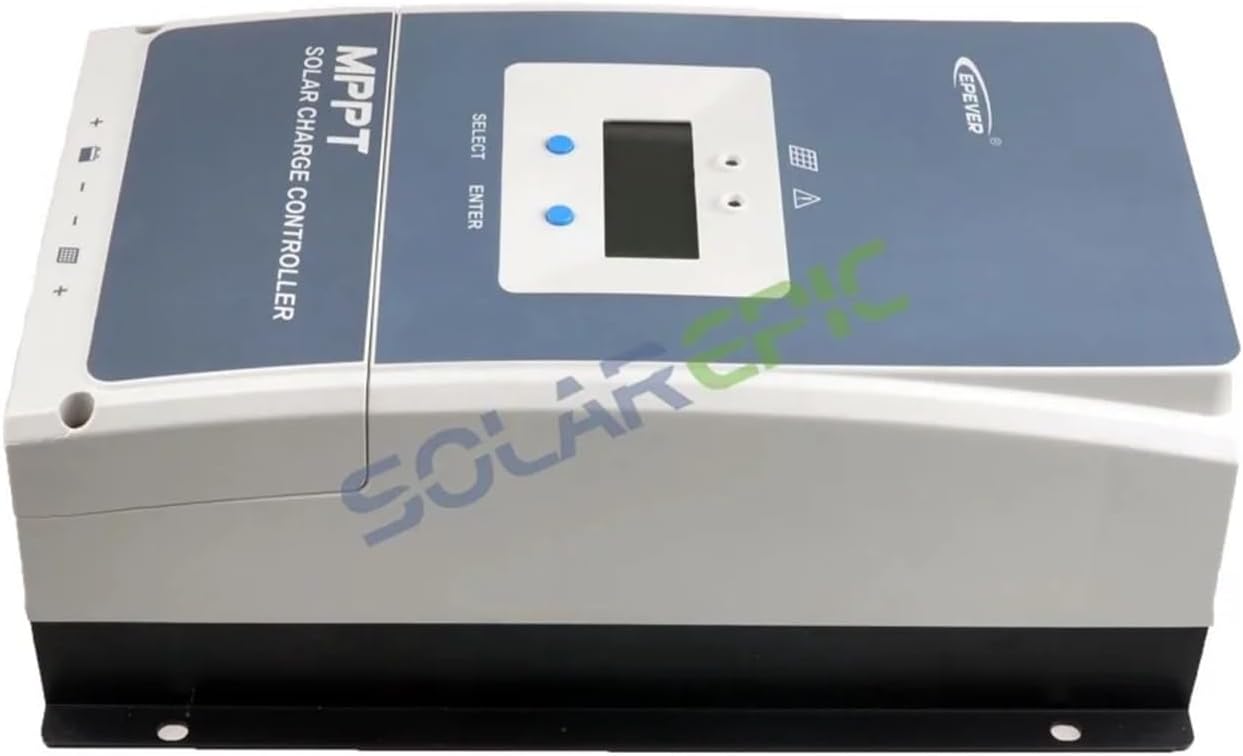

Solar Charge Controller, Solar Panel Controller 100A 80A 60A 50A MPPT Solar Charge Controller 12V/24V/36V/48VDC Auto Solar Regulator Max PV Input(100A,200V)

Overview:
The limitation function of the charging power and current, and automatic power reduction function fully ensure the stability when works with oversize PV modules and operate under high temperature environment.
With the adaptive three-stage charging mode based on digital control circuit, Tracer-AN series controllers can effectively prolong the life-cycle of battery and significantly improve the system performance. The load, utility and generator auto-control relay output make it easy to connect other equipment. All-around electronic protections, including overcharging, over discharging, and PV reverse polarity protection, effectively ensure the safer and more reliable operation of the solar system for a longer service time. The isolated RS485 interface with standard MODBUS communication protocol makes it easy for customer to expand the application, greatly meet with different monitoring requirements, so that can be widely used for various applications, e.g. solar RV, household system and field monitoring, etc.

Features:
Accurate recognition and tracking of multiplepeaks maximum power point
Wide MPP operating range
Limit the charging power and current over rated value
Support 4 charging options Sealed, Gel, Flooded and User.
Battery temperature compensation function
Real-time energy statistics function
Automatic over-temperature power reduction function
Load relay control to realize diversified load work modes
Auto-control of utility and generator relay design
Remote temperature sensor and remote sensor design, collect more accurate data of battery temperature and value
Isolated RS-485 with 5VDC/200Ma protected output for no power devices, with MODBUS protocol
