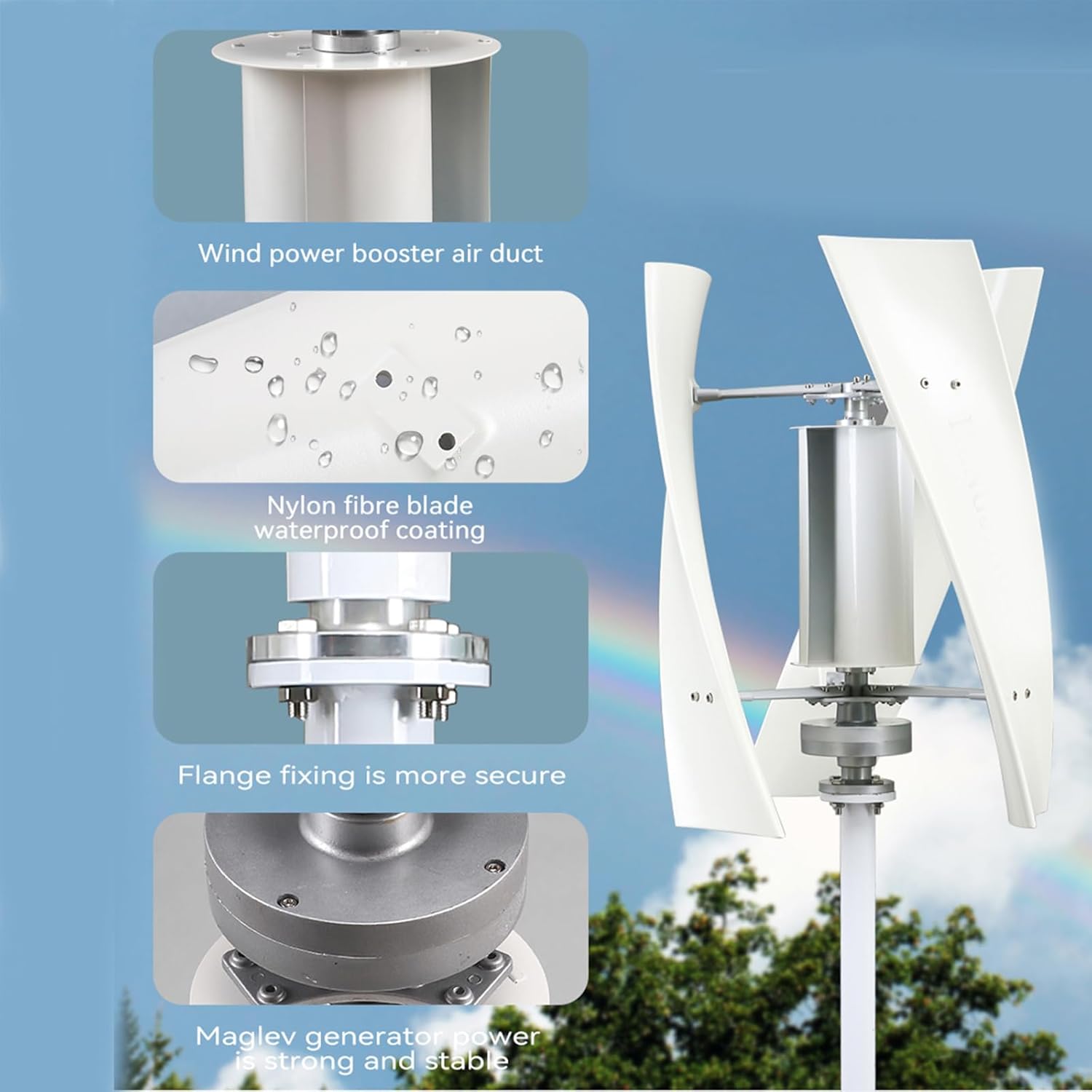

3000W Vertical Axis Wind Turbine, 48V 24V 12V Wind Generator VAWT Home Small Windmill Free Energy with MPPT Charging Controller

▶small ,light ,stable and safely, special control principle expended the wind speed to 2.5 ~ 25m/s, utilizes wind resource effectively and obtains a higher power generation.
▶High Efficiency Meglev Generator:Equipped with a Meglev generator, this wind turbine boasts high efficiency, capturing mor
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Specification:
    Number of leaves: 3 leaves
    Wind wheel diameter: 520mm
    Blade height: 750mm
    Rated voltage (AC): 12V 24V 48V 220V
    Rated power (W): 3000W
    Wind installation pole size: 60mm
    Packing size: 86×38×21cm
    Package weight: 12kg
    Initial wind speed (m/s): 2 m/s
    Cut-in wind speed (m/s): 3 m/s
    Rated wind speed (m/s): 10 m/s
    Safe wind speed (m/s): ≤40m/s
    Blade material: galvanized aluminum alloy
    Generator: Three-phase permanent magnet levitation motor
    Control system: electromagnet
    Wind turbine installation height (m): 2-12m
    Generator protection class: IP54

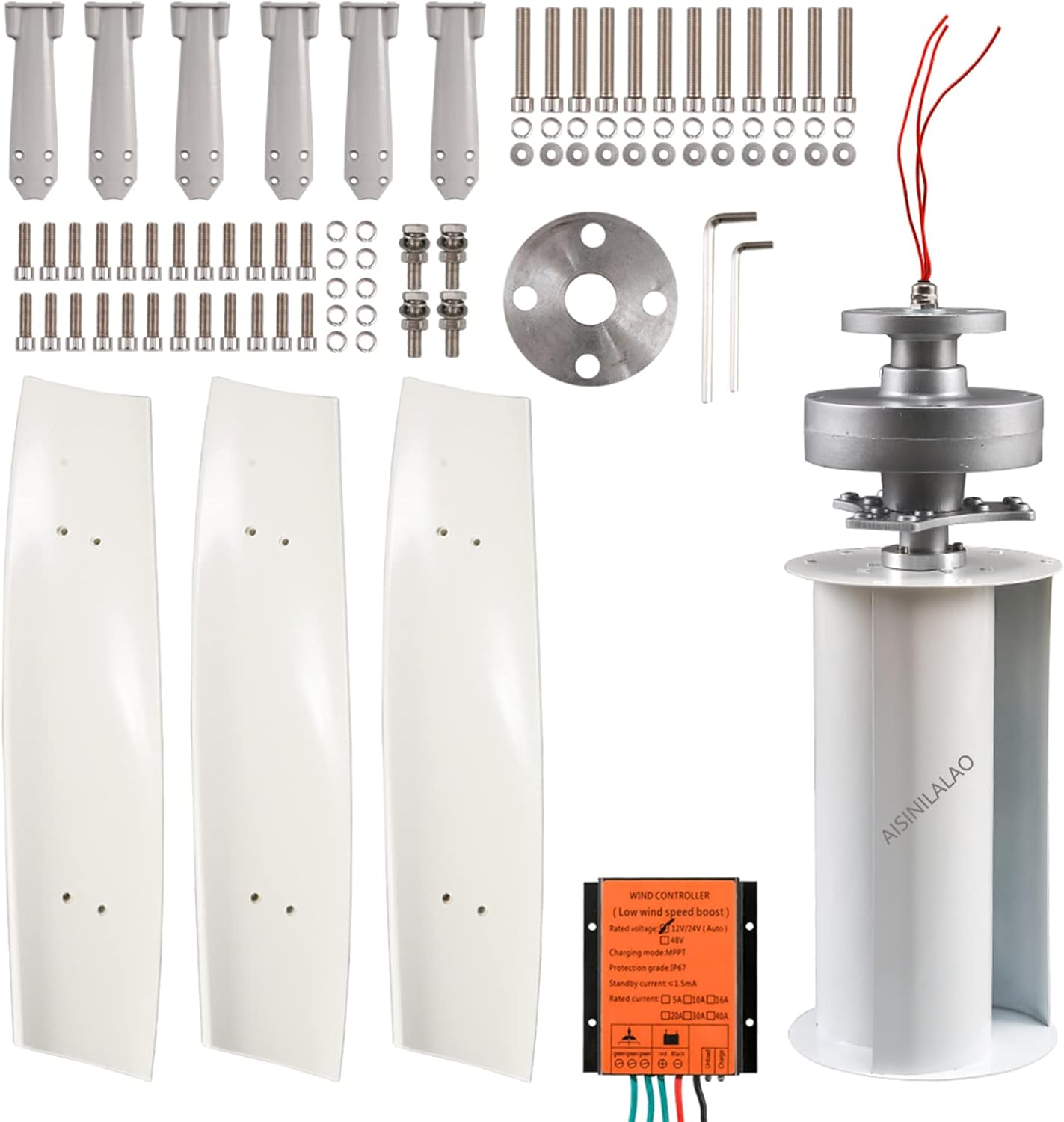

    packing list:
    3 × pcs blade
    1 × generator
    1 × Wind control
    1 × bolt and nut
    1 × Spindle and arm
    1 × Wind control
    1 × English installation manual
