100 Amp MPPT Charge Controller MPPT 12V 24V 36V 48V Auto, 100amp Solar Charge Regulator Max 150V w/LCD Display Work with AGM, Gel, Flooded and Lithium, Max Input Power 5000W

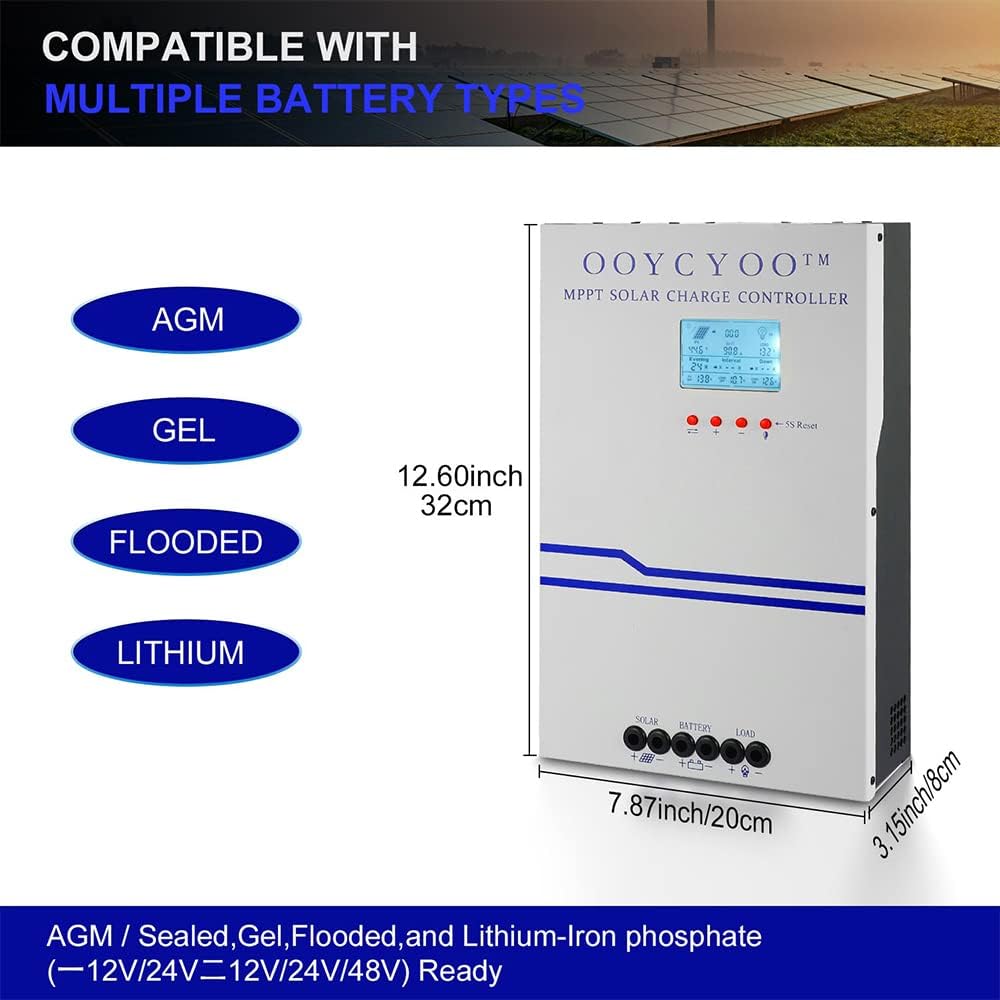

【Support various types of batteries】Compatible with many types of 12/24/36/48V batteries, such as Lead-acid battery, Sealed battery, Gel battery, AGM battery, Flooded battery, Lithium battery.
【Efficient 100A MPPT Solar Charge Controller】The 100A mppt solar charge controller is compatible with 12
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    100A MPPT Solar Charge Controller , 12V/24V/36V/48V Auto Work

    100A mppt solar charge controller is new upgrade version,Better funcations and advanced technology .

    Added Features:

    ★Blacklight LCD Display

    ★The display directly shows the amount of charge: KWH, without the need for other measuring instruments

    ★Two new vents are added for scientifically designed convection cooling.

    ★More Safety Protection

    ★Maximum DC/DC transfer efficiency is as high as 98.7%

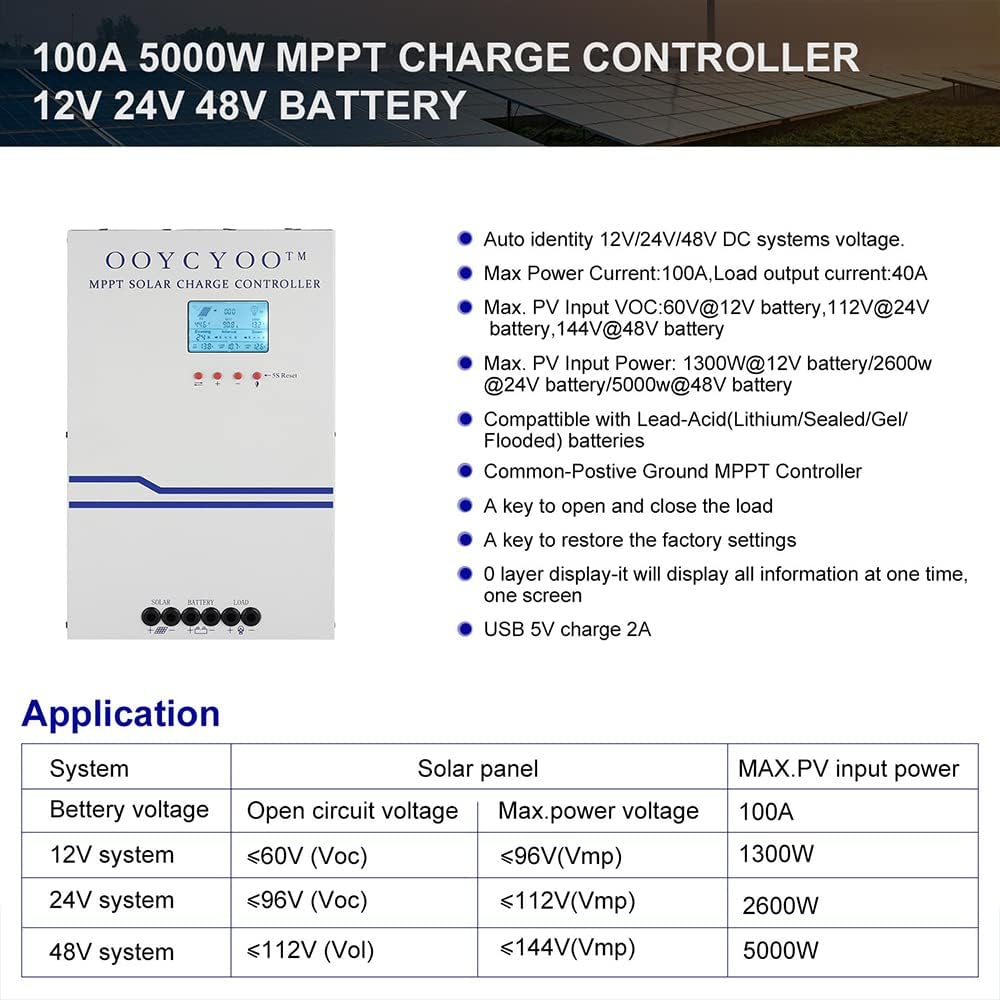

    100A MPPT Technical datas :

    Rated charge current:100A

    12V system:open circuit voltage ≤96V(Voc) maximum. PV input power:1300W

    24V battery system:Open circuit voltage ≤112V(Voc) maximum.PV input power:2600W

    48V battery system:Open circuit voltage ≤150V(Voc) maximum.PV input power:5000W

    System nominal voltage :12V/24V/36V/48V DC Auto identifying

    Max.PV open circuit voltage:150VDC

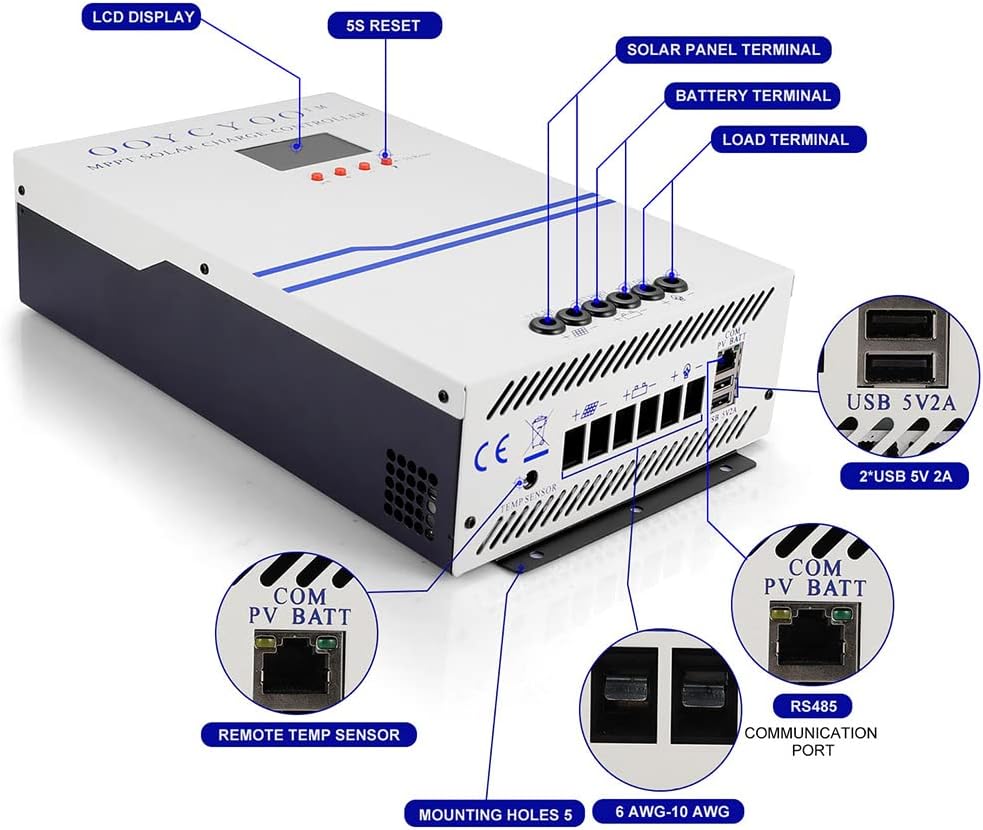

    Power terminal:10 AWG

    Dimension: 12*7.8*3.2(in)

    Weight : 9.5(LB)

    Protection function:

    PV Over Current/power

    PV Short Circuit

    PV Reverse Polarity

    Night Reverse Charging

    Battery Reverse Polarity

    Battery Over Voltage

    Battery Over Discharge

    Battery Overheating,Controller Overheating

    Lithium Battery Low Temperature

    Load Short Circuit

    Load Overload

    TVS High Voltage Transients

    Package List:

    1 x 100A MPPT Solar Charge Controller

    1 x Temperature sensor

    1 x User Manual (English)

  • Customer Reviews
    No comments
