Home / Manual Transfer Switch, AC120V 15Amp, with Surge Protection and Power Polarity Monitoring, for Generator, Inverter, Solar. OONO F-1072

Manual Transfer Switch, AC120V 15Amp, with Surge Protection and Power Polarity Monitoring, for Generator, Inverter, Solar. OONO F-1072

OONO F-1072 Manual Transfer Switch, AC120V 15Amp, with surge protection and power polarity monitoring. You can manually select AC IN1 (Inverter or Generator) or AC IN2 (Utility or Shore Power) as the input source according to your needs, and can quickly control the on and off of the output.
High
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    1, OONO F-1072 Manual Transfer Switch, AC120V 15Amp, with surge protection and power polarity monitoring. You can manually select AC IN1 (Inverter or Generator) or AC IN2 (Utility or Shore Power) as the input source according to your needs, and can quickly control the on and off of the output.
    2, High power three-position DPDT switch, Live and Neutral wire are switched at the same time. The Ground wires of the two inputs and output are connected together internally and will not follow the switch on and off. With input and output status indicators.
    3, Surge protection, maximum 10k Amp(8/20µS) pulse protection, VPR 700V (L-N, L-G, N-G). Live to Neutral, Live to Protective-Earth and Neutral to Protective-Earth, all are equipped with protective components. T-MOV thermally protected varistors, no risk of overheating. With surge protection indicator light, normal status indicator light is on.
    4, Power polarity monitoring, this function is particularly important when you frequently change power supply equipment (for example, to different camping sites). It allows you to find out whether the power polarity is correct in time to avoid greater losses caused by incorrect power polarity.

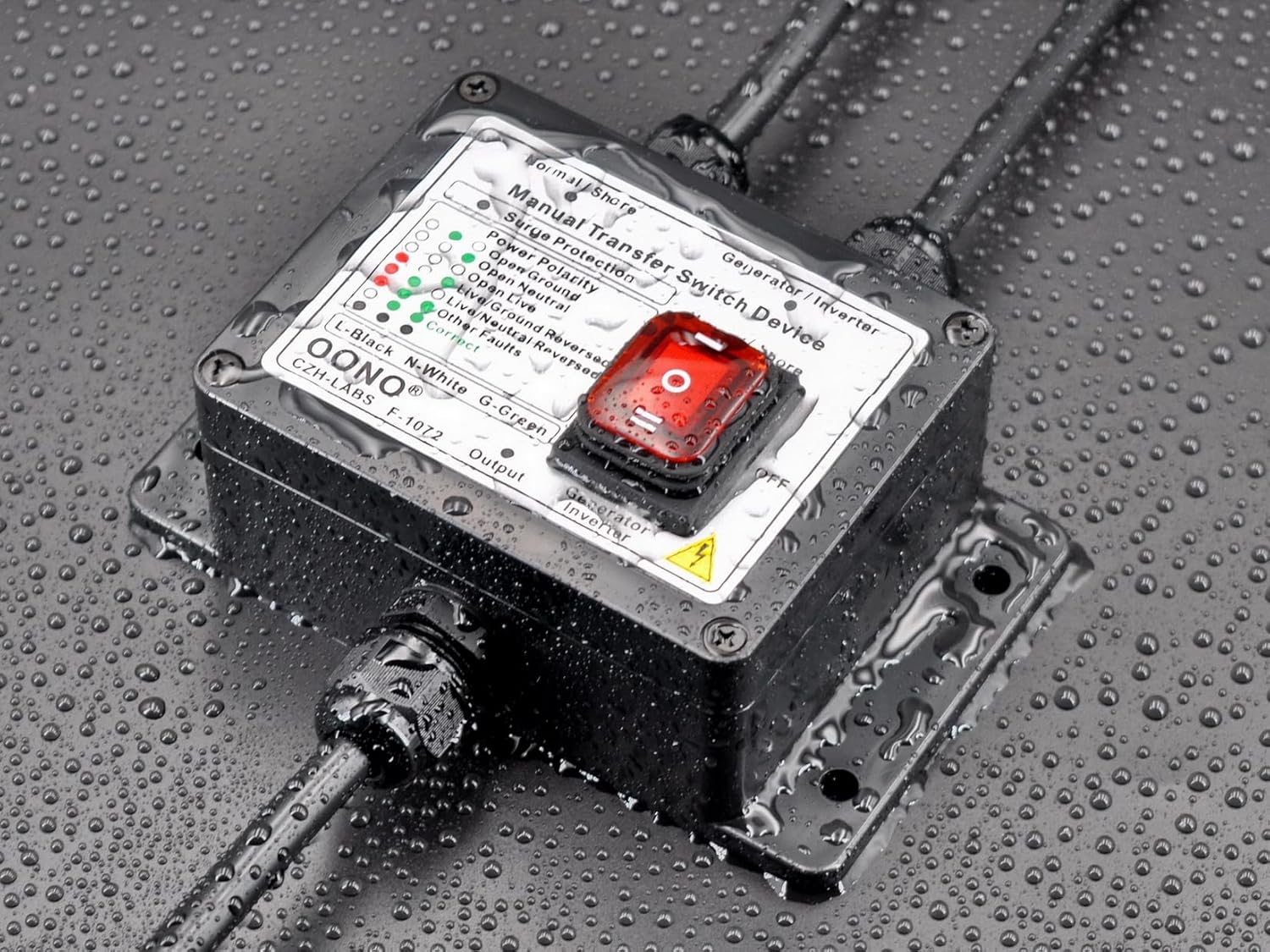

    5, IP66 waterproof level design, suitable for indoor or outdoor use. AC IN1, AC IN2 and AC OUT cables: Length 19 inches (0.5 meter), 14AWG (2.08 square millimeter) x 3 cores.

    SPECIFICATIONS:
    Operating Voltage: AC 90 - 135V 50/60Hz.
    Maximum Current: 15 Amp.
    Surge protection current: Imax 10k Amp, In 5k Amp.
    Surge protection voltage: MCOV 150VAC, VPR 700V(L-N, L-G, N-G)
    Input / Output Cable Length: 19 inches (0.5 meter).
    Enclosure Waterproof Rating: IP66.
