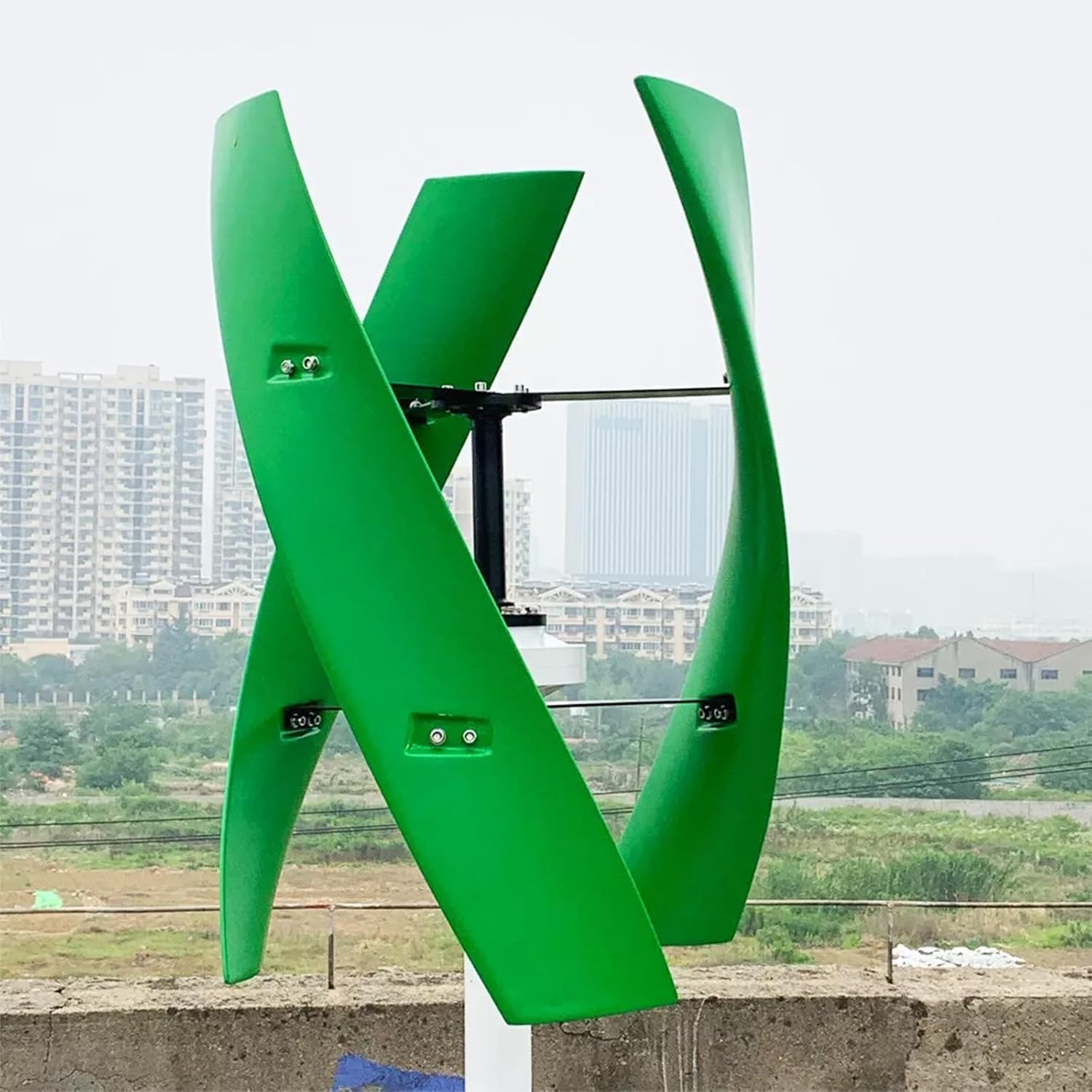

Wind Turbine Generator Kit 1000W 12V 24V 48V Helical Magnetic Suspension Axis Vertical Axis Breeze Start Hybrid Solar Wind Energy System For Industrial Pavilion Green(48V)
Wind Turbine Generator Kit 1000W 12V 24V 48V Helical Magnetic Suspension Axis Vertical Axis Breeze Start Hybrid Solar Wind Energy System For Industrial Pavilion Green(48V)
Efficient design: The wind turbine adopts an arc-shaped blade design to optimize wind energy capture and increase power generation
Magnetic levitation power generation technology: The coreless generator rotates horizontally to reduce friction loss and improve power generation efficiency
Lightw
Magnetic levitation power generation technology: The coreless generator rotates horizontally to reduce friction loss and improve power generation efficiency
Lightw
Quantity
-
Detail
Specifications:
Power: 1000W
Starting wind speed (m/s): 1.3m/s
Cut-in wind speed (m/s): 2.5m/s
Rated wind speed (m/s): 10m/s
Rated voltage (Ac): 12/24/48V
Rated power (W): 800W
Maximum power (W): 1000W

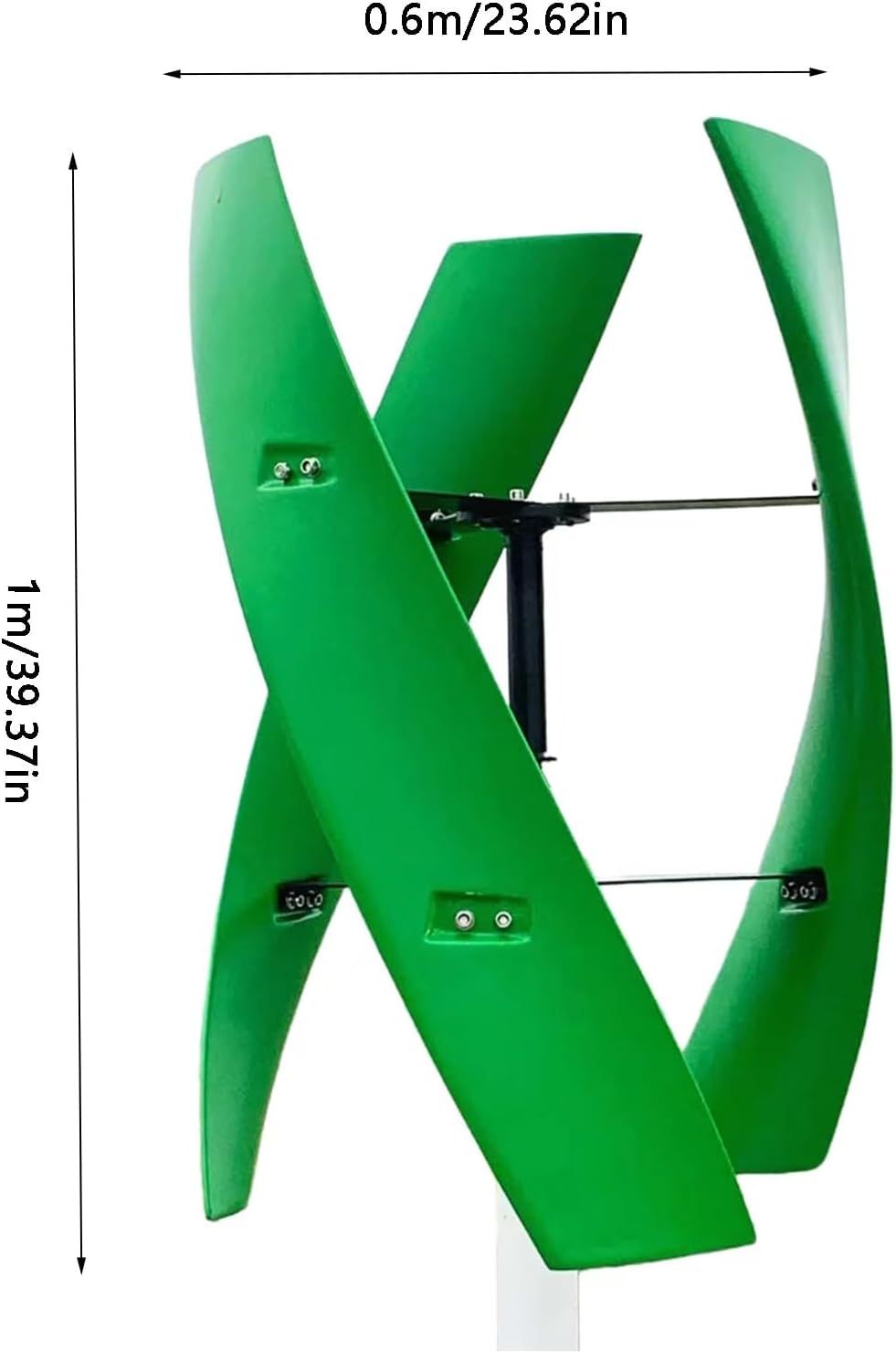

Diameter of blade rotating part (m): 0.6M
Product assembly weight (kg): 17KG
Blade color: green
Blade height (m): 1m
Safe wind speed (m/s): 40m/s
Number of blades: 3
Blade material: fiberglass

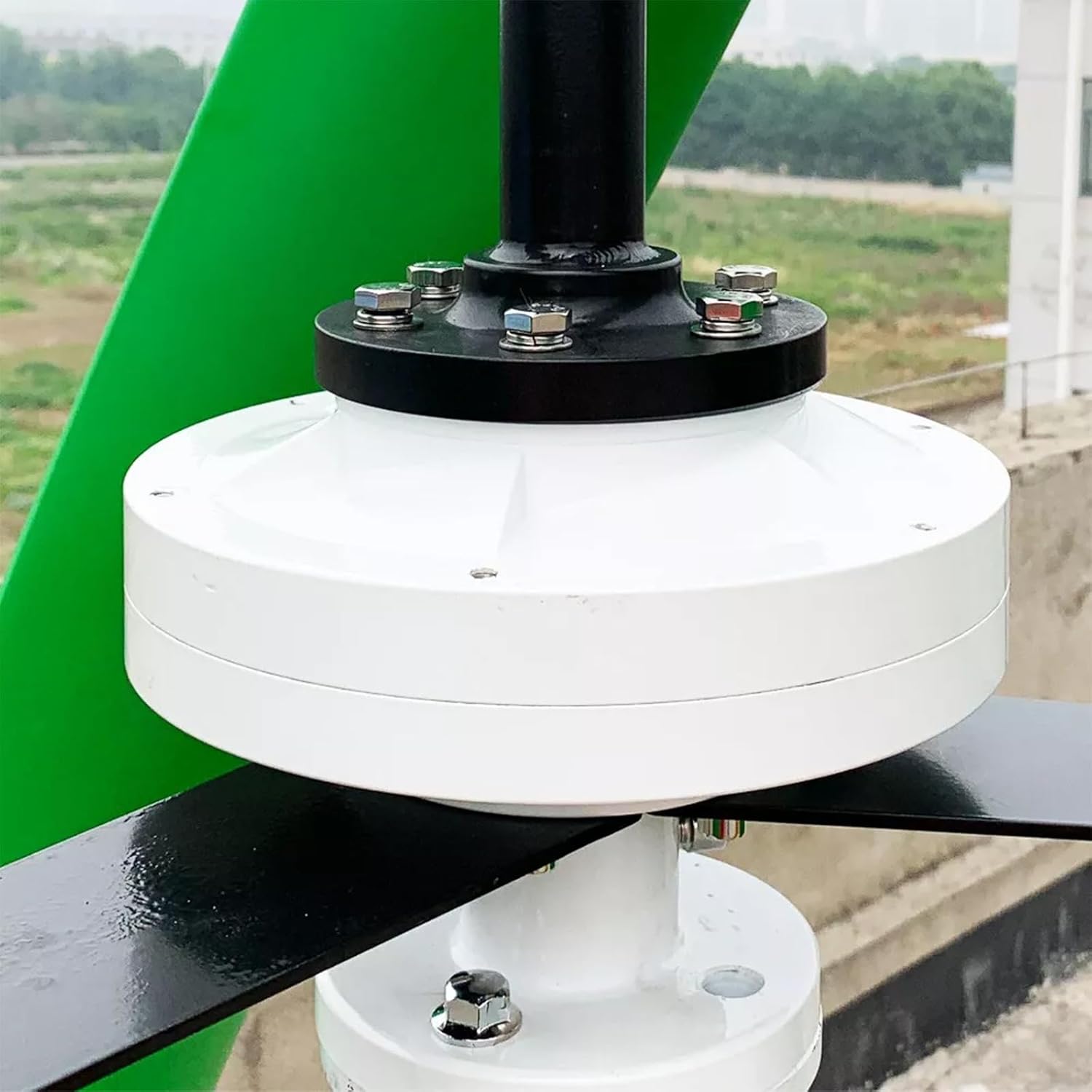

Generator control system: three-phase permanent magnet suspension motor
Installation height (m): 6~9m
Working environment temperature: -25~+45℃
Working environment humidity: ≤90%
Overspeed protection: electromagnetic brake
Overload protection: electromagnetic brake and unloading device
Product content:
1×wind turbine
1×controller -
