3-blade Wind Turbine Generator Kit 100W 24V Wind Turbine Kit with Controller 4-Hole Flange Fixation Vertical Axis Wind Turbine Generator for Cabins RVs Streetlights, White

【High Efficiency】The 5.59mph low starting wind speed, 100W high power, and powerful copper wire permanent magnetic levitation motor allow this product to efficiently utilize wind energy to generate electricity. In addition, the wind-assisted wheel makes it easier to start. This wind turbine generato
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Specifications

    Color: White

    Material: Nylon Fiber, Aluminum, Copper, Stainless Steel

    Process: Plastic Spraying

    Generator Type: Copper Wire Permanent Magnet Levitation Generator

    Braking Type: Electro-mechanical Brake

    Controller IP Protection Level: IP67

    Power Source: Wind Powered

    Rated Battery Voltage: 12V/24V

    Fan Blades: 3

    Maximum Power: 100W

    Rated Voltage: 12V/24V

    Wheel Diameter: 53cm/20.87in

    Rated Wind Speed: 13m/s/29.08mph

    Safe Wind Speed: 35m/s/78.29mph

    Start-up Wind Speed: 2.5m/s/5.59mph

    Working Temperature: -40-80℃/-40-176℉

    Noise: 30dB

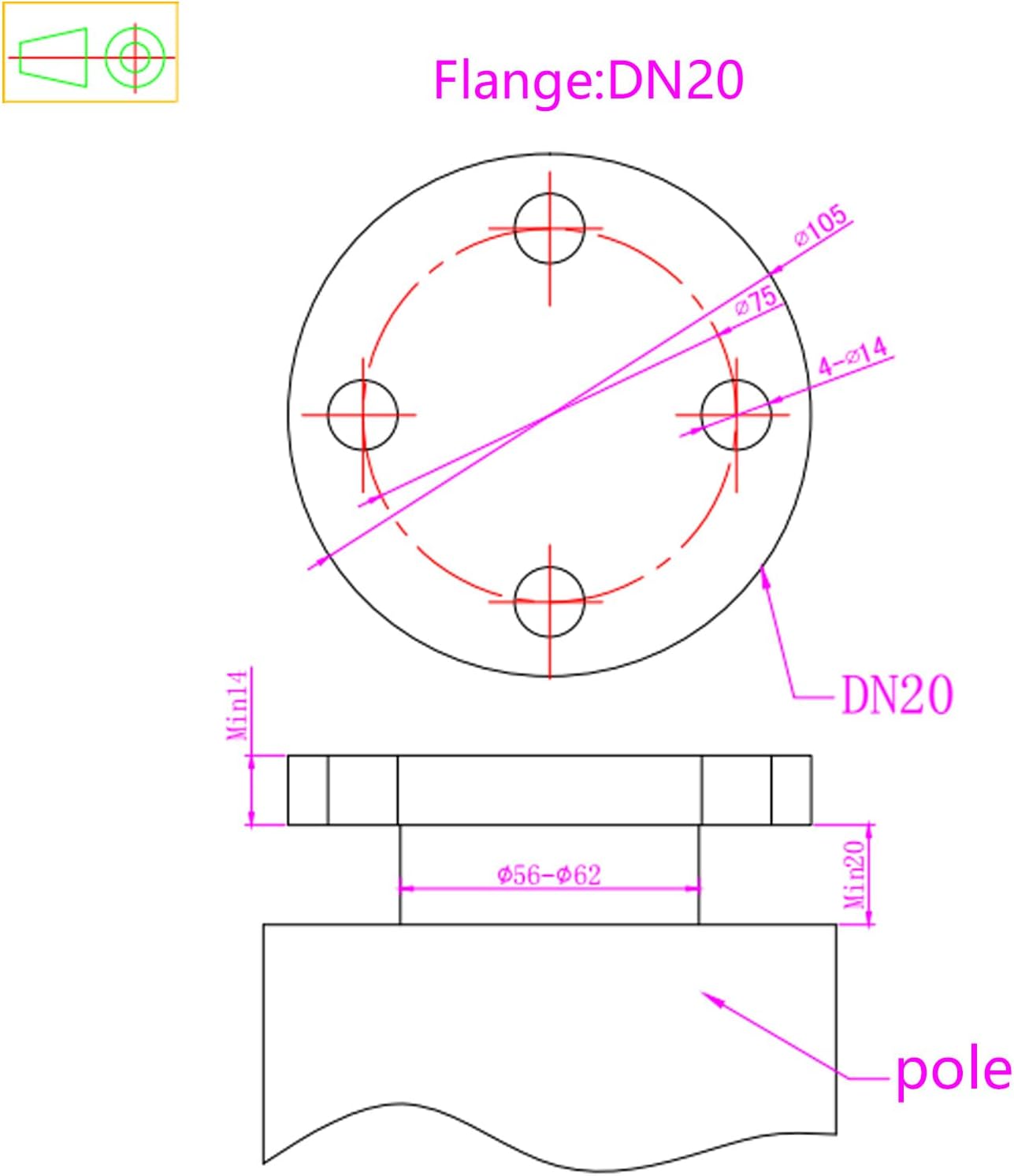

    Flange: DN20

    Flange Outer Diameter: 10.5cm/4.13in

    Flange Inner Diameter: 7.5cm/2.95in

    Flange Hole Quantity: 4

    Flange Hole Diameter: 1.4cm/0.55in

    Rod Connection Diameter: 5.6-6.2cm/2.2-2.44in

    Assembly Required: Yes

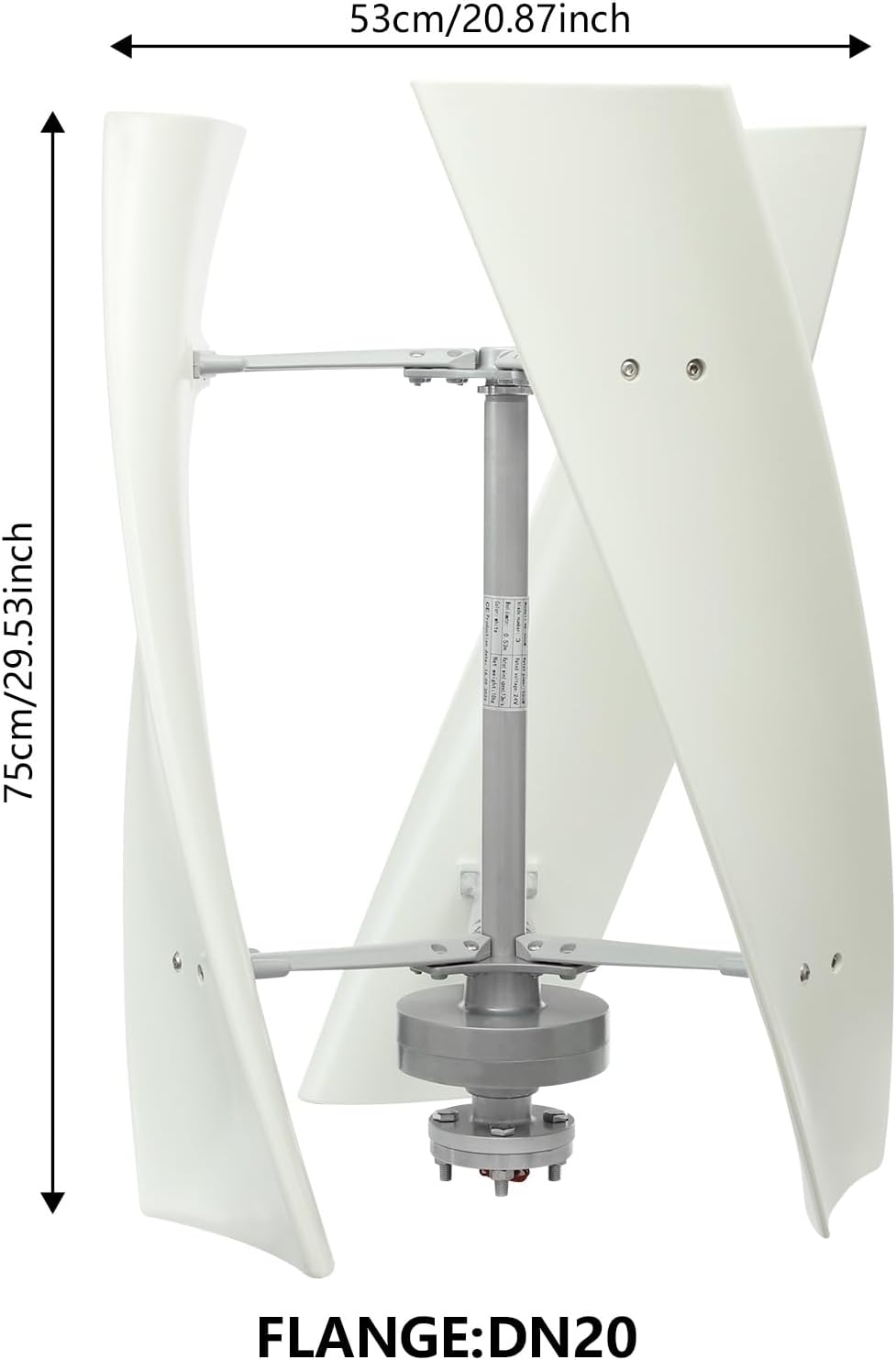

    Product Size(D*H): 53*75cm/20.87*29.53in

    Each Package Size: 86*38*20cm/33.86*14.96*7.87in

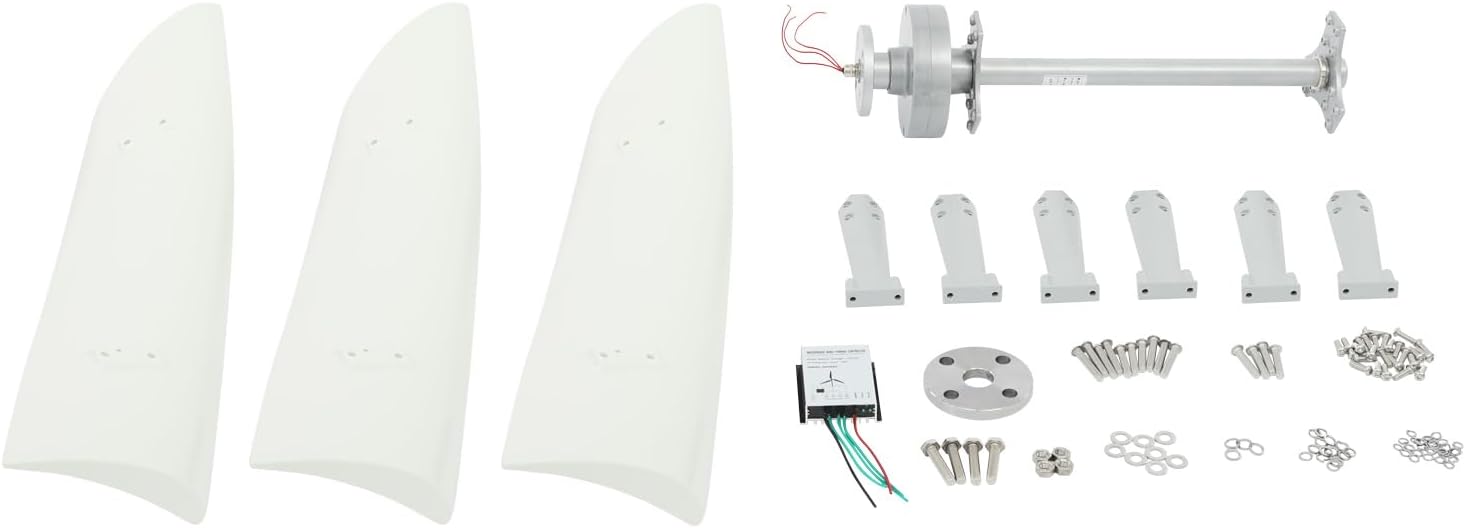

    Package Included

    1* Vertical Wind Turbine Generator

    1* Controller

    Other Needed Accessories

    Notes

    1. Please check the size carefully before ordering.

    2. Please be sure to use it with a gel battery or a lead-acid battery. The lithium batteries are not suitable for the product.

    3. The mounting height depends on the installation environment. Please make sure that there is no obstruction around to ensure that the product receives wind energy in 360°.

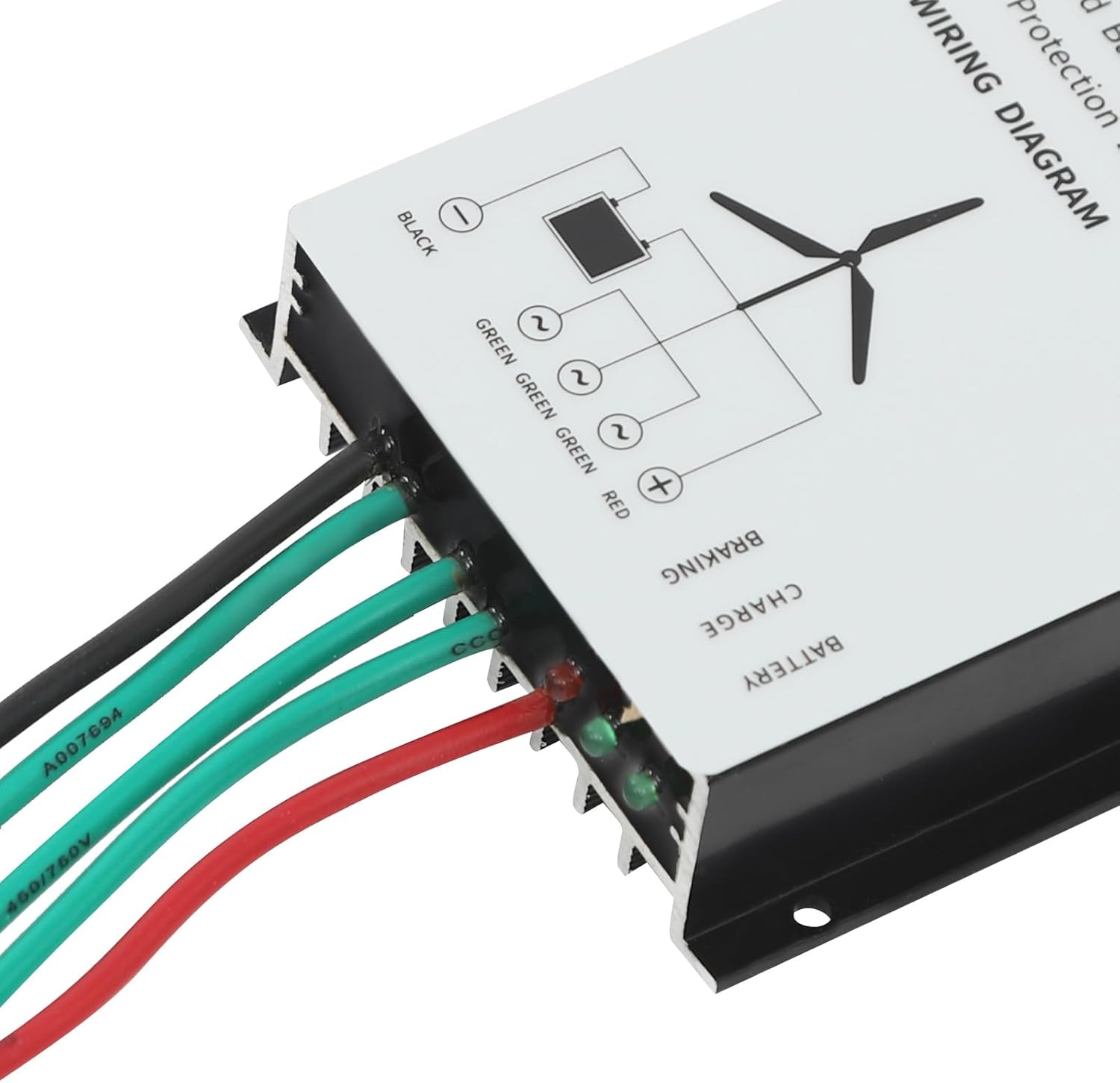

    4. Please connect the three green wires of the controller to the three wires of the fan (without distinguishing the poles), and please connect the red and black wires to the positive and negative poles of the battery respectively.

    5. Please note that the correct wiring sequence for the product should be: wind turbine - wind turbine controller - battery - inverter - load.
