Wind Turbine Generator, 3-Blade Wind Turbine Generator Kit for Home Energy Supply with Controller, 500W Wind Power Generator Vertical Axis Wind Turbine Generator for Energy Supply

Description

With its efficient, reliable, and silent design, this vertical wind turbine generator is a necessary piece of equipment for your new energy power grid. It utilizes advanced permanent magnetic levitation technology to reduce friction loss and increase power generation efficiency. Its unique vertical structure adapts to a wide range of environmental conditions and can easily capture the breeze to generate electricity, providing a clean and reliable energy source for homes and small businesses.

Details

Spiral Structure: The product adopts the spiral structure, making the product rotate in the horizontal plane to bring low wind pressure to withstand strong typhoons.

Nylon Fiber Blades: The blades are made of premium nylon fiber, which is strong and durable with excellent aerodynamic shape design, reducing the starting wind speed and improving the efficiency of wind energy conversion.

Application

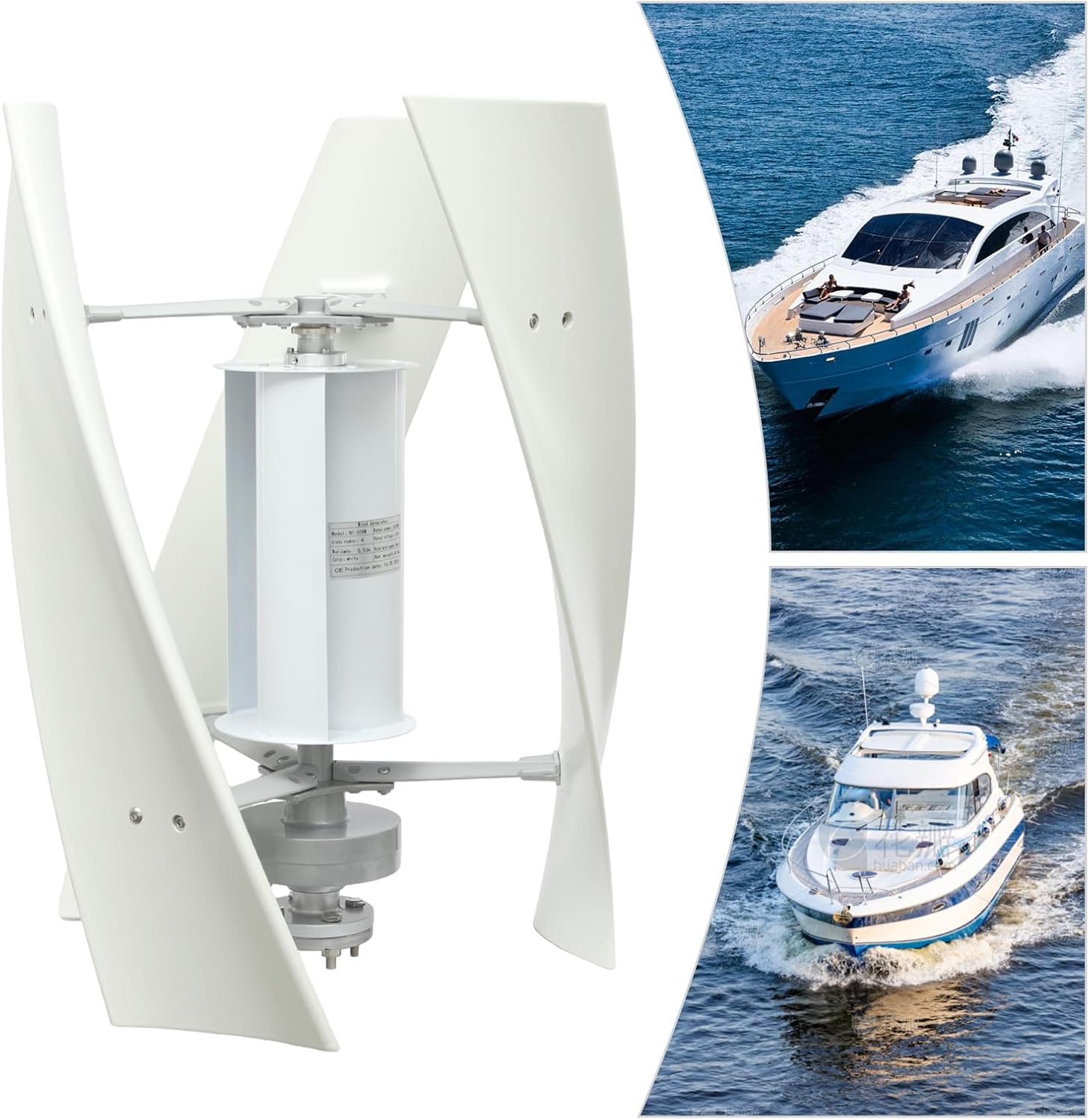

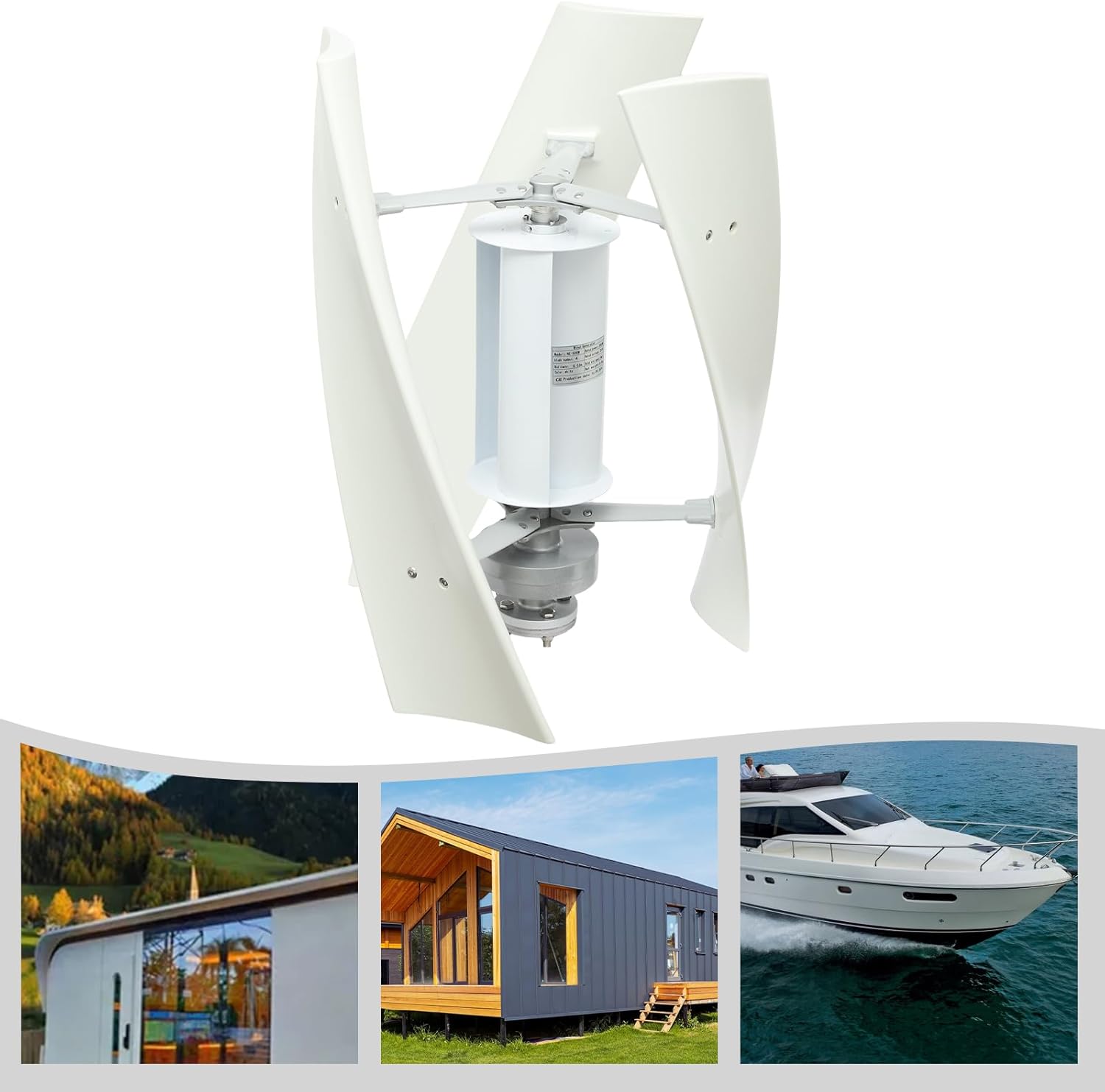

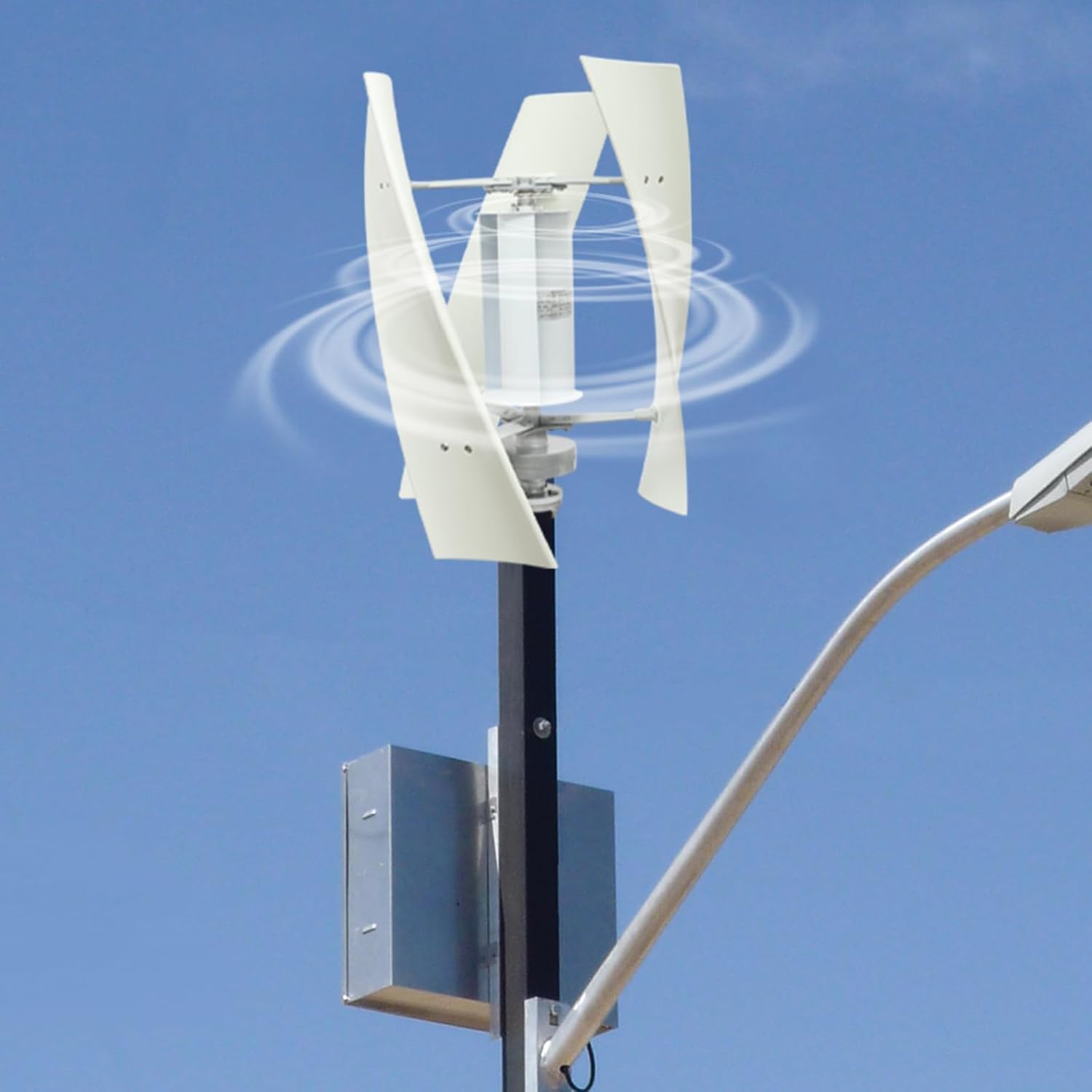

This product is suitable for home, business, and industrial energy supply for boats, gazebos, cabins or mobile homes, and the tops of streetlights.

Specifications

Color: White

Material: Nylon Fiber, Aluminum, Copper, Stainless Steel

Process: Plastic Spraying

Generator Type: Copper Wire Permanent Magnet Levitation Generator

Braking Type: Electro-mechanical Brake

Controller IP Protection Level: IP67

Power Source: Wind Powered

Rated Battery Voltage: 12V/24V

Fan Blades: 3

Rated Power: 500W

Rated Voltage: 24V

Wheel Diameter: 53cm/20.87in

Rated Wind Speed: 13m/s/29.08mph

Safe Wind Speed: 35m/s/78.29mph

Start-up Wind Speed: 2.5m/s/5.59mph

Working Temperature: -40-80℃/-40-176℉

Noise: 30dB

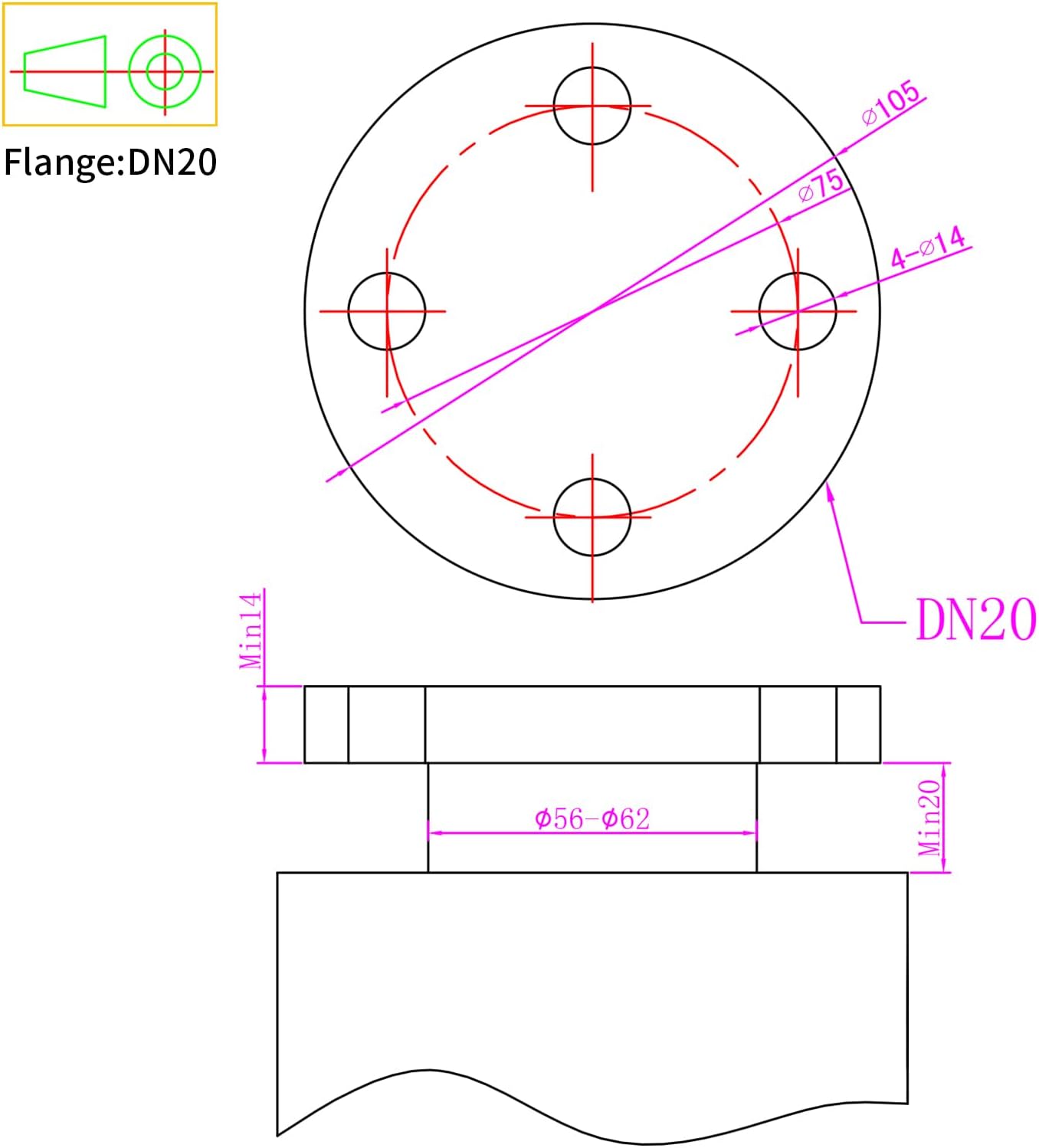

Flange: DN20

Flange Outer Diameter: 10.5cm/4.13in

Flange Inner Diameter: 7.5cm/2.95in

Flange Hole Quantity: 4

Flange Hole Diameter: 1.4cm/0.55in

Rod Connection Diameter: 5.6-6.2cm/2.2-2.44in

Assembly Required: Yes

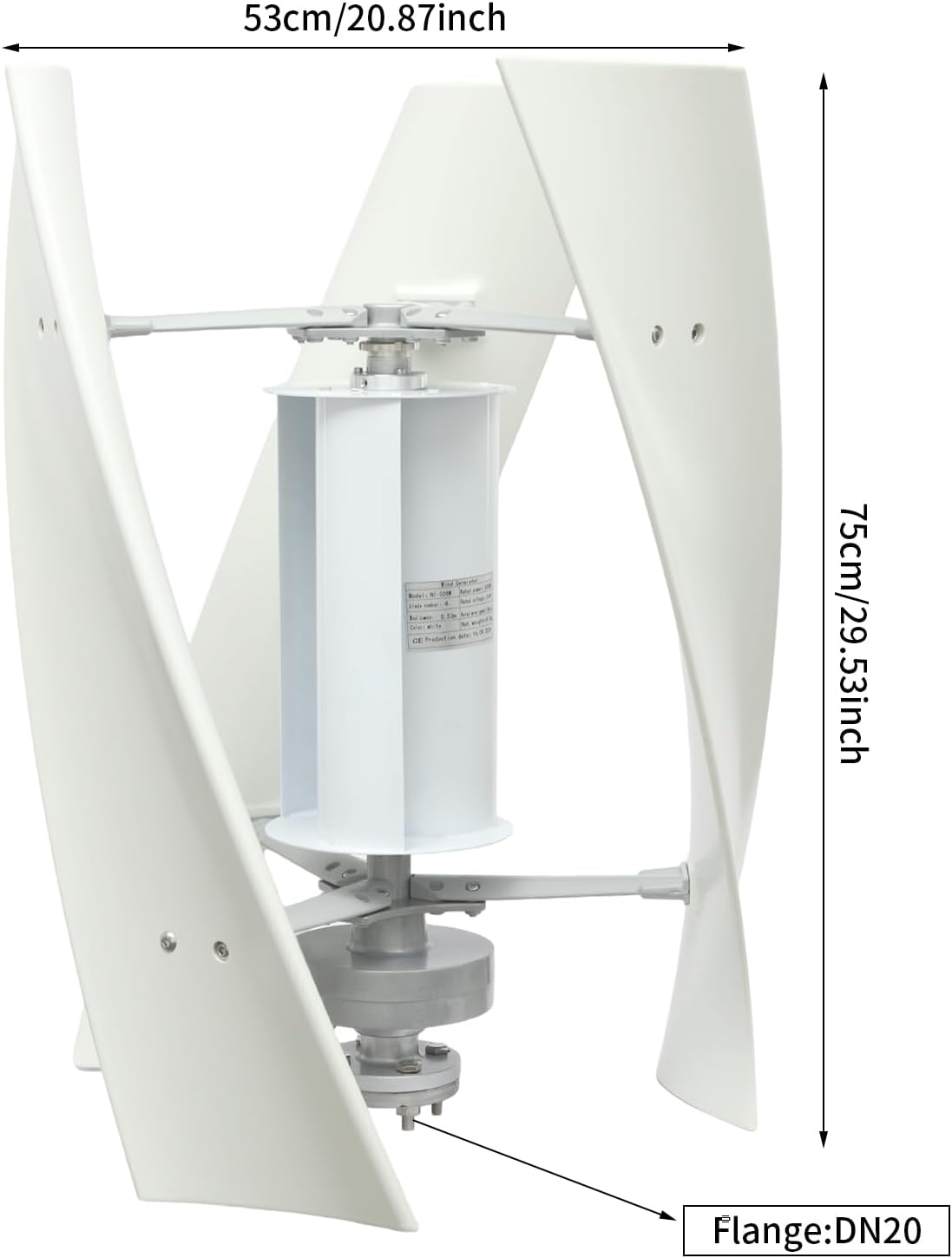

Product Size(D*H): 53*75cm/20.87*29.53in

Package Size: 86*38*20cm/33.86*14.96*7.87in

Gross Weight: 12kg/26.46lbs

Net Weight: 10.5kg/23.15lbs

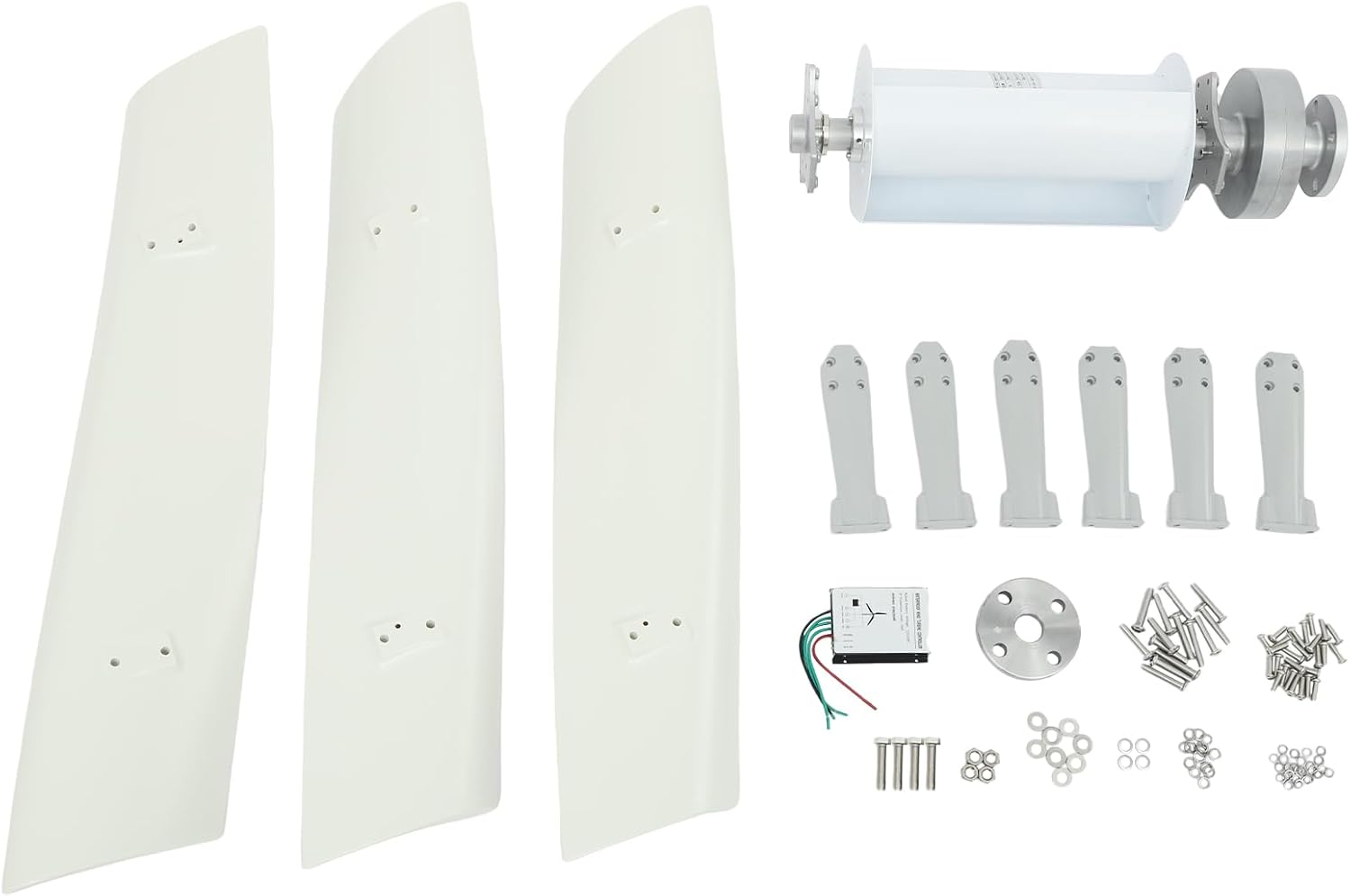

Package Included

1* Vertical Wind Turbine Generator

1* Controller

Other Needed Accessories

Notes

1.Please check the size carefully before ordering.

2.Please be sure to use it with a gel battery or a lead-acid battery. The lithium batteries are not suitable for the product.

3.The mounting height depends on the installation environment. Please make sure that there is no obstruction around to ensure that the product receives wind energy in 360°.

4.Please connect the three green wires of the controller to the three wires of the fan (without distinguishing the poles), and please connect the red and black wires to the positive and negative poles of the battery respectively.

5.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
