100W Vertical Wind Generator, 12V Output Wind Turbine with Controller, Aerodynamic Design, 3 Blades, Auto Windward Adjustment, Ideal for Boats, Gazebos and Mobile Homes (12V)

Key Features

Made to Last: The product is mainly made of nylon fiber, aluminum, stainless steel, copper, and magnet, together with a plastic spraying treatment, which has high hardness, corrosion resistance, rust resistance, and long service life.

Safety Guard: It is equipped with IP67 protection level to ensure safe and stable operation under adverse weather conditions. The external electromagnetic braking mechanism provides additional safety for the equipment, effectively preventing possible damage caused by overspeed operation. After reaching a certain wind speed, it will automatically reduce its speed.

High Conversion Rate: This generator has excellent wind energy conversion efficiency and can be started in a light wind of 8.2ft/s.

Powerful and Efficient: The spiral blades are aerodynamically shaped and it is equipped with an auxiliary wind wheel to further enhance its performance, resulting in stable power generation. This product can convert wind energy into electrical energy without producing harmful substances that pollute the environment, promoting the development of environmental protection.

Low Noise: Its noise level is only 30 dB and there is low vibration during operation, which can prevent interference with the environment.

Stable Performance: It has an automatic windward adjustment function, which can work smoothly in different wind directions.

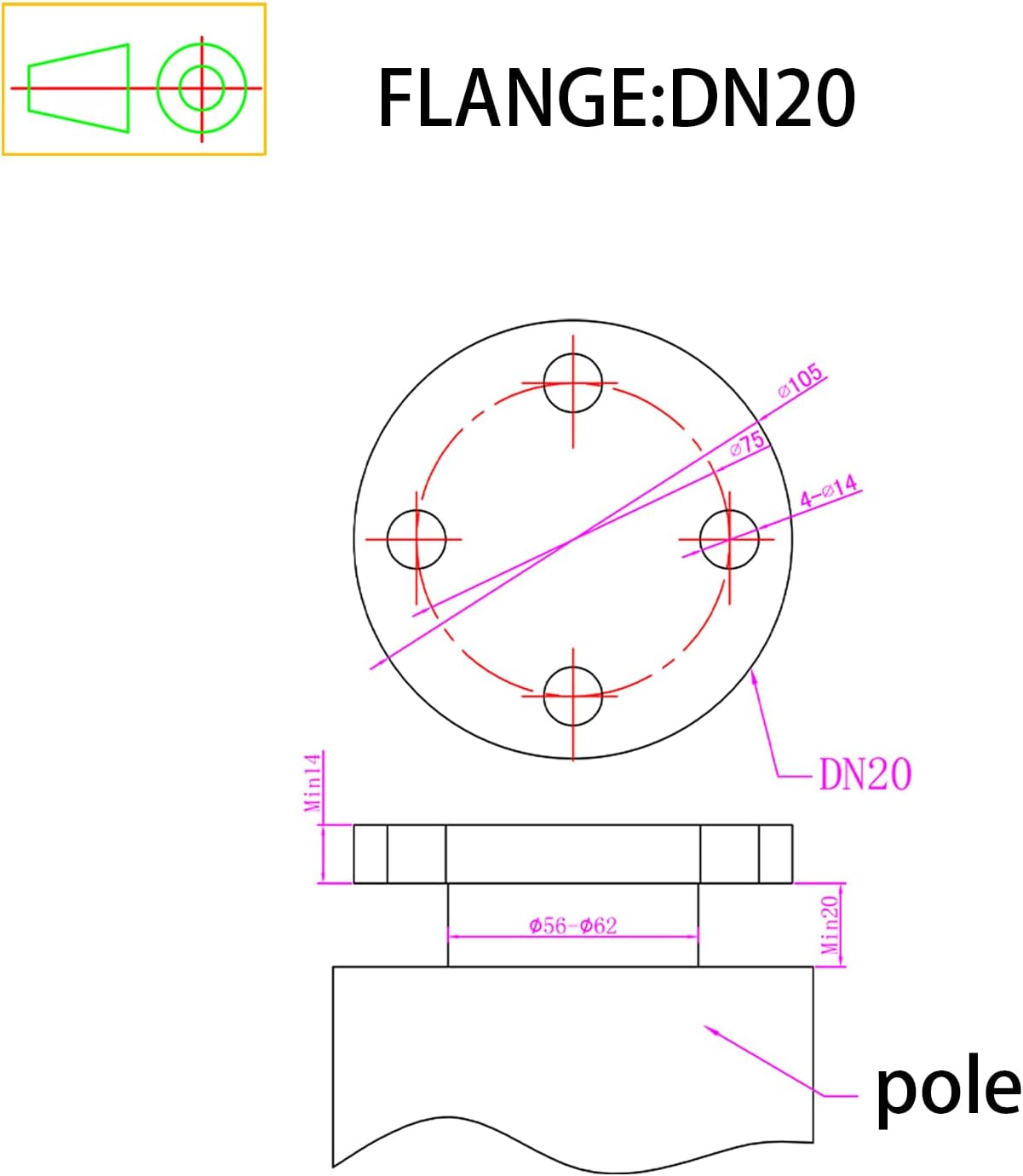

Simple Installation: This vertical wind generator adopts the flange mounting structure design, which not only simplifies the installation process but also improves the stability and reliability of the overall structure.

Easy to Maintain: It has a simple construction and smooth surface, reducing the cost and time of daily maintenance.

Details

Colorful Fan Blades: Bright-colored blades make the product unique and easily recognizable, enhancing its aesthetic appeal.

Mounting Holes: The mounting holes are convenient for you to fix the generator to the top of the pole.

Specification

Color: Blue, White, Red

Material: Nylon Fibre, Aluminium, Stainless Steel, Copper, Magnet

Assembly Required: Yes

Recommended for Use: Outdoor

Installation Position: Top of Pole

Generator Type: Permanent Magnetic Levitation Generator

Brake Type: Electromagnetic Brake

Wind Direction Adjustment: Automatic

Battery Type: 2* 12V Gel or Lead-acid Batteries(Not Included)

Noise: 30dB

Working Temperature: -40°C-80°C/-40℉-176℉

Rated Power: 100W

Rated Voltage: 24V

Protection Grade: IP67

Starting Wind Speed: 2.5m/8.2ft/s

Rated Wind Speed: 13m/42.65ft/s

Safe Wind Speed: 45m/147.63ft/s

Number of Blades: 4(Including the Auxiliary Wind Wheel)

Product Size(D*H): 53*75cm/20.87*29.53in

Package Size: 86*38*20cm/33.86*14.96*7.87in

Gross Weight: 12kg/26.46lbs

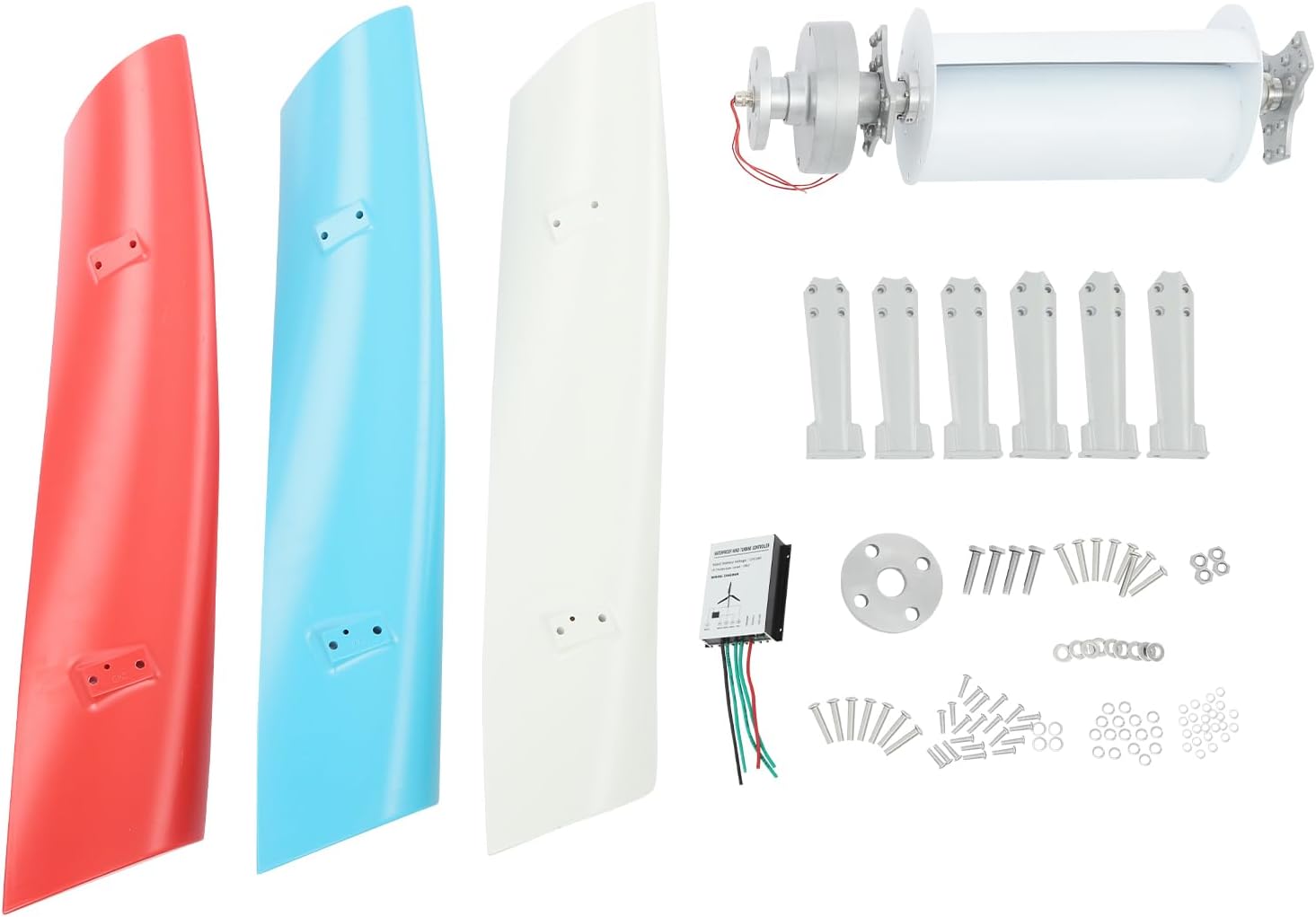

Package Included

1* Vertical Wind Generator

1* Controller

Other Accessories for Assembly

Notes

1. Professional installation is highly recommended.

2. Please try to install this product in an open area without any obstruction around it for better access to wind resources.

3. Please note that the product does not contain batteries, please prepare your own 2 12V gel battery or lead-acid batteries, and a lithium battery can not be used.
