5 Blades Wind Turbine Generator Kit, 100W 12V Vertical Axis Wind Turbine Generator w/Controller, 2.5m/s Low Wind Speed Starting Wind Turbines Kit for Home

Description:

Experience the power of sustainable energy with our 5-blade wind turbine generator. Designed to maximize efficiency and reduce energy costs, this innovative clean energy solution features a vertical, aerodynamic design that enables it to generate electricity even in low wind conditions. With exceptional conversion efficiency, robust protection features, and easy installation, it is ideal for homeowners and those seeking reliable energy solutions for tourism.

Details：

4-Hole Flange Fixation: The four-hole standard DN25 flange is easy to install and can firmly fix the product in the desired position. The humanized flange mounting design makes the installation, maintenance, and overhaul of the equipment more convenient.

Controller: It is equipped with wires in three colors: green, black, and red, and has a wiring diagram for easy wiring.

Application：

This product is suitable for energy supply in wind-solar complementary households, ships, pavilions, cabins, RVs, streetlights, etc.

Specification ：

Material: Aluminum, Nylon Fiber, Stainless Steel

Process: Baking Paint

Color: White

Assembly Required: Yes

Generator Type: Permanent Magnet Levitation Generator

Braking Method: Electromagnetic

Wind Direction Adjustment: Automatic

Number of Fan Blades: 5

Maximum power: 100 W

Rated Battery Voltage: 12V

Protection Level: IP67

Number of Installation Holes: 4

Max. Noise: 30dB

Flange Specification: DN25

Working Temperature: -40~80 ℃/-40~176 ℉

Rated Wind Speed: 13m/42.65ft/s

Max. Wind Speed: 35m/114.83ft/s

Starting Wind Speed: 2.5m/8.2ft/s

Product Size (D*H): 75*80cm/29.53*31.5in

Package Size: 82.5*34*23cm/32.48*13.39*9.06in

Gross Weight: 15kg/33.07lbs

Net Weight: 14kg/30.86lbs

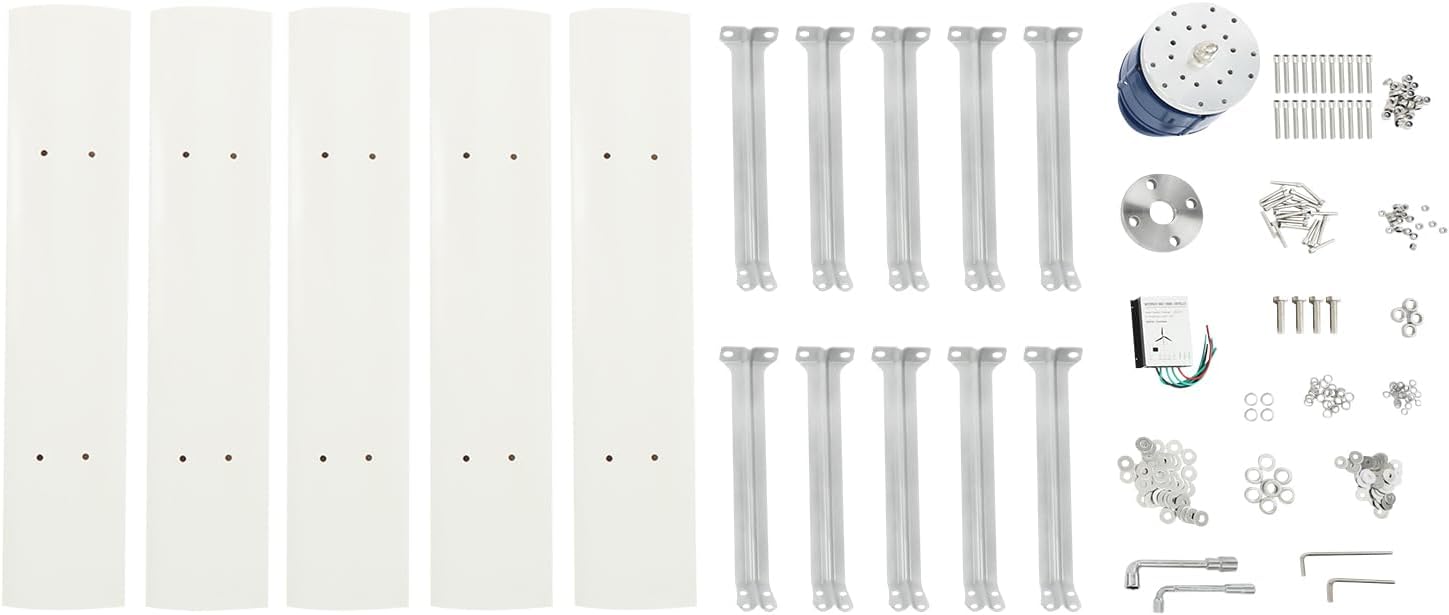

Package Included：

1 * 5-blade Wind Turbine Generator

1 * Controller
