500W 12V DC Wind Turbine Generator Kit Vertical Axis Wind Turbine Generator with Controller, Wind Power Generation with Maximum Speed Protection, for Home Commercial Industrial Energy (White and Blue)

【Sturdy and Durable】: It adopts a permanent magnet generator with an iron core paired with two aluminum alloy blades, and the surface is sprayed with plastic, which can withstand bad weather and ensures the product's long and stable operation.
【Efficient Work】: It has a power of up to 500W and a
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    It is suitable for home, business, and industrial energy supply in boats, gazebos, cabins, or mobile homes, and on top of streetlights.


    Details

    High-quality Controller: It adopts a high-power tracking intelligent microprocessor controller to effectively regulate the current and voltage.

    Spiral Design: It adopts the spiral design principle, rotating in the horizontal plane brings low wind pressure, which can withstand super strong typhoons.


    Specification

    Material: Iron, Aluminum Alloy, All Copper

    Color: White and Blue

    Process: Spray-plastic Treatment

    Model: NE-500W

    Blade Numbers: 2

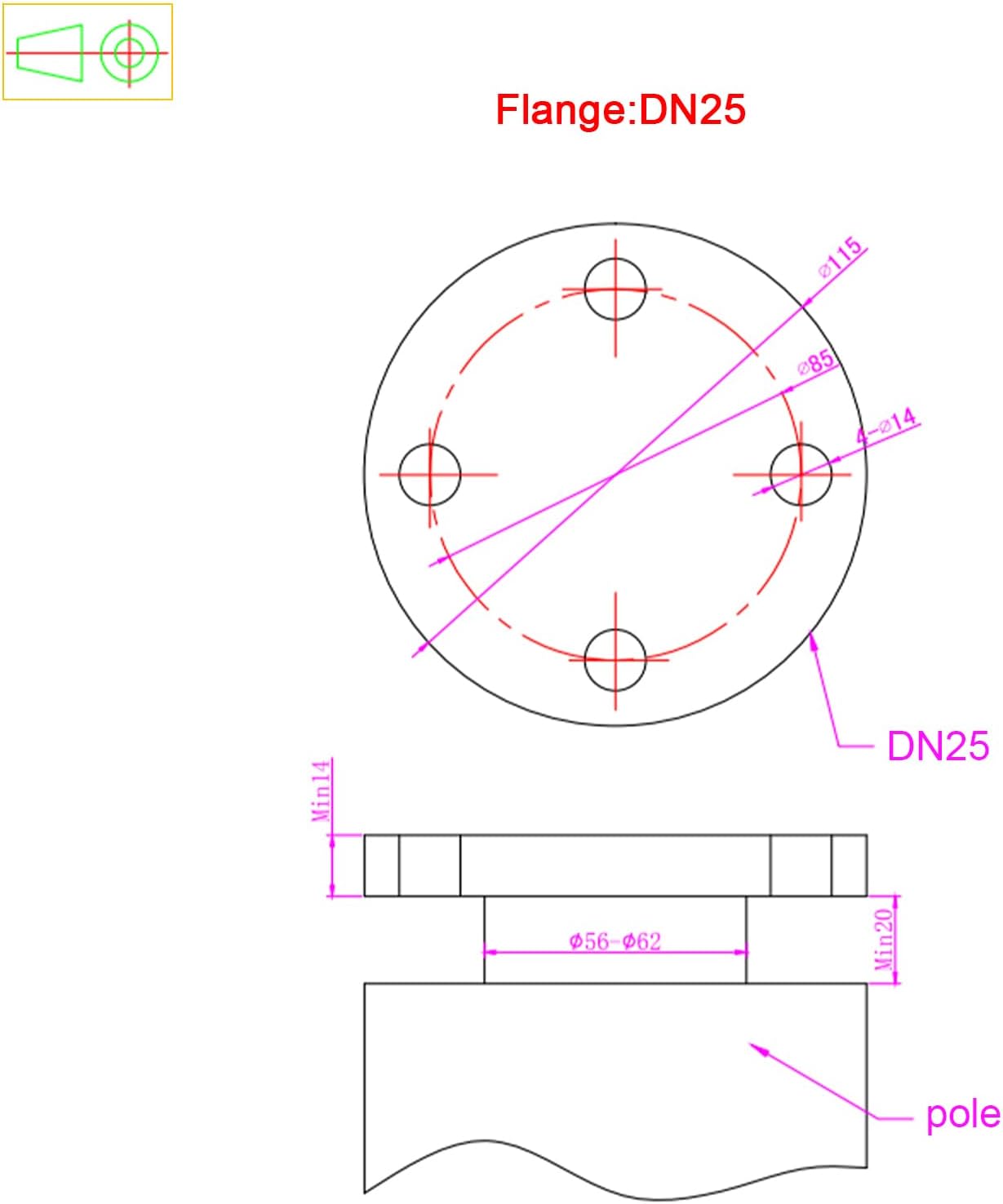

    Flange: DN25

    Rated Battery Voltage: 12V

    IP Protection Level: IP67

    Wheel Diameter: 0.4m/1.31ft

    Rated Power: 500W

    Rated Voltage: 12V

    Rated Wind Speed: 13m/42.65ft/ s

    Control System: Electromagnetism

    Assembly Required: Yes

    Noise: Less Than 62dB

    Product Size(L*H): 40*71cm/15.75*27.95in

    Flange Connection Size: φ14/0.55in, φ85/3.35in, φ115/4.53in

    Number of Connection(Smallest) Holes: 4

    Flange Thickness: Min14mm/0.55in

    Pylon to Flange Distance: Min20mm/0.79in

    Adaptable Pole Size Range: φ56-φ62 mm/φ2.22-φ2.44in

    Package Size: 80.8*33*21cm/31.81*12.99*8.27in

    Net Weight: 9kg/19.84lbs

    Gross Weight: 10kg/22.05lbs


    Package Included

    1* Wind Turbine

    1* Controller

    1* English Manual


    Notes

    1.Please check the style and size before purchasing.

    2.Please read the instruction manual completely before installation and use, and pay particular attention to the safety instructions included.

    3.Please connect the three green wires of the controller to the three wires of the fan (without distinguishing the poles), and the red and black wires to the positive and negative poles of the battery respectively.

    4.Please be sure to use gel batteries or lead-acid batteries, not lithium batteries.

    5.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering
