50A MPPT Solar Charge Controller, 12V/24V Auto DC Input, IP43 Waterproof, Backlit LCD, 50 amp Solar Panel Regulator Charger for LiFePO4 Gel Wet AGM Battery Charging

To make an using andbattery friendly real MPPT solar charge controller, KWAFOO use the lastestMaximum Power Point Tracking (MPPT) algorithm, With MPPT Tracking efficiencyabove 99.5% to Maximize the solar power charging to your 12V or 24V battery system. The backlight LCD display and Multiple LED indicator design equiped with APP operation to ensure our customer can check the real time system condition so easy. Moreover, with 5-Stage charging technology and 9 types of battery setting include both Lithium battery and lead acid battery, the KWAFOO MPPT Solar Charge Controllerwill rapid charge your battery safe, and maintain the battery life longer.

Features:

> Lastest Maximum Power Point Tracking algorithm, MPPT Tracking Efficiency above 99.5%.

> User-friendly design, easy preview and setup menus, 8 types of battery setting and customs setting, suitable for most 12V/24V rechargable batteries.

> Advanced 5-Stage charging Improve charging efficiency and extend battery life.

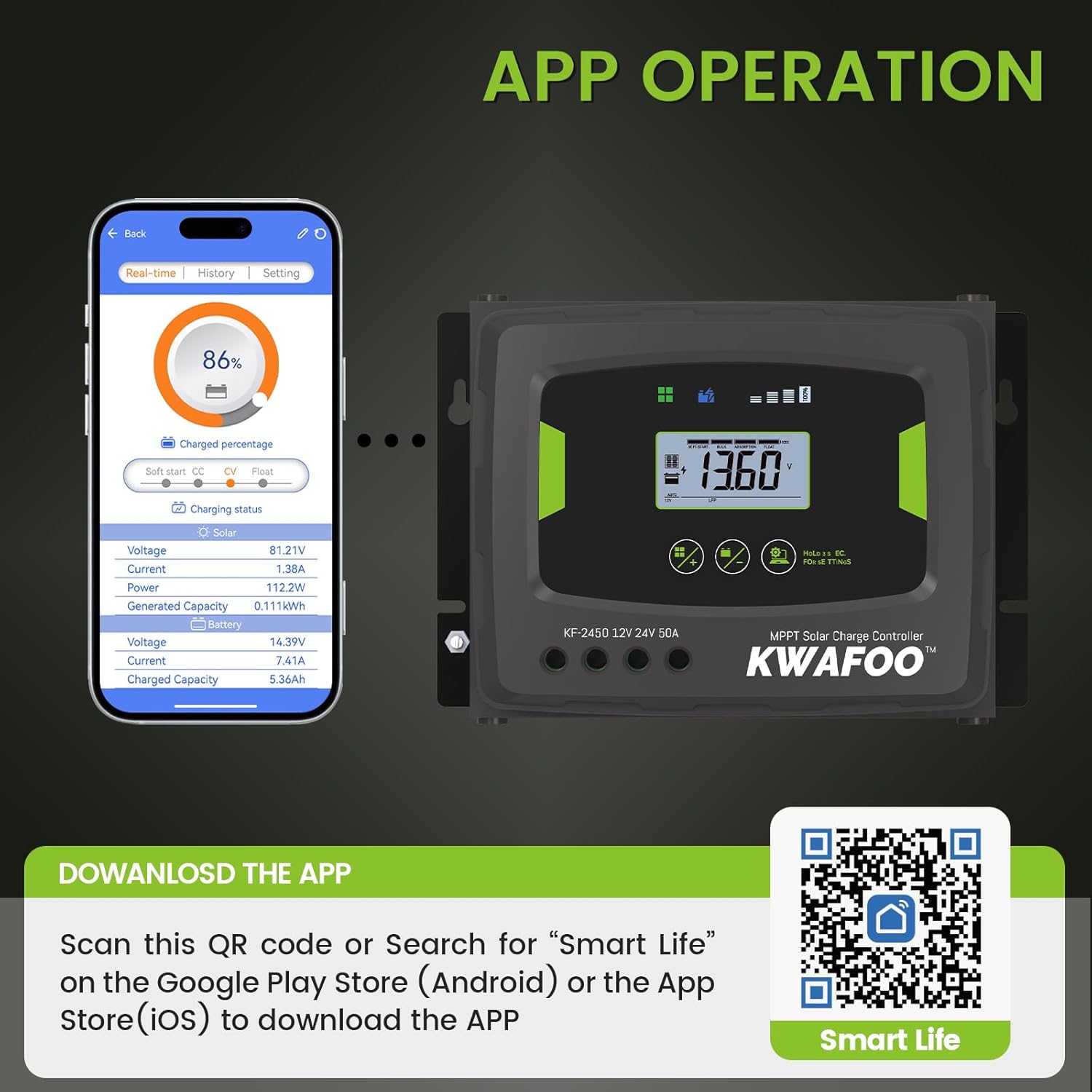

> APP operation, monitor the system data any any time.

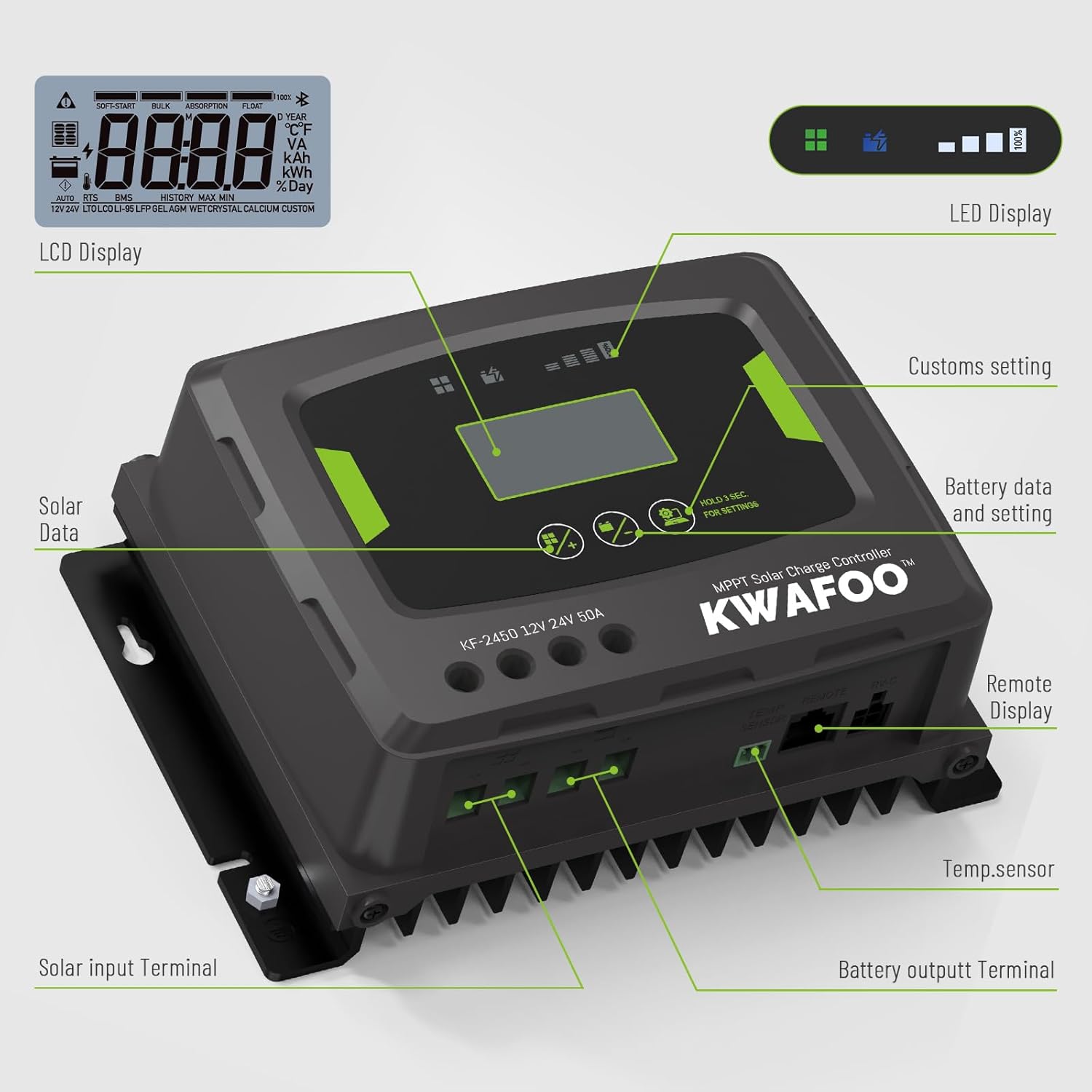

> Backlight LCD Display and Flash designed Multiple LED Indicator.

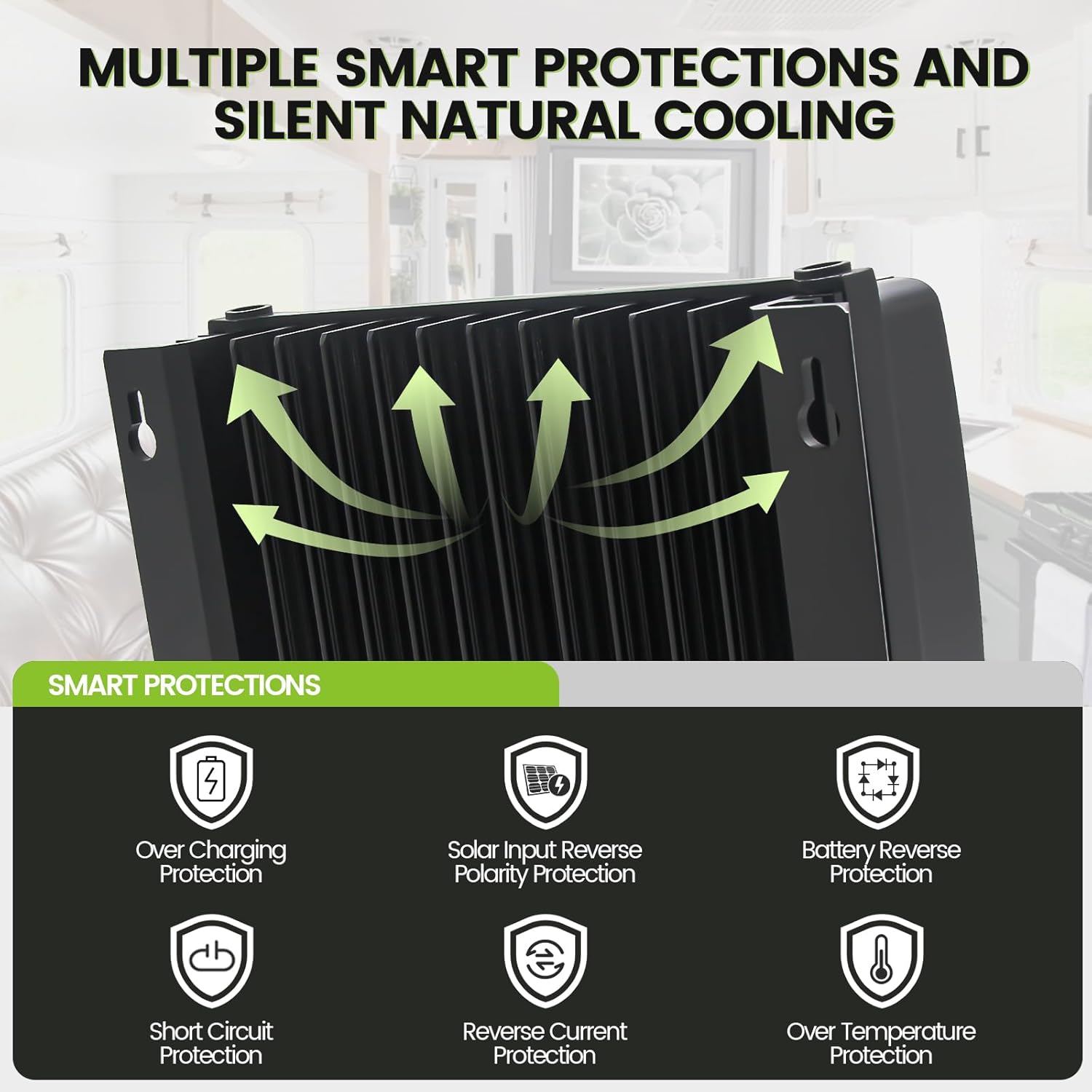

> Multiple protection to ensure safety charging.

> IP43 Splash Proof.

> Common negative grounding connection.

Lastest Maximum Power Point Tracking algorithm, MPPT Tracking Efficiency above 99.5%.

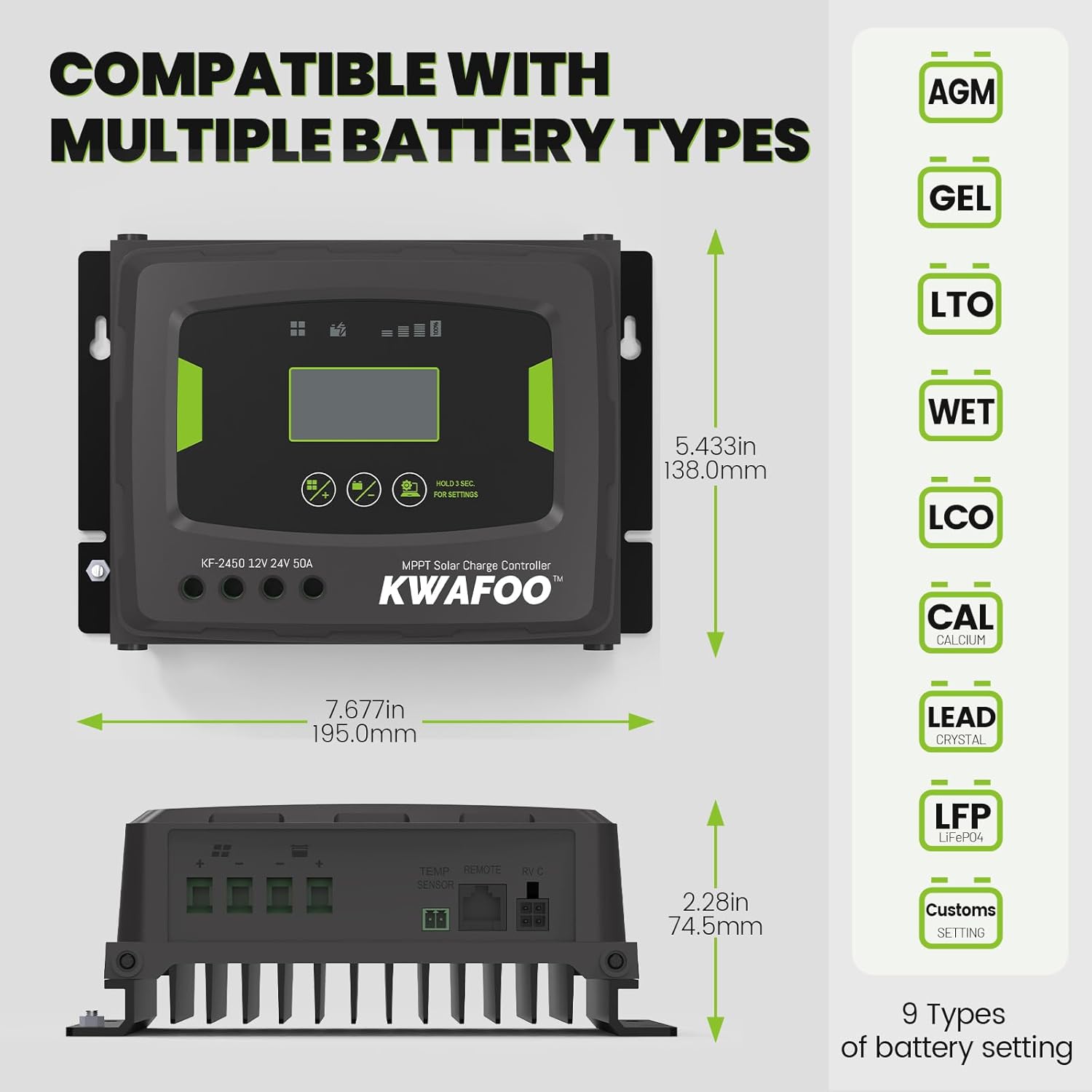

8 Types of battery setting, include AGM, GEL, WET, Lead Crystal, Calcium lead acid batteries and LFP, LCO, LTO Lithium batteries, plus the customs setting for sepcial battery type to cover all types of 12V and 24V rechargable batteries.

System GroundedNegative GroundSystem Voltage12V/24V AUTO DetectingCompatible Battery TypeLCO/LTO/LFP/ AGM/Gel/WET/Calcium/Crystal (Lead crystal) lead acid batteries Rated Charging current50AmpMaximum PV input Voltage<100VMaximum input of PV Power700W/12V; 1400W/24VElectrical ProtectionOver charging, over temperature, reverse polarit and short circuit IP GradeIP43 Splash proofTemperature compensation range-20°Cto 50°C Operating Temperature Range-25°C to 40°C; -13°F to 104°FStorage Temperature Range-40°C to 85°C; -40°F to 185°FNet WeightApprox. 1.4KGItem Dimensions195 x 138 x 74.5 mm; 7.68 x 5.43 x 2.93 in

KWAFOO Digital Smart MPPT Solar Charge Controller

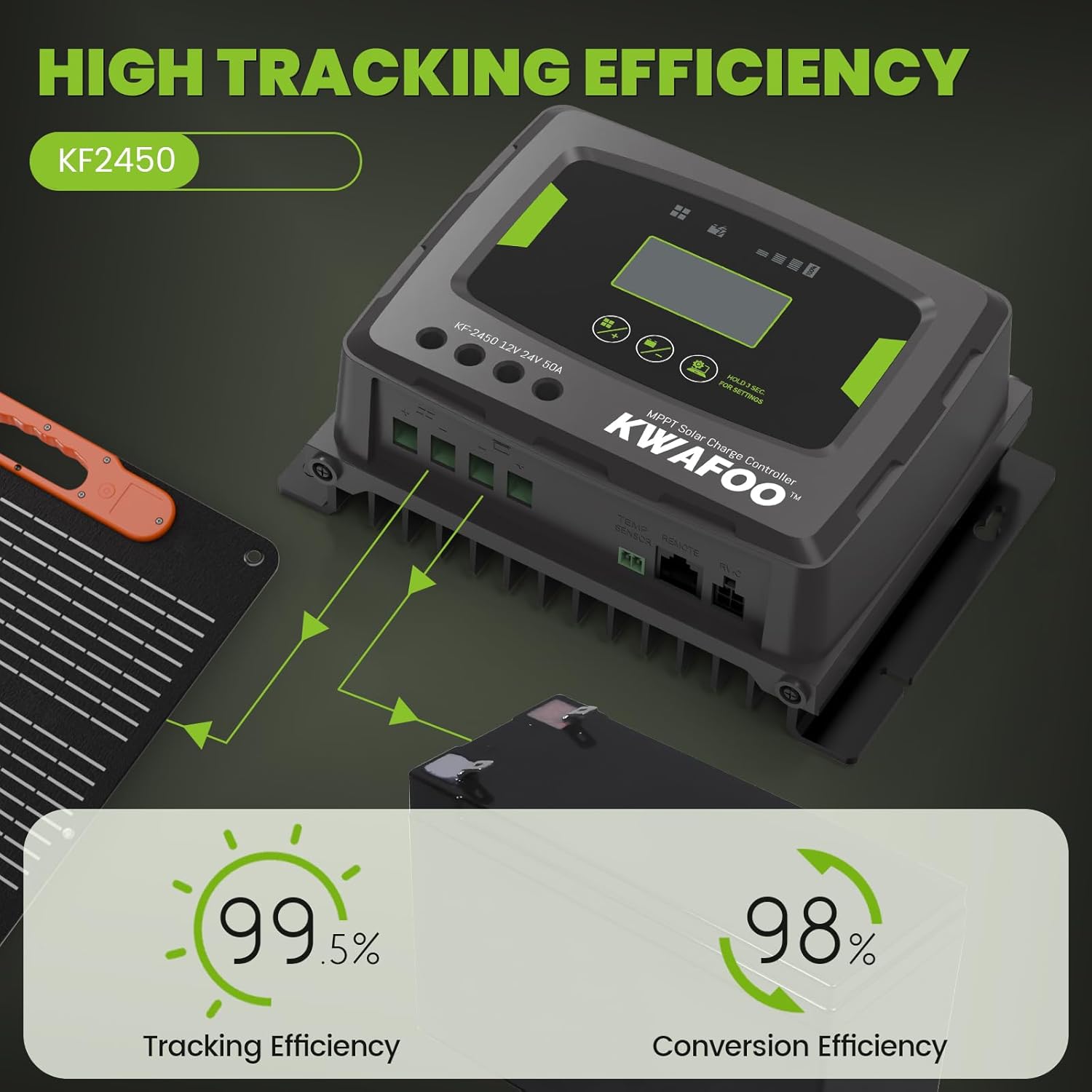

99.5% MPPT Tracking Efficiency

8 Batteries and Customs Setting

P-01: Solar input Reverse
