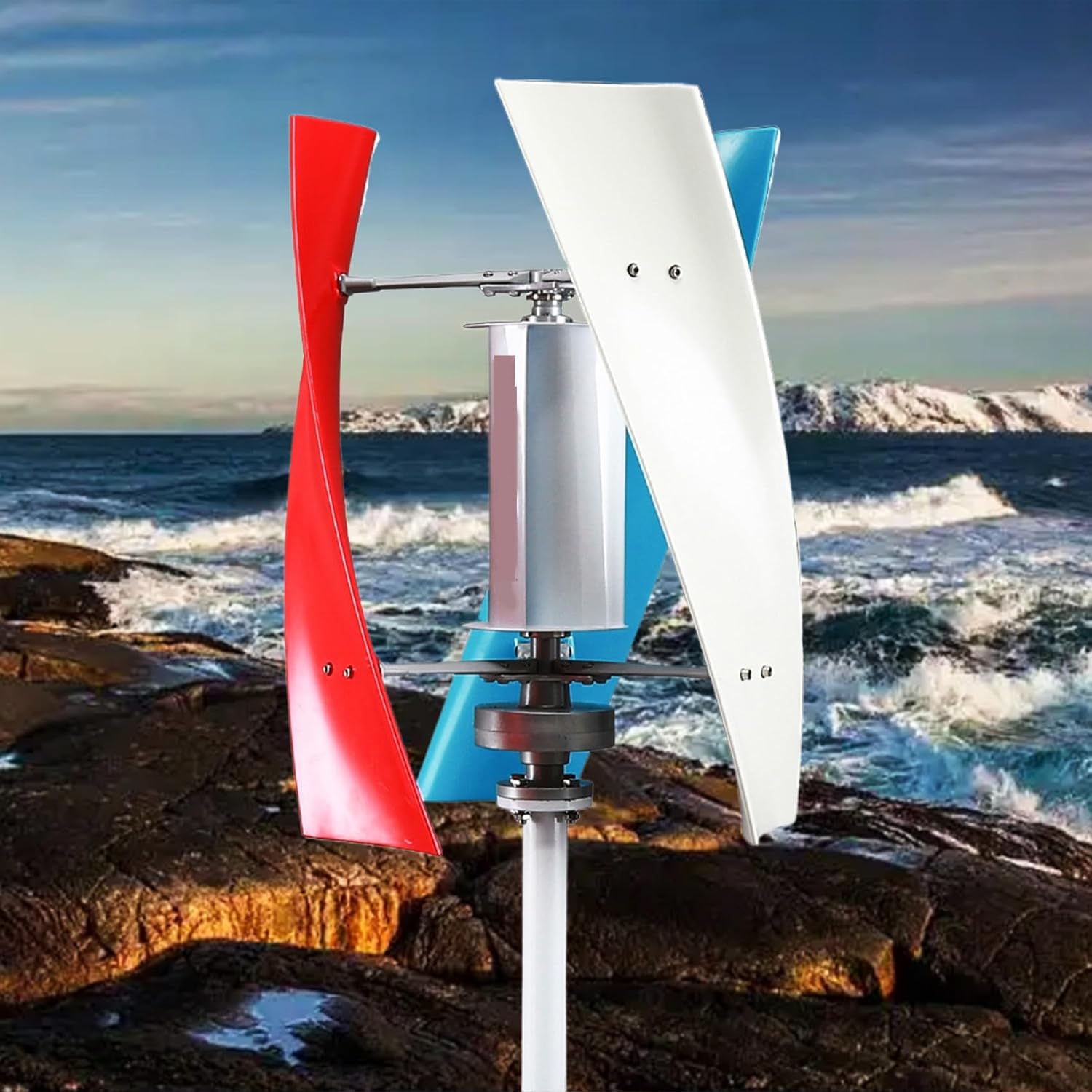

Low-Speed 1500W-3500W Vertical Wind Turbine Generator, 12V 24V Magnetic Dynamo Free Energy Strong Power Ac 220V Inverter Output for Home

▶low speed rating, low wind speed starting, small size, low energy consumption, light weight, compact structure, and high efficiency.
▶No iron core, no hysteresis and cogging effects, low starting torque.
▶No iron loss, high efficiency.
▶Design high-precision coils using unique coreless pre
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Product selling points:

    Our vertical wind turbines are small, light and easy to assemble. Our wind turbine is equipped with a generator charging controller that matches the generator, This wind turbine controller can auto match 12V/24V/48V battery system.

    Specification:
    Number of leaves: 3 leaves
     Wind wheel diameter: 520mm
     Blade height: 750mm
     Rated voltage (AC): 12V 24V 48V
     Rated power (W): 1500W
     Wind installation pole size: 60mm
     Packing size: 86×38×21cm
     Package weight: 12kg
     Initial wind speed (m/s): 2 m/s
     Cut-in wind speed (m/s): 3 m/s
     Rated wind speed (m/s): 10 m/s
     Safe wind speed (m/s): ≤40m/s
     Blade material: galvanized aluminum alloy
     Generator: Three-phase permanent magnet levitation motor
     Control system: electromagnet
     Wind turbine installation height (m): 2-12m
     Generator protection class: IP54
     Working environment temperature: -25~+459C
     Working environment humidity: ≤90%
     Altitude: ≤4500m
     Overspeed protection: electromagnetic brake
     Overload protection: electromagnetic brake and unloading device

    packing list:

    3×pcs blade

    1 × generator

    1 × bolt and nut

    1×Spindle and arm

    1×charging controller
