Wind Turbine, 3-Blade Wind Turbine Generator Automatic Home Windmill Kit with Controller, Home Wind Turbine System Wind Power Equipment for Boats, Gazebos, Chalets, IP67 Protection Grade

Specification

Condition: New

Controller System: Electromagnetism

Starting Wind Speed: 1.3m(12inch)/s

Cut-in Wind Speed: 2.5m(98inch)/s

Rated Wind Speed: 11m(433inch)/s

Max Instantaneous Wind Speed: ≤40m(1575inch)/s

The Instantaneous Maximum Wind Speed: ≤45m(1772inch)/s

Blades Quantity: 3 (with Different Colors)

Diameter of Blades: 0.6m/24inch

Blades Height: 0.8m/31inch

Speed Regulation: Automatic

Rated Voltage: 12V

Rated Power: 400W

Max Power: 450W

Generator Protection Grade: IP67

Work Environment Temperature: 25 to 45℃+

Product Assembly Weight: <10kg/22lbs

Over-speed Protection: Electromagnetic Brake

Blade Material: Glass Fiber

Generator: Maglev Generator

Service Life: 10-15 Years

Installation Instructions: Not Included

Installation

1. Check all the parts of the wind turbine, which includes 6 brackets and 3 blades in total.

2. Place the wind turbine vertically.

3. Connect brackets with blades by the bolt. Load the upper cover plate and lower cover plate.

4. Fix the bolt in the mounting hole (at the end of the bracket) from the outside of the wind blade.

5. Tighten all the bolts of blades and brackets, and toggle the blades. It should not have abnormal noise or jamming. Tighten the nut (under the upper cover plate of the wind turbine) to make the upper cover plate tightly fixed.

6. Align the flange hole of the wind turbine with the flange hole on the tower pole, put on flat washers and spring washers, and tighten the nut.

7. Professional installation is highly recommended if you have no previous installation experience.

8. You can watch the attached installation video as a reference.

9. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

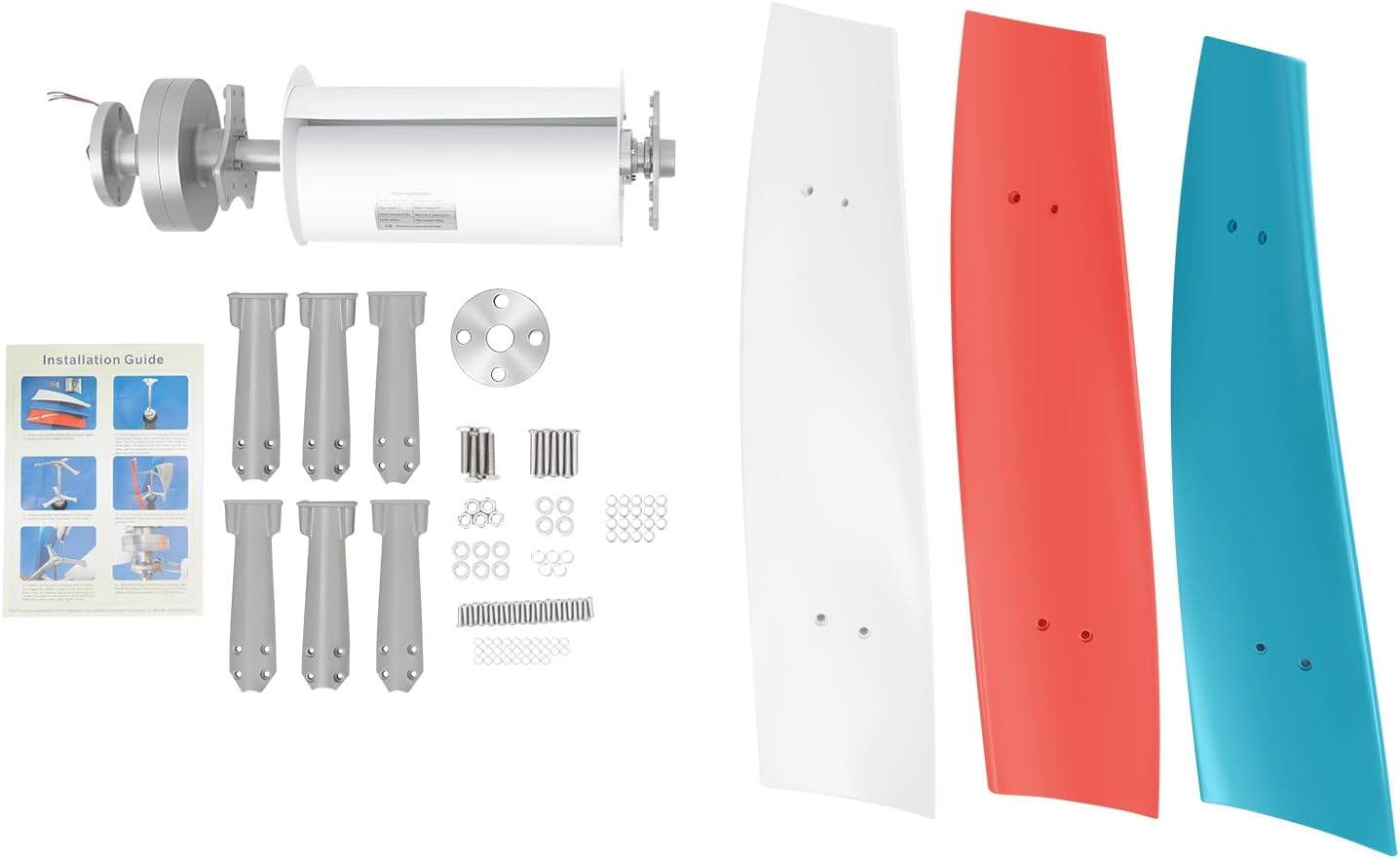

Package Included

1 x Wind Turbine

1 x Controller

3 x Blades (White, Red, Blue)

1 x Bag of Screws to Connect the Main Body

1 x Bag of Screws for Connecting the Bracket Blades

Other Accessory for Assembly

Notes

1.There are two different kinds of screws. Please confirm the correct position of the screws before installation.

2.The upper cover plate of the wind turbine does not need to be tightened, and the blades can be properly adjusted upward or downward during installation.

3.When you place the wind turbine vertically, please prevent the bottom flange from crushing the output wire.

4.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
