SUNGOLDPOWER UL1741 SPH6548P 6500W DC 48V Split Phase Solar Inverter,120V/240V AC Input/Output (settable),Built-in 2 MPPT Solar Controllers,Max. 140A Battery Charging,Inverter Charger Support Parallel

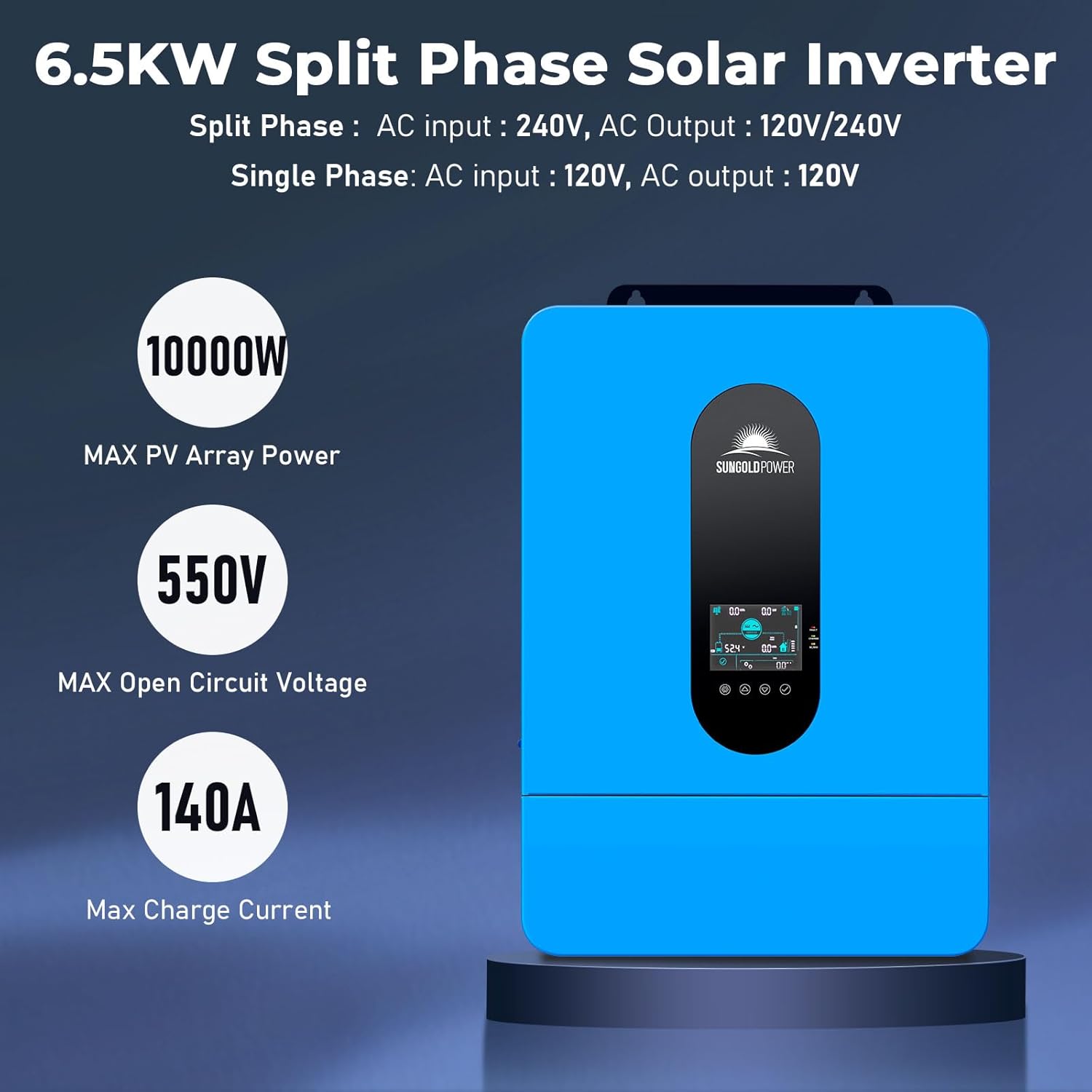

• 6.5KW UL1741 Split phase solar inverter built in 2 solarcontroller, Max. 10000W PV input and 550V.
• Support both Split-phase ( L-N=120V, L-L=240V ) and Single-phase ( L-N=120V )pure sine wave output.

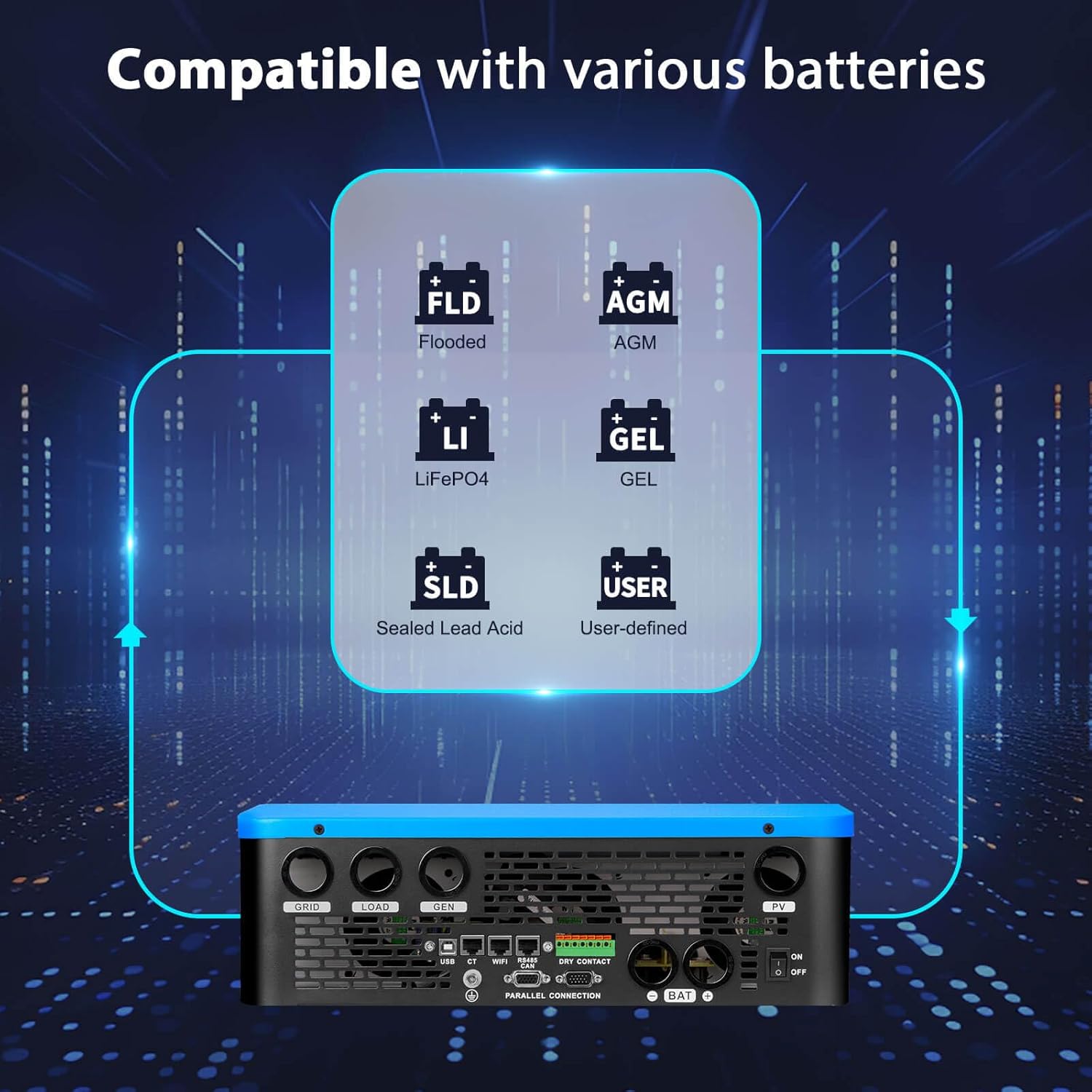

• Working with different kinds of batteries, Support CAN, USB and RS485 communications.
• Shore power /PV power supply access can trigger the activation of the li-ion battery when is dormant.
• Supports 2 solar inputs, dual 99.9% efficiency MPPT, Maximum 18A current in a single circuit, perfectly adapted to high power modules.

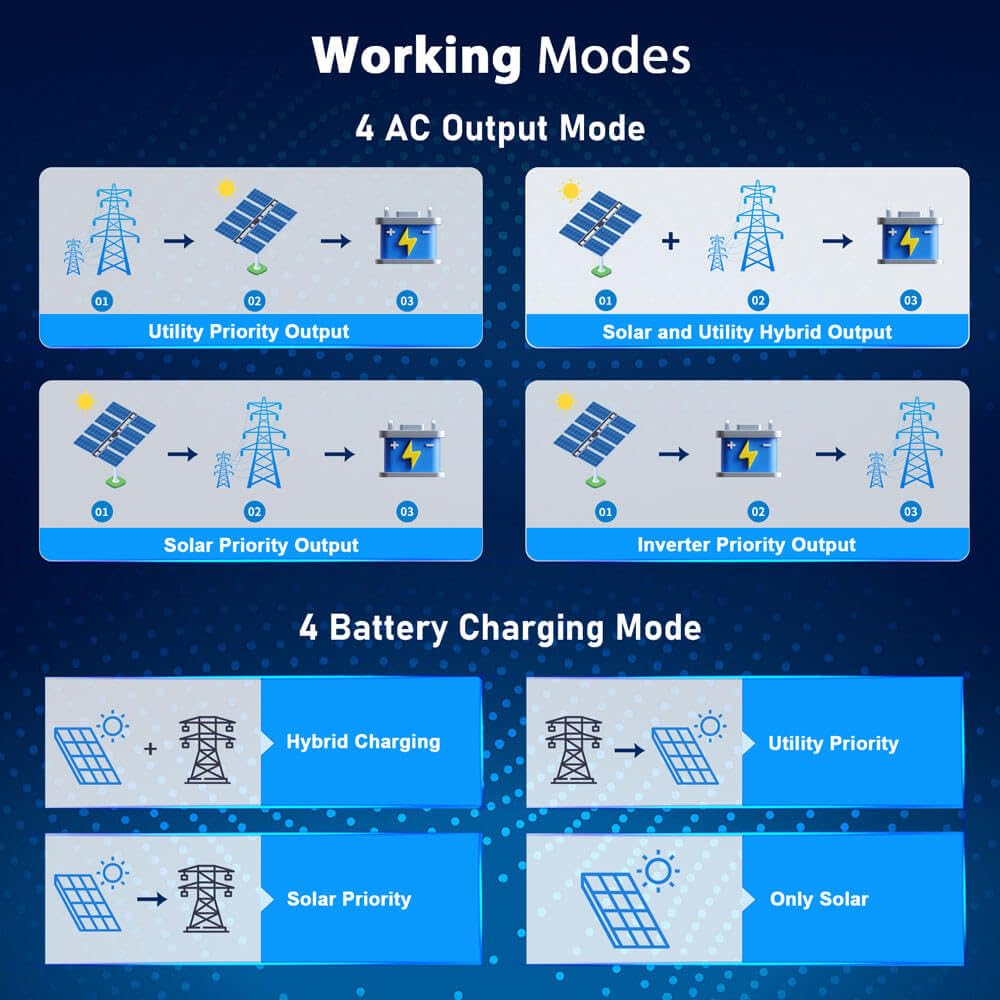

• 4 Charging modes are available: Solar only, Utility priority, Solar priority, and Mixed Utility/PV charging.

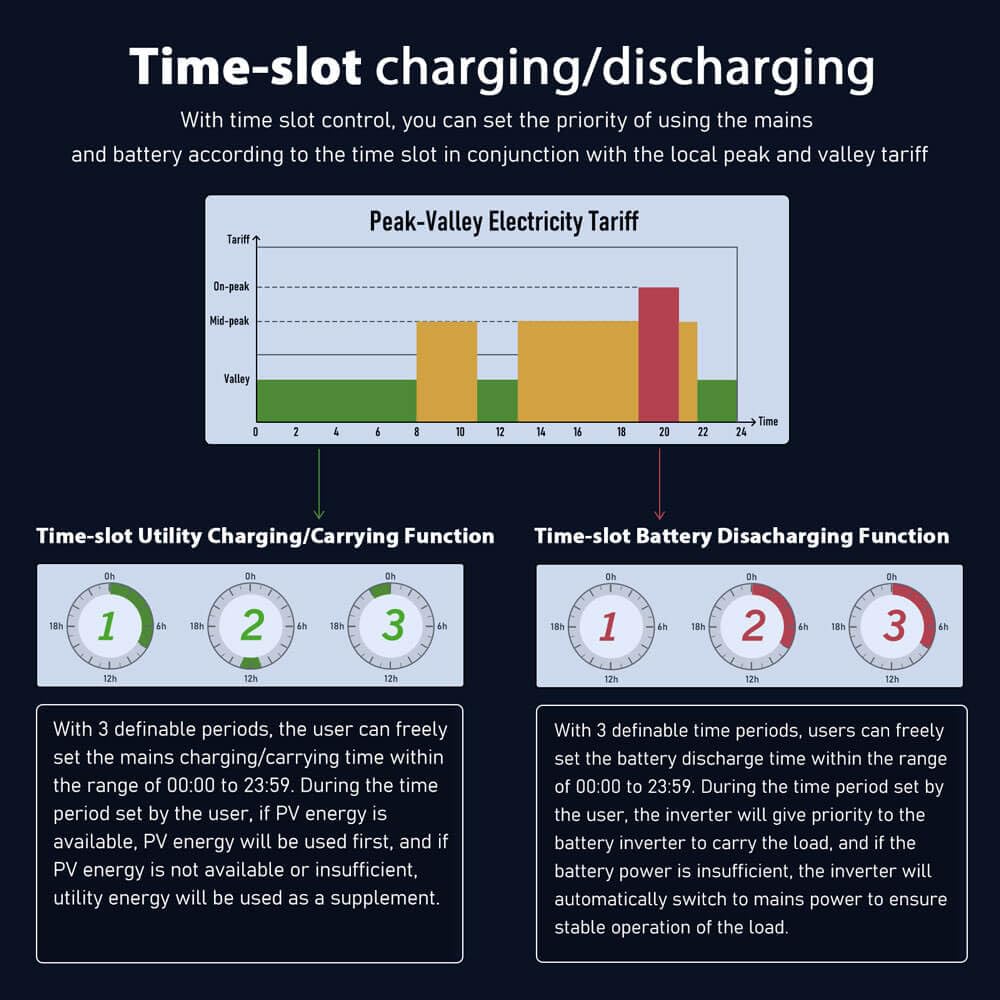

• Setting the time-slot charging and discharging periods according to the local peak and valley tariffs
• Energy saving mode function to reduce no-load energy losses.
• It doesn't support Grid-tie function.

• PV Input current protection
• PV Input over-voltage protection
• AC input over-voltage protection
• AC output short-circuit protection
• Battery over voltage protection
• Battery over-current protection
• Inverter Over-load protection
• Bypass over-current protection

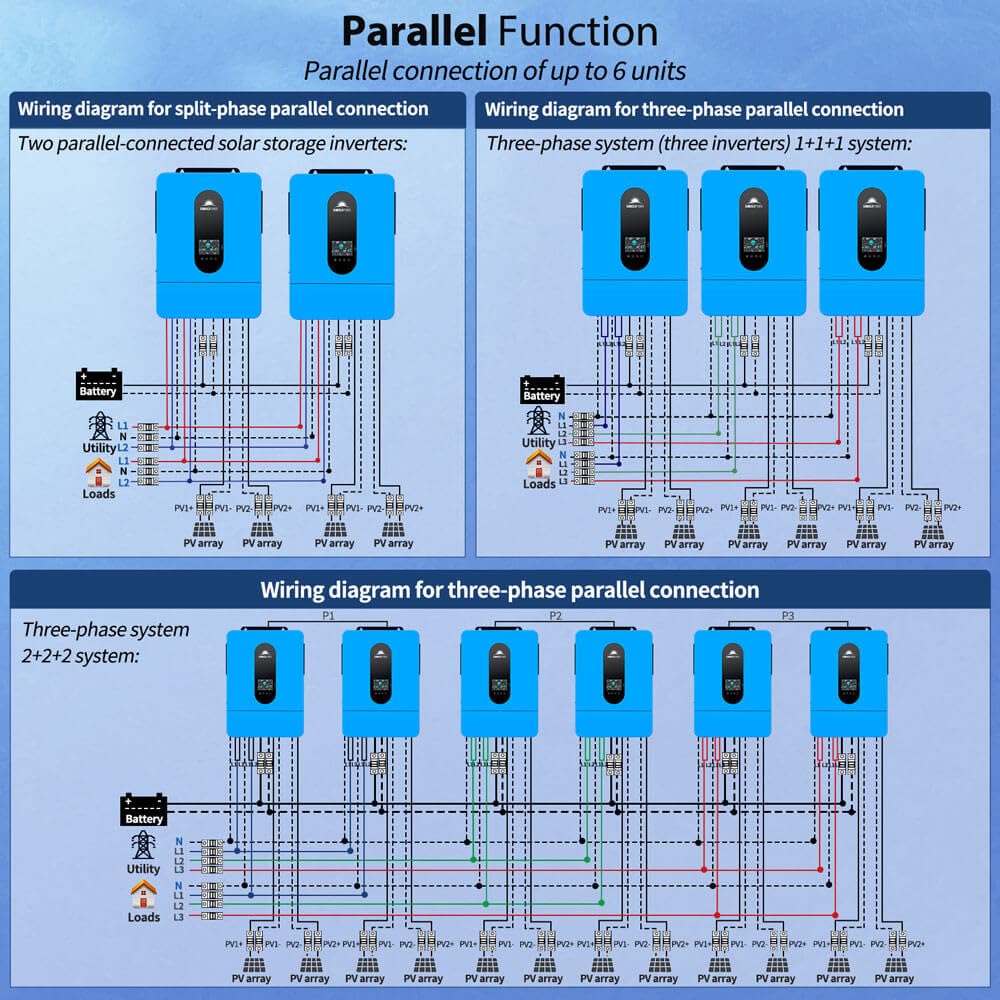

• 1. Each inverter should connect to PV modules separately.
• 2. The settings of each inverter should be the consistent.
• 3. The input connection of each inverter should be the same.
• 4. Be sure the length of all battery cables need to be the same, and share the same battery bank.
• 5. Please use the original Parallel Cable.

SUNGOLDPOWER 6500W DC 48V Solar inverter HIGHTLIGHT

Multiple Protection Features

When inverters are used in parallel , it should be noted that:

SUNGOLDPOWER Solar inverter Specification
