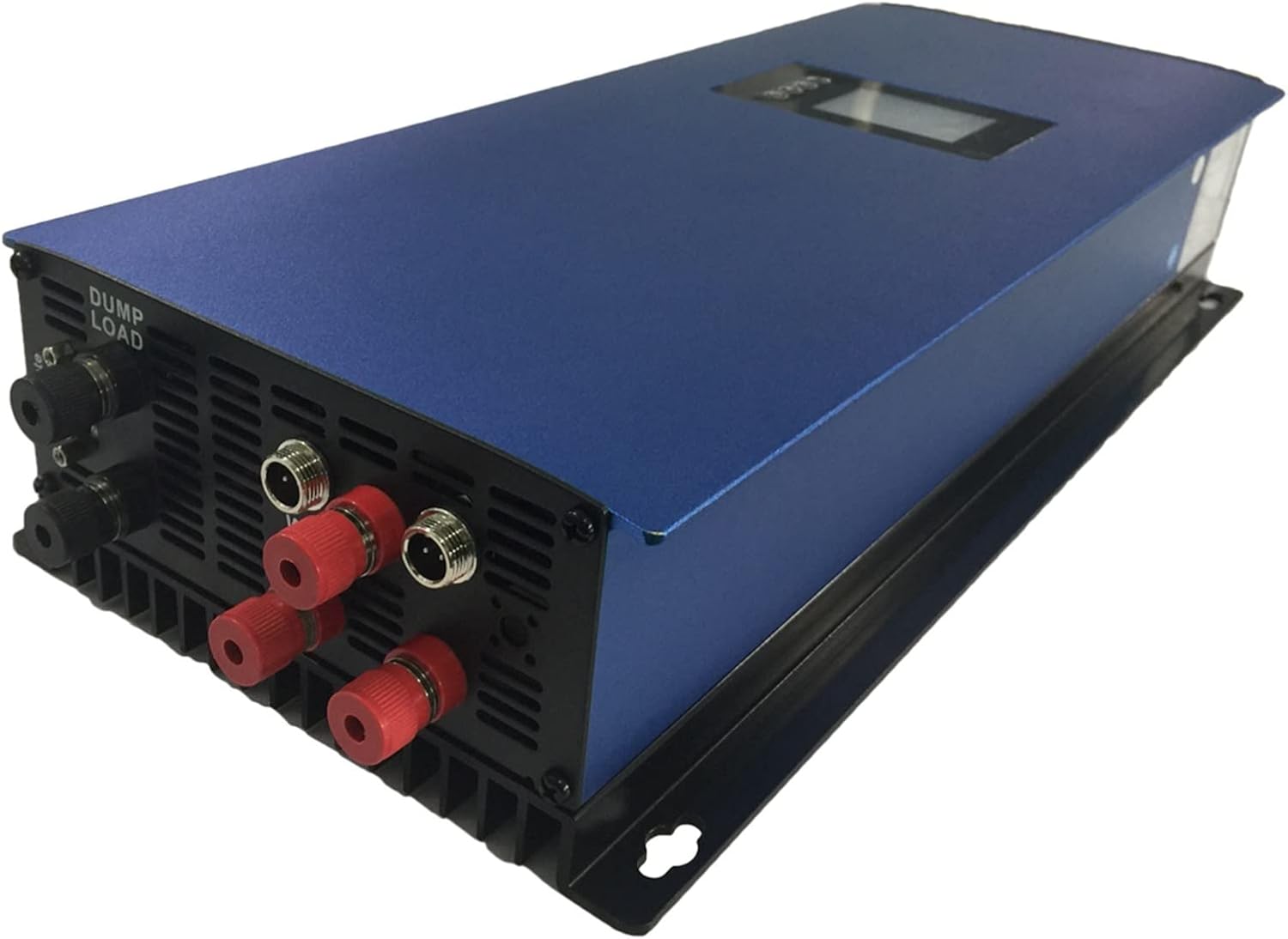

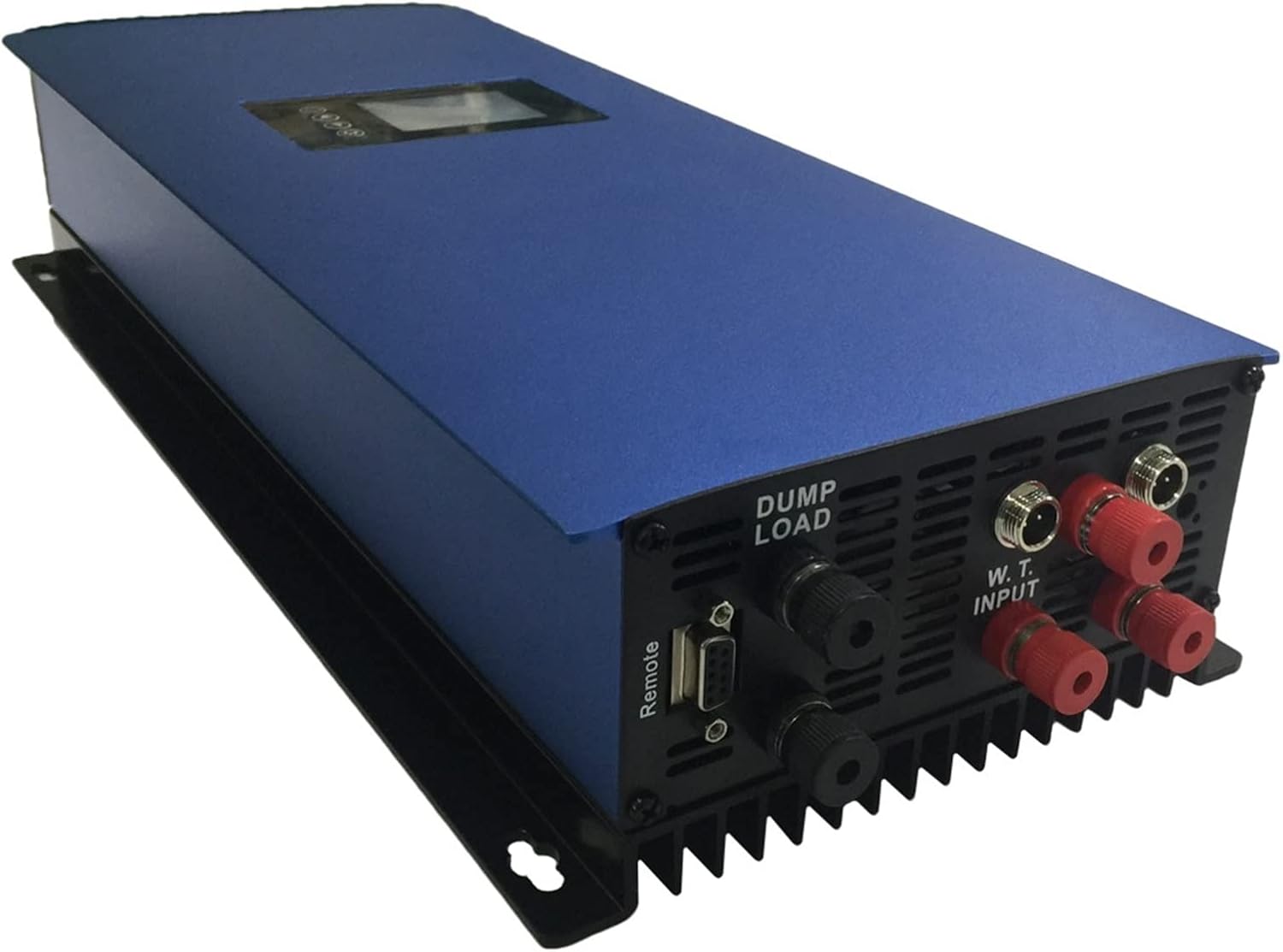

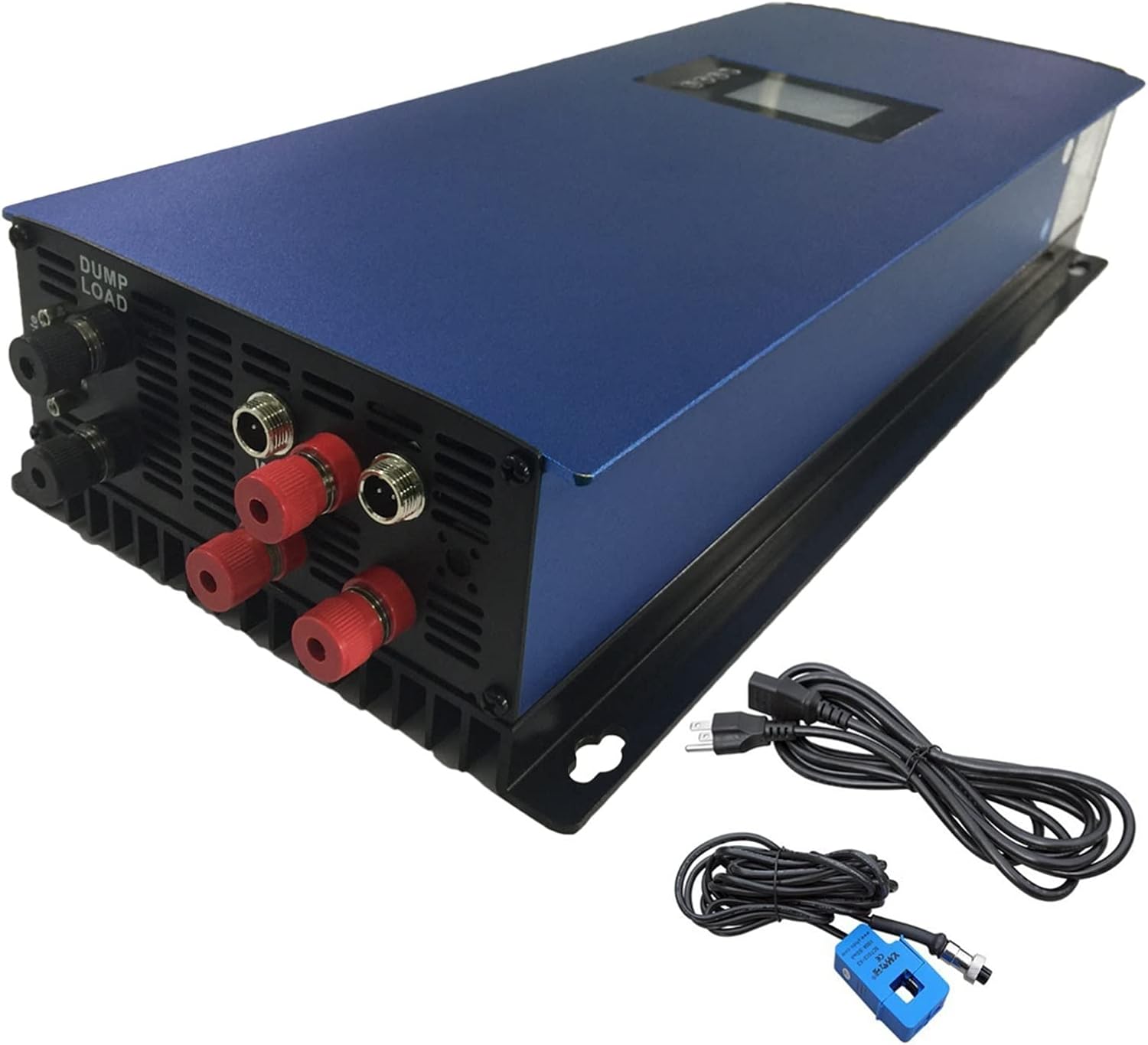

2000W Grid tie Inverter LCD Pure Sine Wave Dump Load Resistor Wind for 3 Phase AC Wind Generator(No Sensor no WiFi)

Isolation Transformers
220-240V
2000W wind power grid tie inverter with LCD& dump load Resistor Latest Program enable you use limiterwifi functionclamp sensor and have to be purchased separately 4590V DC to 220V AC MPPT Pure Sine Wave Grid Tie Power Inverters with builtin rectifier for 3 phase AC wind generator grid tie system
This unit is the second generation wind power grid tie invertercompletely design, structure,the design enables the inverter working more stable,much better output waveform,much better PF value,higher efficiency etc.
This WAL type is integrate rectifier inside the inverter,it can directly connect to the three phase wind ,no need to connect AC to DC controller between the wind and the inverter.Currently,we provide two type DC voltage range,22-60vdc,for 24V three phase wind ,and 45-90vdc for 48v three phase wind .
How to select a wind grid tie inverter ?
1. Max output power of the wind :
500w-1000w wind turbines , suggest 1000w inverter .
1000w-2000w wind turbines , suggest 2000w .
2. Voltage range :
24v 36v 48v wind turbines , suggest 22-65v inverter.
48v 60v 72v 90V wind turbines ,suggest 45-90v inverter .
Some wind turbines has been built-in a regulator , the output is DC , please choose DC input type wind inverter .
How to use a grid tie inverter with battery and wind ?
If the user want to use a wind to charge battery first , and output excess power to the grid , we suggest the battery function grid tie inverter(solar power GTI ,battery function ) . the wind inverter can not work with battery well .
What is the dump load controller/resistor ?
The dump load controller/resistor is used to protect the wind and inverter .if the wind speed is too fast , the voltage will be high , it will work to reduce the wind turbines runing speed and voltage .
Specification:
Input Data
Input Voltage Range
45-90vdc (test point is at the output of the inside recti
