Home / Wind Solar Hybrid MPPT Charge Controller, 12V/24V/48V Auto-Sensing Off-Grid Controller with LCD Display, 12000W Boost Charging for Home, RV Or Boat(24v48v)

Wind Solar Hybrid MPPT Charge Controller, 12V/24V/48V Auto-Sensing Off-Grid Controller with LCD Display, 12000W Boost Charging for Home, RV Or Boat(24v48v)

✅【All-in-One Hybrid Charging】 This hybrid charge controller fits all 12/24/48V batteries. Fits 12000W max wind generator and 12000W max solar panels for wind solar complementary system for home, boat, street light.
✅【MPPT & Pwm TechEquipped with booster MPPT technology for wind turbines, it e
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    LCD Wind and Solar Complementary System MPPT Charge Controller Household Wind Generator Controller 12V 24V 48V Household Lighting Equipment Automatic Controller

    Specification:
    Project type: MPPT wind and solar hybrid controller
    Material: aluminum alloy
    Rated voltage: 12V24V/24V48V
    Control mode: MPPT fan boost charging function, PWM discharge function, PWM over-current limiting function
    Display parameters: voltage, battery power, current, power, charging mode, temperature, etc., some parameters can be set.
    A variety of working modes are optional: pure light control mode, normal open mode, light control + time control mode (four time periods + morning light)

    feature
    > Fan charging, intelligent MPPT boost regulation.
    > PWM fan stepless discharge, external discharge device, solar intelligent separation charging.
    > Controller dual power supply function: battery + solar power supply.
    > Various load output working modes are adjustable.
    > High performance and stable chip control.

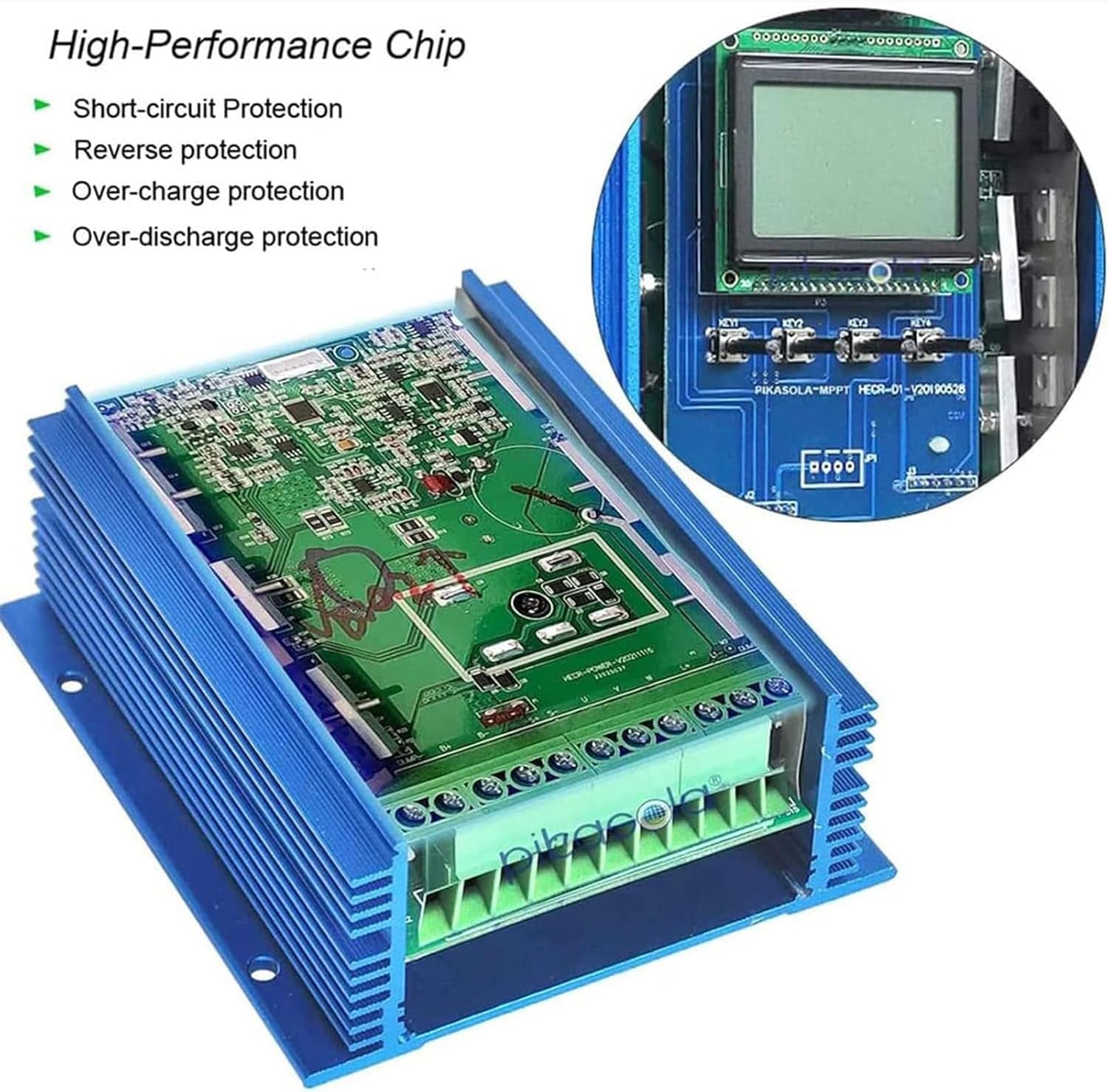

    > The internal circuit board of the controller is sprayed with three anti-paints to prevent dust, moisture and static electricity.

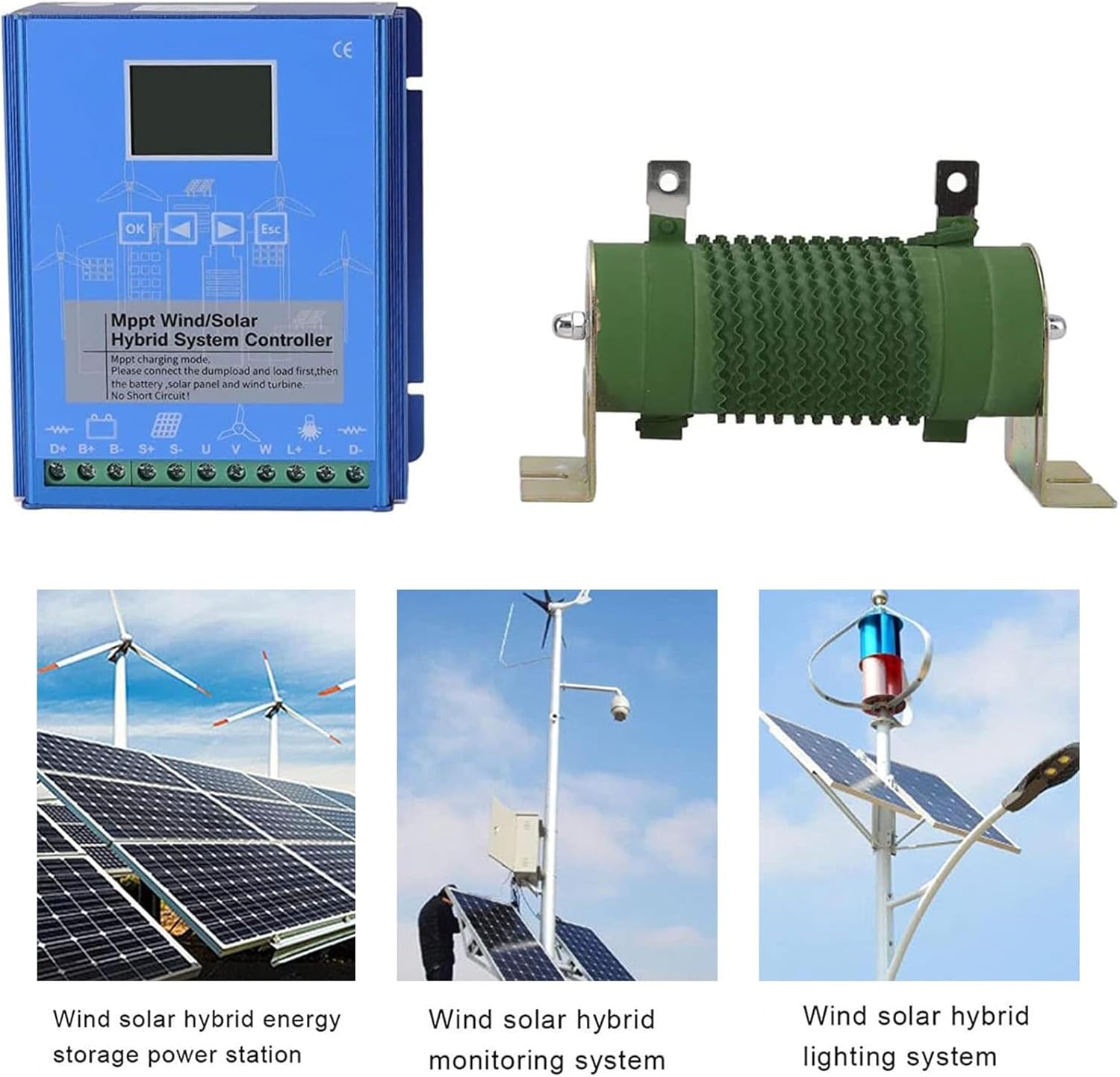

    packing list:
    1 x wind and solar hybrid controller
    1 x external discharge resistor
    2 x connection cables
    1 * instruction manual

    notes:
    ⚠ Do not plug or unplug the power adapter with wet hands;

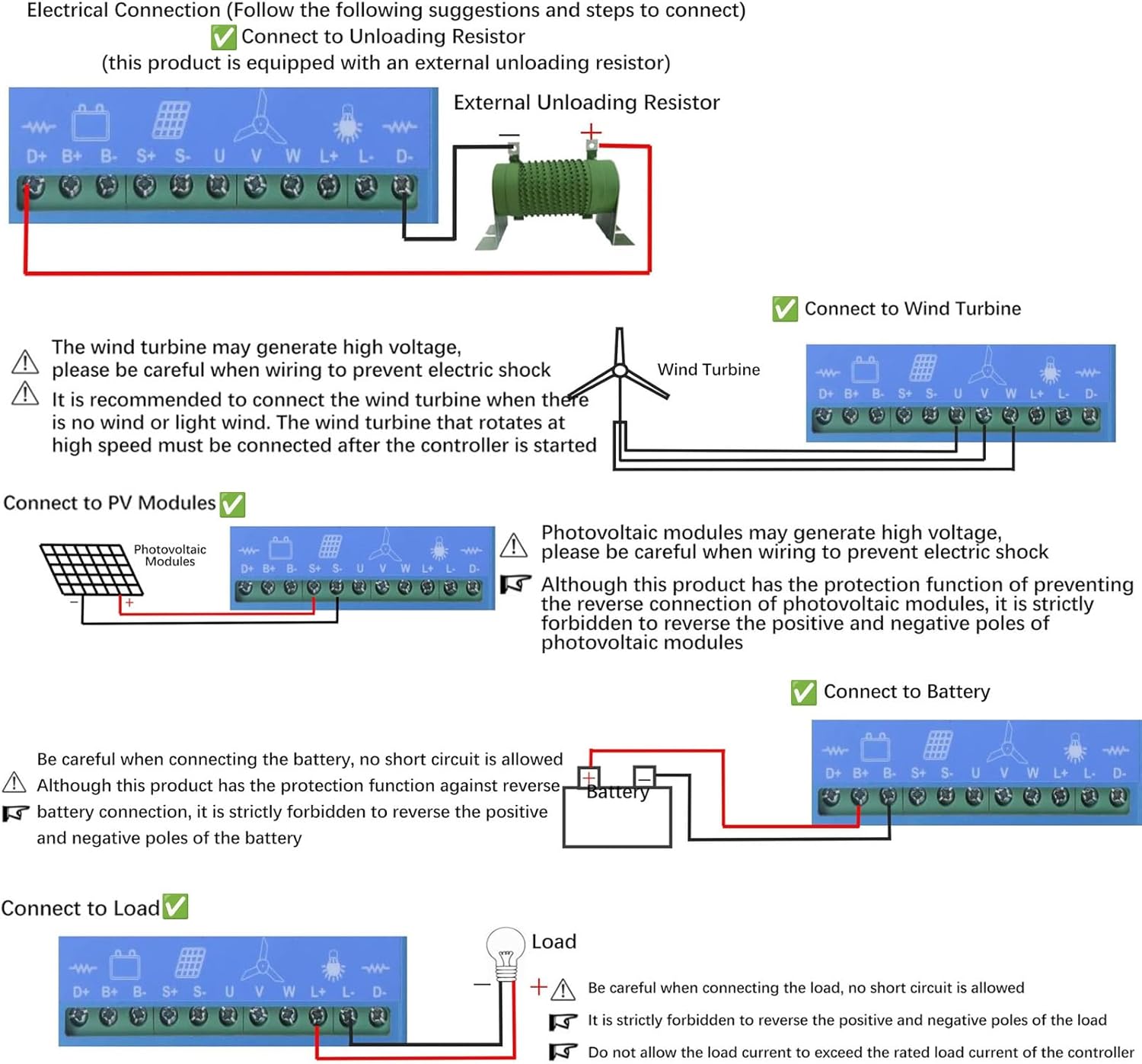

    ⚠ When connecting, you need to pay attention to the precautions of different connection methods
