12V 24V 48V 5500W Hybrid Wind Solar Charge Controller, MPPT Wind Generator Solar System for All Wind Turbines Three Phase,12V

♥[Independent Boost Circuit]Using an independent boost circuit to solve the problem of charging efficiency for small power vertical wind turbines. LCD displays battery voltage and charging current; all parameters are visible during use.
♥[Good Compatibility]The solar charge controller supports un
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Specification:

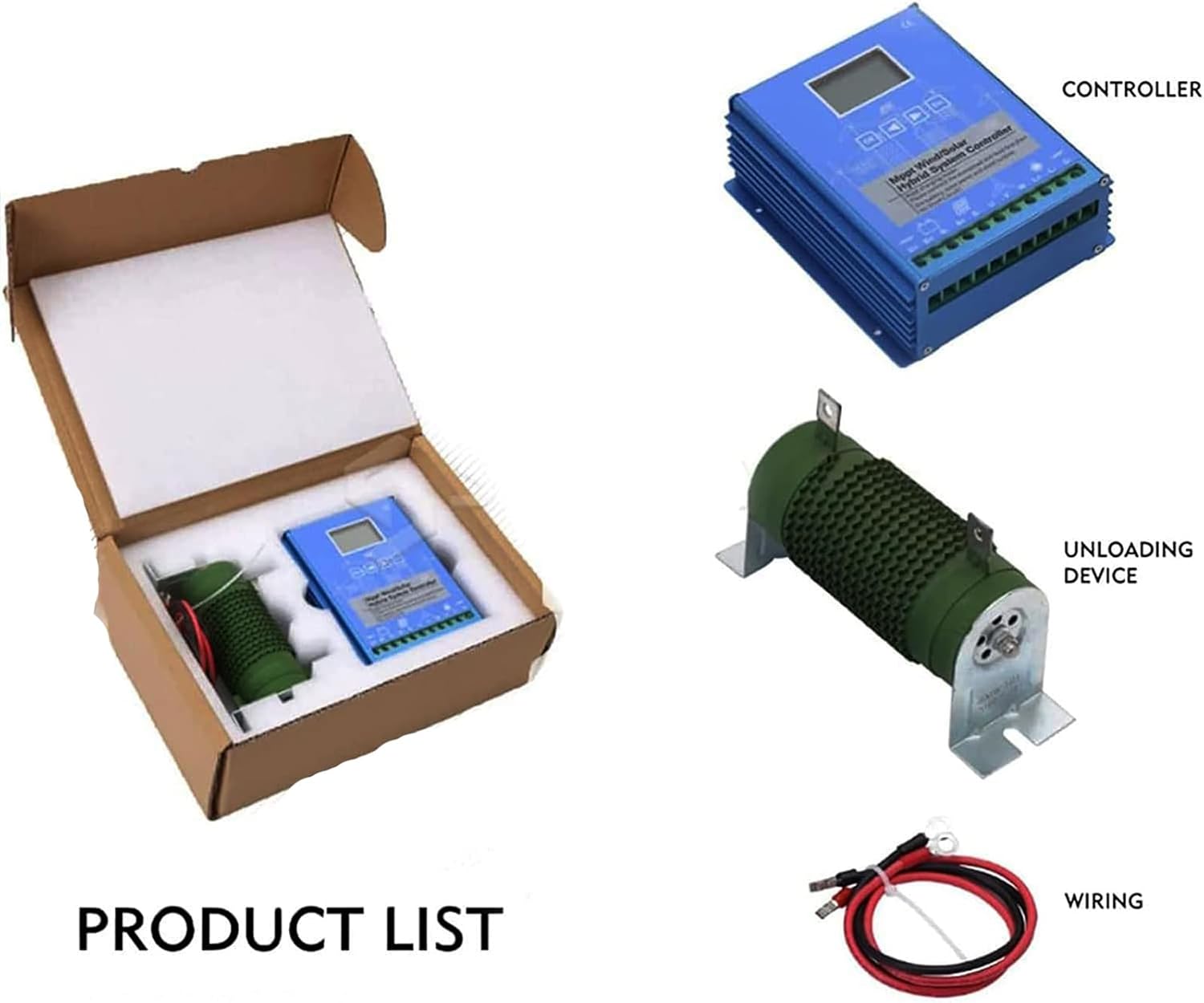

    packing list:
    1 x wind and solar hybrid controller
    1 x external discharge resistor
    1 x instruction manual

    ▶Project type: MPPT wind and solar hybrid controller
    ▶Material: aluminum alloy
    ▶Rated voltage: 12V/24V/48V

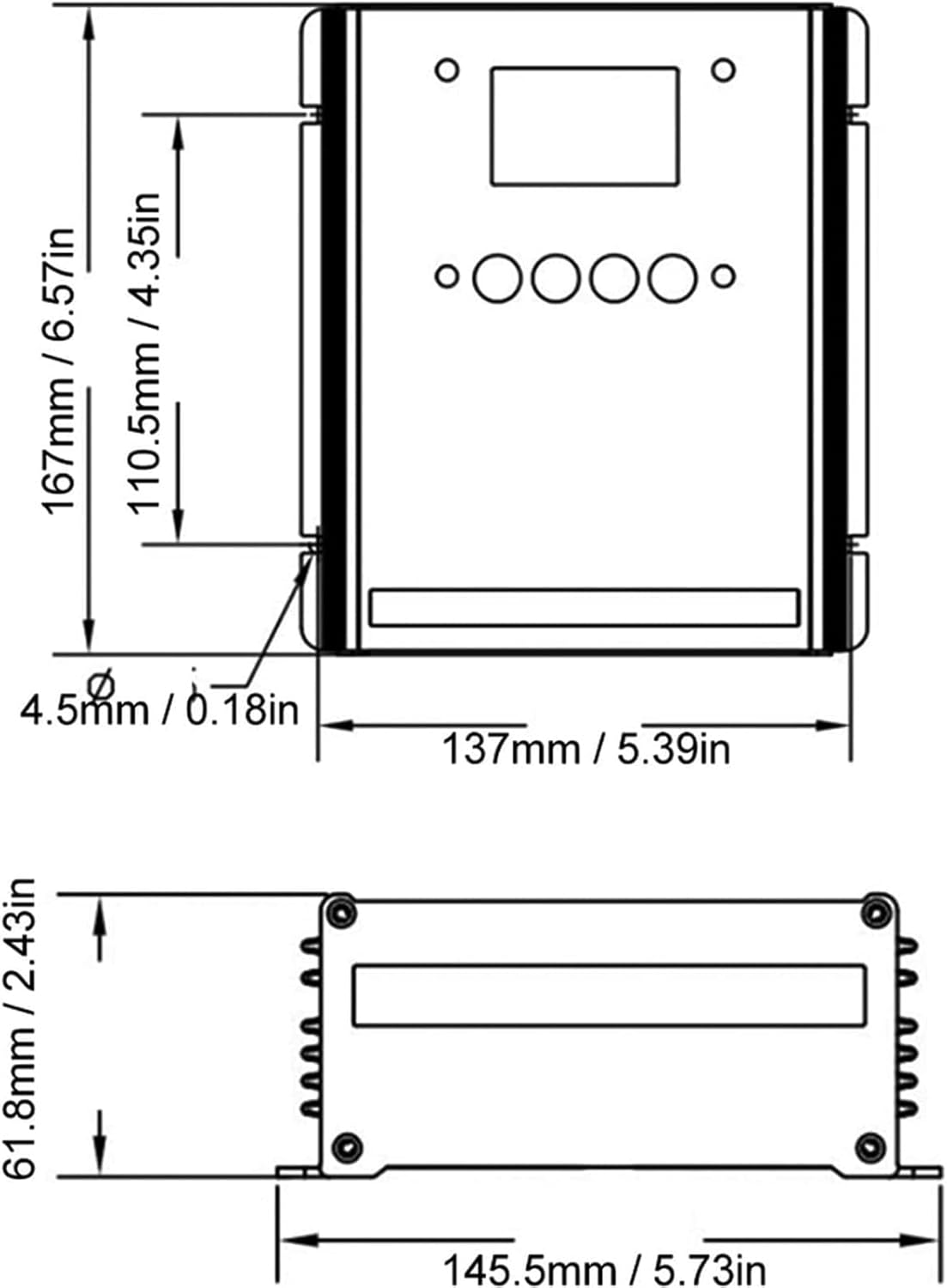

    ▶Controller size: 167 x 137 x 61.8 mm
    ▶Control mode: Intelligent MPPT fan boost charging function, PWM discharge function, PWM over-current limiting function
    ▶ Display parameters: voltage, battery power, current, charging mode, temperature, etc. Some parameters can be set.
    ▶A variety of working modes are optional: pure light control mode, normal open mode, light control + time control mode (four time periods + morning light)
    ▶Applicable wind generator types: horizontal wind generator, vertical wind generator, AC wind generator, DC wind generator.

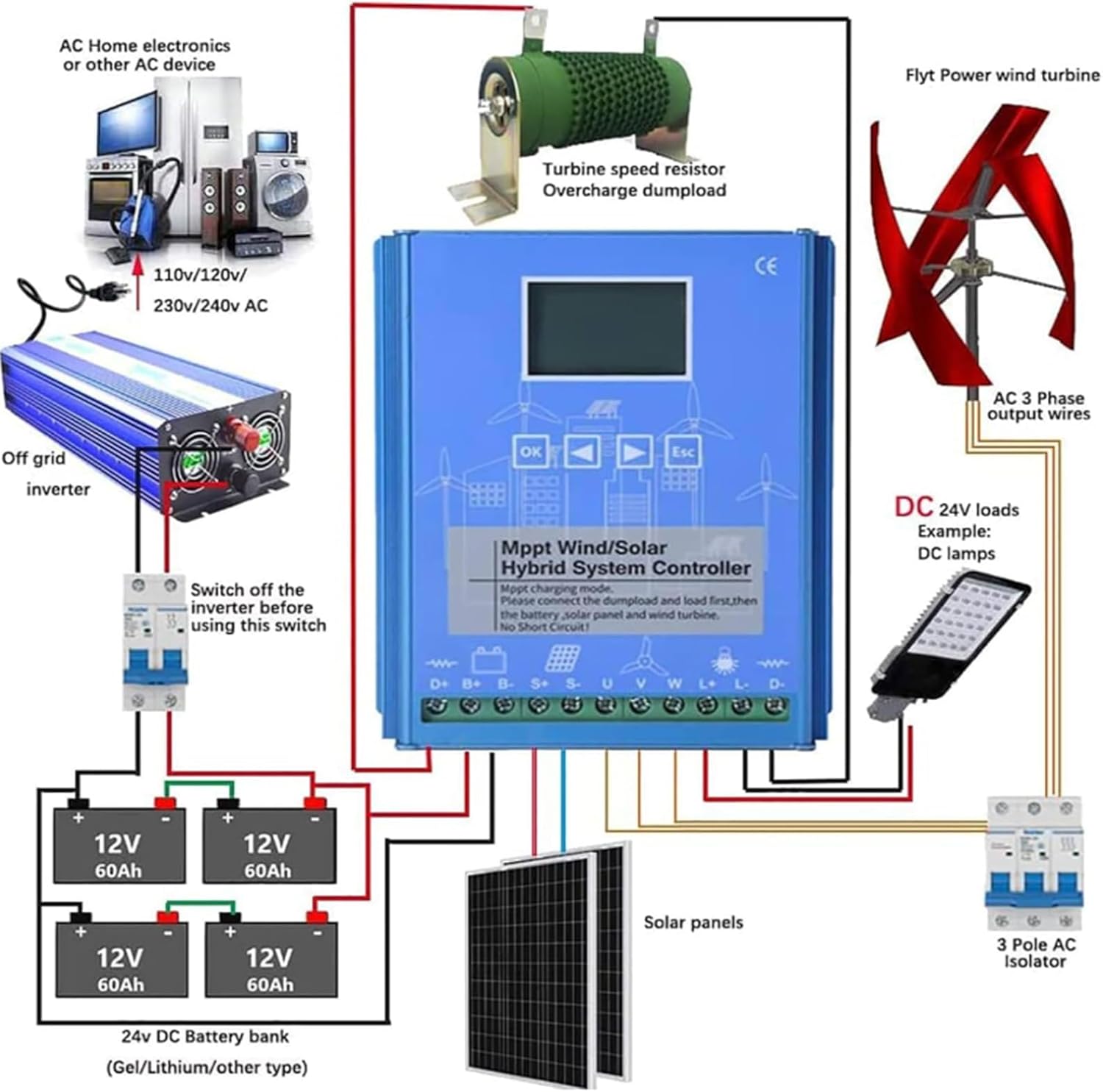

    ▶Controller dual power supply function: battery + solar power supply
    ▶A variety of load output working modes are adjustable
    ▶High performance and stable chip control

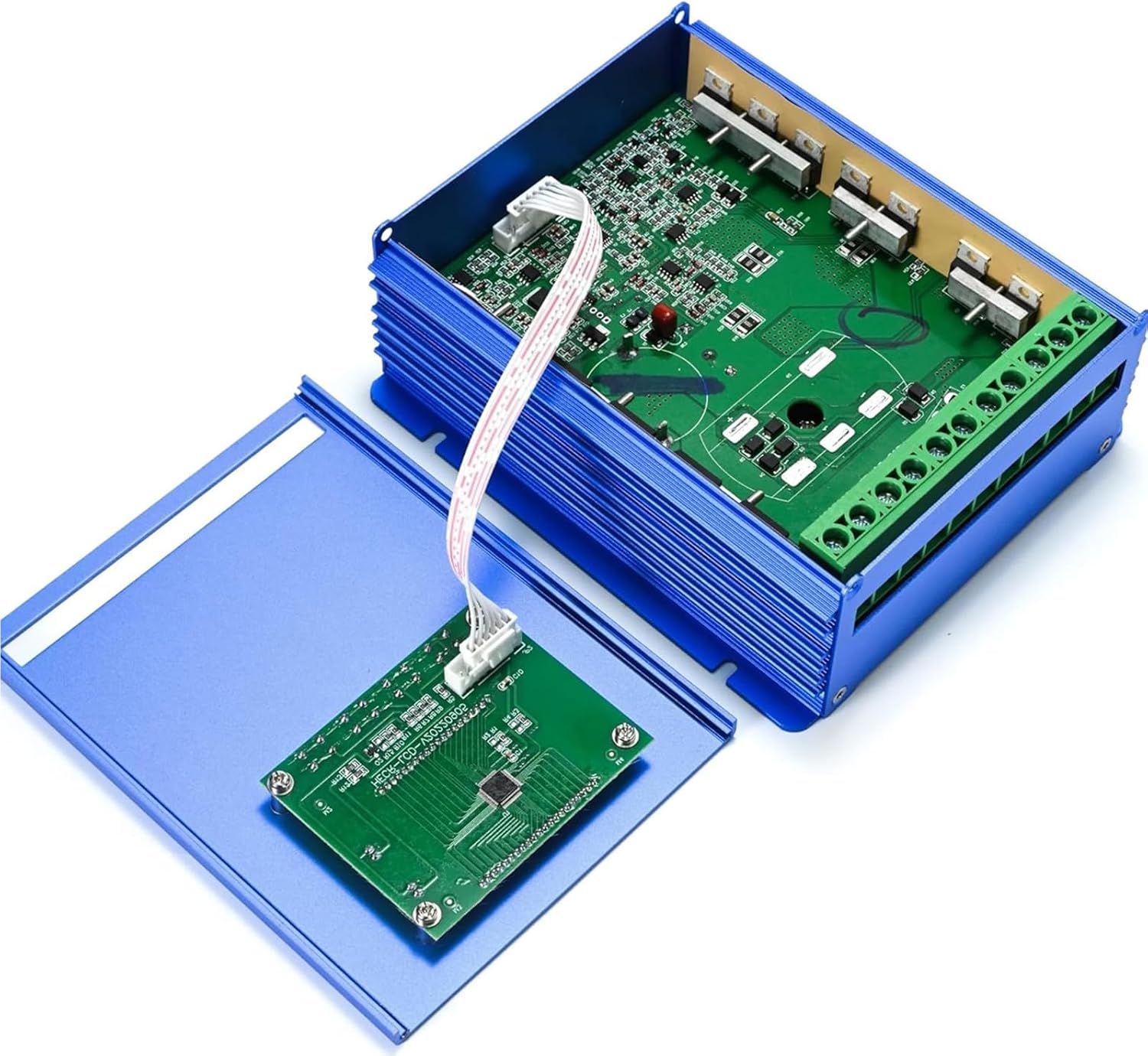

    ▶The internal circuit board of the controller is sprayed with three anti-paints, dust-proof, moisture-proof and anti-static

    Notes:
    ⚠ Do not plug or unplug the power adapter with wet hands;

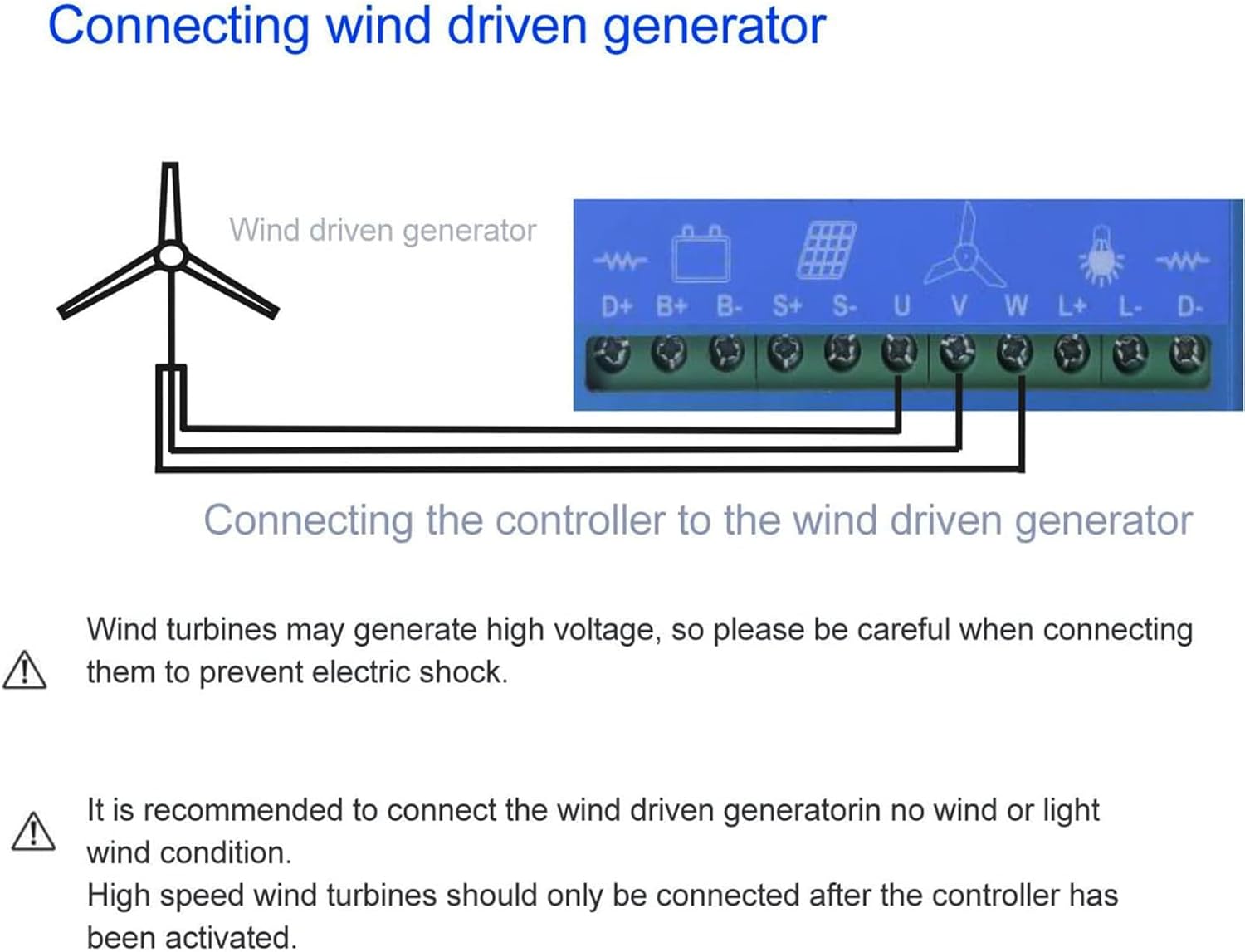

    ⚠ When connecting, you need to pay attention to the precautions of different connection methods;
    ⚠ If you have any questions or suggestions, please do not hesitate to contact us, we will contact you as soon as possible and provide you with a quality solution.
