Hybrid MPPT Wind and Solar Controller, 12V/24V/48V Auto Distinguish Wind Turbine Solar Charge Controller with LCD Screen 12V/24V-1000W,12V

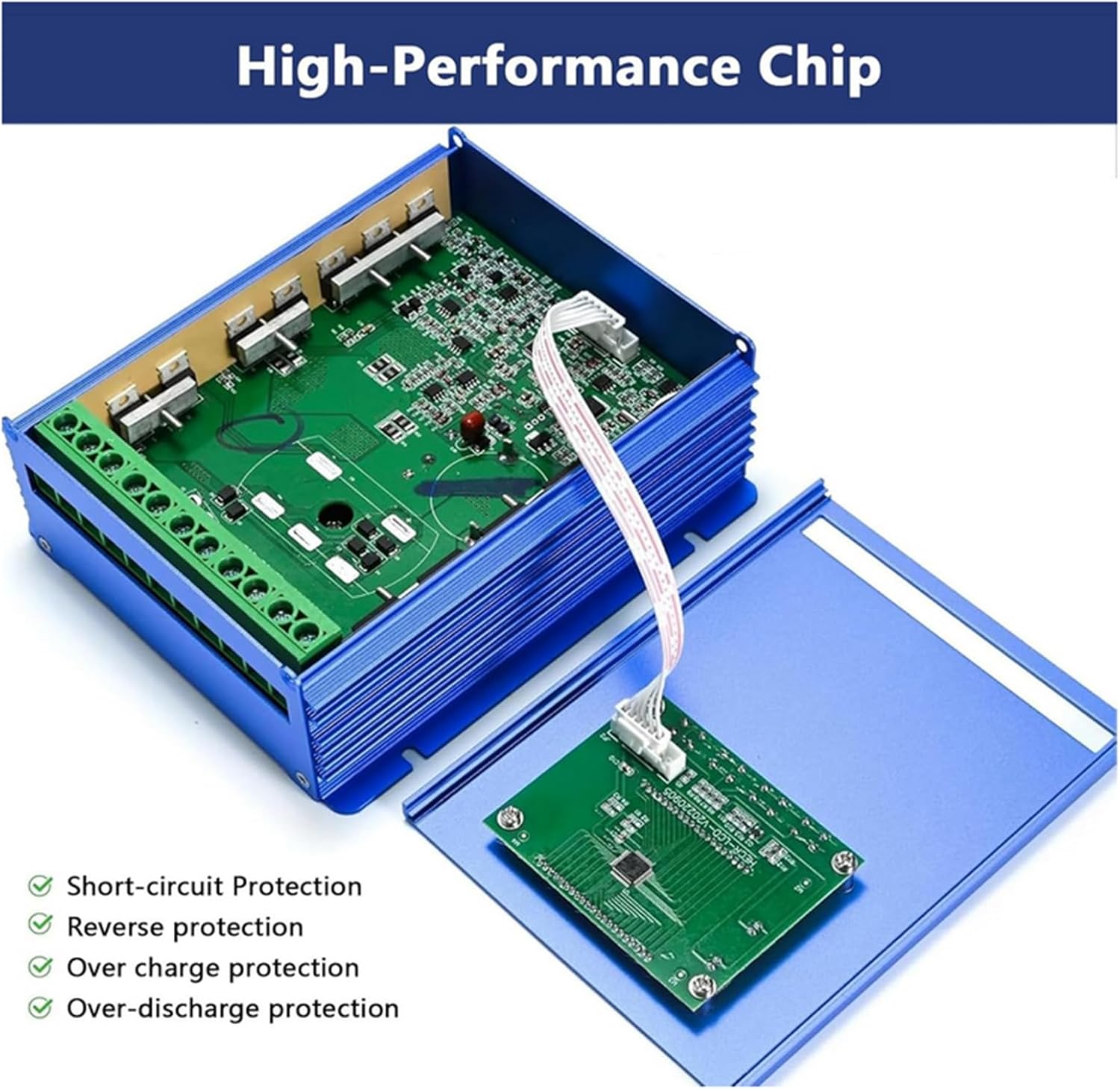

▲[Wind Turbine Generator Kit]:universal for multiple types of batteries, lockable voltage, complete protection functions, the internal circuit board of the controller can be dustproof and anti static, and the load output can be adjusted in various working modes.
▲[Solar Wind Hybrid Controller]:24
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Features:

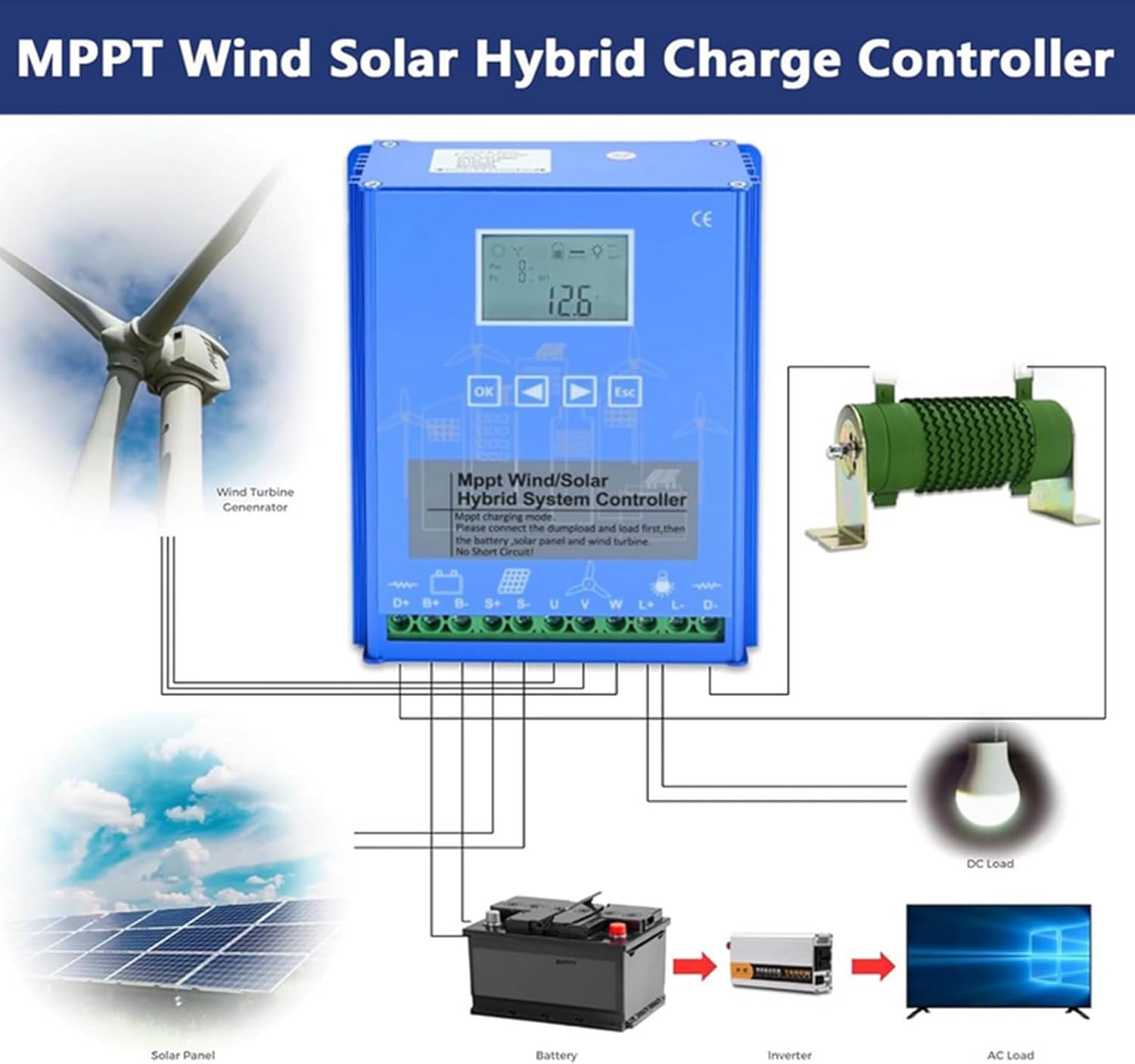

    The controller is designed specifically for hybrid wind solar street light system, which can make the wind solar hybrid street light system of various resources to achieve the best configuration, of course, the controller with some simple Settings can also be used in household system.
    Intelligent design succinct structure,powerfulcontroll, stable performance, safety and reliability of the products.Choose MPPT Wind turbine charging ways, charging more efficiency than ordinary PWM way more superior. The boost charge function, solve the low charging efficiency problem of low wind speed (optional). Professional digital intelligent control.

    Specification:
    Product model: Wind solar complementary controller
    Shell material: Full body aluminum alloy material
    Net weight of product: 2.35KG
    Product gross weight: 2.85KG

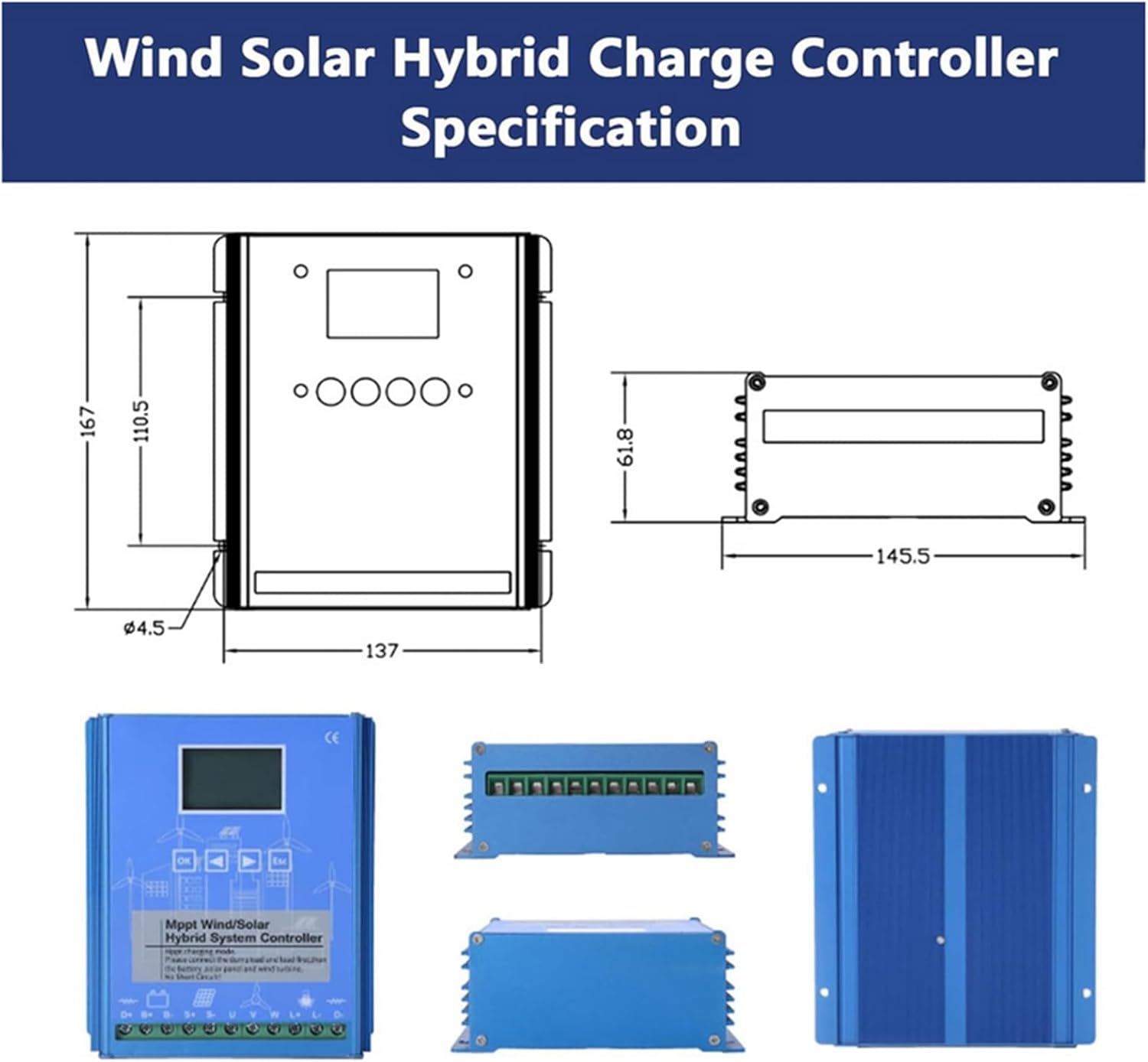

    Product size: 137 * 167 * 61.8mm
    Packaging size: 360 * 250 * 120mm
    Rated System Voltage: 12V/24V AUTO
    Rated Wind Power: 1000W
    Rated Solar Power: 1000W
    No-Load Current:<0.05A
    Controller Power Mode: Battery or Solar
    Maximum imput voltage: 60V
    DC Output Current: Equal to Battery Voltage
    Maximum Output Current: 30A

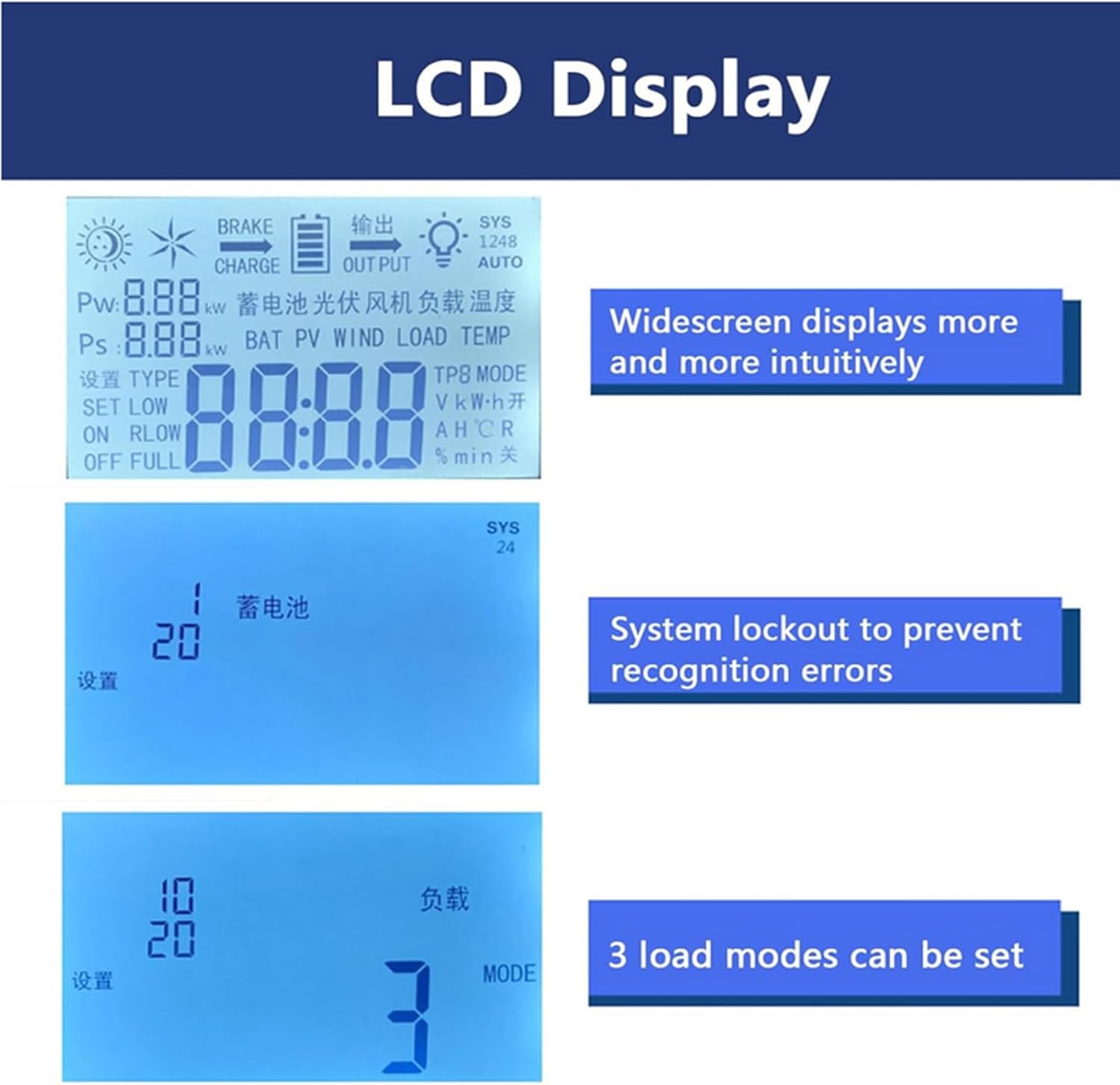

    Display Content: LCD Display
    PACKAGE
    1 x Wind Solar Hybrid Charge Controller
    1 x Dump Load Resistor
    1 x Manual
