Wind Solar Hybrid Charge Controller, Wind Solar Panel 12V/24V/48V with LCD Screen for Off Grid MPPT Wind Turbine Solar Charge Controller (12v 12000w)

LARGE LCD SCREEN: The larger LCD screen design is convenient for browsing and operation, displaying parameters such as voltage, battery power, current, power, load mode, temperature, etc. There are 3 output modes for DC load, and each mode can be set differently.
WIND SOLAR HYBRID CHARGE CONTROLL
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    SPECIFICATIONS:
    -System rated voltage: 12V/24V/48V
    -No-load current (DC): ≤0.05A
    -Controller power supply mode: battery or photovoltaic panel
    -Control method: fan MPPT boost, PWM unloading, PWM overcurrent
    -Load: Multiple working mode options: pure light control mode, normally open mode, light control + time control mode (four periods + morning light)
    -Display mode: LCD display

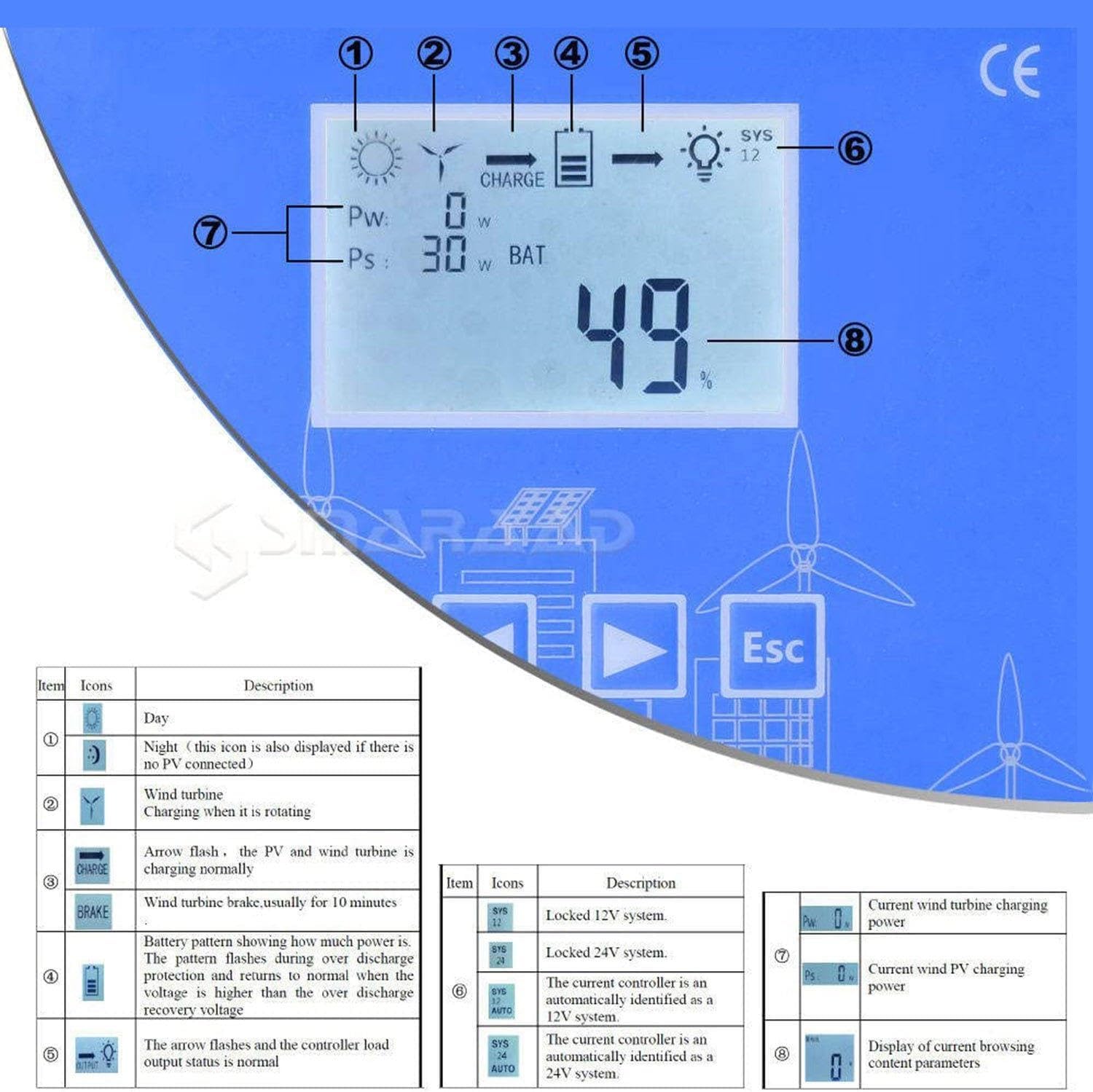

    -Display parameters: voltage, battery power, current, power, load mode, temperature, etc.
    -Heat dissipation method: aluminum profile heat dissipation and self-cooling
    -Operating temperature and humidity range: - 20~+55℃/35~85%RH (no condensation)

    NOTES:

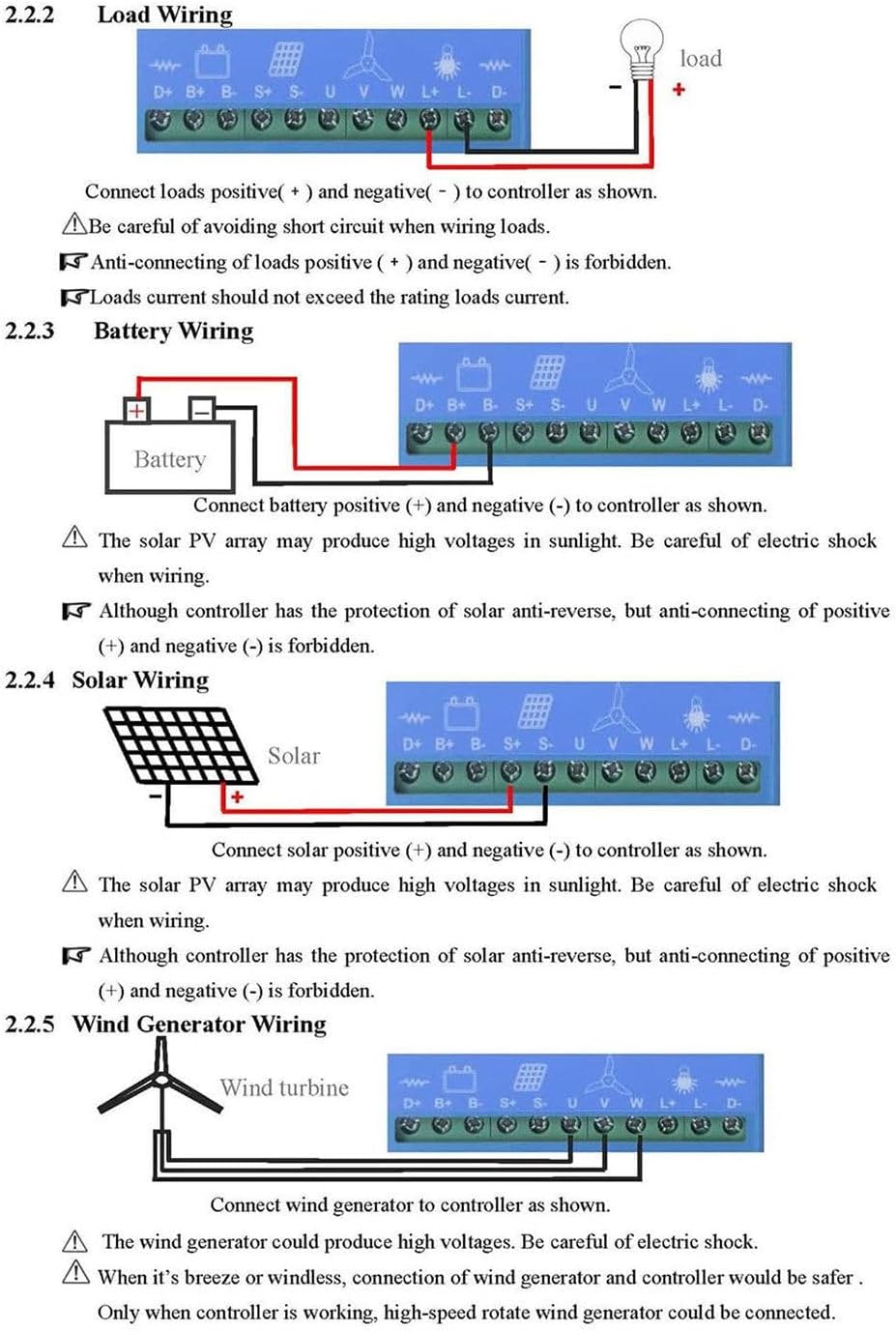

    1. Correct connection sequence.
    2. Please connect the wires between the battery and the controller.
