10AWG Solar Extension Cable 70FT, Solar Panel Wire, 10 Gauge Tinned Copper PV Wire with Waterproof Female and Male Connector for Home Marine RV Solar Photovoltaic Systems

PRODUCT SPECIFICATION: 10 AWG PV Cable,TÜV/CE/RoHS certified. Wire gauge: 10 AWG (6 mm²). Test Voltage: 6500V. Rated: DC 1500V / AC 1000V, 54A. Conductor: ≤3.39Ω/km (20°C), 84/0.285mm tinned Cu. XLPO sheath/insulation. Operating temp: -40°F to 194°F
DOUBLE SHEATH STRUCTURE: 10 gauge solar extensi
Quantity
ADD TO CART
BUY IT NOW
  • Detail

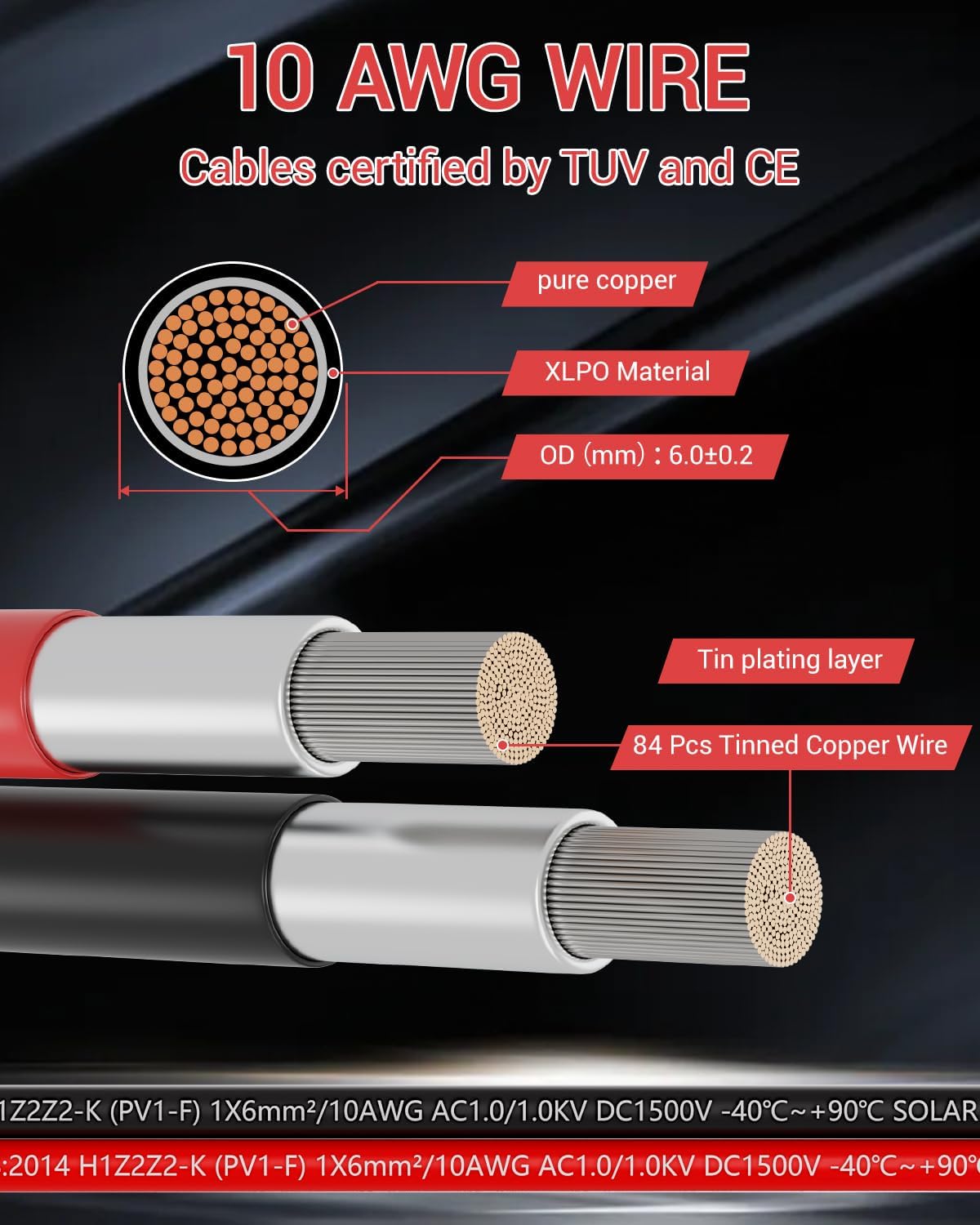

    This 10AWG Solar Extension Cable is composed of 84 strands of 0.28mm tinned copper wire and comes with two pairs of MC4 connectors that can carry DC 1500V, making it perfect for your project.

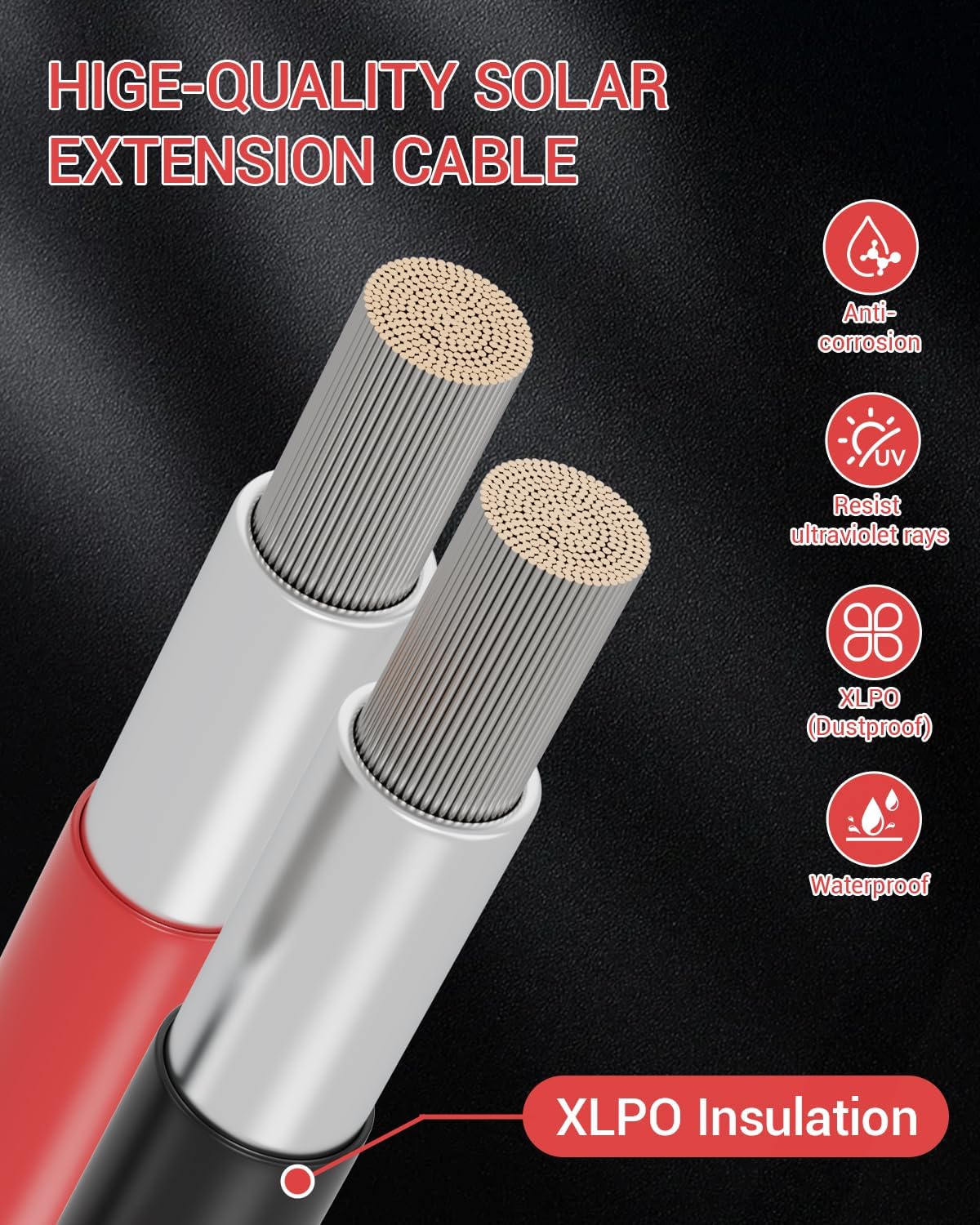

    Solar panel pv cables are made of tin-plated copper conductors, which give them excellent conductivity, while double-layer XLPO insulation ensures your electrical safety.

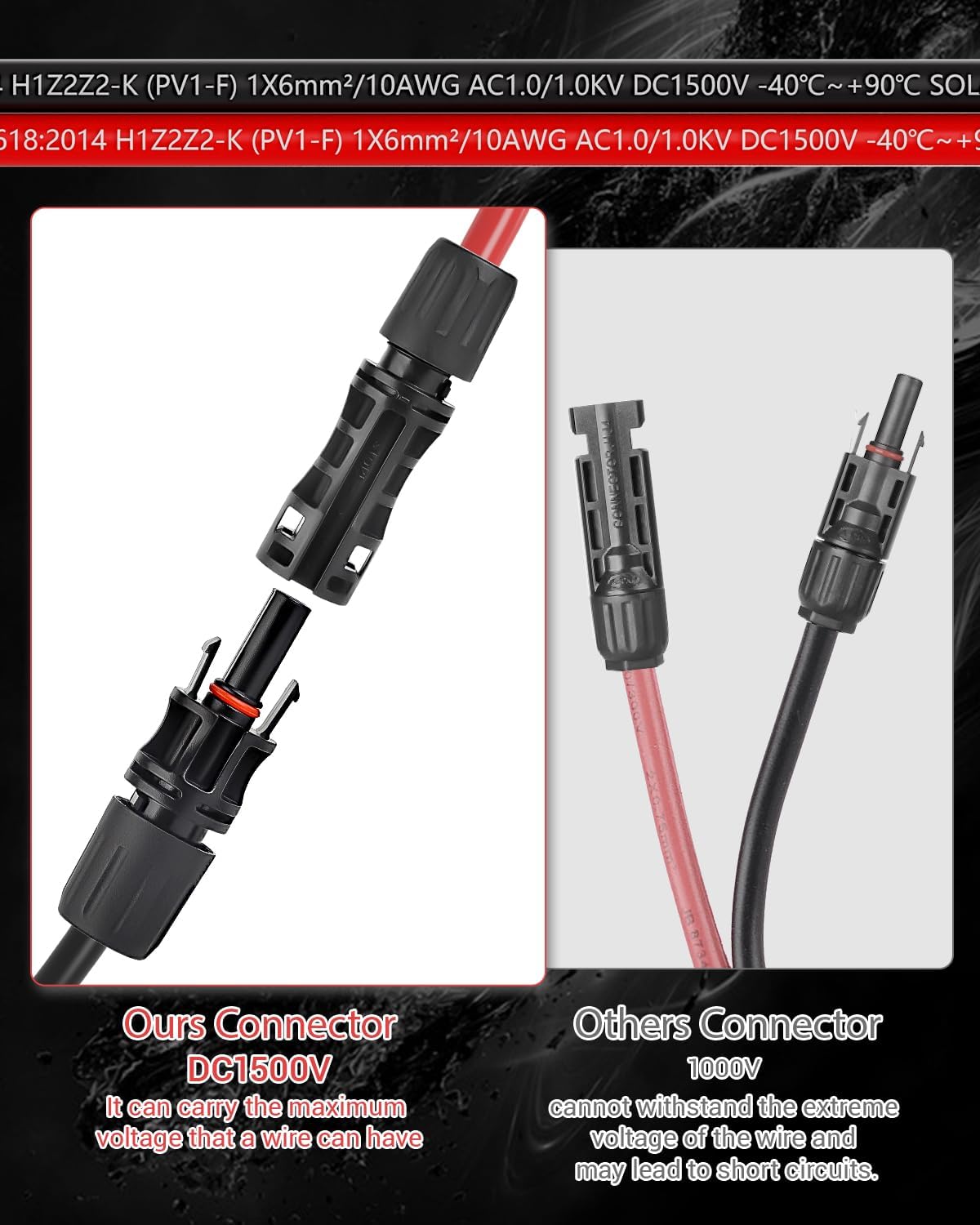

    IP67 connector, Rated for DC 1500V versus conventional 1000V, these connectors prioritize safety and reliability in solar panel connections.

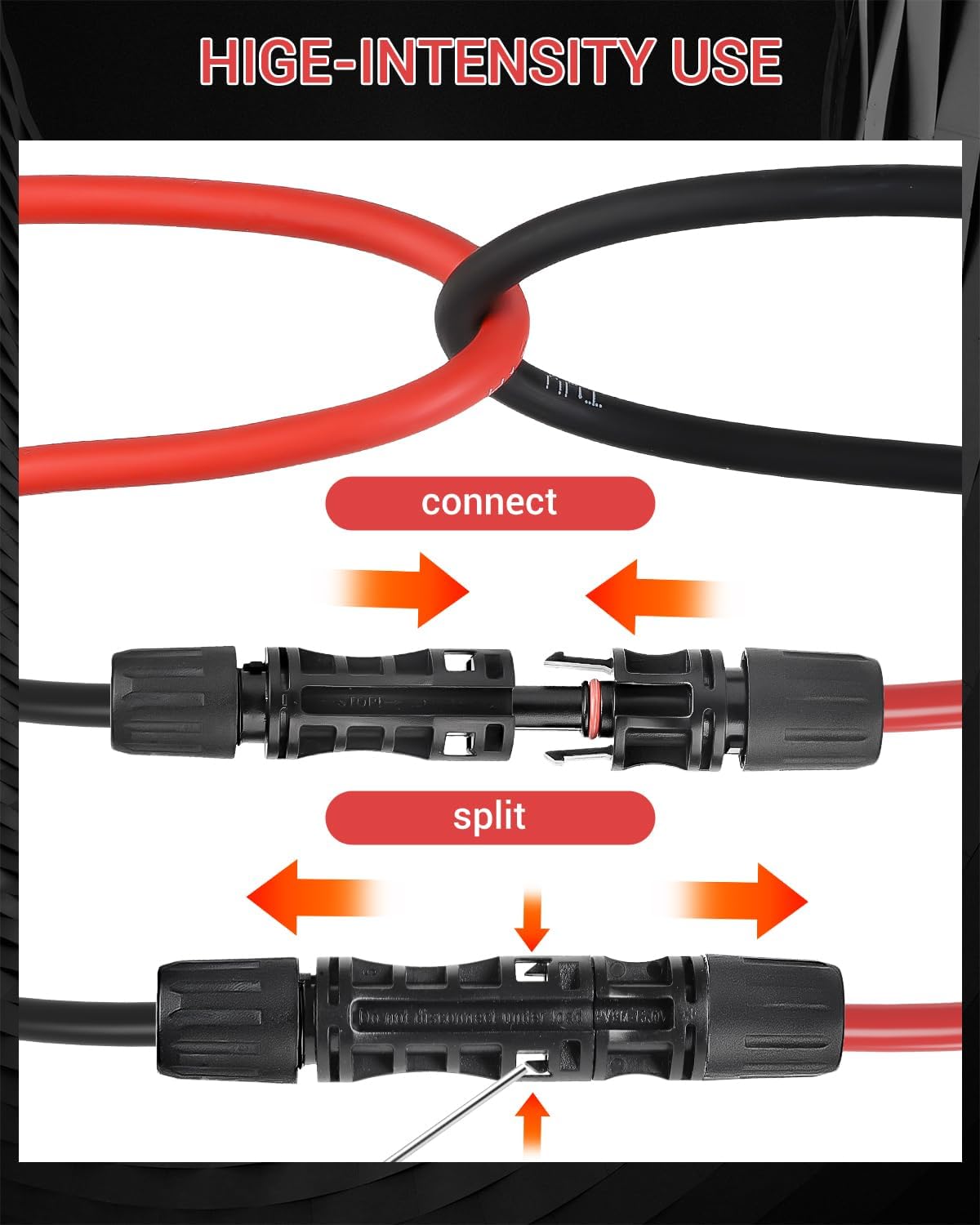

    Note: Disconnecting the connector is a bit complicated and requires a small metal rod-like tool. A ballpoint pen can also be used.

    The operating temperature range of solar wire is -40°F to 194°F.

    Solar cable sheathing materials are waterproof, moisture-proof, UV-resistant, and corrosion-resistant. This ensures reliable operation even in harsh environments.

    Solar extension cables are compatible with most solar panels, inverters, and other solar power system components, and can be widely used in solar power stations, photovoltaic connectors, rooftops, ships, outdoor power supplies, etc.

    TÜV and CE CERTIFIED

    APPLICABLE SCENARIOS
