8000W/1000W/12000W/14000W Hybrid Wind Solar Charge Controller 12V 24V 48V Auto MPPT Wind Generator For Lithium Lead Acid Battery,12V/24V-15000W

【DUAL MPPT TECHNOLOGY】The wind turbine charging control method adopts wind turbine boost MPPT charging and photovoltaic boost MPPT charging. The dual-channel MPPT wind-solar hybrid controller ensures that your circuit is reliable and efficient
【APPLICABLE SCENARIOS】This charge controller is suita
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    SPECIFICATIONS:
    Voltage: 12/24V (auto)、24/48V (auto)
    Power: 5000W
    Charging path: Boost MPPT charging
    No-load current(DC): ≤0.06A
    Controller power mode: battery or solar panel

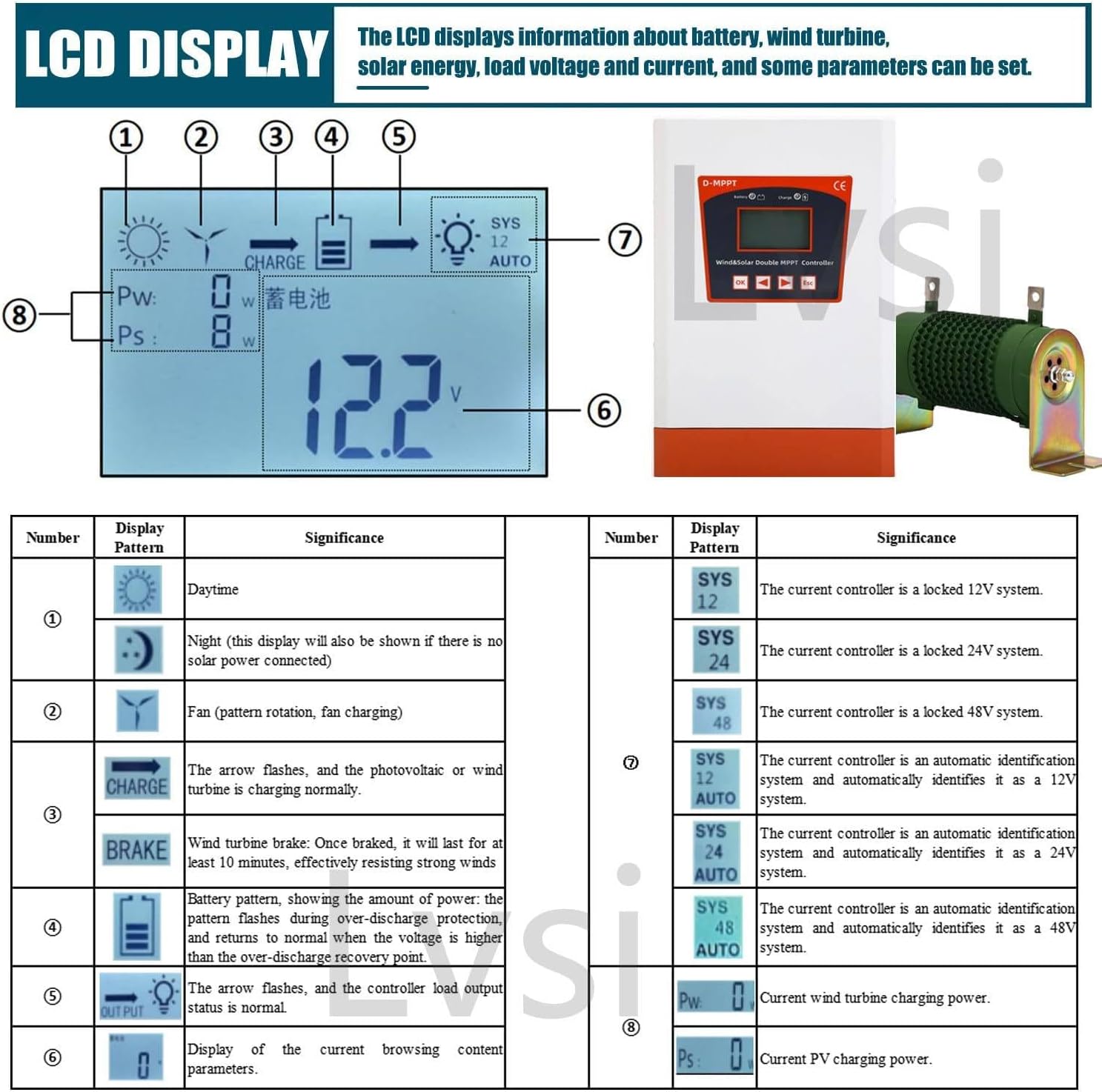

    Display: LCD display
    Cooling mode: Air cooling / self cooling
    Working temperature/relative humidity: 20~55℃/35~85%RH(non-condensing)
    Weight: 4.9kg (controller+dumpload)

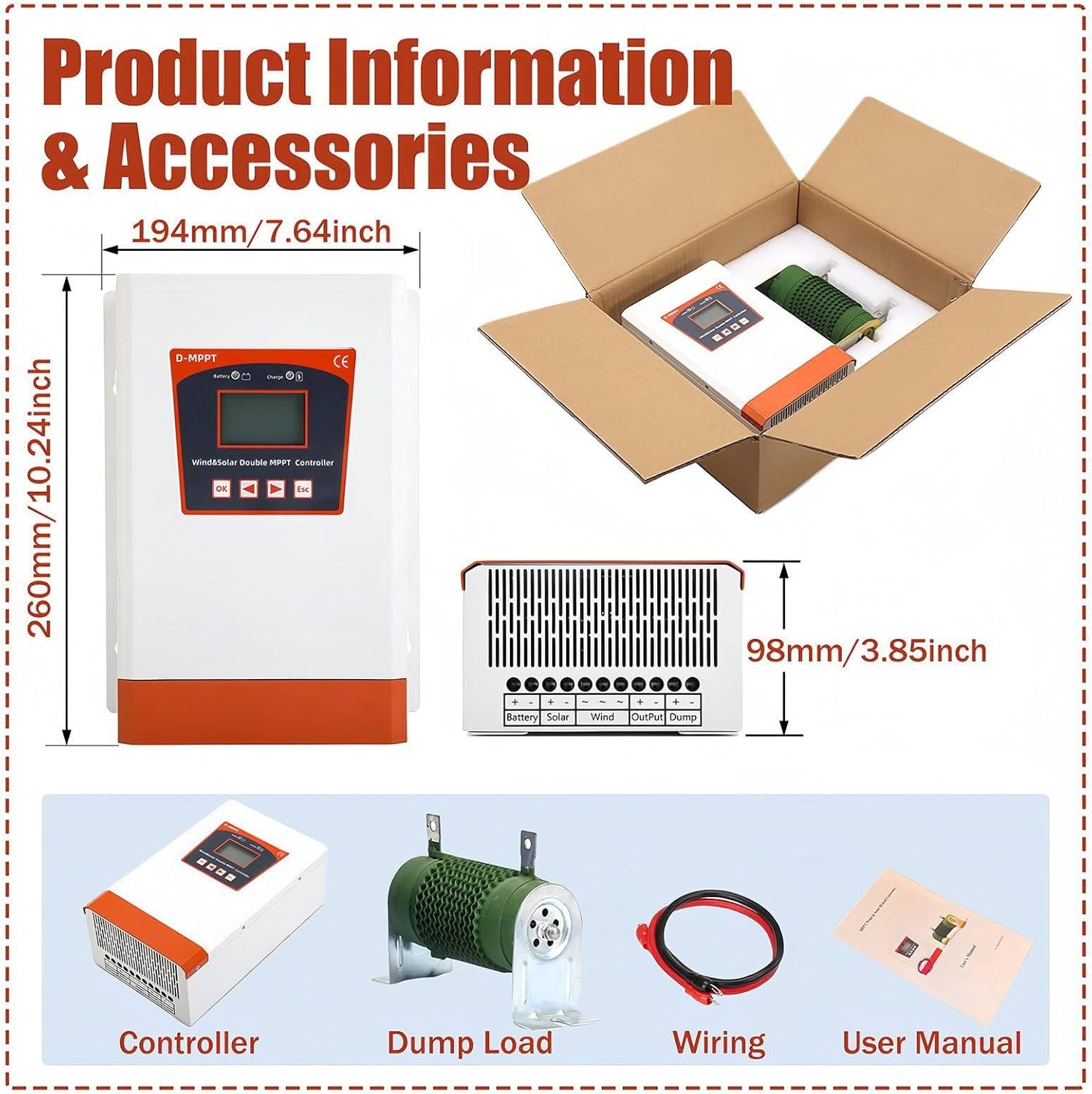

    Product size: 260 X 194 X 97.33mm
    Dump load: external load≤1KW with R1, wind power≥1KW with R2
    Maximum input voltage for wind: 12/24V: ≤80V;48V: ≤130V
    Maximum input voltage for solar: 12/24V: ≤80V;48V: ≤130V
    Protection: Solar cell reverse charging protection, battery open circuit protection, battery reverse connection protection,overcurrent and overvoltage soft automatic stop protection, overload protection, etc.

    PACKING LIST:
    1 x Wind Solar Hybrid Charge Controller
    1 x External Discharge Resistor
    2 x Connection Cables
    1 x User Manual
