48V,8000W Low Noise Low Speed 3Phase Gearless Permanent Magnet Generator,12V-220V Alternator Generators AC Use for Wind Turbine Water Turbine
48V,8000W Low Noise Low Speed 3Phase Gearless Permanent Magnet Generator,12V-220V Alternator Generators AC Use for Wind Turbine Water Turbine

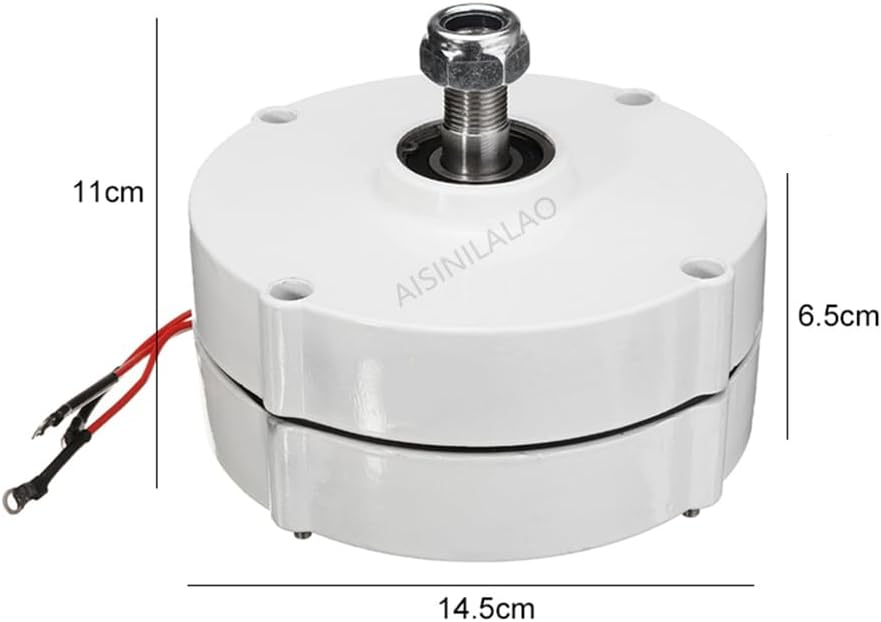

♥ Gearless, direct drive, low RPM generator
♥ Small size and light weight: Its size and weight are 30% less than those of conventional generators.
♥ Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.

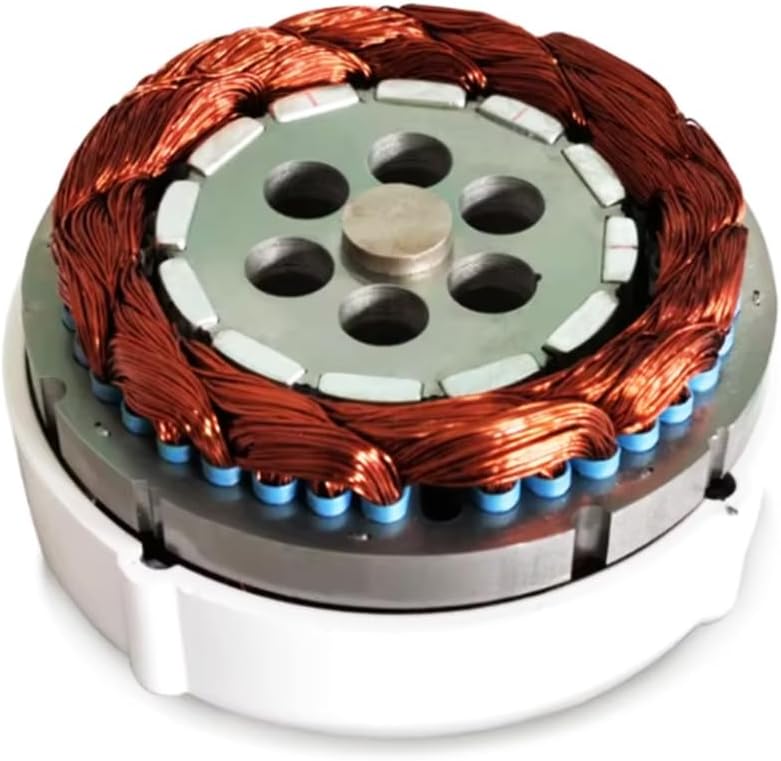

♥ permanent magnet generator rotor using pat
♥ Small size and light weight: Its size and weight are 30% less than those of conventional generators.
♥ Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.
♥ permanent magnet generator rotor using pat
Quantity
-
Detail
Specification:
color: White
Rated Power: 8000W
Rated Voltage: 12V 24V 48V 220V (optional)
Rated Speed: 500rpm
Rated Frequency: 50Hz
Starting torque:0.42N*m
Rated torque:8N*m
Material:
Spindle and housing:Carbon steel
Magnetic steel:Rare earth neodymium iron boron material
Others:
Efficiency:≥85%
Working temperature rise:≤70℃
Operation Temperature:-40℃ — 120℃
Lubrication Method: Filling Grease
Service life:≥20 Years
Weight: 4.5kg
product content:
1 x motor with base -
