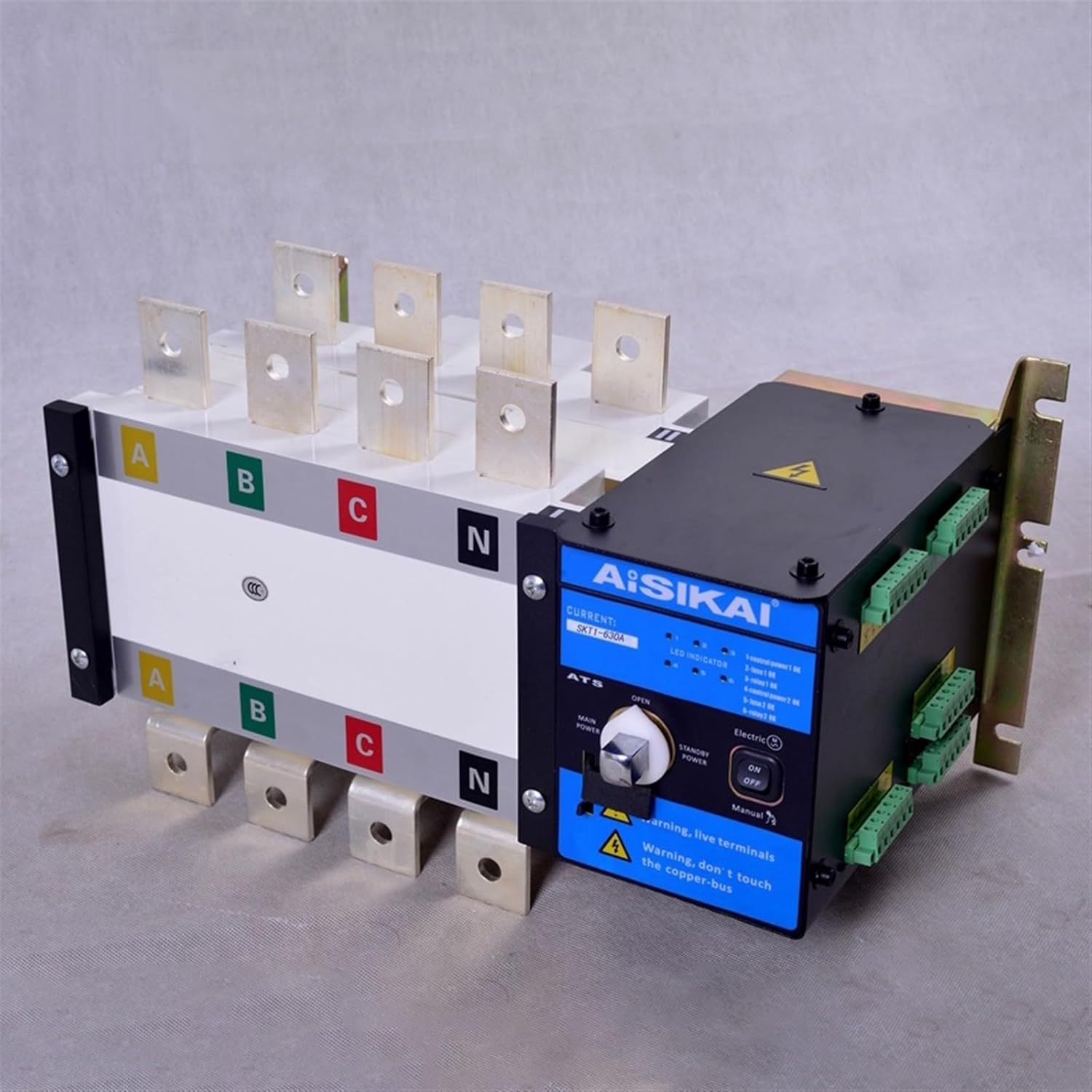

ATS 630A 4P Controller Dual Power Automatic Transfer Switch Teile 220V 380V Elektrische Diesel Generator Panel Board 3Phase

Switches
Transfer Switches
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Switches
    Transfer Switches

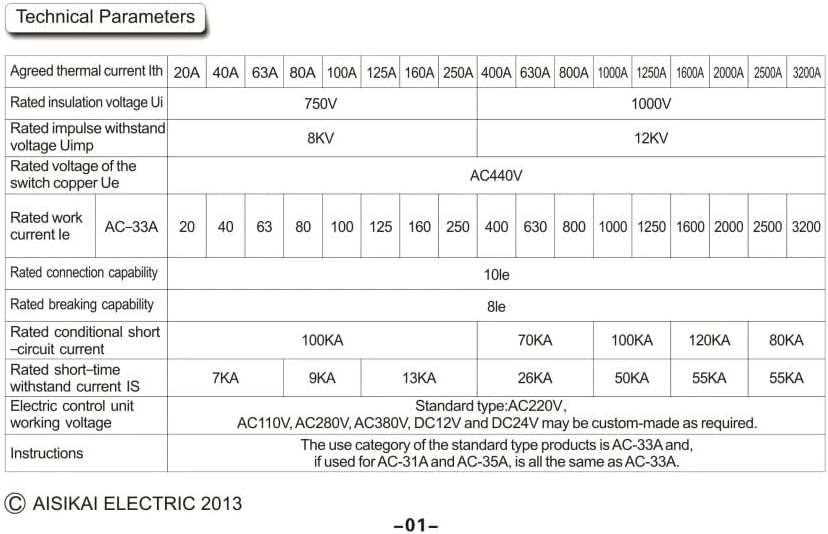

    Product Parameters
    Insulation voltage: 750V
    Rated voltage:AC440V
    Rated current: 630A
    Rated impulse withstand voltage: 12KV
    Rated short-circuit capability: 10le
    Rated short-time withstand current: 26KA
    Due to the heavy weight of the product the logistics cost is high please take down the product andcontact withcustomer servicein time.
    Mian Advantages
    The movable and static contacts are made of 99.99% high-purity T2 copper the outer casing is made of or ABS material and the three-proof process is used. The AC-33A grade product has high reliability and long service life;
    During the conversion process and after the closing the pressure between the moving and static contacts is constant and the equipment failure caused by the high voltage pulse generated by the bumping or shaking of the contact is minimized;
    The current coverage range is 6A-6300A which can easily meet the diversified load requirements of civil industrial and commercial applications. It is applicable to the first second and third-level distribution network systems in the low-voltage power distribution field.
