SUMRY Solar Inverter Charger, 3600W DC 24V to AC 110V Hybrid Voltage Converter with 120A MPPT Charge Controller, Pure Sine Wave Power for Battery-Less or AGM Lithium Battery Home Energy System

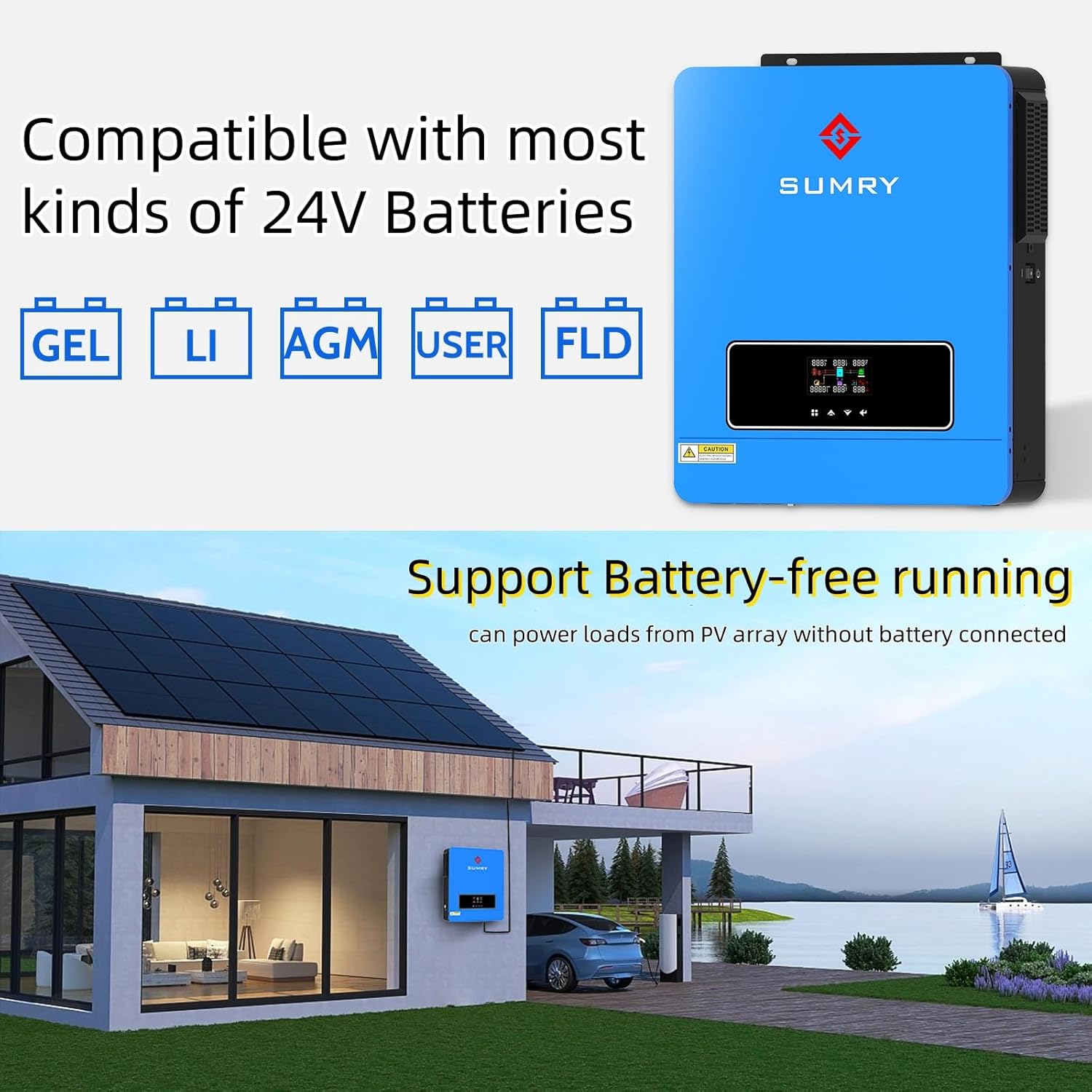

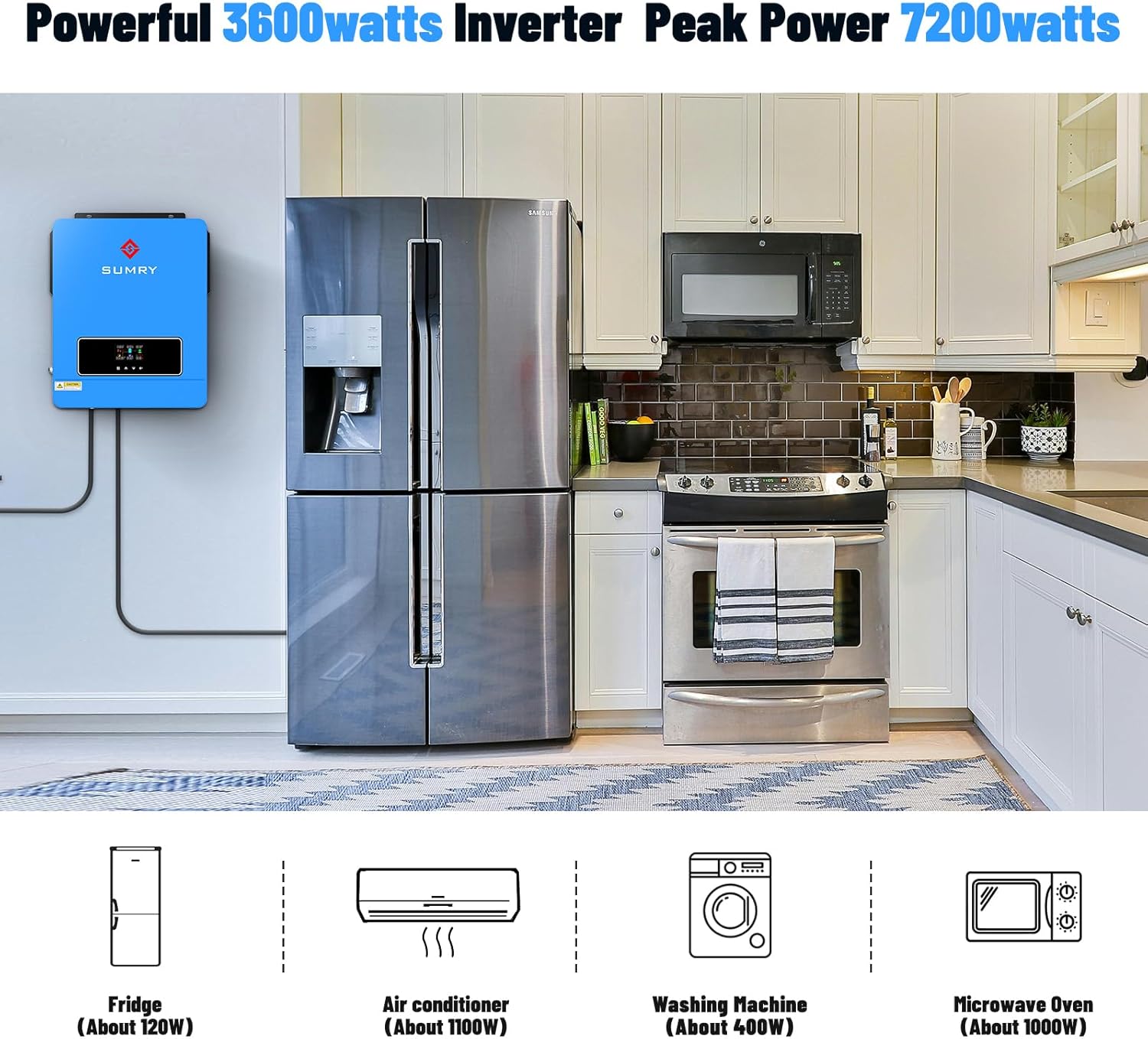

All-in-one Inverter Charger: Not only a power inverter with 3600 watt rated/7200 watt peak power, but with built-in 120A MPPT solar charge controller, and 100A AC battery charger. PV input voltage range 60V-500VDC, Max. PV input power 4200w, 18A. Choose SUMRY! The other 卖家vendedores are NOT qualifie
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Two conmunication ports for PACE BMS and app remote monitor (related cables Not included)

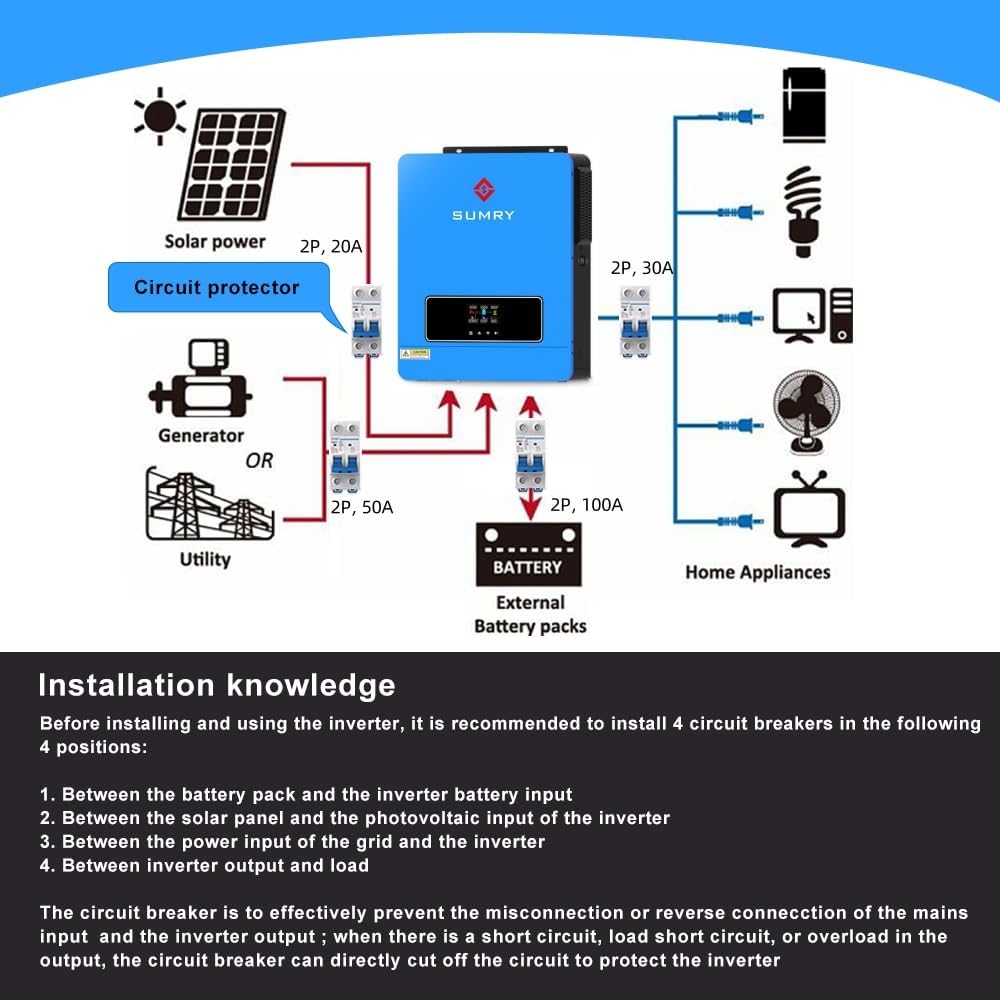

    • Before installing and using the solar inverter, it is recommended to install 4 circuit breakers in the following 4 positions:

    1. 100A 2-pole breaker between the battery pack and the inverter's battery input terminals

    2. 20A 2-pole breaker between the solar panels and the inverter's PV input terminals

    3. 50A 2-pole breaker between the inverter's AC power input terminals

    4. 30A 2-pole breaker between inverter's output terminals and load

    • This hybrid power inverter dose Not support parallel operation.
    • This solar inverter is not waterproof. Please install it indoor with good air ventilation or under shelter to protect it from rains.
    • This inverter is featured with a built-in automatic transfer switch (ATS). Connect the utility grid directly to the inverter's AC input, and connect the inverter's AC output directly to the load. Do not install any additional transfer switches.

    Rated/ Continious Output Power3600WSurge/Peak Power7200WNominal Output Voltage120VAC(100/105/110/115V Settable)Output Frequncy50Hz/60Hz(Settable)Maxinum PV Array Input4200W, 500VDC, 18ARecommended PV Input Range90VDC-450VDCAC Input Max. 40A, 90-150VACMaxinum Charging CurrentSolar 120A, AC 100A, Solar+AC 120ABattery Nominal DC Volatge24VDC

    Warm Tips:

    Inverter Specifications
