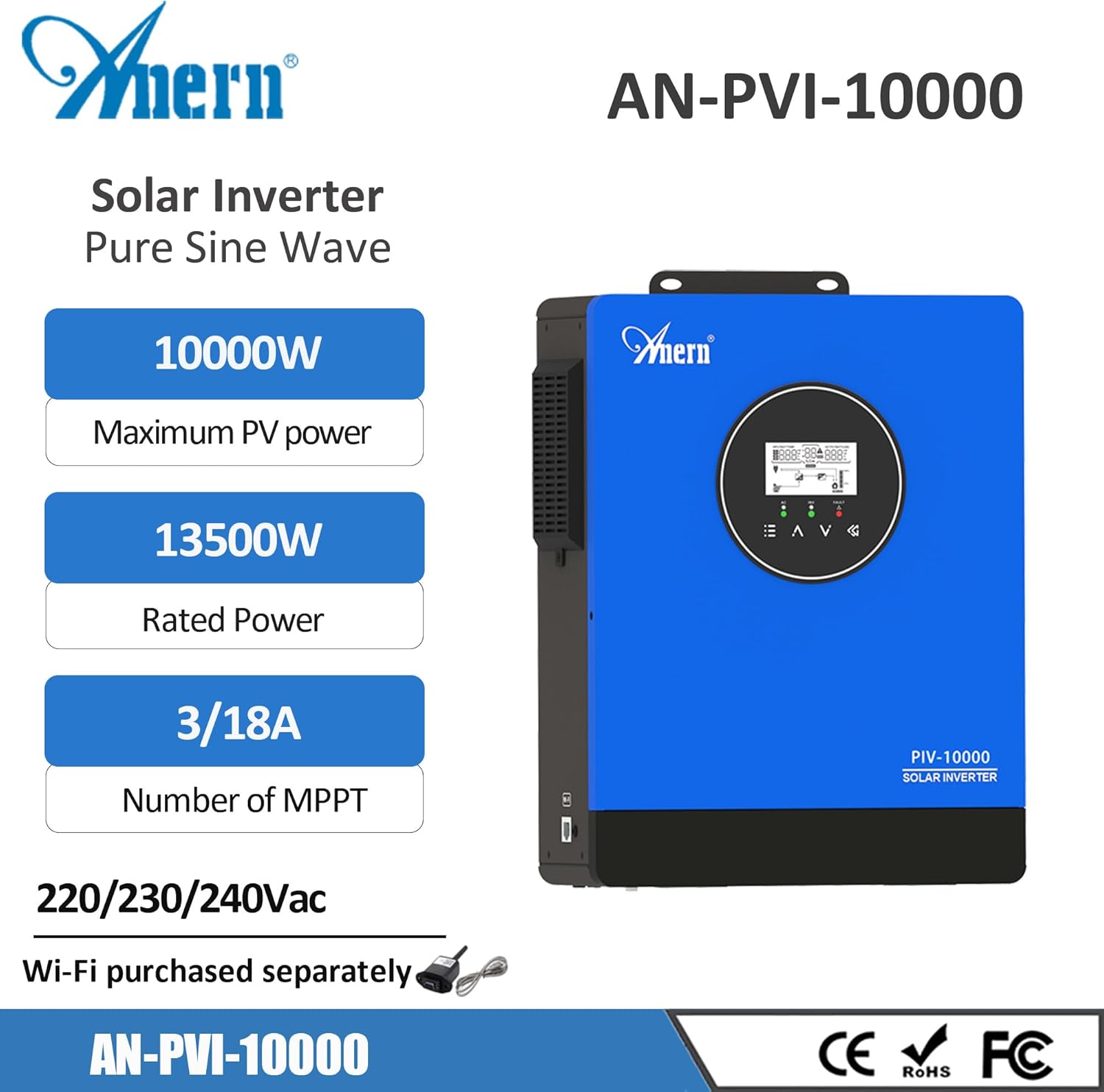

Anern 10KW Solar Inverter 220-230VAC, Pure Sine Wave Inverter with 3 Independent MPPT Solar Charge Controller Max PV 13500W, Battery-Free Design, Support Water Pump & Generator, for Off-Grid System

【PURE SINE WAVE & BATTERY-FREE DESIGN】10KW solar inverter delivers stable 220-230VAC pure sine wave output, compatible with sensitive electronics. Its innovative battery-free design lowers system cost and simplifies installation, operating directly from solar or grid power—ideal for users seeking efficient, maintenance-free energy solutions. (Note: Does not support battery connection.)
【3 INDEPENDENT MPPT TRACKING】Equipped with three separate MPPT charge controllers (18A each), the 220V inverter maximizes solar harvest across multiple PV arrays, reducing shading impacts and improving energy yield. Enables flexible PV configuration: AN-PVI-6000 model supports 2×4500W input; AN-PVI-10000 supports 3×4500W input.

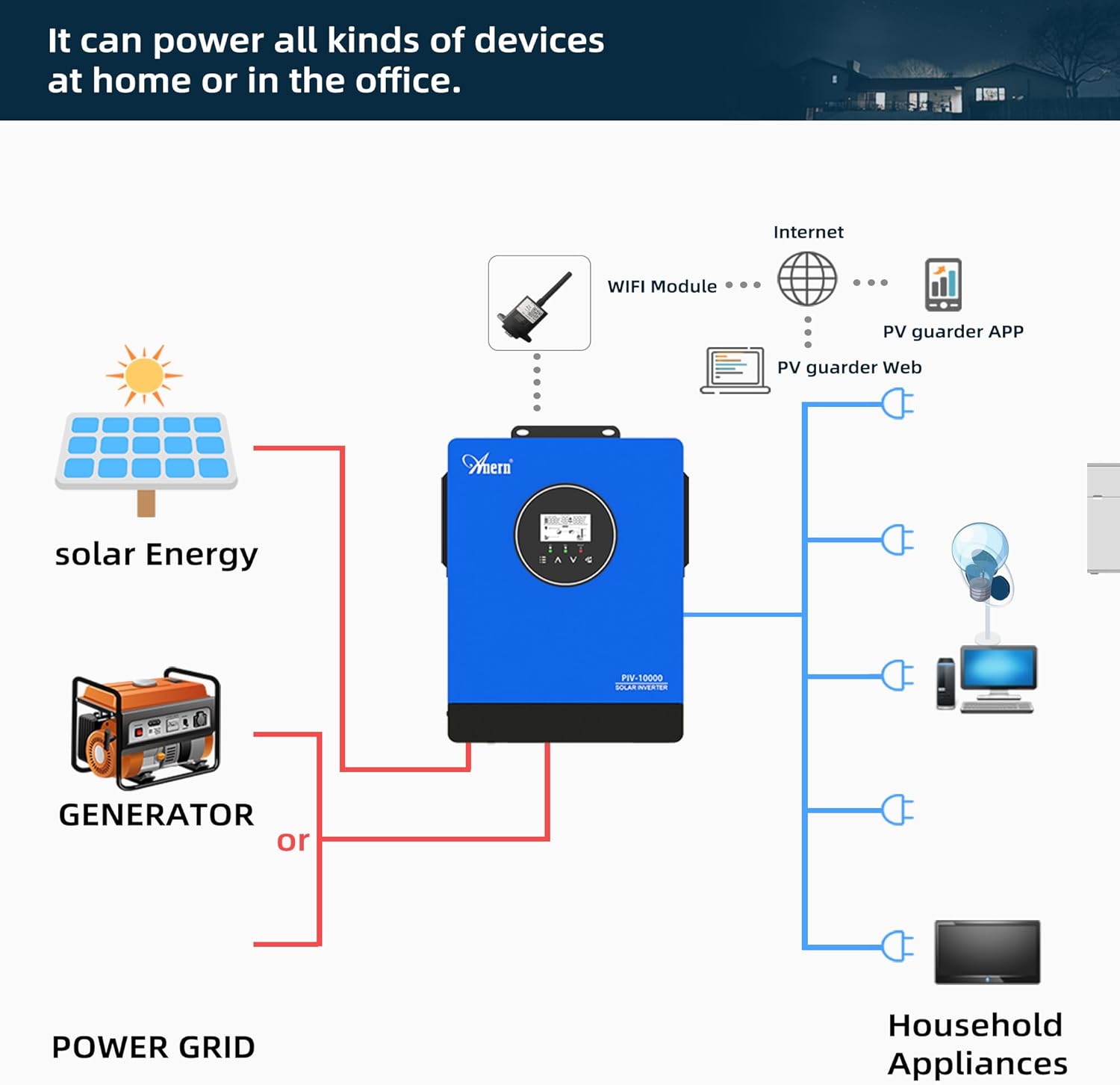

【PUMP & GENERATOR COMPATIBILITY】Designed for heavy-duty applications, this 10000W inverter directly drives water pumps and integrates with generators, supporting three-phase motors. Perfect for agricultural irrigation, remote operations, and backup power scenarios where robust, continuous output is required.

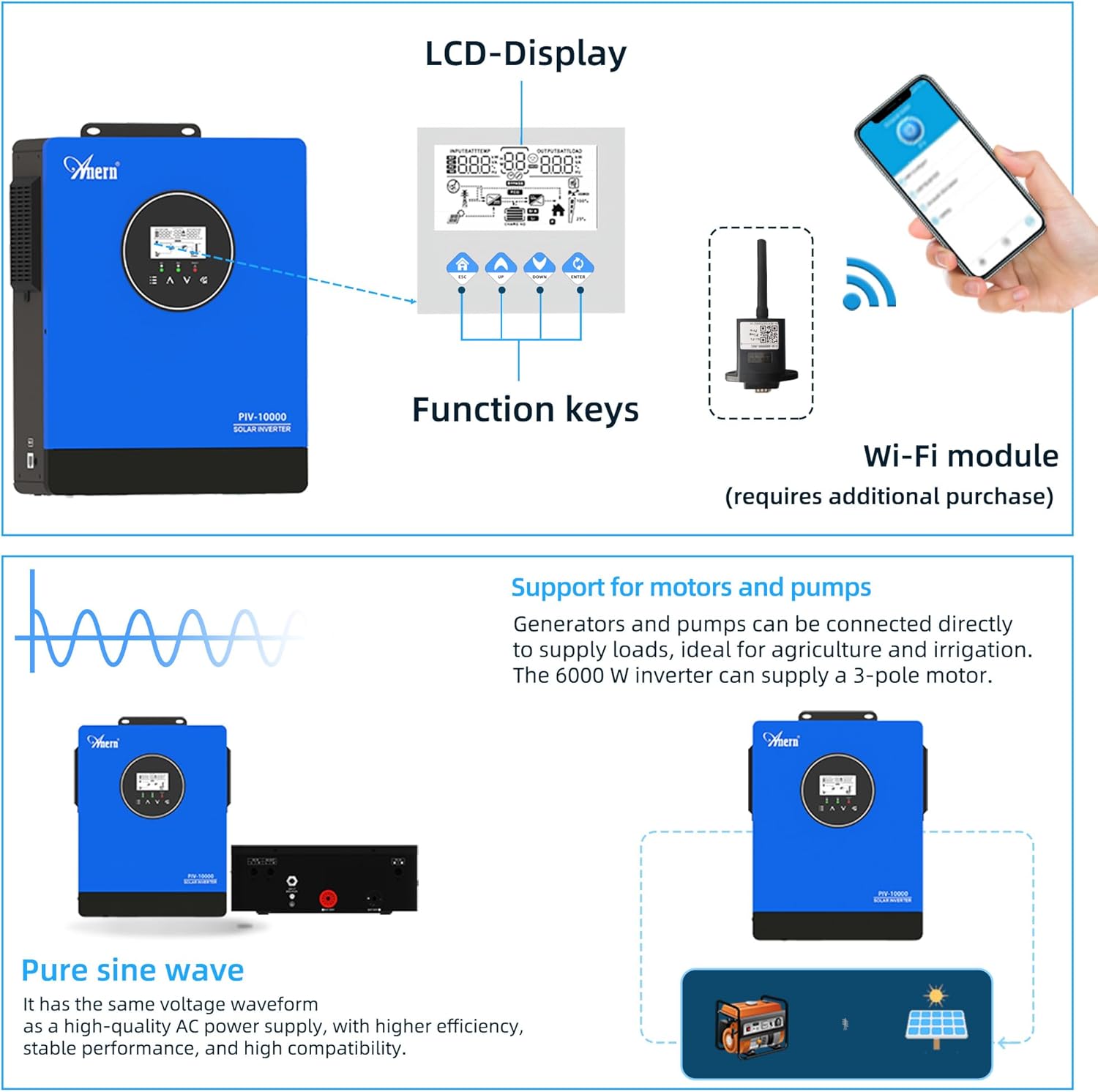

【HIGH-CAPACITY TECHNICAL SPECIFICATIONS】Max PV input: 13500W; Voltage range: 60-450VDC; Max VOC: 500VDC; Startup voltage >120V. Supports high-current loads up to 50A, with 16AWG PV cable recommendation. Built-in WiFi enables remote monitoring and control, ensuring real-time system management.
【FLEXIBLE USE & SAFETY GUIDANCE】Supports both on-grid and off-grid modes, enabling energy self-consumption or grid feedback. Important notes: 1. Ensure load starting power ≥3x rated power to avoid inverter overload. 2. Install individual circuit switches and follow wiring instructions. 3. Startup sequence: Inverter → PV/Grid → Loads. Shutdown in reverse order for safe operation.
