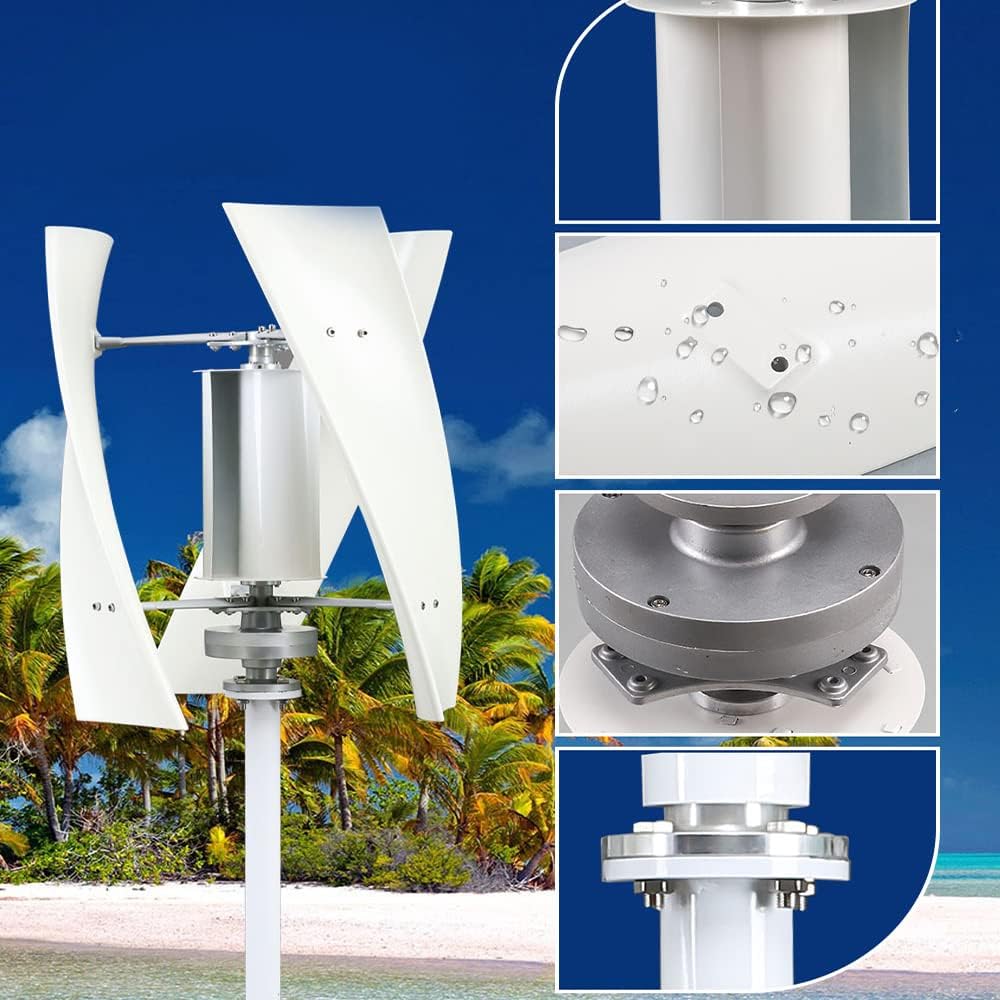

1600W Maglev Axis Wind Turbine Generator Vertical Windmill 3-Phase Wind Power Turbine,12V 24V 48V Wind Turbine Generator Kit (with Controller)
1600W Maglev Axis Wind Turbine Generator Vertical Windmill 3-Phase Wind Power Turbine,12V 24V 48V Wind Turbine Generator Kit (with Controller)
[Sturdy and Durable]: It adopts a permanent magnet generator with an iron core paired with two aluminum alloy blades, and the surface is sprayed with plastic, which can withstand bad weather and ensures the product's long and stable operation.
[Efficient Work]: It has a power of up to 1600W and a
[Efficient Work]: It has a power of up to 1600W and a
Quantity
-
Detail
SPECIFICATIONS:
color: White
Rated voltage(DC):12V 24V 48V
Rated power(W):1600W
Rotor Diameter of Blades(m):0.52m
Product assembly weight (Kg):<12KG
Blades height(m):0.75m
Started wind speed (m/s):2 m/s
Cut-in wind speed (m/s):3 m/s
Rated Wind speed (m/s):10 m/s
Safe wind speed (m/s):≤40m/s
Blades quantity:3
Blade material:Galvanized aluminum alloy
Generator:Three phase permanent magnet suspension motor
Control System:Electromagnet
Mount Height(m):2- 12m
Generator protection grade:IP54
Work environment temperature:-25~ +459C
Work environment humidity:≤90%
PACKING LIST:
3 × pcs blades
1 × generator
1 × bolts &nuts
1 × Main shaft and arms
1 × Wind controller -
