500W Permanent magnet Generator 12V 24V 48V Three Phase Alternator for Home Electric Motor Generator for Vertical Horizontal Wind Turbine (With Base-Double shafts, 48V)
500W Permanent magnet Generator 12V 24V 48V Three Phase Alternator for Home Electric Motor Generator for Vertical Horizontal Wind Turbine (With Base-Double shafts, 48V)
1.Die cast aluminum shell with good heat dissipation and light weight
2. Gearless, low start up torque and low RPM
3. Installed by human design, easy installation, maintenance and repair.
4. Using a new set of ring power output devices, to overcome the traditional generator when the cable w
2. Gearless, low start up torque and low RPM
3. Installed by human design, easy installation, maintenance and repair.
4. Using a new set of ring power output devices, to overcome the traditional generator when the cable w
Quantity
-
Detail
Gearless permanent magnet electric motor generator, low rotating speed, and can be driven directly, energy saving
Permanent magnet generator rotor using patented alternator, together with the special stator design, effectively reduce the generation of resistance torque, while allowing more wind turbines and generator has good matching characteristics, the unit runs reliability
The low speed rare earth permanent magnet generator is very simple to operate, and the three phase AC permanent magnet generator is , easy to maintain
ModelS-500Rated Power(w)500wMax Power(w)550wRated Voltage(v)12v/24v/48vRated rotated speed(r/m)700r/mNet weight(kg)4kgOutput CurrentACStart Torque1.23NmGenerator3 phase permanent magnet synchronous generatorInsulation ClassFBearingHRB or for your orderShaft MaterialStainless SteelShell Materialaluminium alloyPermanent Magnet MaterialRare Earth NdFeBProtection GradeIP54Multiple Styles To Choose From

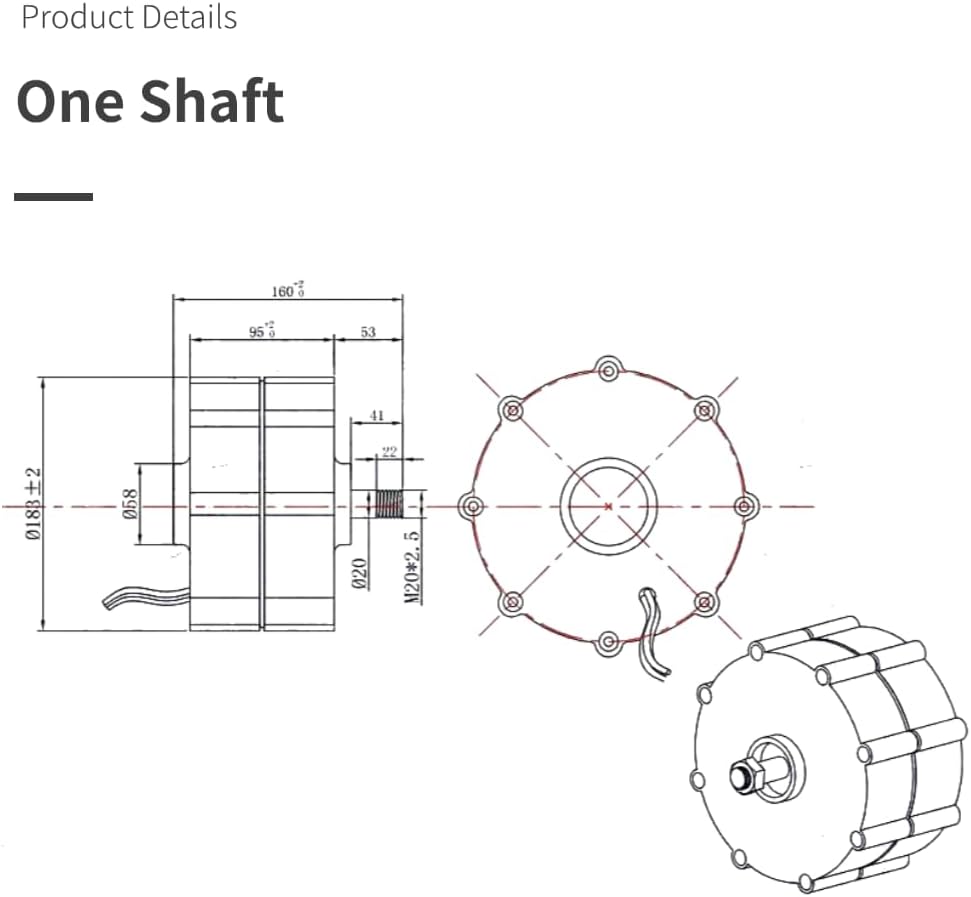

One shaft
With Base
Easy Operation
-
