3000W Wind Turbine Generator Kit with MPPT Controller,12V/24V/48V Vertical Wind Turbine Kit,Electricity Producer Equipment,Home Power Energy Kit 24V

【Wind Turbine Generator Kit】The wind turbine generator adopts new precision injection molding technology and is made of galvanized aluminum alloy. The three blades are in an arc shape, which effectively utilizes wind resources and achieves higher power output.
【360-degree Wind Direction Available
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    The wind turbine generator kit is small, lightweight, requires no fuel, is pollution-free, and is noise-free.

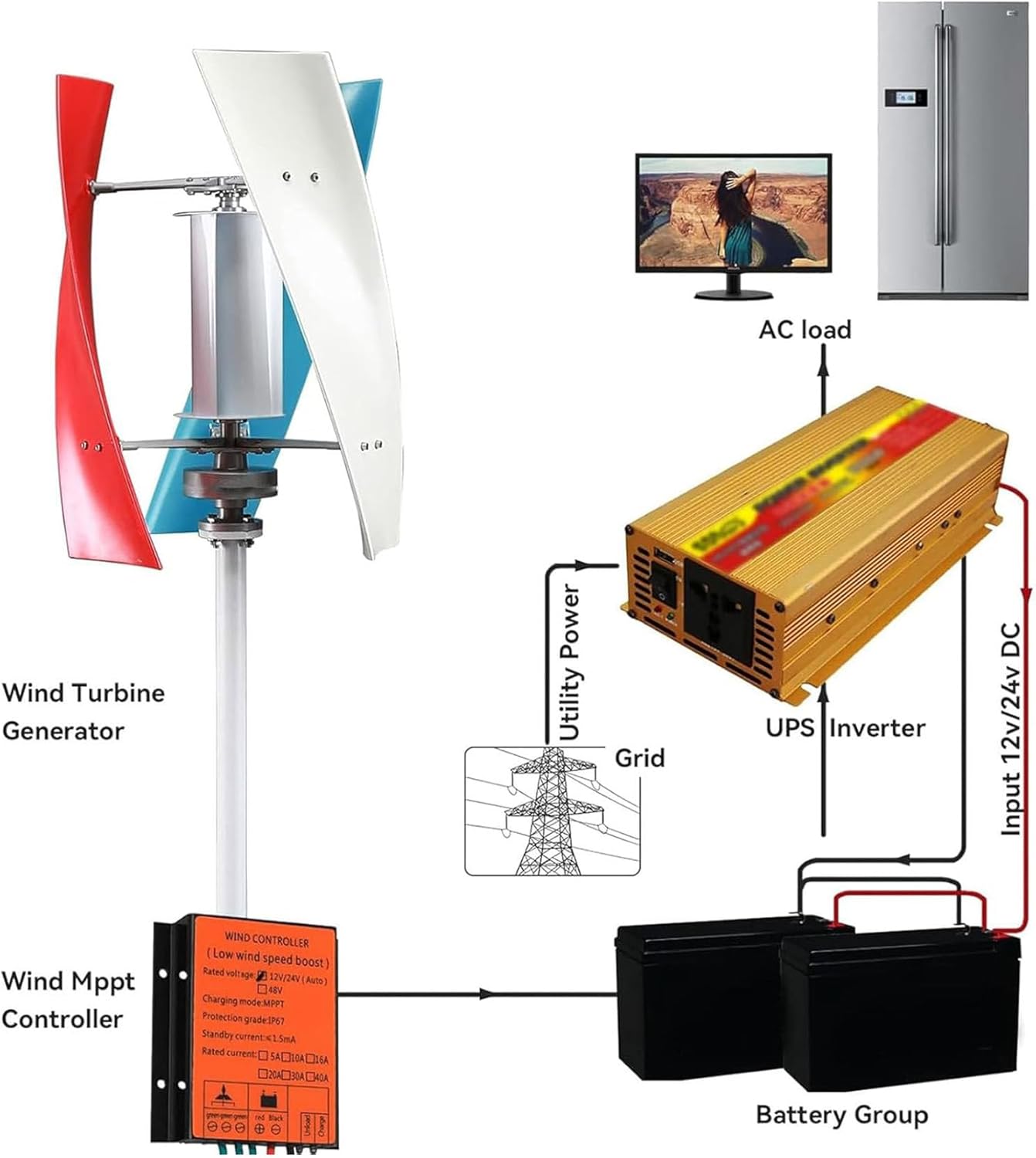

    The 3-blade vertical axis wind turbine generator converts wind energy into mechanical energy and then into electrical energy. The device can fully utilize wind energy to charge batteries and can also convert electrical energy into alternating current.

    Specification:

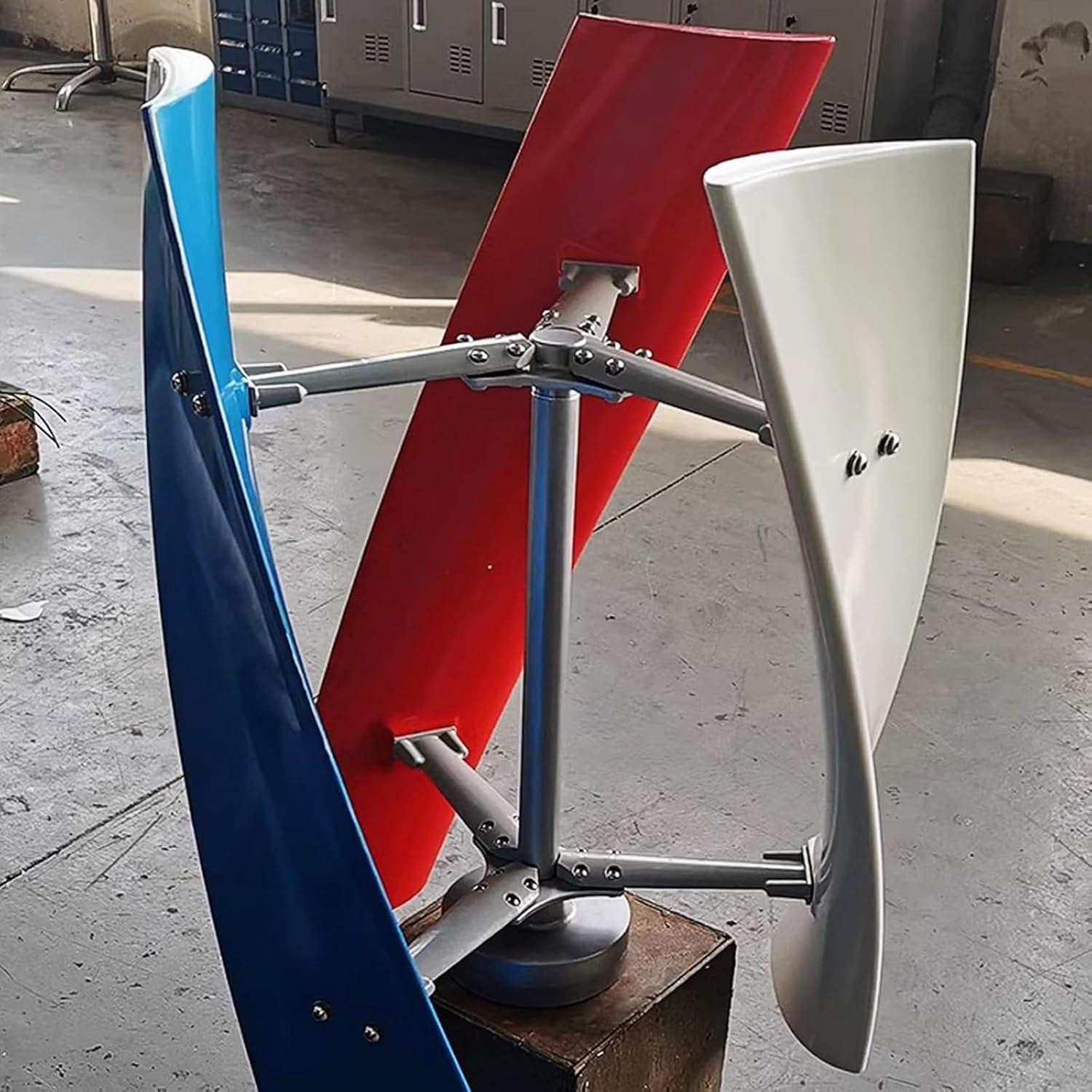

    Name: 3-blade vertical axis wind turbine kit.
    Shape: H-shape
    Number of blades: 3
    Wind wheel diameter: 520 mm
    Blade height: 750 mm
    Rated voltage (AC): 12 V, 24 V, 48 V
    Rated power (W): 3,000 W
    Wind turbine mounting pole height: 60 mm
    Initial wind speed (m/s): 2 m/s
    Cut-off wind speed (m/s): 3 m/s
    Rated wind speed (m/s): 10 m/s
    Safe wind speed (m/s): ≤40 m/s
    Blade material: Galvanized aluminum alloy

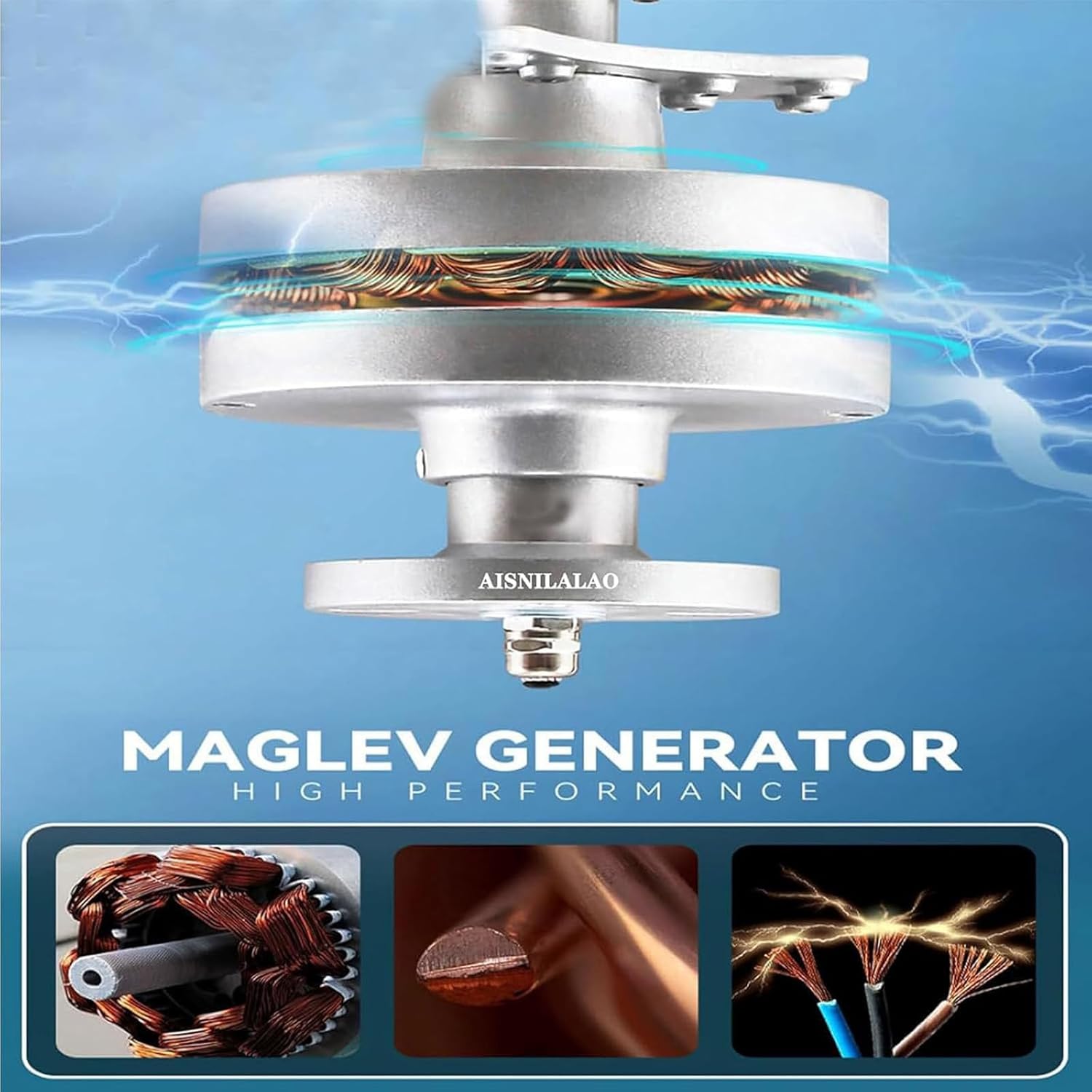

    Generator: Three-phase AC permanent magnet generator
    Control system: Electromagneti
    Fan installation height (M): 2-12 m
    Degree of Generator Protection: IP54
    Working Environment Temperature: -25 ~ +459°C
    Working Environment Humidity: ≤90%
    Altitude: ≤4500m

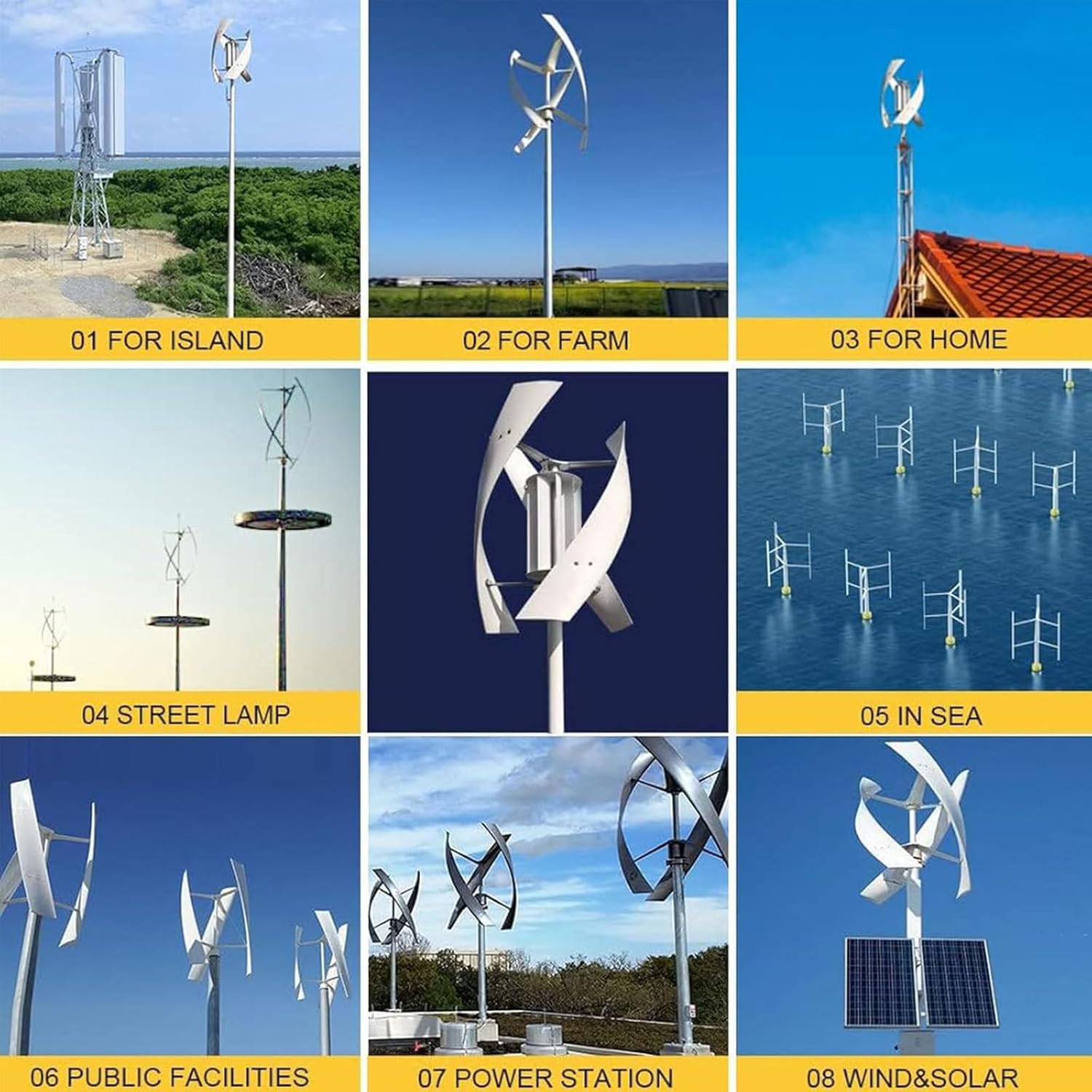

    Applications: Home, Garden, Farm, City, Rooftop

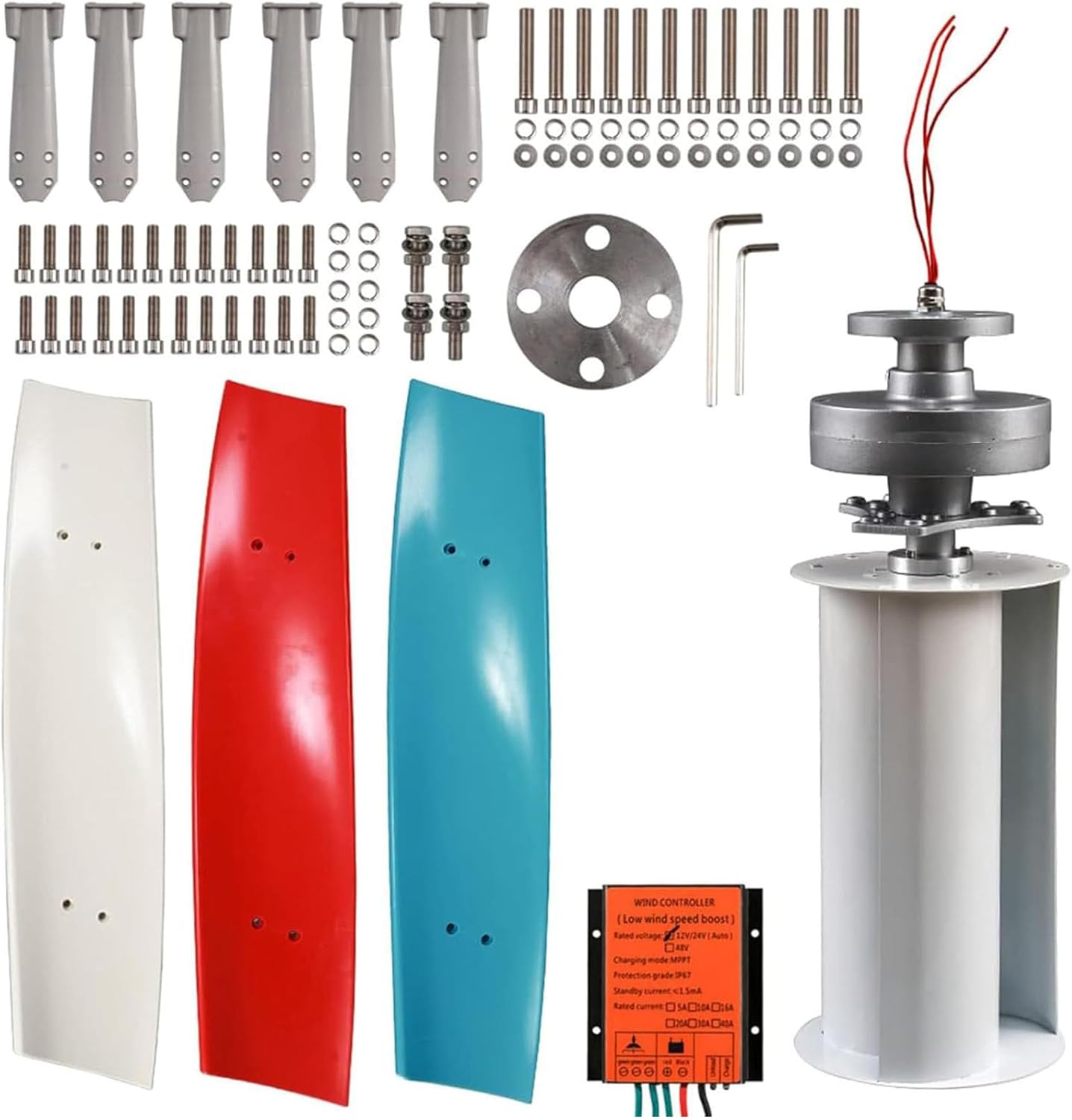

    Packing List:
    3 × Blade
    1 × Generator
    1 × Spindle and Arm

    NOTE:The vertical axis wind turbine generator does not include a mounting pole
