Home / 220V,HYZHANHONG 10000W Off Grid with Unloader Hybrid Wind Solar Controller Auto 12V 24V 48V 220V Battery MPPT Chargecontroller for Wind Turbine Generator

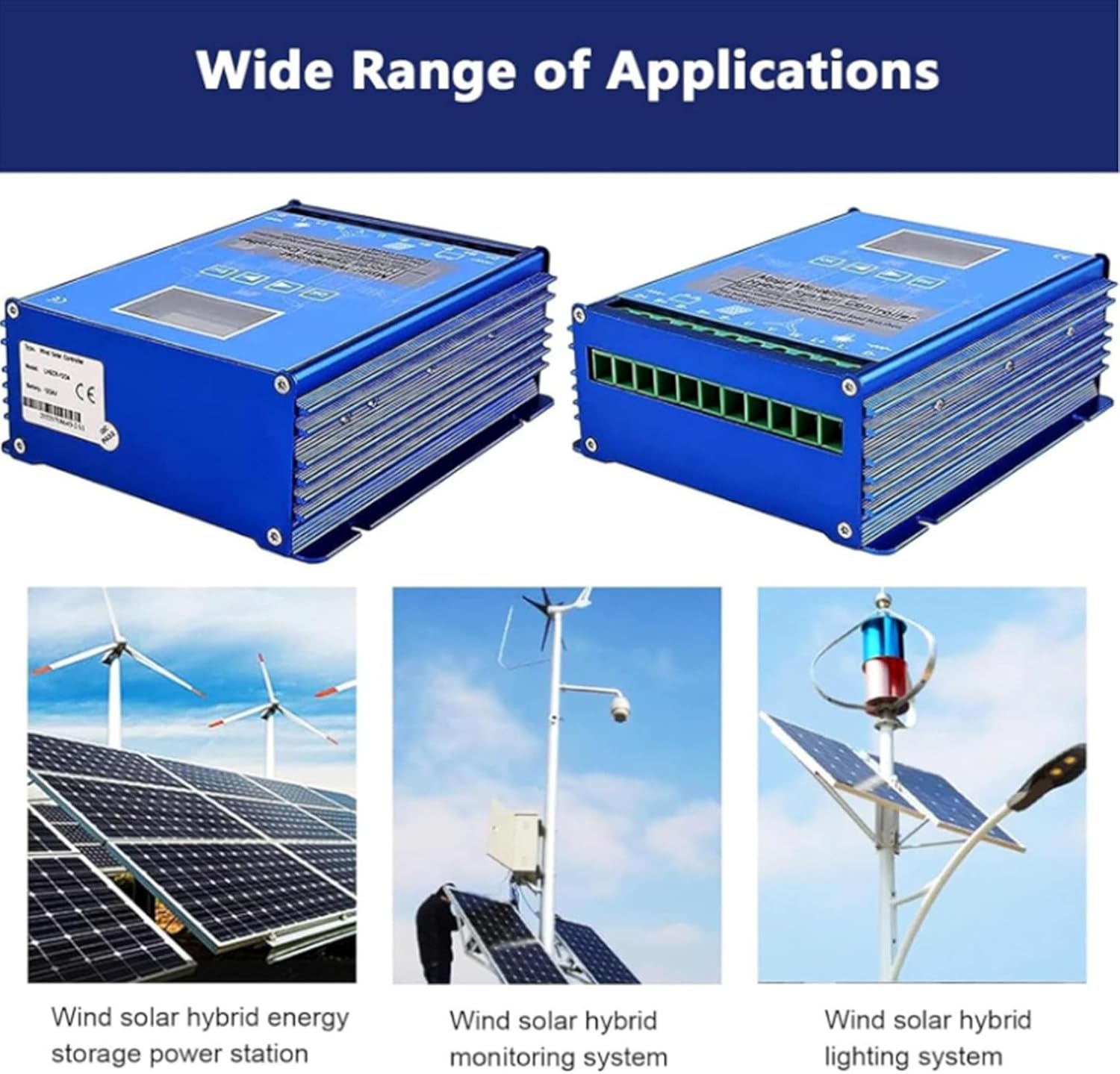

220V,HYZHANHONG 10000W Off Grid with Unloader Hybrid Wind Solar Controller Auto 12V 24V 48V 220V Battery MPPT Chargecontroller for Wind Turbine Generator

● Operating System: The wind turbine charging part has booster MPPT technology, which makes it charge continuously and efficiently even at low wind speeds. Stepless discharge function including external dump charging resistor solar panel charging uses PWM technology through MOS tube in series.
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Product Content.
    1 pc controller
    1 pc dump load resistor
    1 pc operation Manual
    2 pcs resistor cable
    Product Description:
    Rated Wind Power: 10000W
    Battery:12V/24V/48V/220V
    Max input voltage:Wind turbine≤80Vsolar panel≤95V
    No-load Current (DC):≤0.05A
    Controller power mode:Battery or solar
    Display content:LCD display,Voltage,Percentage of battery power, Current, working mode of load,etc
    Protection type:Solar Reversed Charging protection,Battery open circuit protection、battery anti-reverse connection protection protection、Over current and over voltage auto brake protection、Over load protection,etc.
    Cooling mode:aluminium profiles Heat dissipation and self-cooling
    Working temperature / Relative humidity:-25℃~+80℃ /0~90%,non-condensing
    Controller size: 167mm*145.5mm*61.8mm
    Pack size:360mm*250mm*120mm
    Net weight / Gross weight:2.35/2.85kg

  • Customer Reviews
    No comments
