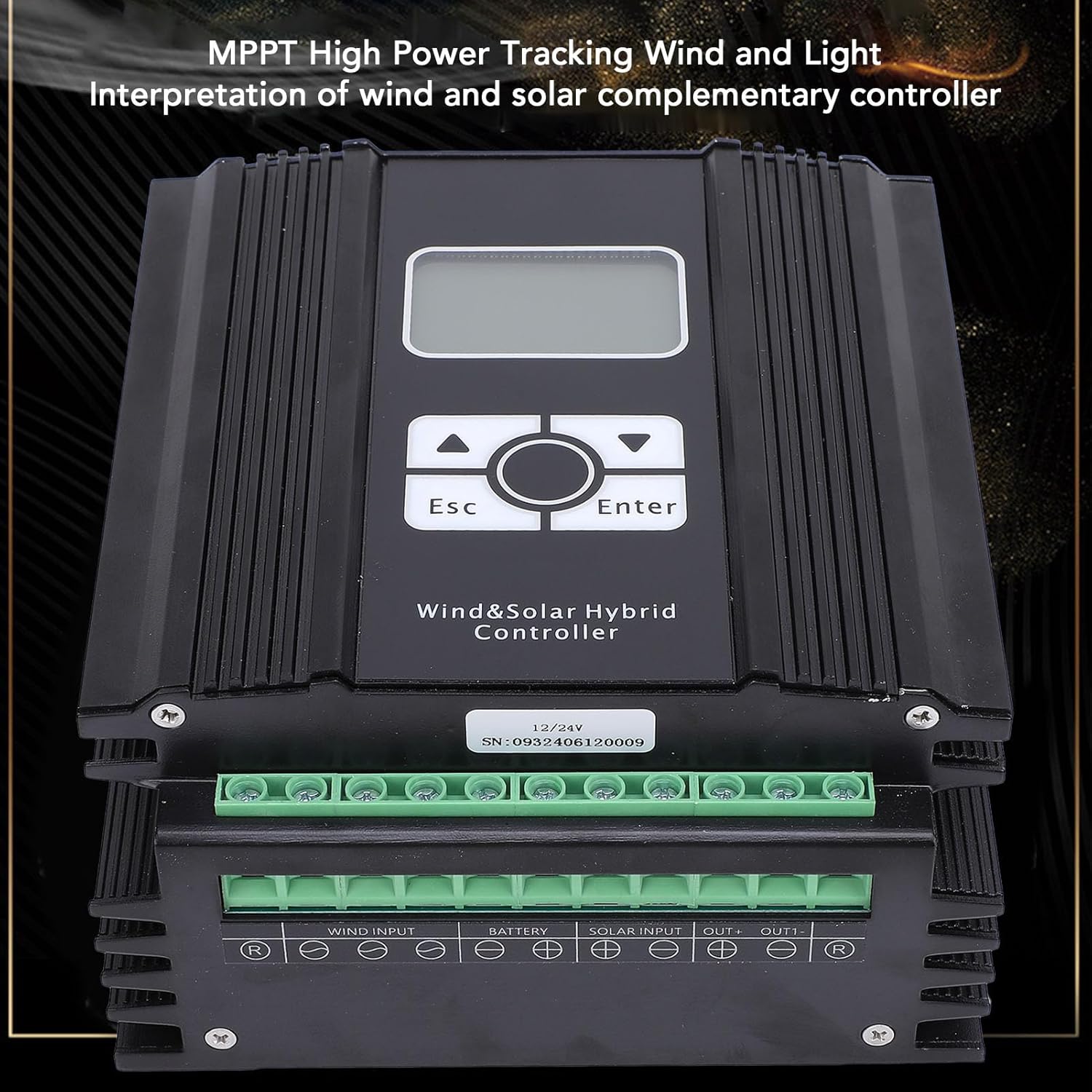

Hilitand Wind Solar Hybrid Controller 12V/24V MPPT Charge Controller Kit High Efficiency with LCD Display for Solar Panel System Home Marine Street Light (400W Fan)

Spec:

Item Type: Wind Solar Hybrid Controller

Material: Aluminum shell, steel

Rated System Voltage: 12V/24V self adaption

Rated Solar Power: 800W

Controller Power Mode: Battery or Solar

Display: LCD display

Displayed Parameters: Wind input voltage/current/power/generation/rotational speed/unloading current, Solar input voltage/current/power/generation, Battery voltage/charging current/power/total charging capacity/battery status information

Weight: Approx. 2335.00g / 82.36oz

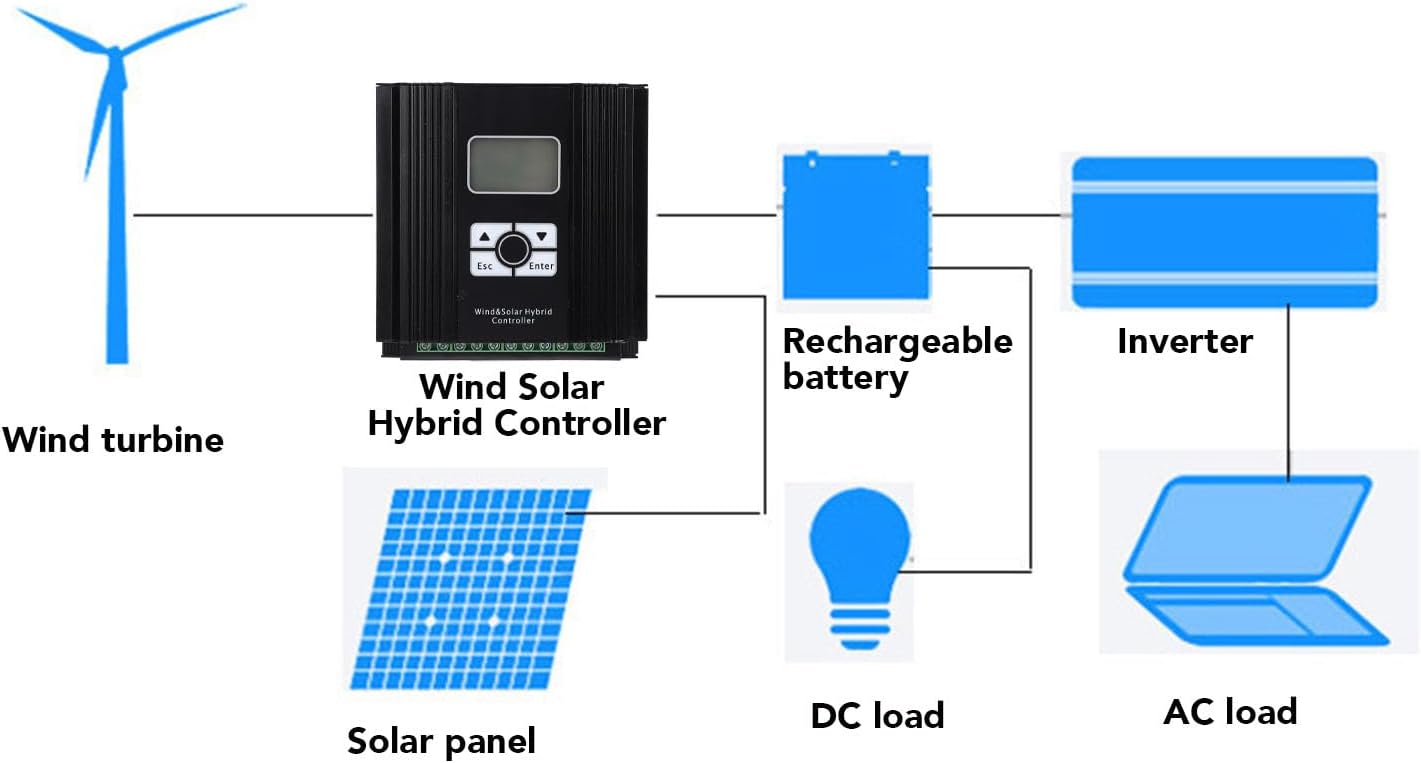

How to Use:

1. Connect the output load first.

2. Connect the battery next.

3. Then connect the solar panel.

4. Lastly, connect the wind turbine.

Parameter setting operation instructions:

1. Press and hold the ENTER key for more than 3 seconds on any browsing interface to enter the parameter setting interface.

2. Press the ENTER key to enter the next parameter setting item; press the ESC key to enter the previous parameter setting item.

3. When the parameter needs to be set to flash: press the UP key to increase the value, long press for rapid increase; press the DOWN key to decrease the value, long press for rapid decrease.

4. After setting the parameters, press and hold the ENTER key for more than 3 seconds to save the parameters and exit the setting state.

5. After setting the parameters, press and hold the ESC key for more than 3 seconds to not save the parameters and exit the setting state.

Package List:

1 x Wind Solar Hybrid Controller System

1 x Resistor

1 x Cable

2 x Screws

2 x Nuts

1 x Instruction Manual
