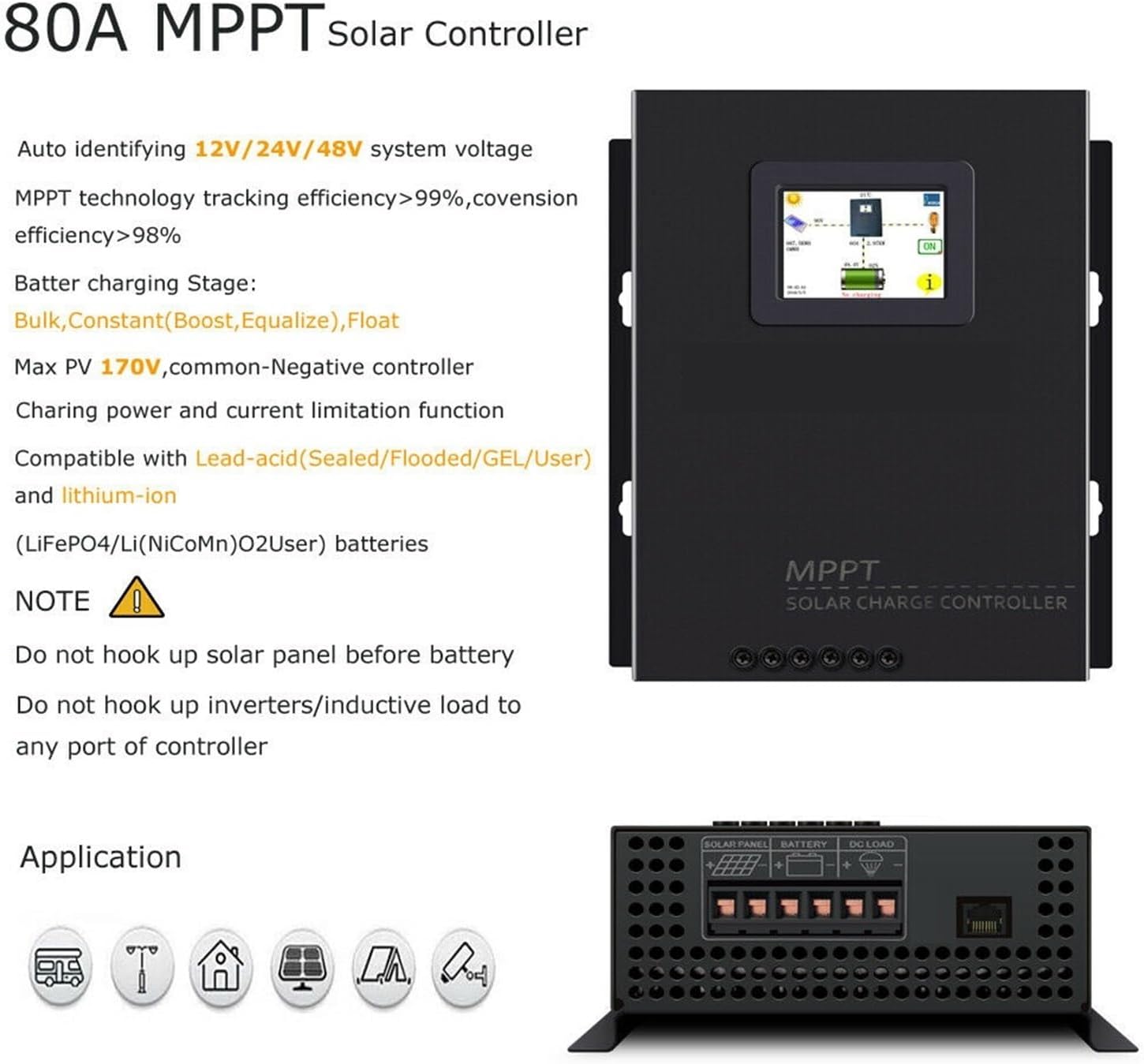

Solar Charge Controller, MPPT Solar Charge Controller 80A 12V/24V/48V Battery Charger Regulator Off Grid DC Generator Solar System Manual(12V)

Features:
1,Display real-time power generation and current.
2,Display the daily power generation curve and current curve.
3,Chinese and English, multi-function LCD screen and operation menu.
4,Display fault records, to facilitate customer troubleshooting in a timely manner
5,Support lead-acid batteries, colloidal batteries and lithium batteries.
6,Intelligent maximum power point tracking technology increases efficiency 25%~30%.
7,Battery temperature sensor (BTS) automatically provides temperature compensation.
8,Perfect protection function.
9, The latest MPPT algorithm is used to track the maximum power point of
solar power generation in real time. The charging efficiency is over
98.5 % and the tracking accuracy is over 99.73 %.
10,Ultra-fast tracking speed, tracking 1 times per second.

Specification:
Rated current: 80A
Cut-off current: 83A
Maximum solar panel:170V
Minimum
solar panel: 3V higher than the of full-charged battery
(e.g. of fully-charged 12V battery 14.6V+3V=17.6V)
Maximum solar panel power: Battery * rated current = solar panel power (e.g. 12V*20A=240W)
Stabilized precision:±1.5%
Constant-charging: 14.5V (12V) 29V (24V) 58V (48V)
Float charging Recovery to charging: 13.3V (12V) 26.6V (24V) 53.2V (48V)
Underge protection Recovery to charging: 13V (12V) 26V (24V) 52V (48V)
Underge protection: 10.5V (12V) 21V (24V) 42V (48V)
For Lithium iron phosphate battery, Recovery to charging: 12.5V (12V) 25V (24V) 50V (48V)
For Lithium iron phosphate battery, Underge protection: 10.5V (12V) 21V (24V) 42V (48V)
Input protection: Low protection/high protection/reverse polarity protection/short-circuit protection
Temperature protection: Stop work when the radiator temperature rises to 85°C.
Start conditions of the fan: When the radiator temperature hits 50°C/the charging current reaches 50% rated current
Environment humidity: 0-90%RH (without condensation)
Altitude: 0-3,000m
Working temperature: -20°C ~ +50°C
Storage temperature: -40°C ~ +70°C
Atmospheric pressure: 70-106KPa
Battery type: Lead-acid battery, Gel battery, Lithium iron phosphate battery
Controller Size: 29*24.5*10cm / 11.42*9.65*3.94inch
Solar Controller weight: 4.85kgs / 10.59Pound
