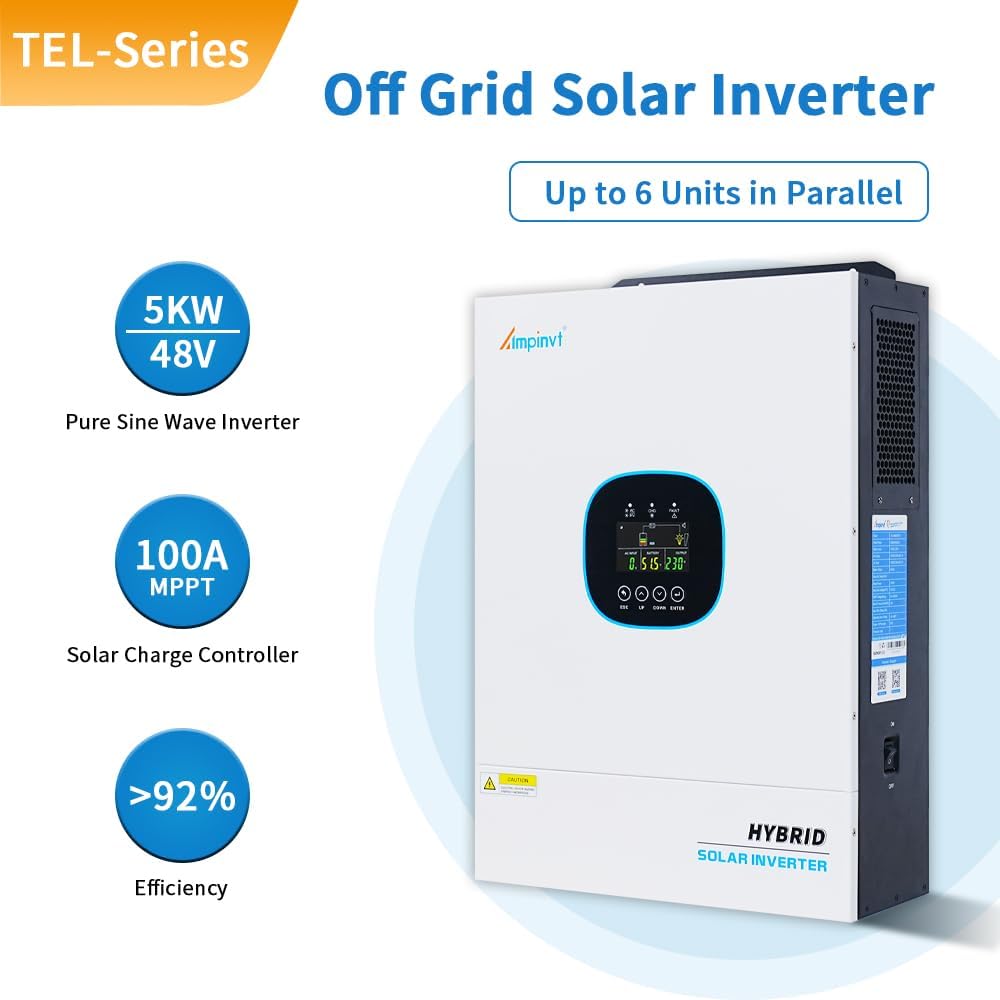

Ampinvt 5000W Off Grid Solar Inverter 48Vdc to 120V, Pure Sine Wave Inverter inbuilt 100A MPPT Solar Charge Controller Max PV Input 5500W, Support up to 6 in Parallel, Lead Acid Lithium Battery

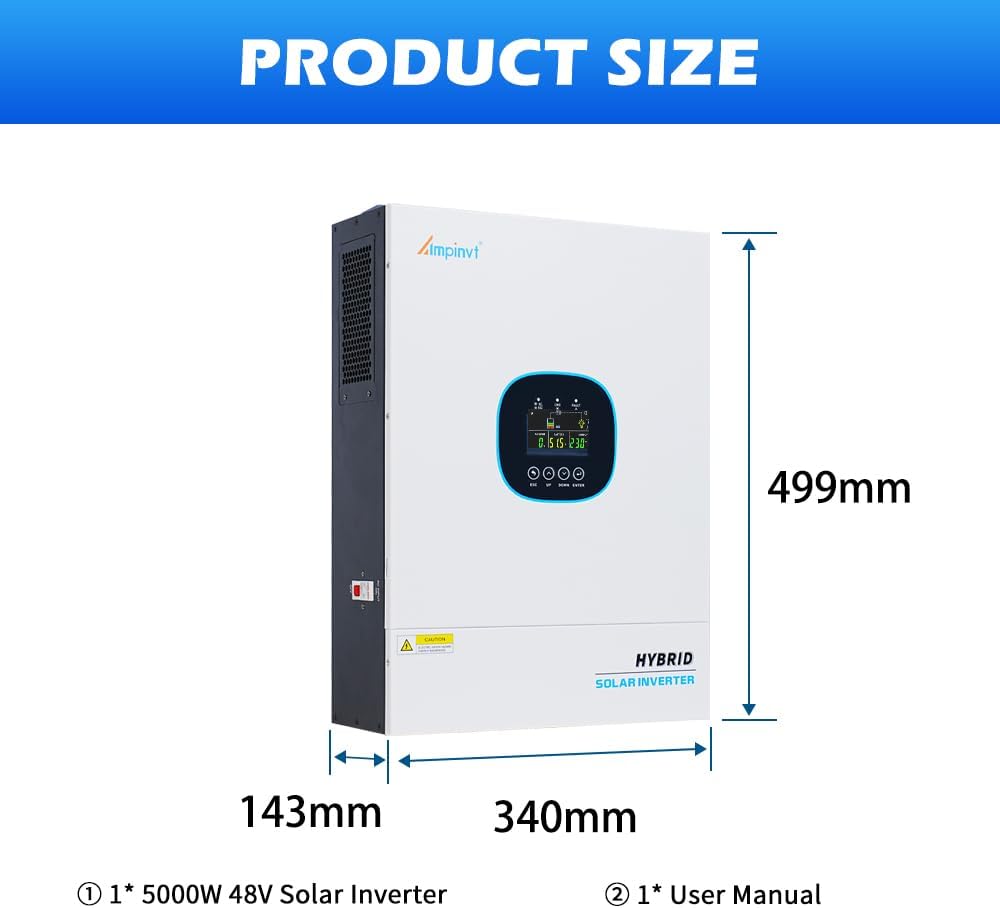

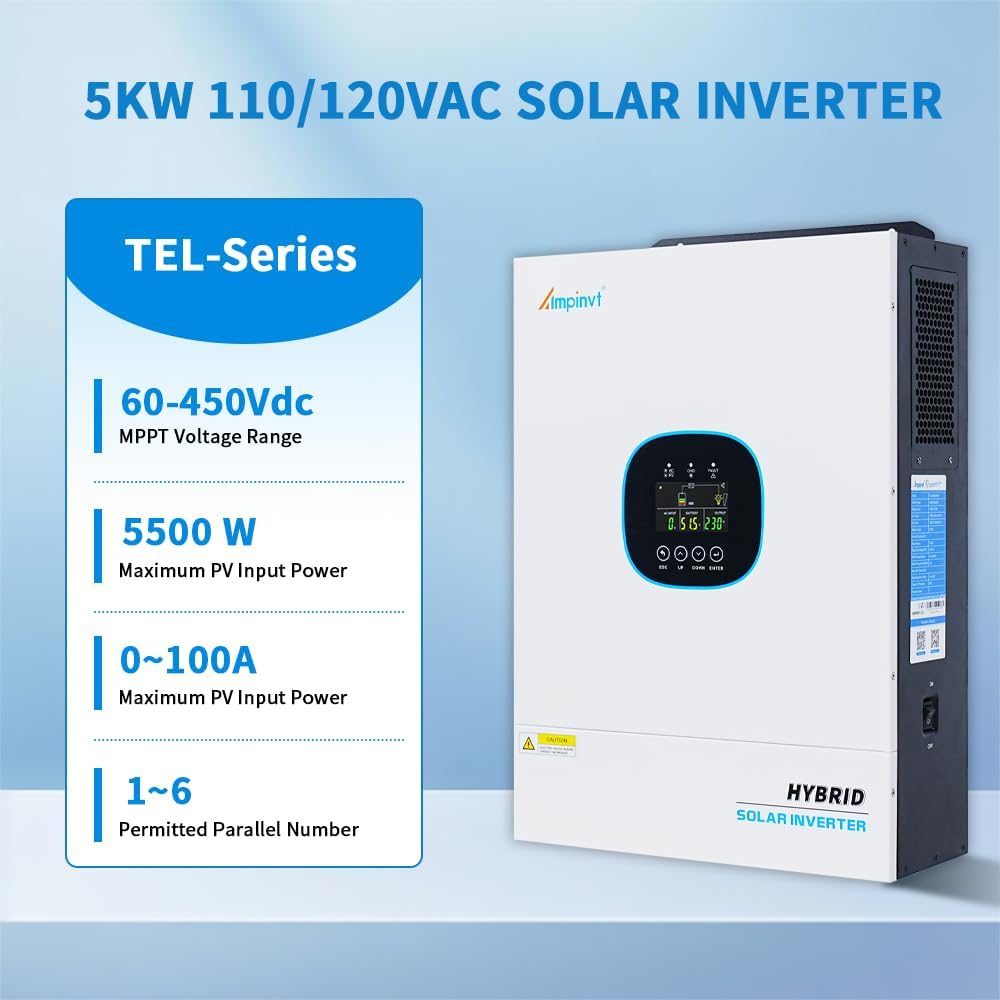

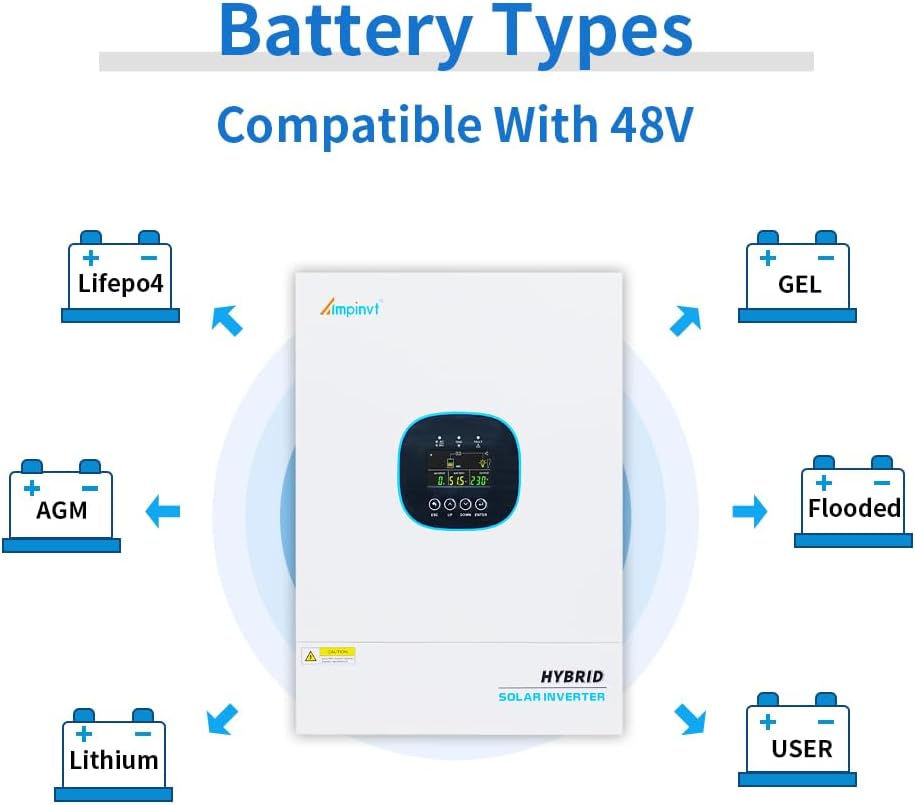

ModelTEL-48502M100Rated Load Power5000WAC Rated Input Voltage110/120VacDC Rated Input Voltage48V (Minimum starting voltage 44V)Phase120V (single phase), 120V/240V (split phase), 208V (2/3 phase)Frequency50Hz/60Hz (Auto detection)Compatible BatteryLiFePO4 Batteries, AGM Batteries, Lithium Batteries, Flooded Batteries, User Mode, Sealed Lead Acid Batteries, Gel BatteriesCharge Voltage Range40-58VdcMaximum Charge Current0-40A (can be set)Circuit Breaker Specifications63APV Operating Voltage Range60-500VdcMax Solar Input Power5500WMax Charger Current0-100A ((AC charger+PV charger))Communication InterfaceUSB/RS485(WiFi/GPRS)/Dry contact controlProduct Size(D*W*H)499*340*143mmN.W.(Kg)12.70KG

The system supports parallel expansion of up to six units, enabling single-phase, split-phase, or three-phase configurations.Except for single-phase mode, parallel connection supports both 120V/240V split-phase and 208V three-phase output. This versatility ensures reliable power delivery for residential, commercial, or industrial applications, offering efficient distribution, balanced loads, and broad compatibility with diverse electrical requirements.

ATTENTION:

• This solar inverter is able to charge the battery bank when AC power, solar power, or a generator are connected to the inverter.
• 5000 watt is continuous output power, peak output power is 10000W
• This inverter can ONLY work with 48V battery system.
• Inverter CAN support connect in parallel.
• Inverter MUST have a battery.

Note: Different types of loads have different starting impulse currents. Customers need to select the appropriate inverter model according to the actual equipment power, current, and load characteristics.

• What kind of the inverter is suitable for your appliances?
• Pls know that load is divided into resistive load and inductive load .If you need the inverter to run the resistive load (like laptop, TV, electric cooker ), please choose the inverter with continuous power higher than the appliance's rated power. And it is best to use 80% of the rated power. If you use microwaves, water pumps, air conditioners and other appliances with motors or compressors ,please choose the inverter whose continuous power is 3-10 times higher than your appliances.

-

Four Charging Modes:

1. Hybrid Charging: The solar energy will charge the battery preferentially, the utility will charge the battery at the same time when the solar energy is insufficient.

2. Only Solar Charging: The solar will be the only charger source not matter the utility is available or not.

3. PV Priority: Solar energy will charge battery as first priority. The utility will charge the batterywhen solar energy is not available.

4. Utility Priority: The utility will charge the battery preferentially, and the battery will be charged by solar only when the utility is invalid.

Ampinvt 5000W High Frequency Solar Inverter 48Vdc to 110V/120Vac

Parallel Connection Capacity Up to 6 Units

Flexible 120/240/208V Voltage Output
