Wind Turbine Generator Kit 12V/24V/48V 3 Blade Portable Vertical Wind Power Turbine Generator Kit with Charge Controller for Marine RV Home 6000W
★ The wind turbine blades are made of zinc-plated aluminum alloy, and the 3 blades are arc-shaped, which effectively utilizes wind resources and obtains higher power generation
-
Detail
Specification:
Number of leaves: 3 leaves
Wind wheel diameter: 520mm
Blade height: 750mm
Rated voltage (AC): 12V 24V 48V 220V
Rated power (W):6000W
Wind installation pole size: 60mm
Packing size: 86×38×21cm
Package weight: 12kg
Initial wind speed (m/s): 2 m/s
Cut-in wind speed (m/s): 3 m/s
Rated wind speed (m/s): 10 m/s
Safe wind speed (m/s): ≤40m/s
Blade material: galvanized aluminum alloy
Generator: Three-phase permanent magnet levitation motor
Control system: electromagnet
Wind turbine installation height (m): 2-12m
Generator protection class: IP54
Working environment temperature: -25~+459C
Working environment humidity: ≤90%
Altitude: ≤4500m
Overspeed protection: electromagnetic brake
Overload protection: electromagnetic brake and unloading device
contain:
3×pcs blade
1 × generator
1 × bolt and nut
1×Spindle and arm
1×Wind control

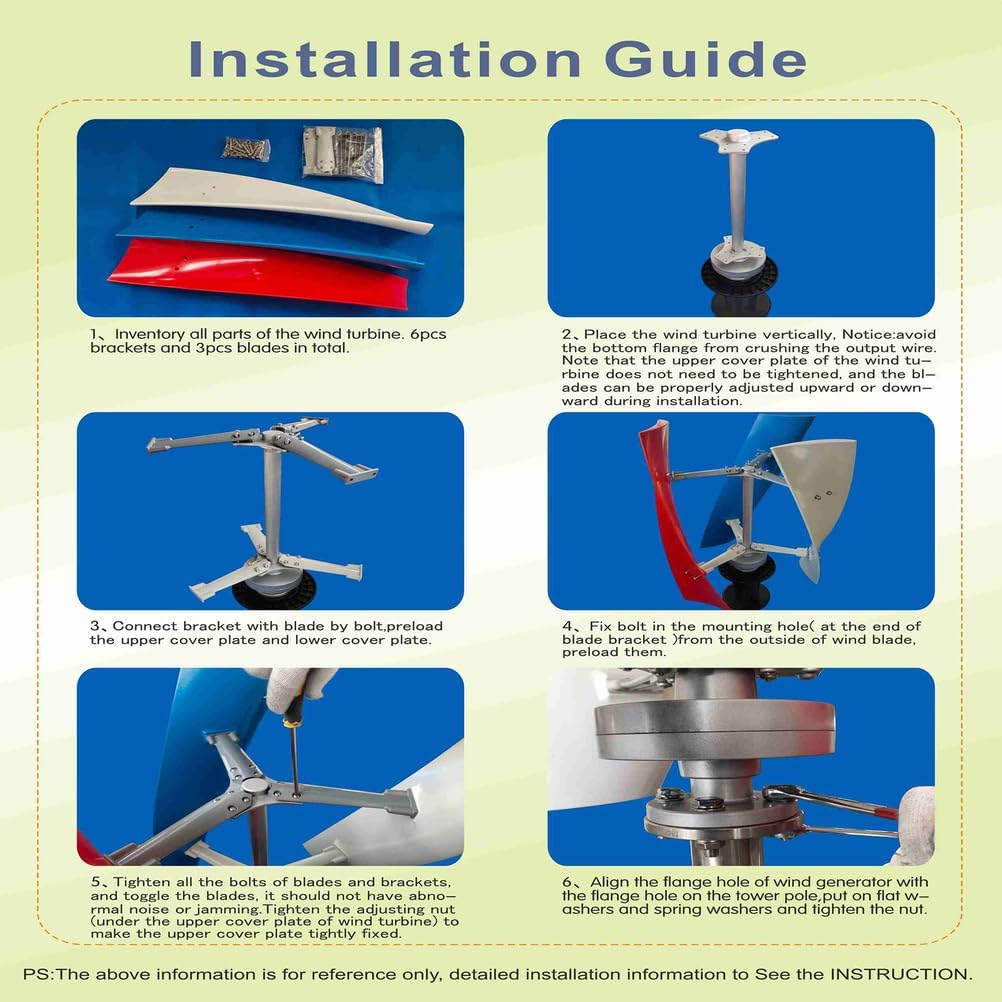

1×English installation manual
-
