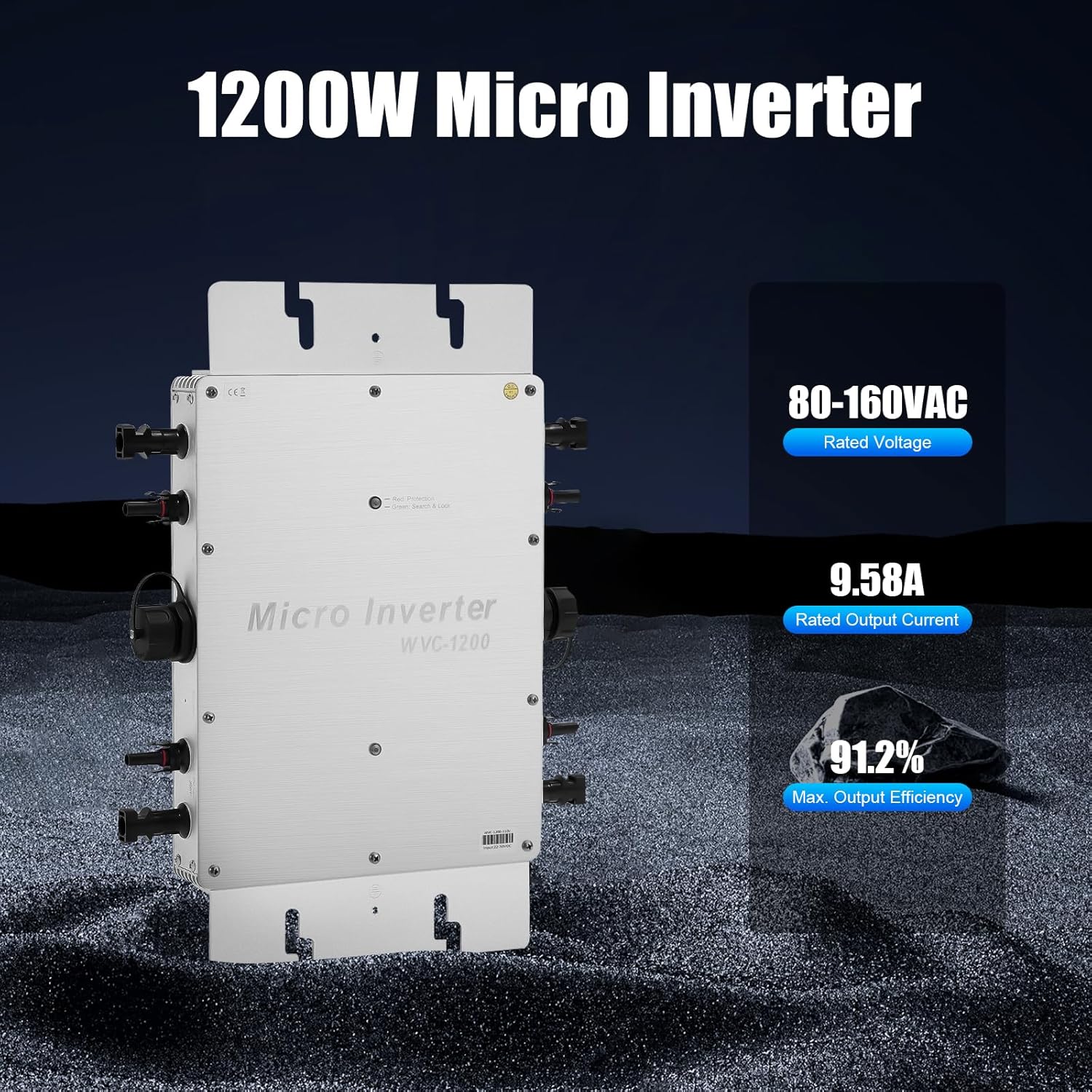

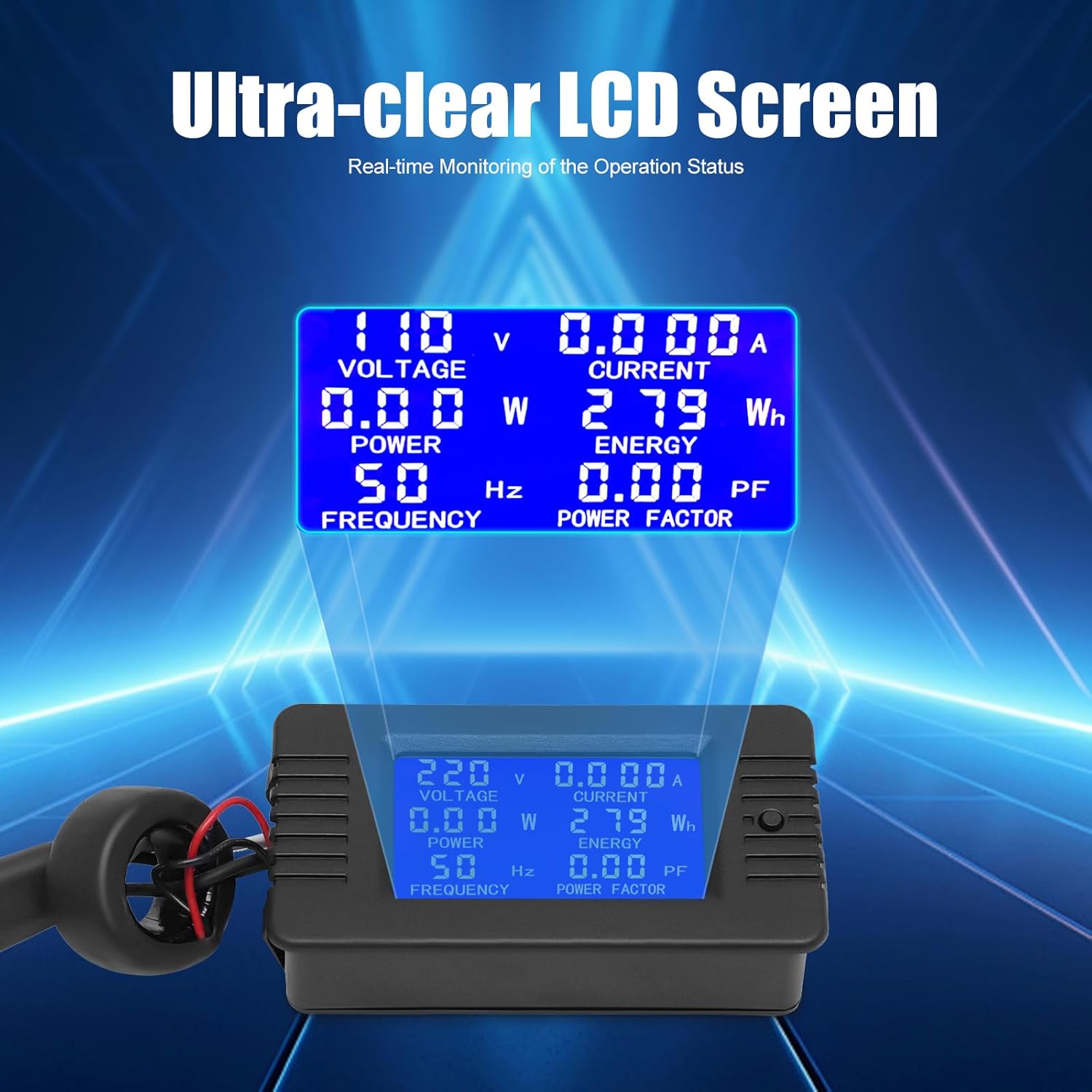

1200W Solar Grid Tie Micro Inverter, Waterproof IP65 Micro Inverter with AC Data Monitoring Display LCD Screen Pure Sine Wave Inverters for 30V/36V Solar Panels 8.27x14.72x1.57 inch

Details

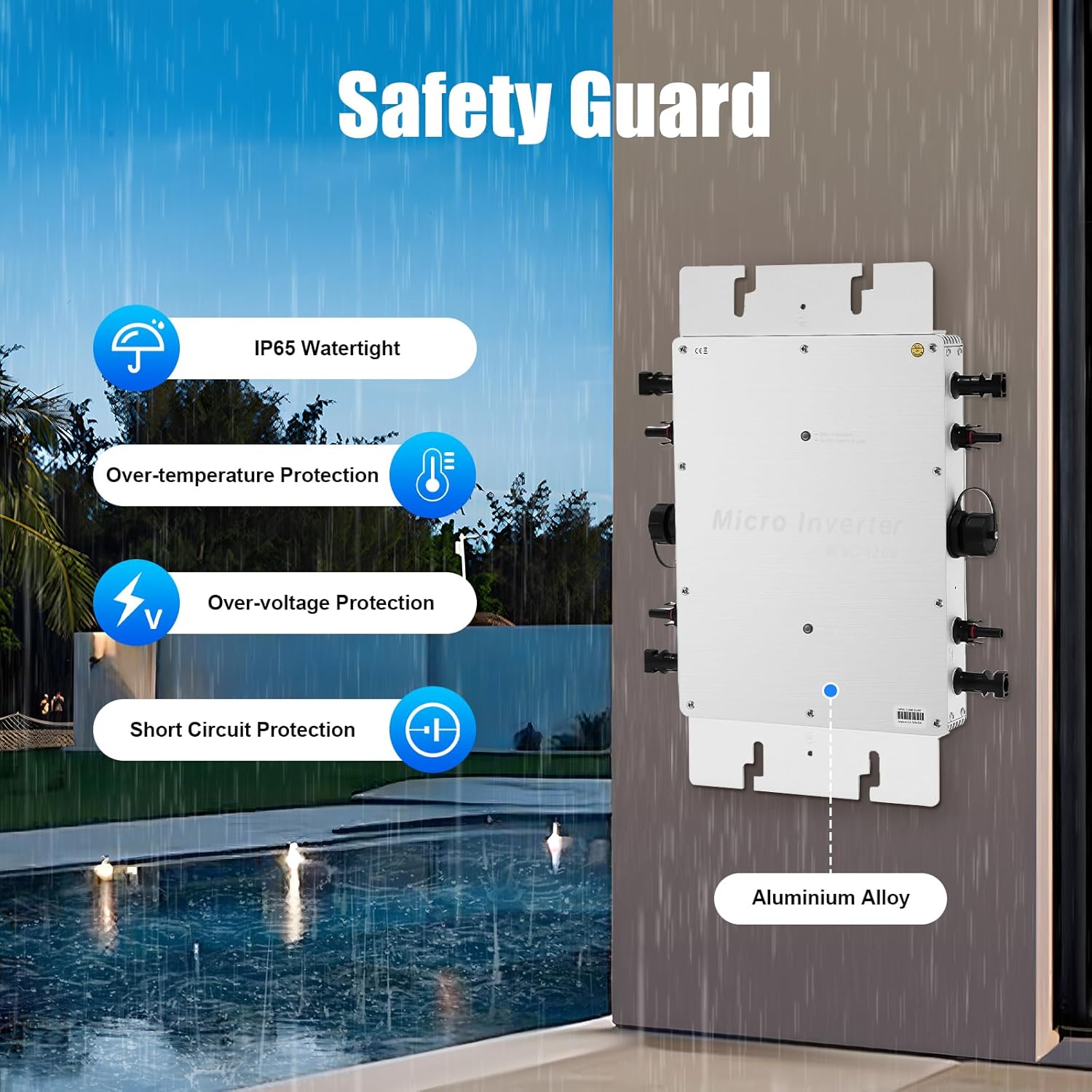

Gasket: The inverter is equipped with two gaskets to help you install the photovoltaic support, making the inverter more stable.

Heat Dissipation Holes: The inverter is provided with heat dissipation holes, which can play a good role in heat dissipation and prolong the service life of the inverter.

Application

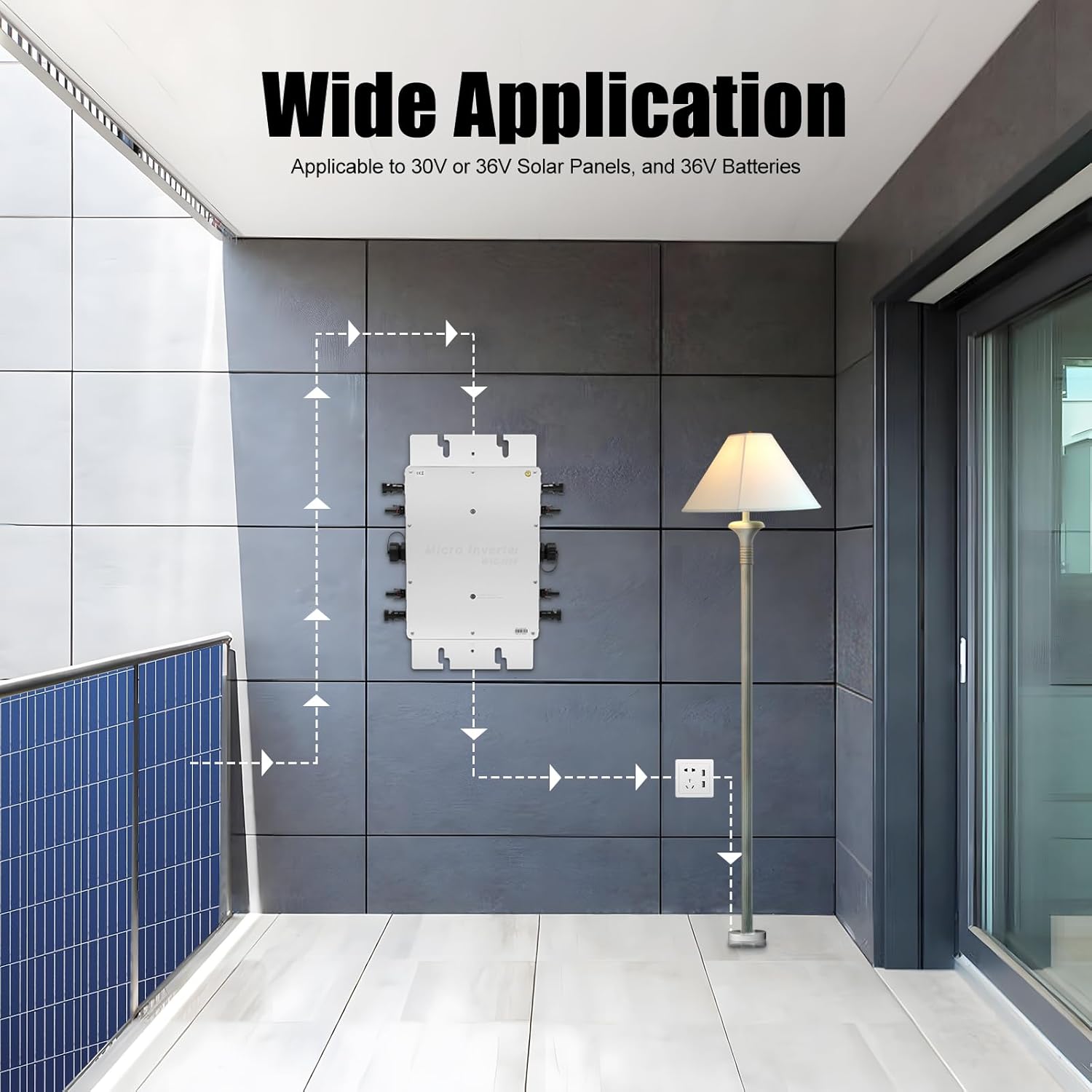

This product is applicable to 30V or 36V solar panels, 36V batteries. The inverter can be widely used in residential or commercial areas for turning the direct current generated by solar panels into alternating current.

How to Use

Step 1: Install the inverter on the support of the photovoltaic panel with the screws provided by the machine.

Step 2: Connect the positive and negative poles of the DC connection plug on the photovoltaic panel to the DC input terminal of the inverter.

Step 3: Open the waterproof cover of the AC output interface of the inverter and connect the AC cable to the AC waterproof plug.

Step 4: Connect the AC output cable to the AC main cable.

Step 5: Repeat steps 1 to 3 to install and connect all inverters.

Step 6: Connect the AC main cable to the public grid and start your green energy journey

Specification

Model: WVC-1200W

Color: Silver

Material: Aluminium Alloy

Power: 1200W

Voltage: 110V

Plug Type: US Standard

Maximum Input DC Voltage: 54V

Peak Power Tracking Voltage: 22-45V

Operating Voltage Range: 17-50V

Min/Max Start-up Voltage: 22-50VDC

Maximum DC Short Circuit Current: 80A

Maximum Input Operating Current: 54.4A

Peak Power Output: 1200watt

Rated Output Power: 1150watt

Rated Output Current: 9.58A

Rated Voltage Range: 80-160VAC

Rated Frequency Range: 57-62.5Hz

Power Factor: ＞99％

Max Unit Per Branch Circut: 3pcs(Single-phase)

Static MPPT Efficiency: 99.5%

Maximum Output Efficiency: 91.2%

Night Time Power Loss: <1W

Total Flow Distortion: <5%

Ambient Temperature Range: ﹣40℃~60℃/﹣40℉~140℉

Waterproof Rating: IP65

Cooling Method: Self-cooling

Communication Mode: Power Line Carrier

Power Transmission Mode: Reverse Transmission, Load Priority

Gross Weight: 4.08kg/8.99lbs

Net Weight: 2.88kg/6.35lbs

Product Size: 21*37.4*4cm/8.27*14.72*1.57inch

Package Size: 47.5*34*11.5cm/18.7*13.39*4.53inch

Package Included

1* Micro Inverter

1* Power Cord

1* English Manual

Other Accessories for Installation

Notes

1.Please install the inverter correctly according to the instructions. If you have any questions, please contact the relevant personnel.

2.Please don't dismantle the machine. Only qualified maintenance personnel can repair the inverter.

3.Please install the inverter in a place with low humidity and good ventilation to avoid overheating the inverter and remove the surrounding inflammable and explosives.

4.When using this inverter, please take good care of your children to prevent them from touching and playing to avoid electric shock.

5. Please note that our products are grid-connected, the AC output port has to be connected to the home grid in order to achieve grid-connected power generation.

6.When the input load is with solar panels, it is important that the VOC voltage is between 30-48V. We recommend that the solar panel is configured for 20% more power than the power of the product. For example, if the product is 600W, the total power of the solar panels should be between 700-750W.

7.When the input load is a battery, we recommend a battery voltage of 36V, which can be connected in series with 3 12V batteries. Please note that the positive and negative polarity should not be reversed when connecting the product. The recommended battery current is 36V/10mah for 300W, 36V/20mah for 600W, and 36V/40-45mah for 1200W.

8.The input and output voltage of the configuration is within the normal operating voltage range of the product in order for the product to work properly and achieve grid-connected power generation.
