Solar Grid Micro Inverter,700W Micro Inverter for Home Solar Power System

[Wireless Remote Control] Supports wifi connection for easy device operation and data control using a mobile app.

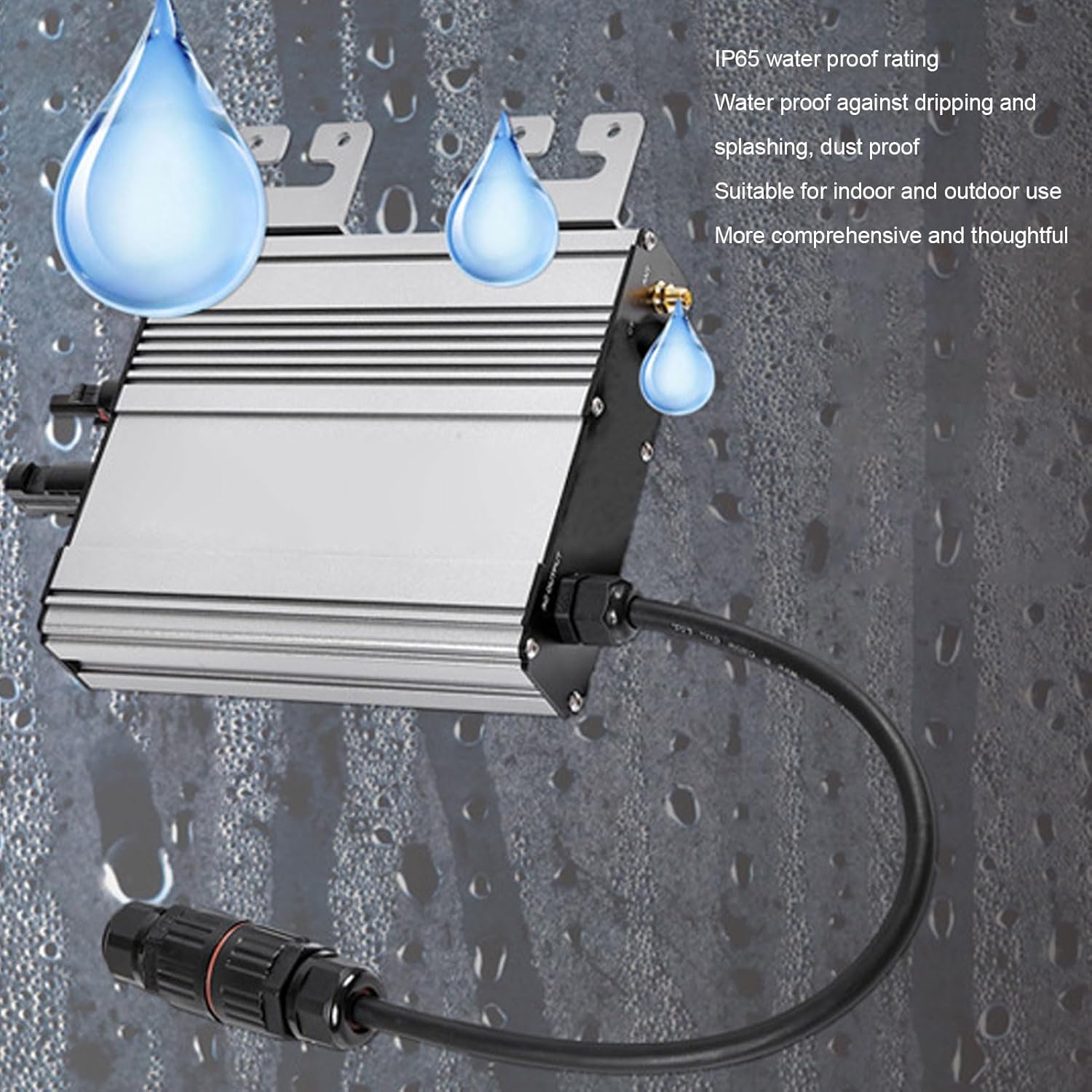

[Water proof and Dust Proof Performance] Designed for various indoor environments, this micro inverter has an ip65 rating for dependable longevity.
[Multiple Safety Preventions] In
Quantity
ADD TO CART
BUY IT NOW
  • Detail


    Spec:


    Item Type: Micro Inverter


    Material: Aluminum Alloy


    Input Parameters (DC):


    Maximum Recommended Input Power (Wp): 750Wp (Photovoltaic Mode)

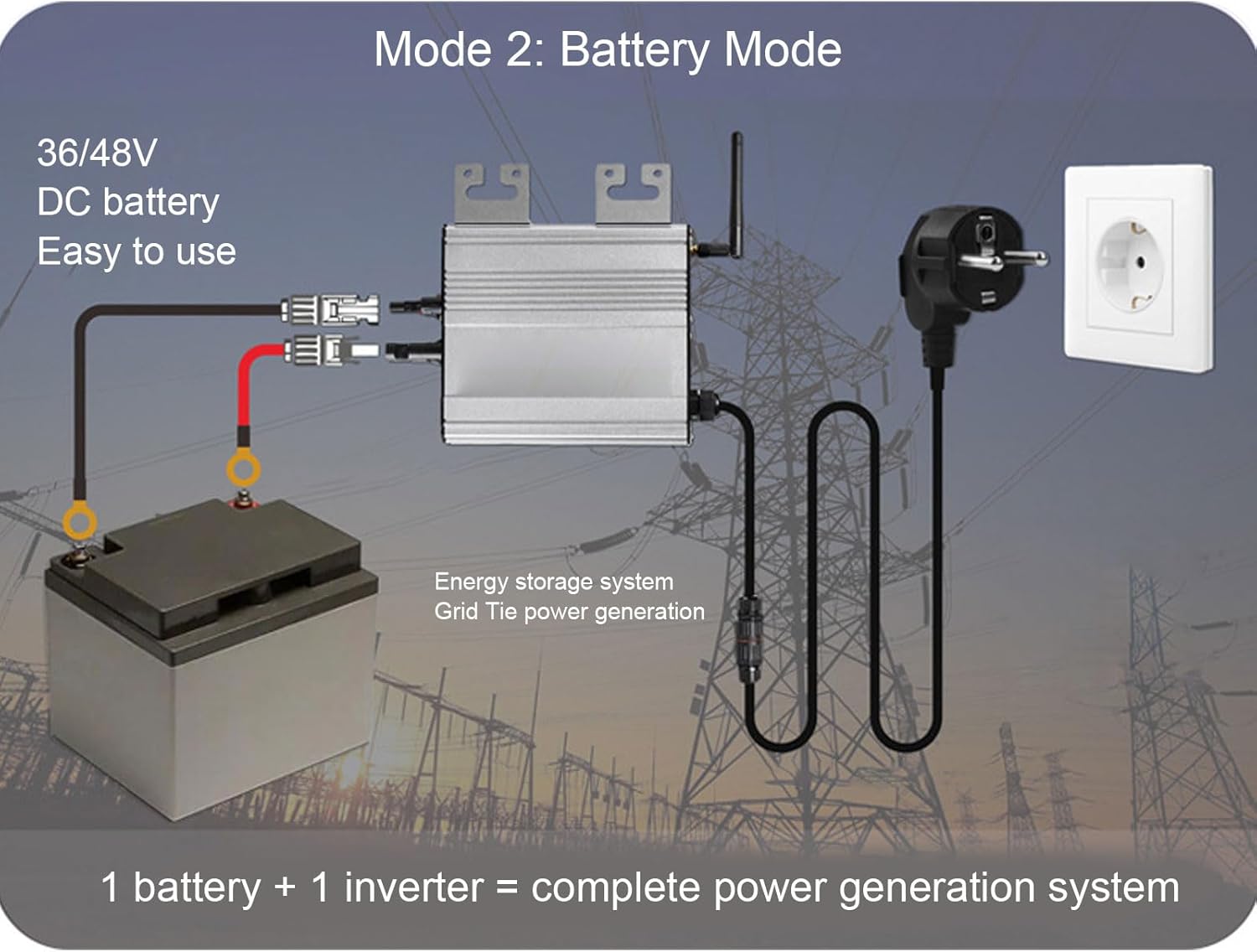

    Battery Voltage: 36V 48V (Battery Mode)


    Inverter Maximum Input Voltage: 60V DC


    Inverter Start Up Voltage (V DC): 20V DC


    Inverter Maximum DC Input Current: 25A


    Inverter MPPT tracking efficiency: 99%


    Inverter MPPT tracking voltage range (V DC): 25-52V DC


    Maximum DC Short Circuit Current: 30A


    Does the Inverter Have Reverse Power Feedback to the Modules: No


    Output Parameters (AC):


    Maximum AC Output Power (Wp): 700Wp


    Applicable Grid Frequency Range (Hz): 50Hz: 47.5Hz-52.5Hz; 60Hz: 57.5Hz-62.5Hz


    Total Harmonic Distortion: THD Power Factor: >0.99 (At Rated Power)


    Rated Output Power: 700Wp (Photovoltaic Mode), 420Wp (Battery Mode)


    Maximum Output Current Overcurrent Prevention: 6.3A


    Product Size: Approx. 164x188.5x43mm / 6.46x7.42x1.69in (Excluding Connectors and Cables)


    Package List:


    1 x Micro Inverter


    1 x Antennae


    2 x Instruction Manual


    2 x Screw


    2 x Washer


    UPALDHOU Solar Grid Micro Inverter,700W Micro Inverter for Home Solar Power System
