Solar Inverter,500W Solar Grid Tie Micro Inverter for Small Power System
[Flexible Ac Connector] Designed for flexibility and safety, the ac connector enhances user conve
-
Detail
Spec:
Item Type: Small Inverter
Material: Aluminium Alloy
Input Parameters (DC):
Maximum Recommended Input Power (Wp): 550Wp (PV Mode)
Inverter Maximum DC Input Current: 18.3A
Inverter MPPT Tracking Efficiency: 99%
Maximum DC Short Circuit Current: 30A
Reverse Feed to Components Possible: No
Input Parameters (AC):
Maximum AC Output Power (Wp): 500Wp
Applicable Grid Frequency, Range (Hz): at 50Hz:47.5Hz-52.5Hz, at 60Hz:57.5Hz-62.5Hz
Total Harmonic Distortion: THDPower Factor: >0.99 (at Rated Power)
Rated Output Power: 500Wp (PV Mode), 300Wp (Battery Mode)
Maximum Output Current Overcurrent Guard: 6.3A

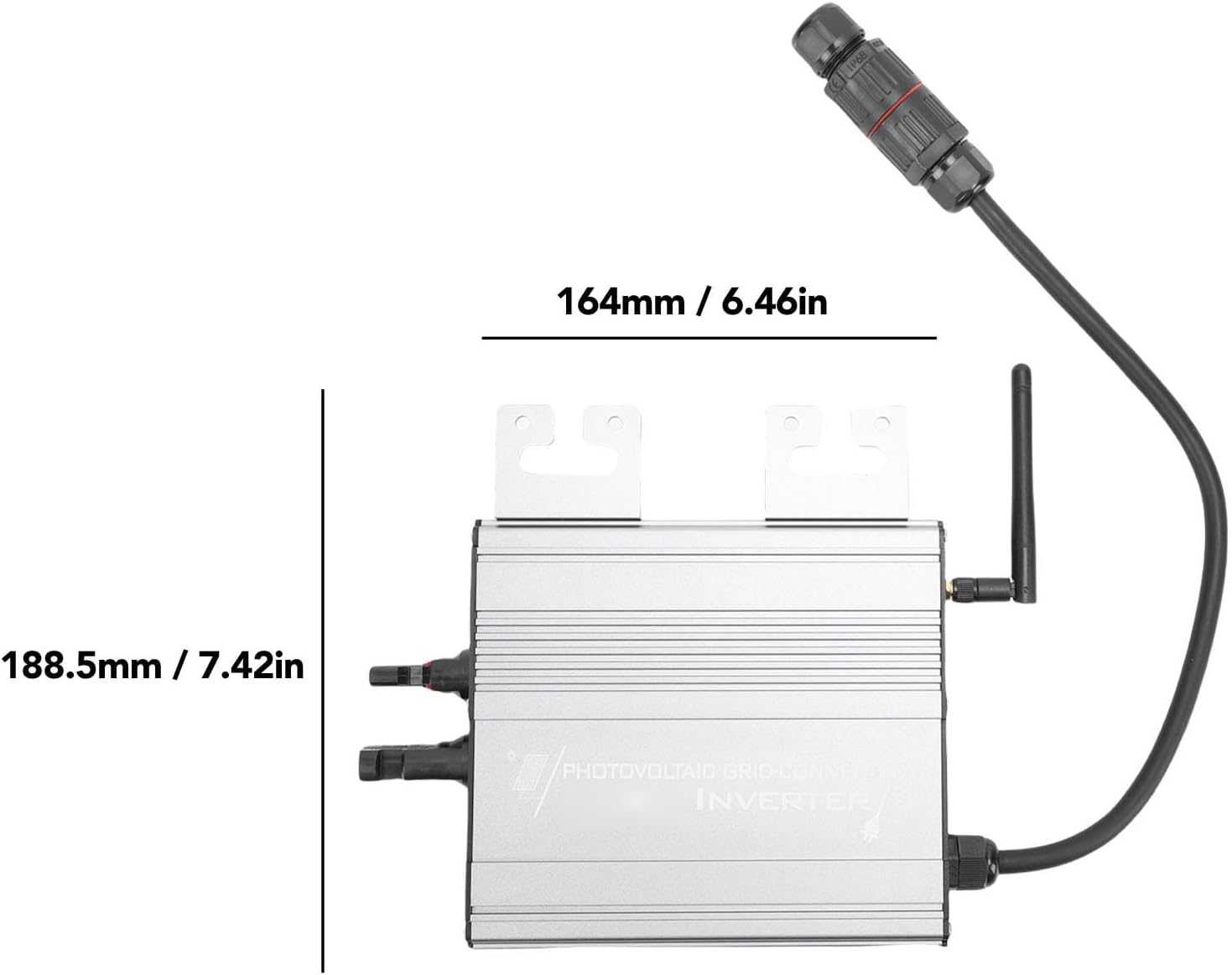

Size: Approx. 164 x 188.5 x 43mm / 6.46 x 7.42 x 1.69in (Excluding Connectors and Cables)
Package List:
1 x Small Inverter
1 x Antenna
2 x Manuals
2 x Screws
2 x WashersUPALDHOU Solar Inverter,500W Solar Grid Tie Micro Inverter for Small Power System
-
