10000W Vertical Axis Wind Turbine Generator 12V 24V 48V Permanent Magnet Generator with Hybrid Controller Low Noise Windmill for Farm Home Use
10000W Vertical Axis Wind Turbine Generator 12V 24V 48V Permanent Magnet Generator with Hybrid Controller Low Noise Windmill for Farm Home Use
-Low Start-up Wind Speed:2.5m/s(8'/s); Rated Wind Speed: 10.5m/S(35'/s); Rated Speed: 800RPM/min; Wind leaf , precise injection molding blades cause low vibration, high utilization of wind energy
-The generators adopts permanent magnet rotor alternator,with a special kind of stator design, effici
-The generators adopts permanent magnet rotor alternator,with a special kind of stator design, effici
Quantity
-
Detail
Specifications:
Rated wattage:10000W
Voltage: 12V/24V/48V/220V
Rated wind speed: 11.5m/s
Safe wind speed: 55m/s
Wind wheel diameter: 1.35m
Generator: 3phase AC PMG
Wind direction adjustment: auto adjust
Working temperature: -40℃-80℃

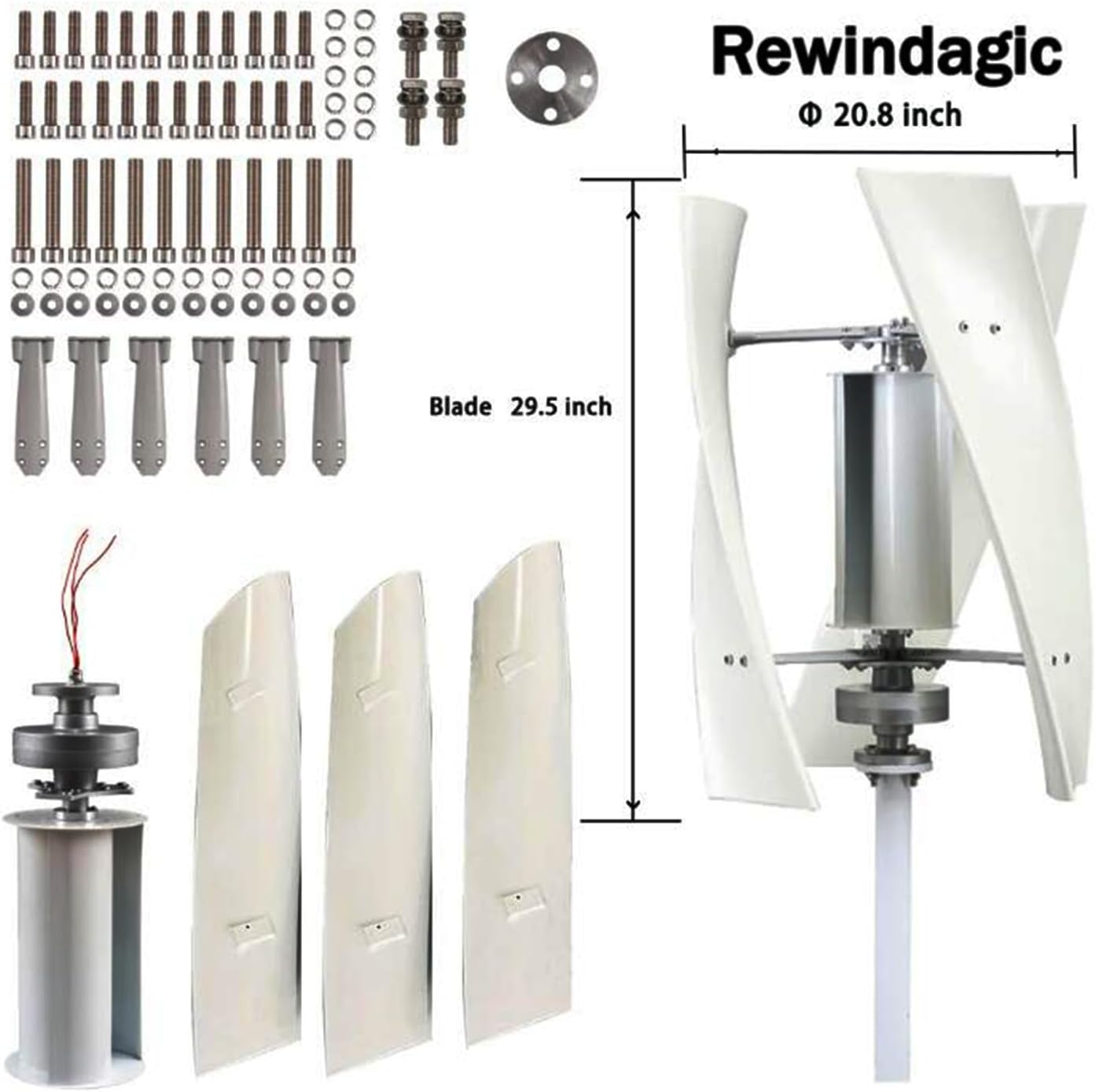

Package included:
1 x Wind Turbine Kit
1 xController
1xmanual

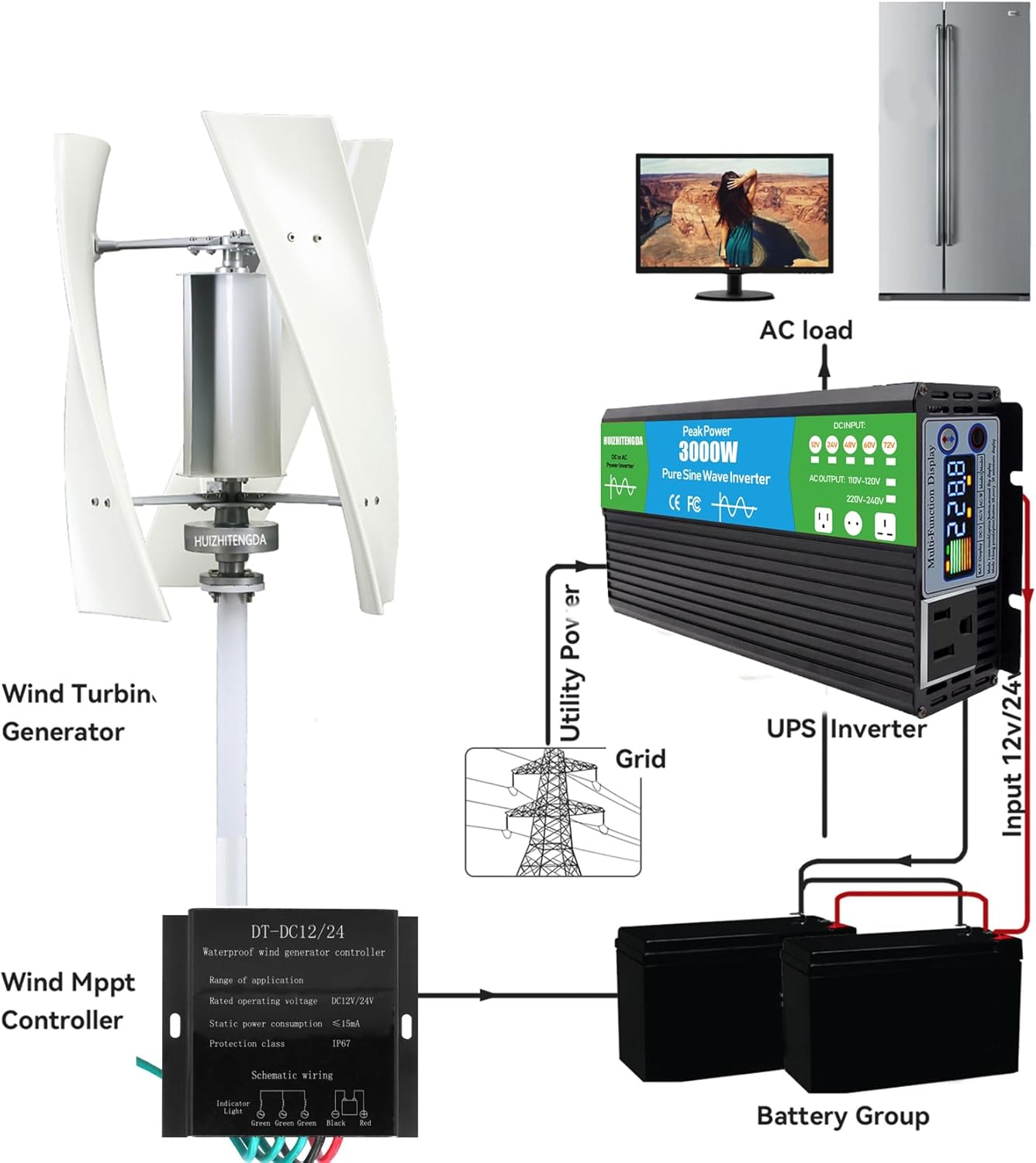

Wiring:
1. Connect the “+” and “-” of the battery to the positive and negative terminals of the battery of the controller.
2. Connect the three-phase output voltage of the wind turbines to the three-phase voltage input terminal of the controller fan.
3. When manual brake is required, short the red thin wire to the positive battery, that is, complete the manual brake function. To cancel this function, just disconnect the thin red wire. -
