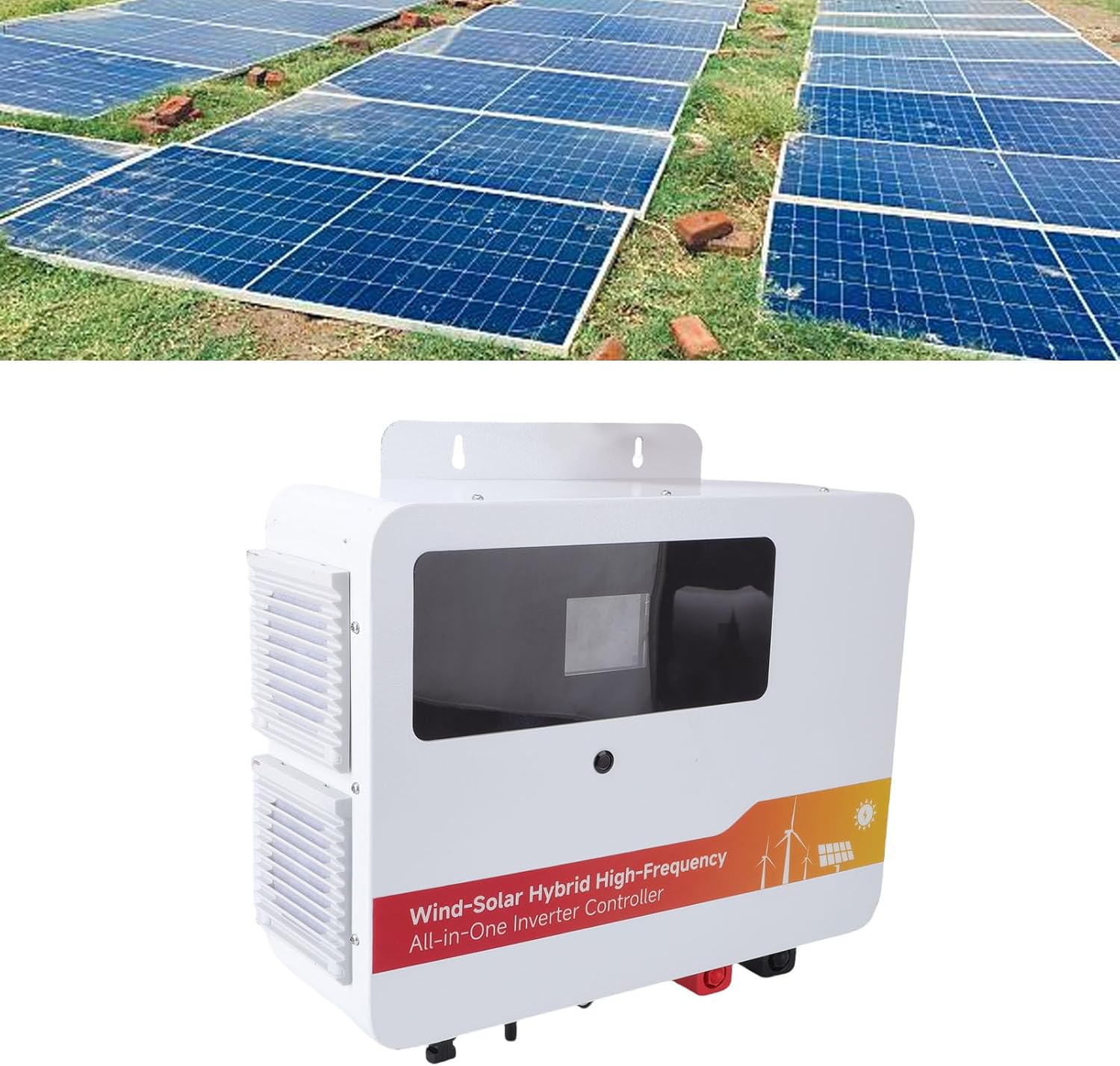

Eujgoov 1000W Solar Wind Controller Hybrid MPPT Charge Controller with LCD Display for Wind Generator Solar System

Spec:
Item Type: Wind Solar Hybrid Charge Controller
Product Material: Sheet Metal
Wind Controller Parameter:
Total Output Power: 1000W
Power Output: Wind 600W, Solar 400W
Maximum Input Current: 40A
Brake Resistor: Included
Processor: For
Photovoltaic Controller Parameters:
Charging Mode: MPPT Automatic Maximum Power Tracking
Charging Method: MPPT, Float Charge
System Type: Automatic Voltage Recognition
System Identification Voltage: 12V DC9V-DC15V, 24V DC18V-DC29V, 48V DC40V-DC60V
Time: ≤1S
Dynamic Response Recovery Time: 100us
Overall Efficiency: ≥98.1%
Component Utilization: ≥99%
MPPT Operating Voltage And Range:
12V System: PV Open Circuit Input Voltage DC20V-80V
24V System: PV Open Circuit Input Voltage DC37V-105V
48V System: Photovoltaic Open Circuit Input Voltage DC72V-160V
Maximum Photovoltaic Input Power: 400W
Current Limit Guard: 40A
Maximum Output Current: 35A
Input Anti Reverse Guard: Yes
Temperature Rise Guard: Decrease power output if greater than 70℃, normal power output if lower than 55℃
Fan Start Temperature: >40℃
Fan Stop Temperature: Cooling Method: Self Cooling
Operating Temperature: -20℃-55℃
Storage Temperature: -40℃-75℃
Humidity: 0-90%RH (No condensation)
Altitude: Approx. 0-4000m / 0-13123.4ft
Atmospheric Pressure: 70 to 106kPa
HF Inverter Parameters:
Rated Power: 1000W
Output Frequency: 50Hz
Output Waveform: Sine Wave
Maximum Power Efficiency: >92%
High Voltage Cut Off Level: 31V
Low Voltage Cut Off Level: 20V
High Voltage Recovery Start Voltage: 30.7V
Low Voltage Recovery Start Voltage: 23.5V
Overload And Short Circuit Protection: Yes
Self Recovery Start Function: Yes

Package List:
1 x Wind Solar Hybrid Controller Inverter
2 x Output Water Proof Connectors

Note:
This product is a wind solar hybrid charge controller with built in
