Home / Eujgoov 1500W MPPT Wind Solar Hybrid Charge Controller Auto Off Grid Controller for 800W Wind with 700W Solar Panel

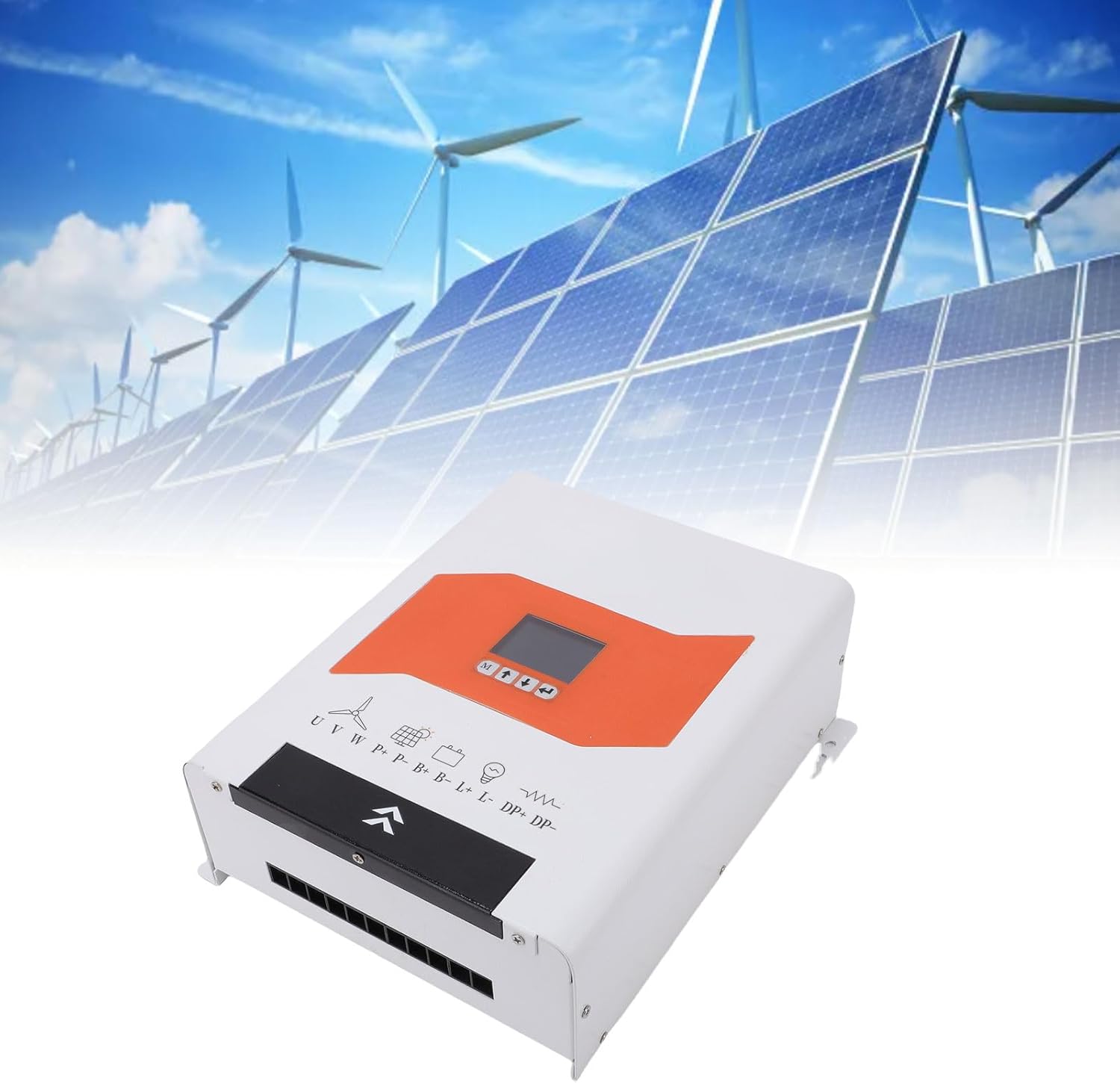

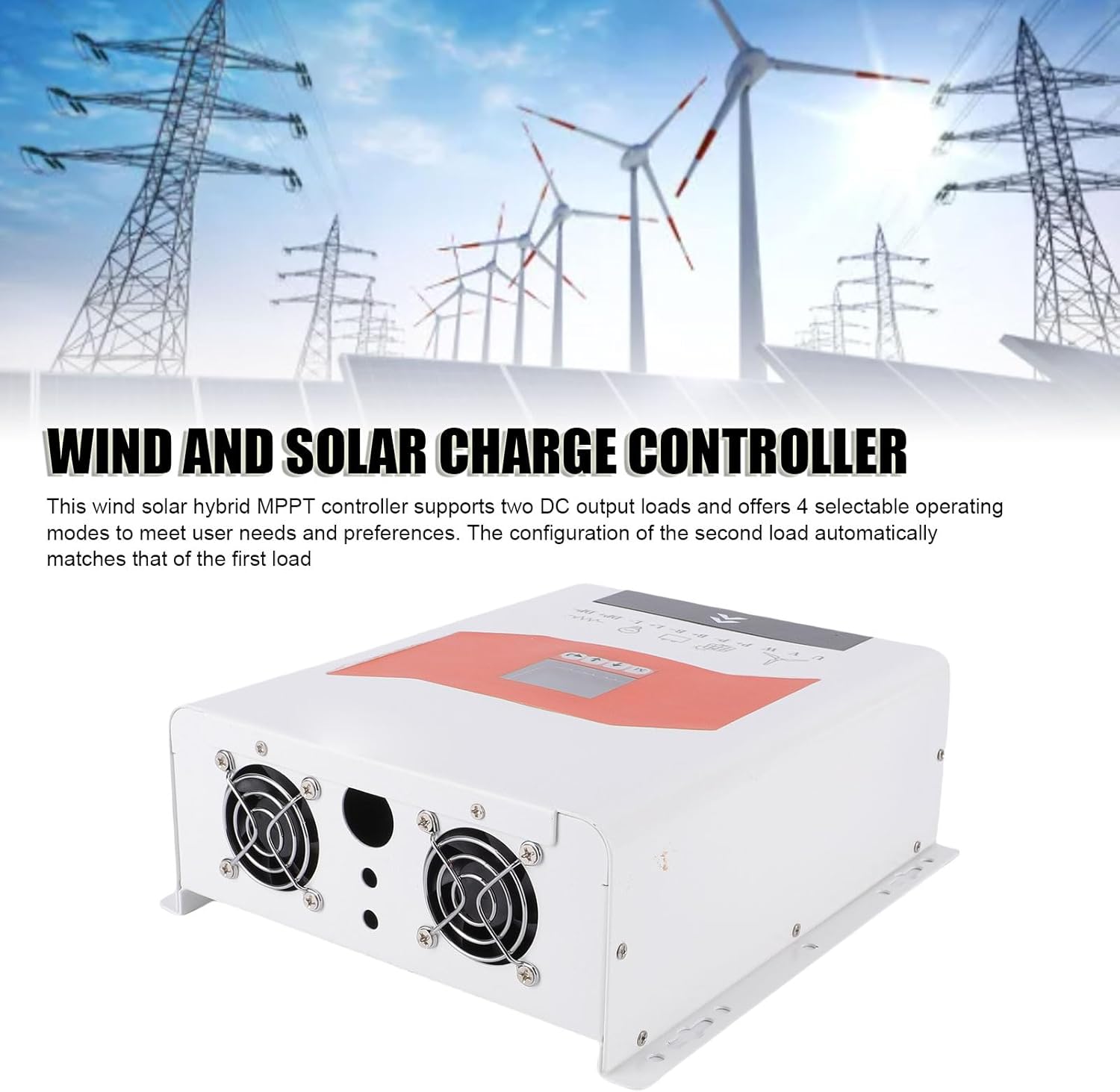

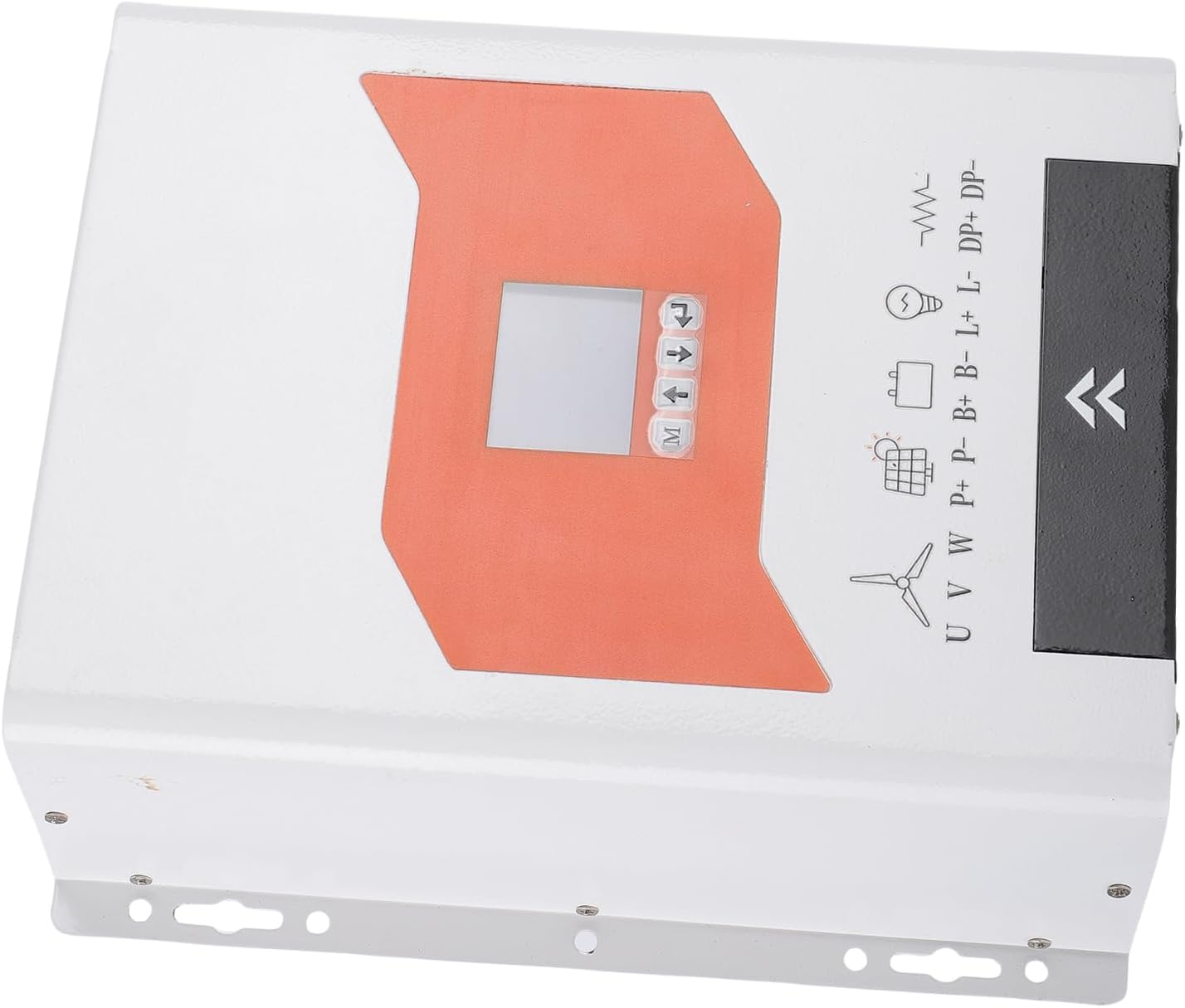

Eujgoov 1500W MPPT Wind Solar Hybrid Charge Controller Auto Off Grid Controller for 800W Wind with 700W Solar Panel

APPLICABLE SCENARIO: This hybrid charging controller adopts automatic detection voltage design and supports a maximum charging power of 800W for wind turbines and 700W for solar panels, which is a nice choice for wind solar hybrid street lamps or household wind solar hybrid systems
EFFICIENCY WIT
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Specification:
    Item Type: MPPT Wind Solar Hybrid Controller
    Material: Sheet metal
    Total Output Power: 1500W
    Output Power: Wind 800W, Solar 700W
    Maximum Input Current: 50A
    Brake Resistor: Included
    Processor: for ARM
    Some Parameters of Wind Controller:
    Charging Mode: MPPT Auto Maximum Power Tracking
    Charging Methods: MPPT, floating charge
    Time: ≤1s
    Dynamic Response Recovery Time: 100us
    Overall Efficiency: ≥98.1%
    Component Utilization Rate: ≥99%
    Optional Battery Type(default: colloid battery): Sealed Battery, Open Battery, Gel Battery, Ni-Cd Battery, Li ion Battery
    Equalization Voltage: Please refer to the battery type charging voltage parameter table
    Floating Charge Voltage: Please refer to the battery type charging voltage parameter table
    Maximum Output Current: 60A
    PV Module Utilization Rate: ≥99%
    Input Prevent Reverse Protecting: Yes
    Temperature Rise Protecting: Reduce power output when greater than 70℃, normal power output when below 55℃
    Fan Start Temperature: >40℃
    Fan Stop Temperature: Electromagnetic Compatibility: EN61 000, EN55022, EN55024
    Cooling Method: Self cooling
    Operating Temperature: -20℃~+55℃
    Storage Temperature: -40℃~+75℃
    Humidity: 0~90%RH(no condensation)
    Altitude: 0~4000m
    Air Pressure: 70~106kPa

    How to Use:
    Follow the user manual after taking out the product

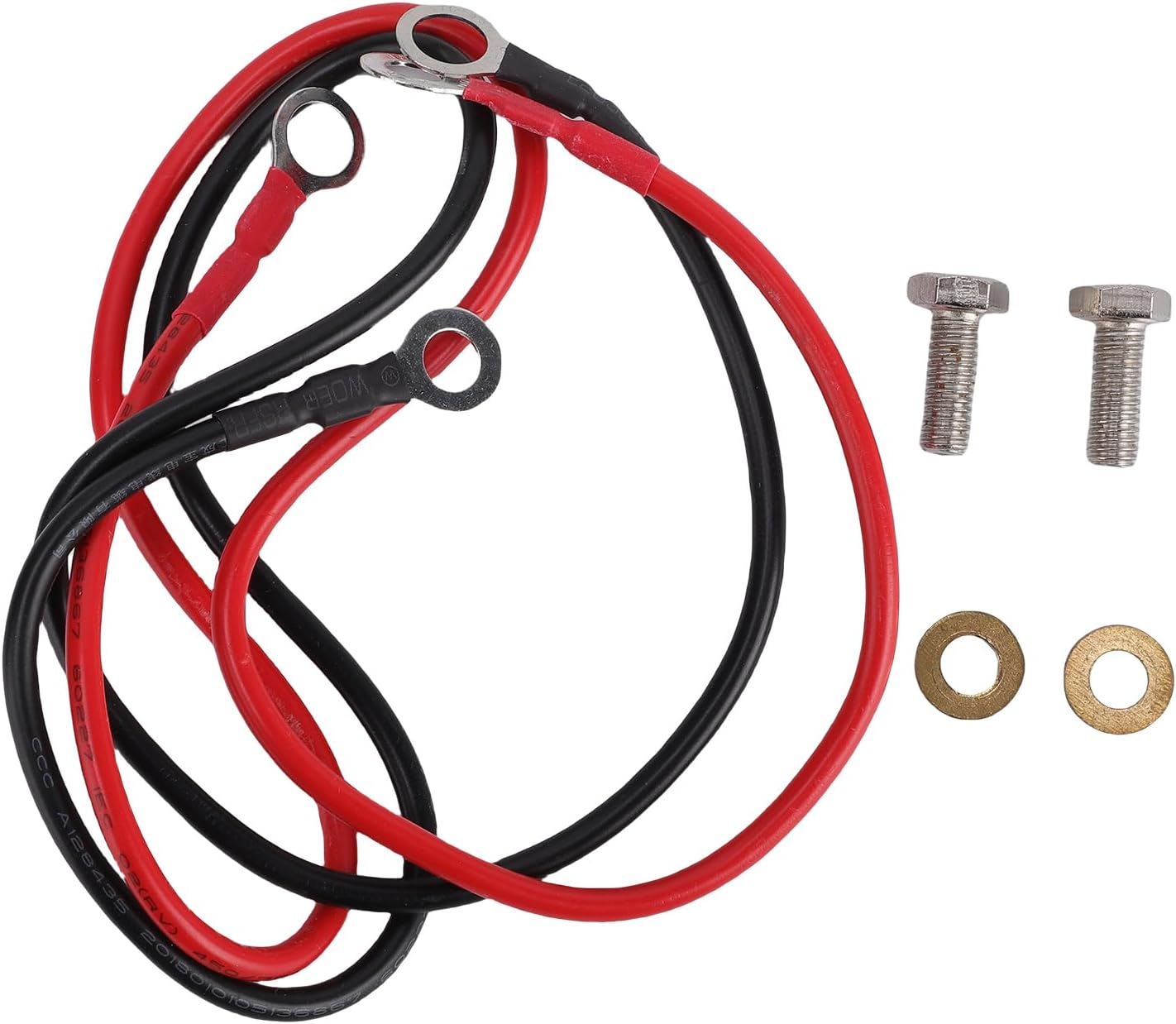

    PackageList:
    1 x MPPT Wind Solar Hybrid Controller
    1 x Discharge Resistor
    2 x Wire
    2 x Screw
    2 x Nut
    1 x User Manual
