Grid Tie Inverter, 1250W WiFi PV Battery Mode IP65 Water Proof Smart Grid Tie Converter for Home Generation System

[Optimal Safety] Includes protection against over/under voltage, frequency, anti-islanding, overcurrent, thermal, and overload conditions, ensuring maximum safety.
[Dependable Protection] Rated with ip65 waterproofing, this wifi grid tie inverter offers reliable protection against water and dust,
Quantity
ADD TO CART
BUY IT NOW
  • Detail

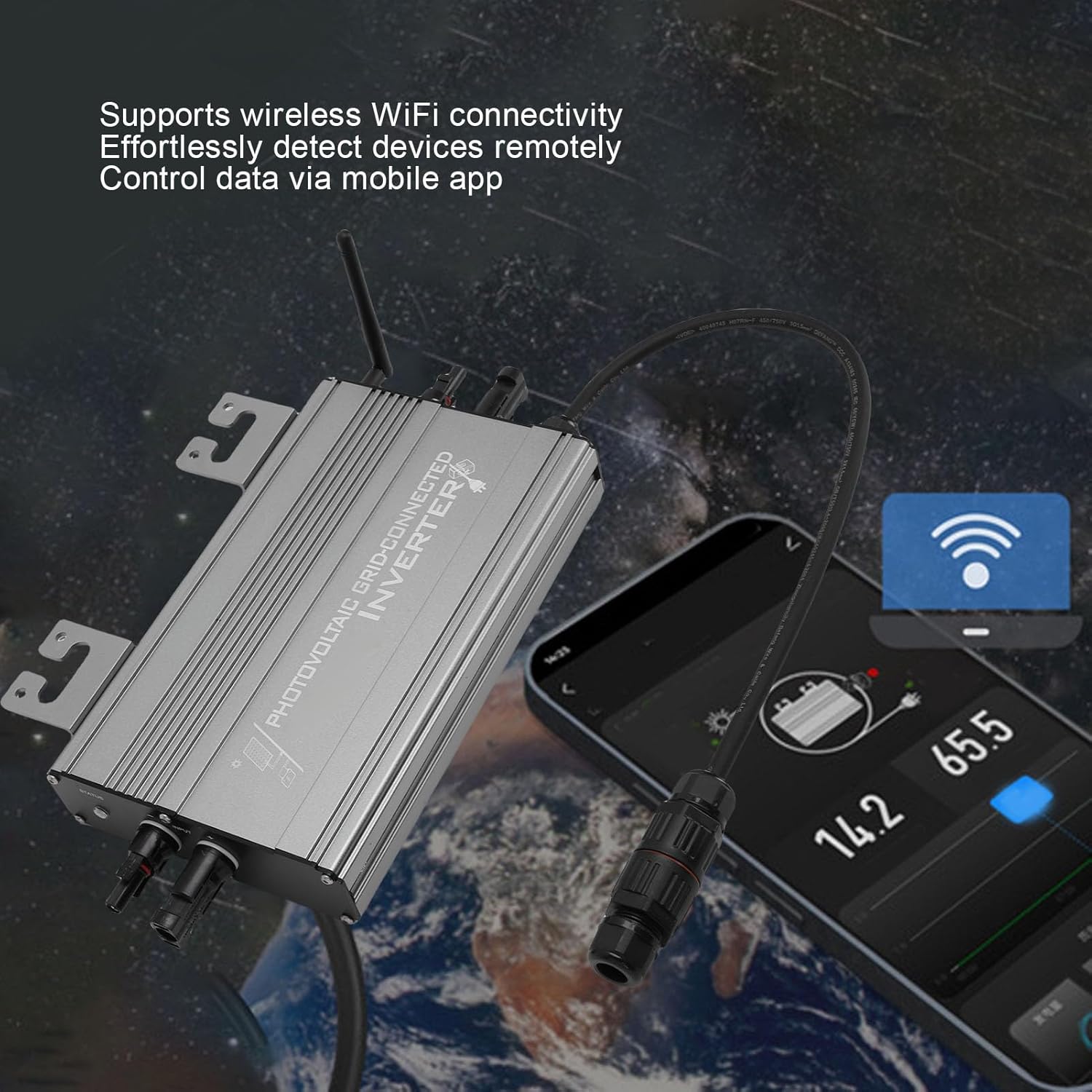

    1. Wireless WiFi Connectivity: The grid tie inverter supports wireless WiFi connection, allowing easy remote detecting and data management through a mobile app.

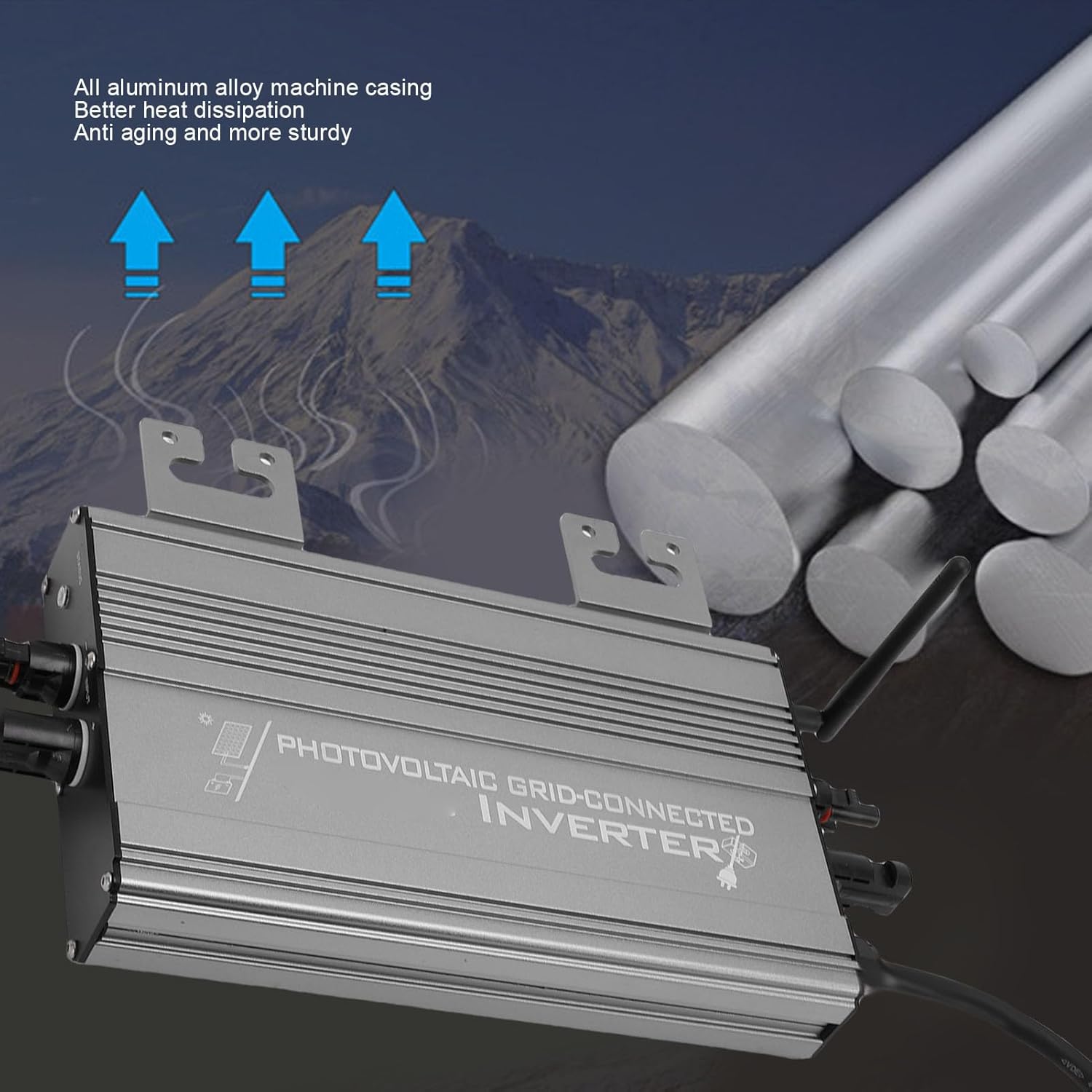

    2. Aluminum Alloy Cover​: Featuring an all aluminum alloy casing, this grid tie converter provides robust structure, enhanced heat dissipation, and anti aging.
    3. Universal DC And AC Connectors: Equipped with standard DC and AC connectors, ensuring universal compatibility and enhanced safety with higher current tolerance.

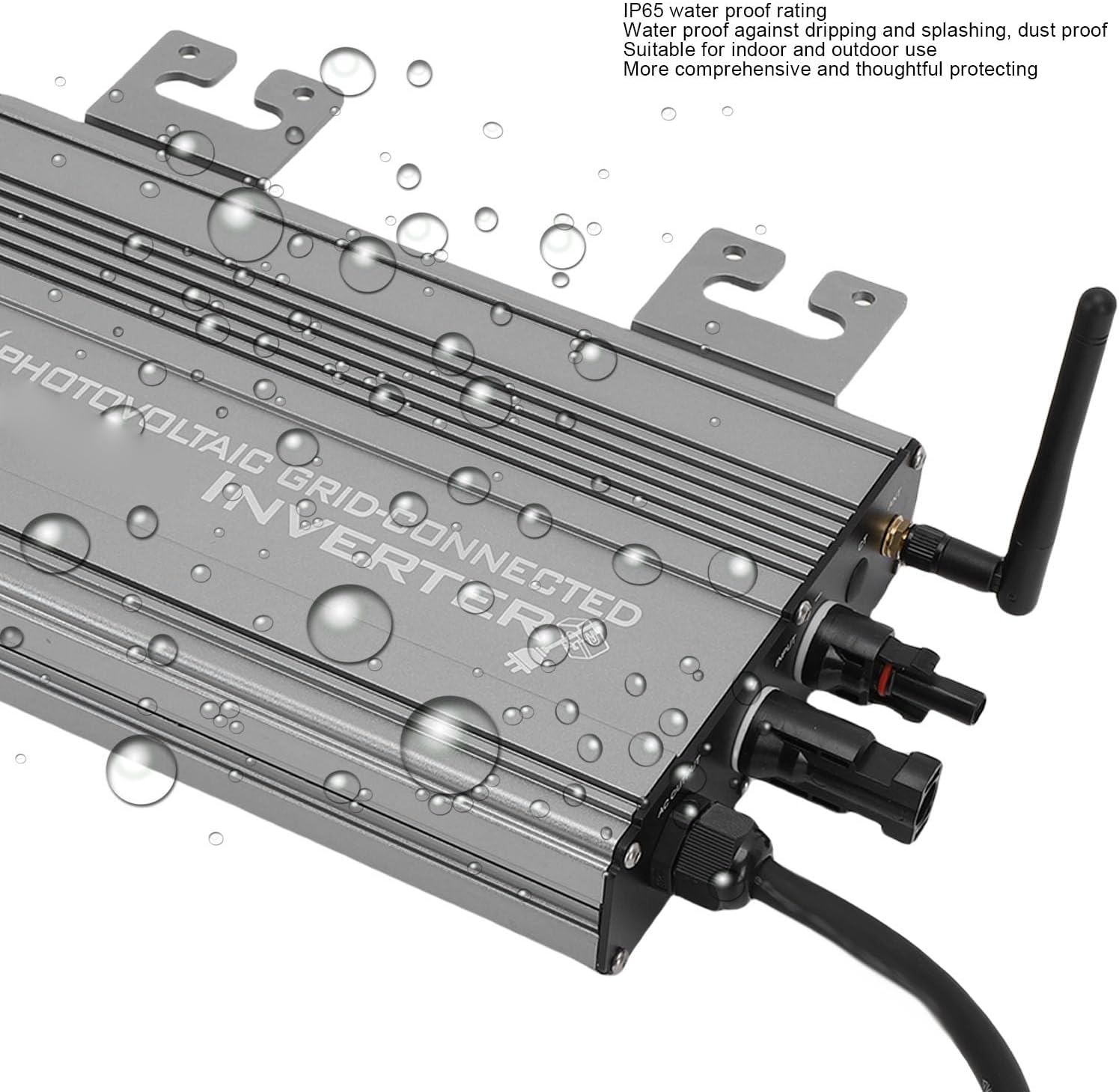

    4. IP65 Water Proof: Rated with IP65 water proof, this WiFi grid tie inverter offers dependable protecting against water and dust, suitable for indoor use.
    5. Comprehensive Protective Features: Includes protecting against over/under voltage, over/under frequency, anti islanding, overcurrent, thermal, and overload conditions, ensuring optimal safety.

    Spec:
    Item Type: Grid Tie Inverter
    Material: Aluminum alloy
    Input Parameters (DC):
    Maximum Recommended Input Power (Wp): 2x750Wp (PV mode)
    Maximum DC Input Current: 2x25A
    MPPT Tracking Efficiency: 99%
    Maximum DC Short Circuit Current: 2x40A
    Does the Inverter Have Reverse Feedback to Components?: No
    Output Parameters (AC):
    Maximum AC Output Power (Wp): 1200Wp
    Applicable Grid Frequency/Range (Hz): 50Hz: 47.5Hz to 52.5Hz, 60Hz: 57.5Hz to 62.5Hz
    Total Harmonic Distortion: THD Power Factor: >0.99 (at rated power)
    Rated Output Power: 1200Wp (PV mode), 720Wp (battery mode)
    Maximum Output Current Overload Prevention: 10A

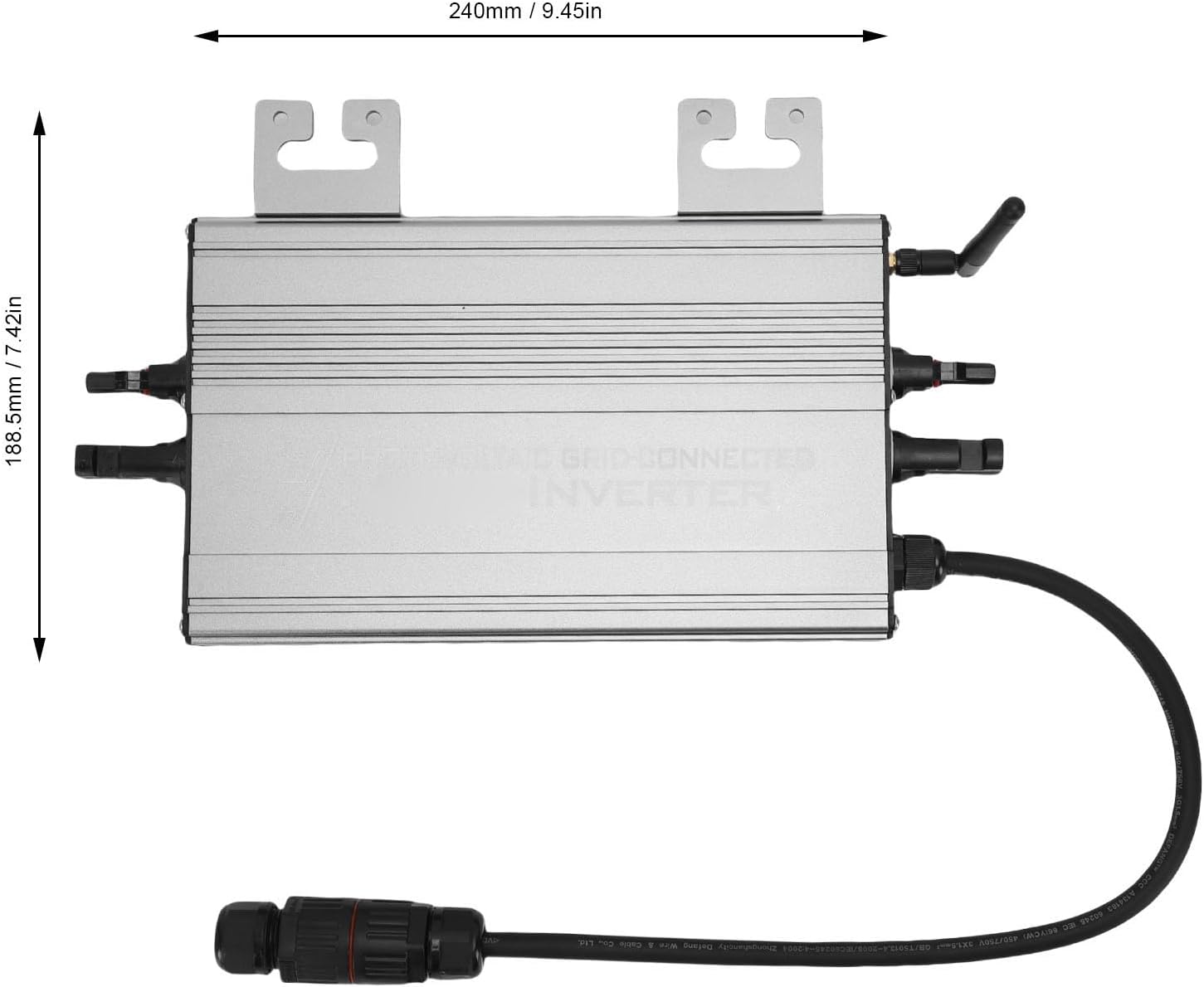

    Product Size: Approx. 240x188.5x43mm / 9.45x7.42x1.69in (excluding connector and cable)

    PackageList:
    1 x Grid Tie Inverter
    1 x Antenna
    2 x User Manuals
    2 x Screws
    2 x Washers
