Vertical Wind Turbine Kit - 12000W 5 Blades Wind Turbine Generator with 3 Phase AC Permanent Magnet and Controller for Hybrid Wind Solar System

Features: 1. Operates at low speed with high wind energy utilization, featuring an attractive design and low vibration during operation. 2. Designed for easy installation, maintenance, and repair. 3. Constructed with a high-performance aluminum alloy body and durable nylon fiber blades for enhanced sturdiness and damage resistance. 4. Utilizes a permanent magnet rotor alternator with a specialized stator design that effectively reduces resistance torque.
Specifications: Name: Wind Turbine
Maximum power: 12000W
Number of blades: 5 Rated
voltage options: 12V/24V/48V/110V/220V
Start-up wind speed: 2m/s
Rated wind speed: 12m/s
Safe wind speed: 45m/s
Blade Material: Nylon Fiber
Braking Method: Electromagnetic
Wind power type: Three-phase AC permanent magnet synchronous generator
Wind direction adjustment: Automatic adjustment

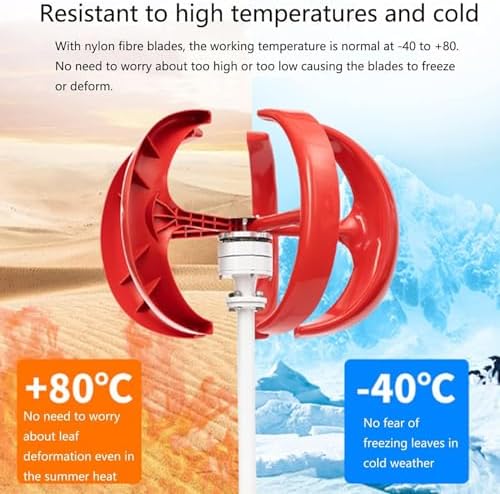

Operating Temperature: -40 to 80 ℃
Package Content: Wind Turbine x 1; Blades x 5; Controller x 1;
Set Screws and Nuts x 1 Installation
Notes: Tower tube not included (recommended: steel or iron pipes with a diameter of 50±2mm).
Easy Installation Steps: 1. Remove the wind turbine from the packaging, place it on the tower, and align it with the flange holes. Attach the four flat gaskets to the four bolts, insert the bolts into the corresponding flange holes, and tighten them with a hex key. 2. Connect the three wires from the wind turbine to the transmission cable, ensuring each pair of wires is at least 30 mm, and tape the connection ends at 100 mm. 3. Connect the wind turbine's cable to the controller, ensuring that the battery is connected to the controller before wiring.
Note: A standard controller is included. If you wish to create a wind-solar complementary system, a compatible controller can be purchased separately.
