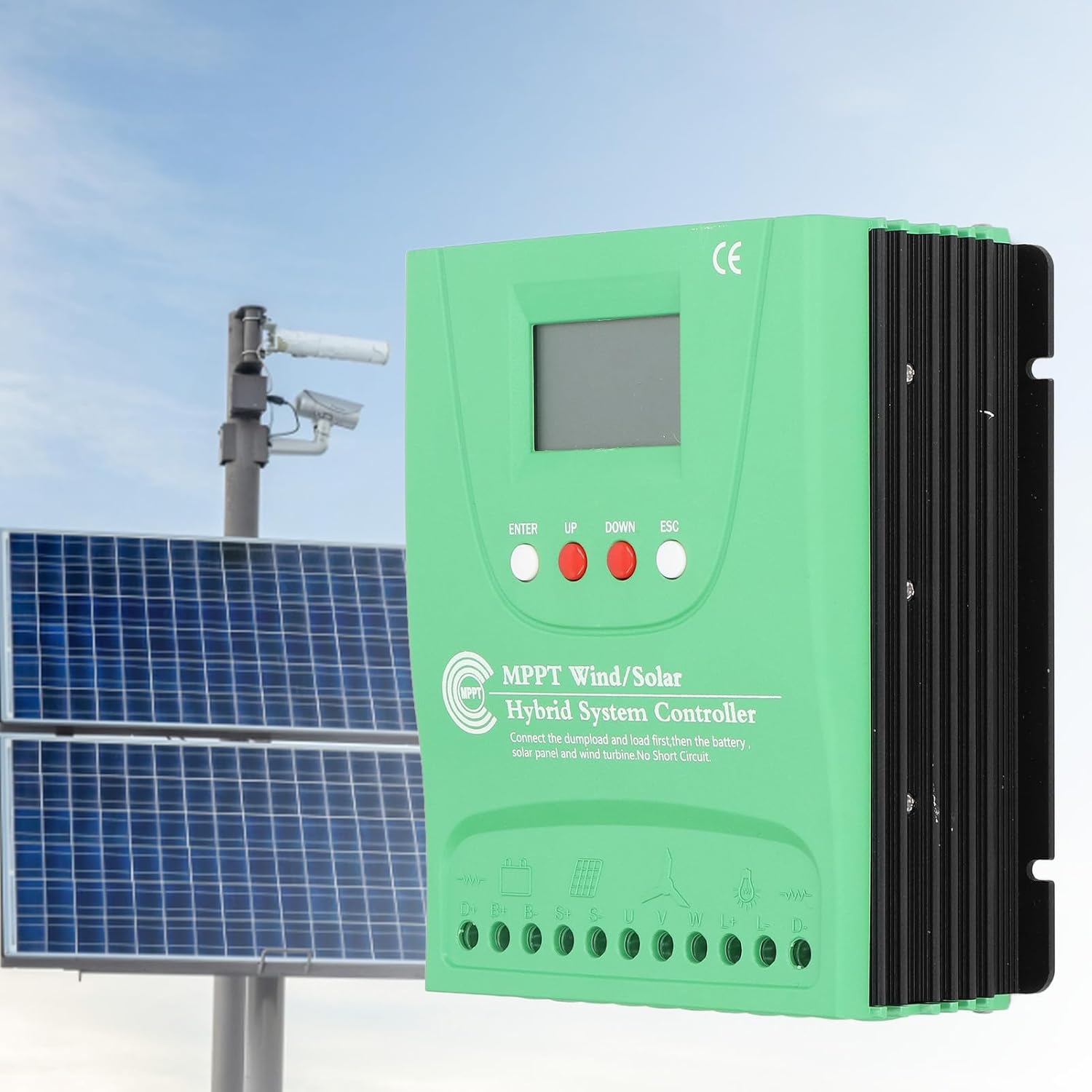

12V 24V Wind Solar Hybrid Charge Controller with LCD Display MPPT Boost Charge Wind Solar Controller (GPI1010K)

Item Type: Wind Solar Hybrid Charge Controller
Host Size: Approx. 174 x 145.5 x 70 mm / 6.9 x 5.7 x 2.8 in
Shell Color: Green
Material: ABS
System Rated Voltage: 12/24V automatic identification

Model GPI-4030 GPI-6060 GPI-1010K
Battery Voltage 12V 24V 12V 24V 12V 24V
Wind Turbines Rated Power 200 400 300 600 500 1000
PV Module Rated Power 150 300 300 600 500 1000 Maximum Input Voltage: Wind turbines No Load Current (DC): 0.05A
The Controller Takes Power: Battery or photovoltaic panel to take power

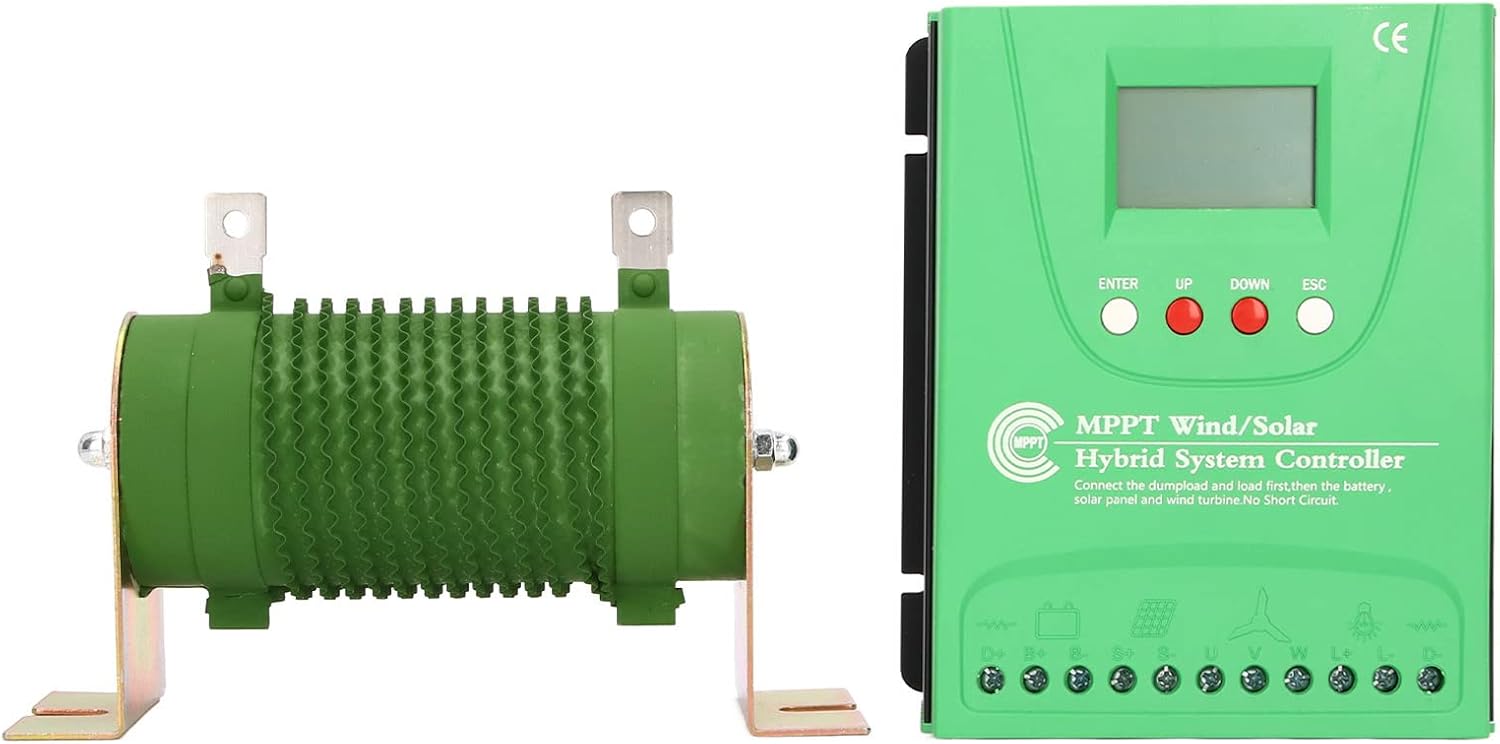

Control Method: Fan MPPT boost charging function, PWM unloading function, PWM overcurrent limiting function
Load: A variety of working modes are available: pure light control mode, normally open mode, light control + time control mode (four periods + morning light)

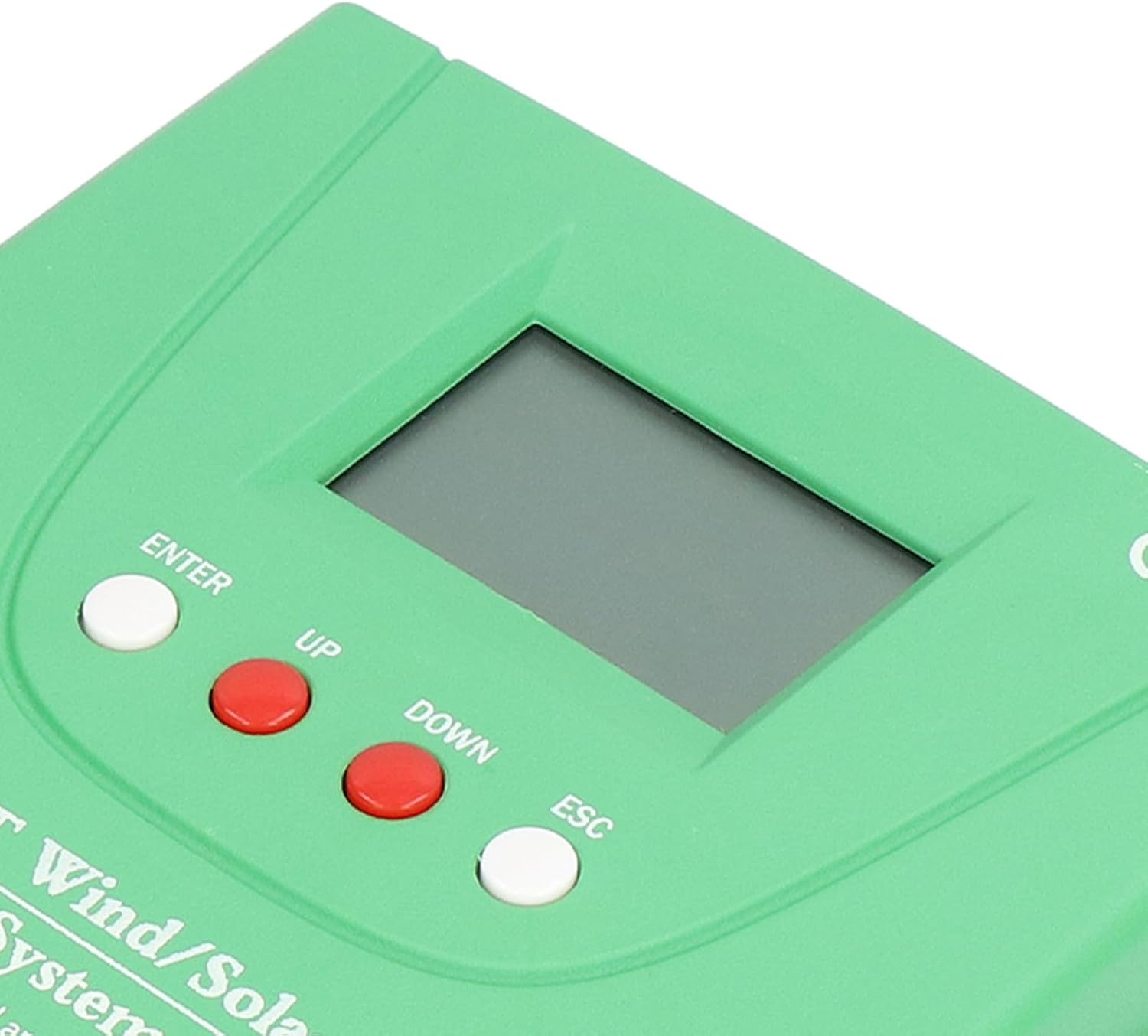

Display Mode: LCD, Chinese display, clear and intuitive
Display Parameters: Voltage, battery power, current, power, load mode, temperature, etc.
Protection Type: Solar battery anti reverse charging protection, battery open circuit protection, battery reverse connection protection, overcurrent and overvoltage soft automatic braking protection, overload protection, etc.
Heat Dissipation Method: Aluminum heat dissipation and self cooling
Operating Temperature And Humidity Range: -20~+55℃/35~85%RH (but no condensation)
Weight: Approx. 2289g / 80.7oz
Applicable Battery: General lithium battery
Application: Wind solar hybrid energy storage power station, wind solar hybrid monitoring system, wind solar hybrid lighting system
Failure Analysis:
When the fan is connected to the controller, the speed of the fan becomes very slow immediately?
1. The battery voltage arrive the floating charging point
2. The rated output voltage of the fan is much higher than the rated voltage of the battery, because the fan speed is proportional to the output voltage, and the fan voltage is dragged by the battery and will not be very
