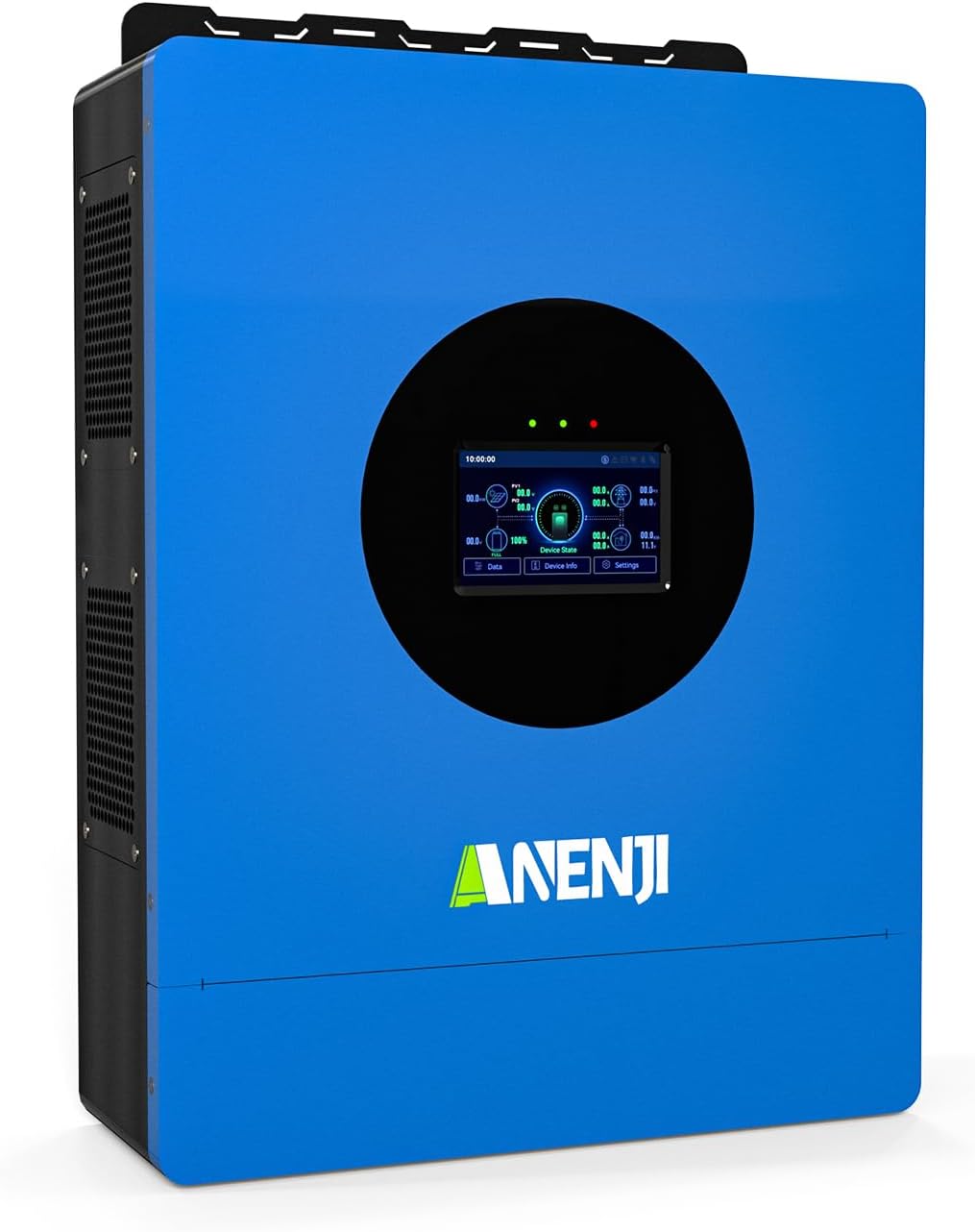

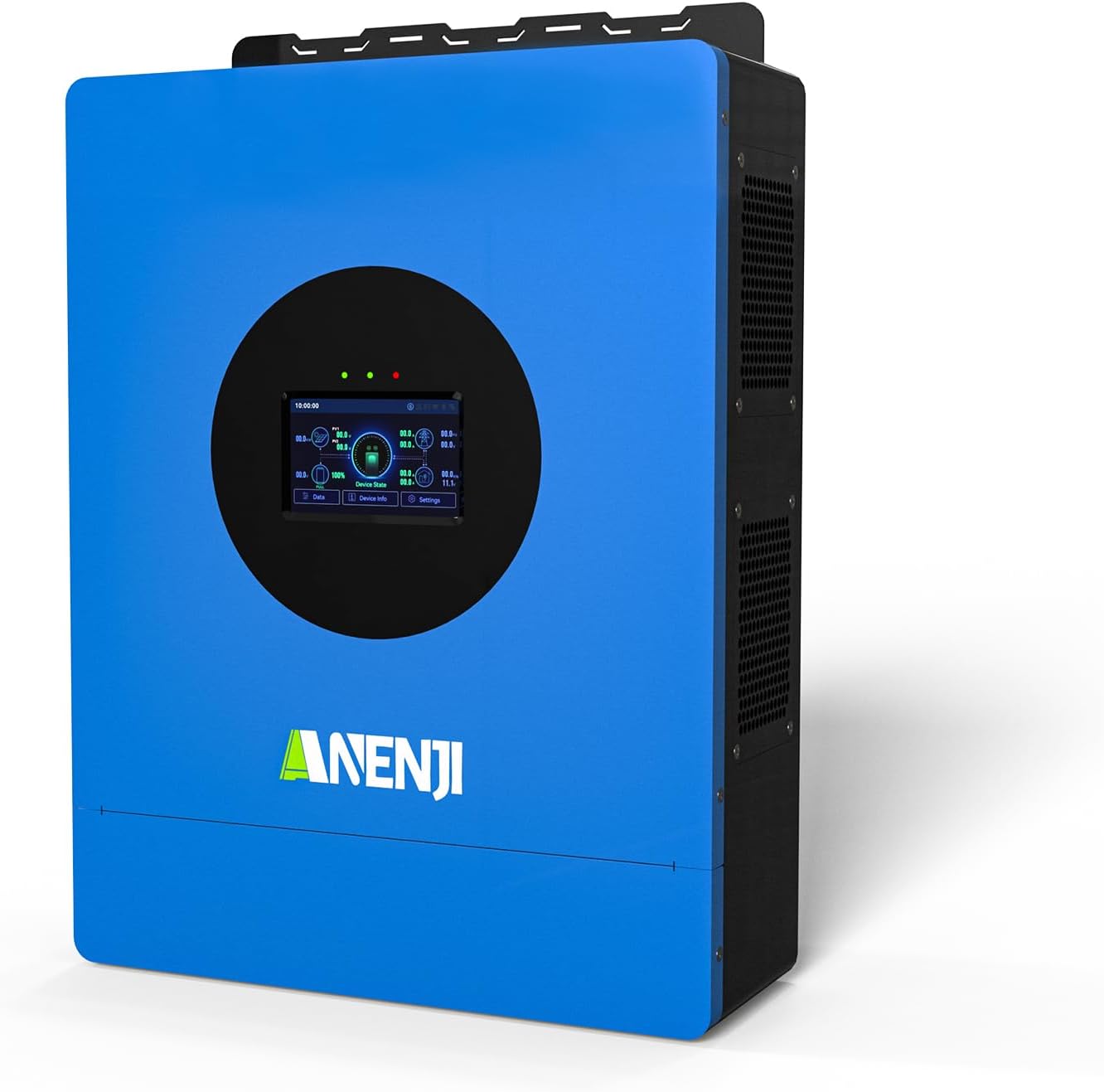

Hybrid Solar Inverter 6KW 48V Split Phase 120V Dual MPPT Charger Parallel,Max PV Charging Current 120A,Max. PV Input 9KW 500VDC, Support 6 Units Parallel for Lead Acid, Li, Batteryless Run

【6000W HYBRID INVERTER】Converts 48V DC to 120V AC and is equipped with a 120A MPPT solar charge controller.Integrated WiFi module, 2 AC outputs,Max. PV array power 9000W; Maximum AC input voltage is 120VAC; Max. PV array open-circuit voltage 500VDC; PV array MPPT voltage range 125VDC–425VDC; Max. so
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    High-Performance Hybrid Inverter
    Rated Output Power: 6000W
    Peak Surge Power: 12000W - Handles high startup currents for motors and pumps.
    AC Output: 120V / 60Hz - Pure Sine Wave, ideal for sensitive electronics.
    Parallel Capability: Supports up to 6 units in parallel for scalable power up to 36kW.

    Battery Compatibility: Works with Lead-Acid or Lithium-Ion batteries.
    Max Solar Charging Current: 120A - Rapidly recharges batteries from solar.
    Max AC (Utility/Generator) Charging Current: 100A
    Max Combined Charging Current: 120A

    Battery Voltage Range: 40V - 60V
    Max PV Input Power: 9000W
    MPPT Channels: 1
    Max PV Open Circuit Voltage: 500VDC
    MPPT Operating Voltage Range: 125V - 425VDC
    Max PV Input Current: 27A
    MPPT Tracking Efficiency: >99.9% - Maximizes energy harvest.

    AC Input Voltage Range: 90V - 140V
    AC Input Frequency Range: 55Hz - 65Hz / 60Hz
    Bypass Overload Current: 50A
    Operating Temperature: -10°C to +55°C
    Noise Level: <45dB with Intelligent Air Cooling.

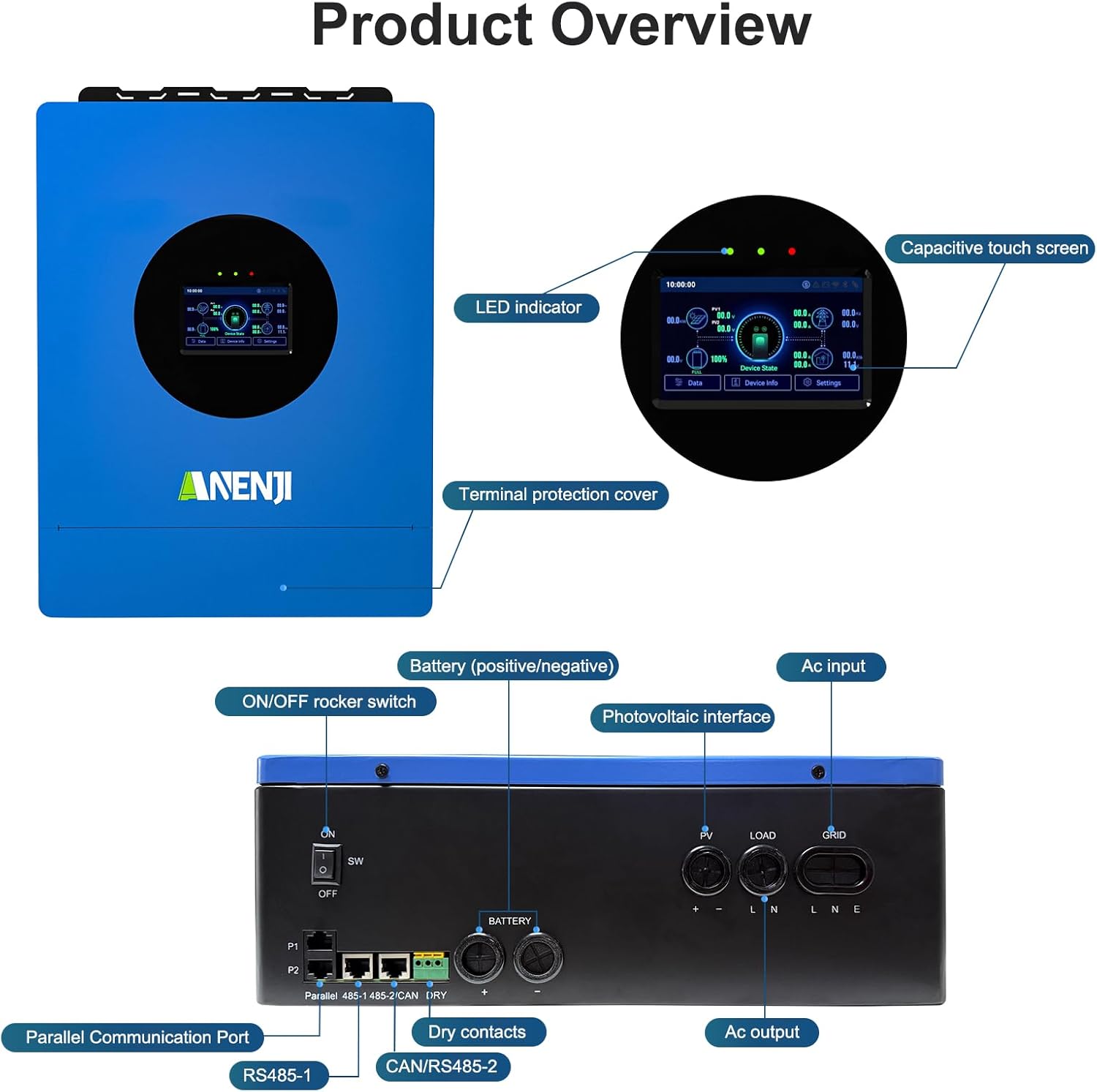

    Communication: Optional WiFi, 4G, GPRS, Bluetooth, LAN, RS485, CAN for remote monitoring.
