Low Noise Vertical Axis Wind Turbine Generator, 12V-220V Permanent Magnet Generator with Intelligent Controller, for Home, Street Lighting(12000W)
[Compact & Space-Saving]: Takes up minimal space, ideal for residential, rural, or small - scale commercial use where space is limited.
[Quiet Operation]: Op
-
Detail
We provide you English assembly instructions in the package. You can assemble the product following the instructions. This generator does not include a mounting rod. The fan mounting rod can be a 60mm mounting rod. When we send your package we will include flanges that match the mounting rods. Simply weld the mounting rod and flange together and it's ready to go.
SPECIFICATIONS:
color: White
Number of leaves: 3 leaves

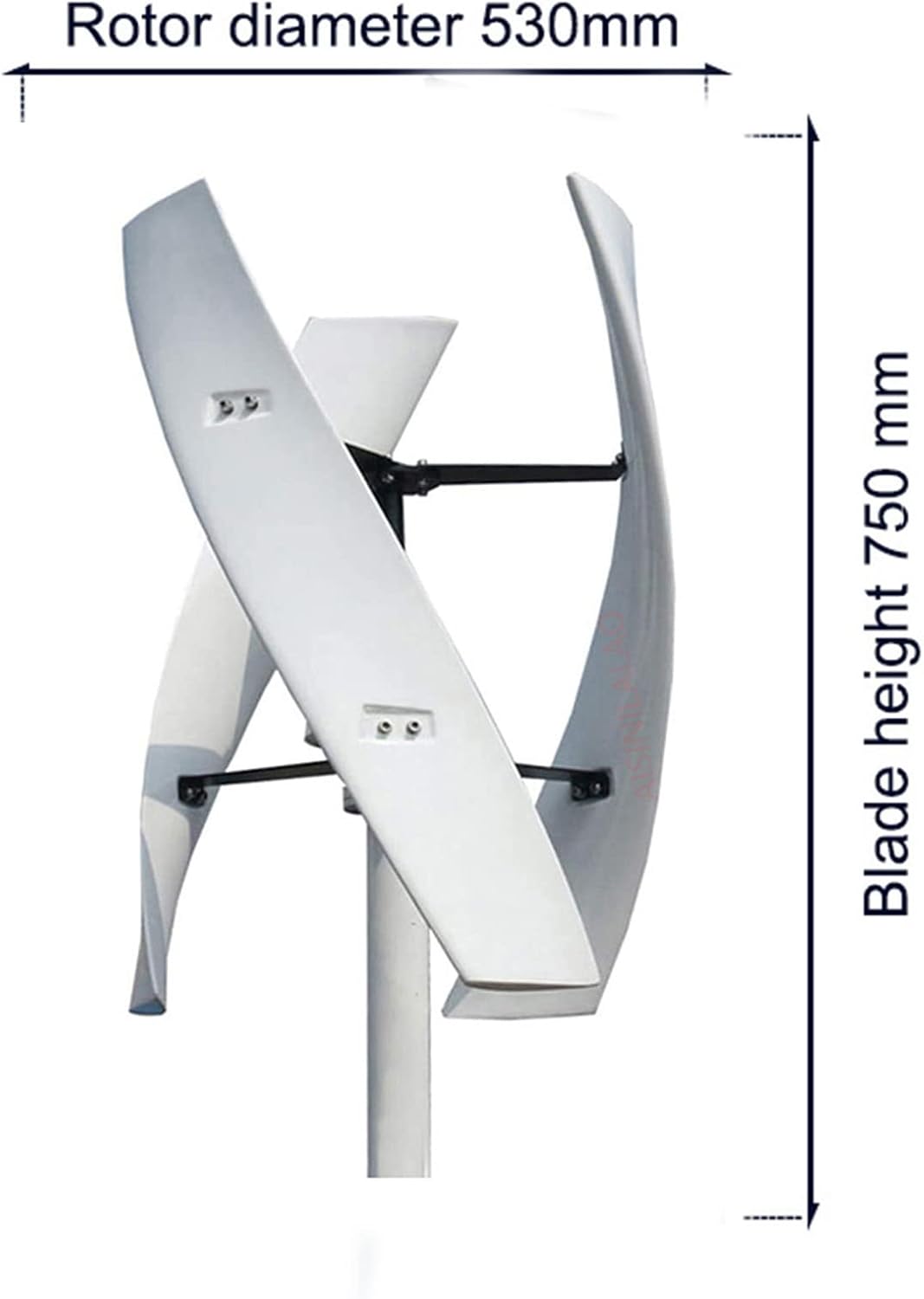

Wind wheel diameter: 520mm
Blade height: 750mm
Rated voltage (AC): 12V 24V 48V
Wind mounting pole size: 60mm
Packing size: 86×38×21cm
Packing weight: 12kg
Initial wind speed (m/s): 2 m/s
Cut-in wind speed (m/s): 3 m/s
Rated wind speed (m/s): 10 m/s Safe wind speed (m/s) s): ≤40m/s
Blade material: galvanized aluminum alloy
Generator: three-phase permanent magnet levitation motor
Control system: electromagnet
Fan installation height (m): 2-12m
Generator protection level: IP54
Working environment temperature: -25~+459C
List:
3 × blades
1 × generator
1 × wind assist wheel
1 × bolt and nut
1 × spindle and arm
1 × wind controller
1 × English installation manual -
