Epever 80A Mppt Solar Charge Controller TEP Series 12v/24v/48v Battery System Max PV 150V Works with Lifepo4 Batteries

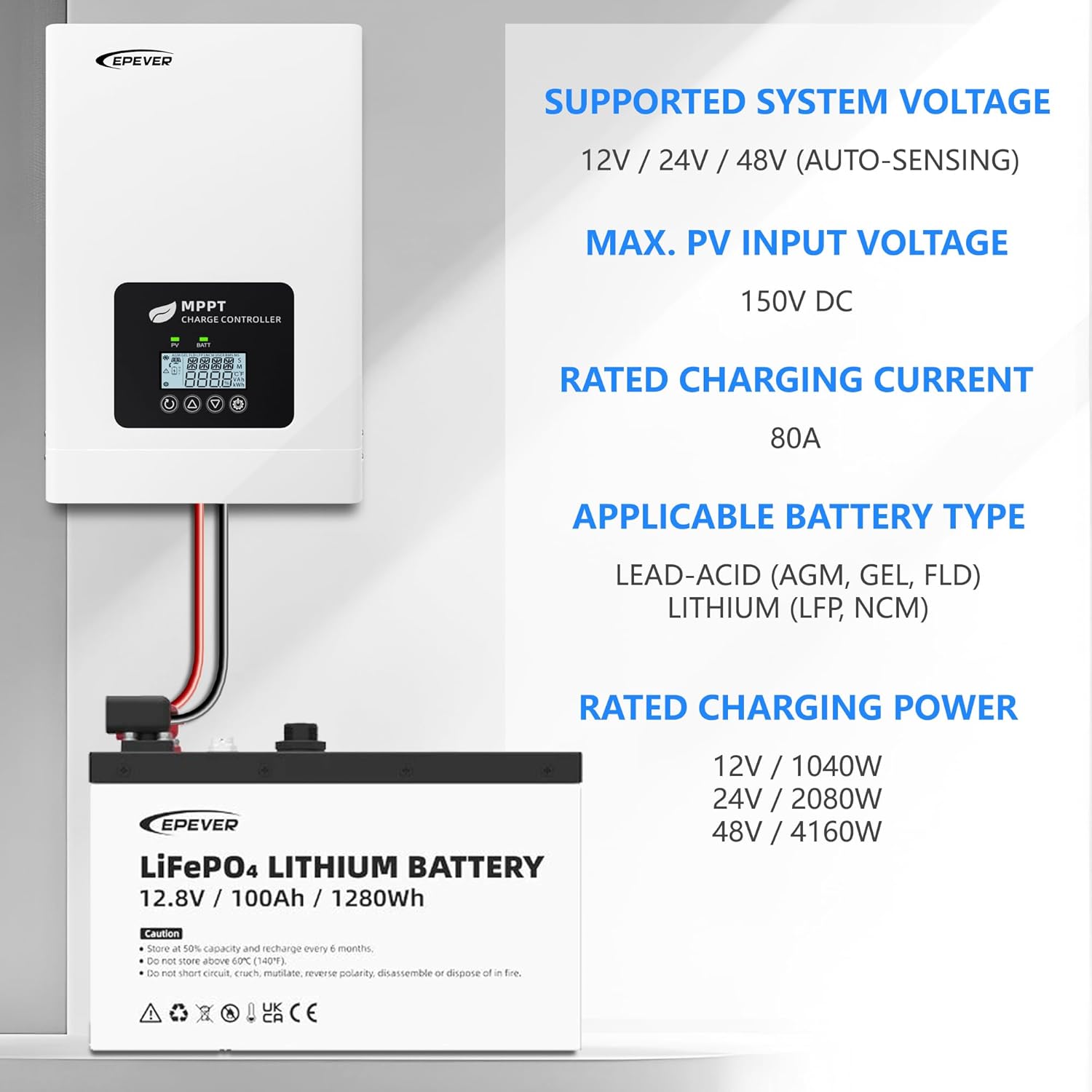

High-Capacity MPPT Charging with 80A Output Engineered for larger solar systems, the TEP8415 delivers a powerful 80A charging current, handling up to 4160W for 48V battery banks. Its advanced Maximum Power Point Tracking (MPPT) algorithm ensures a tracking efficiency of ≥99.5%, dynamically optimizin
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    ModelTEP8415Max PV Input (Voc)150V (@lowest temperature); 135V (@25℃)MPPT Voltage Range(Battery voltage plus 2V, and > 20V) to 108V (@25℃)Battery TypeAGM (Default)/GEL/FLD/UserLithium Battery TypeLFP/NCM/UserRated Voltage12/24/48VDC or AutoRated Charging Current80ARated Charging Power1040W/12v battery;2080W/24v/;4160W/48VGrounding TypeCommon negative groundingDimensions (L × W × H)200mm × 357mm × 90 mmMounting Hole SizeΦ8mmWeight4.51kgRecommended Cable Size6AWG/16mm2

    Technical Data
