Home / MPPT Solar Charge Regulator, 60A 780W, 12–60V - High Efficiency Overcharge Protection, Digital LCD Display, Ideal for RV Off - Grid Systems (100A)

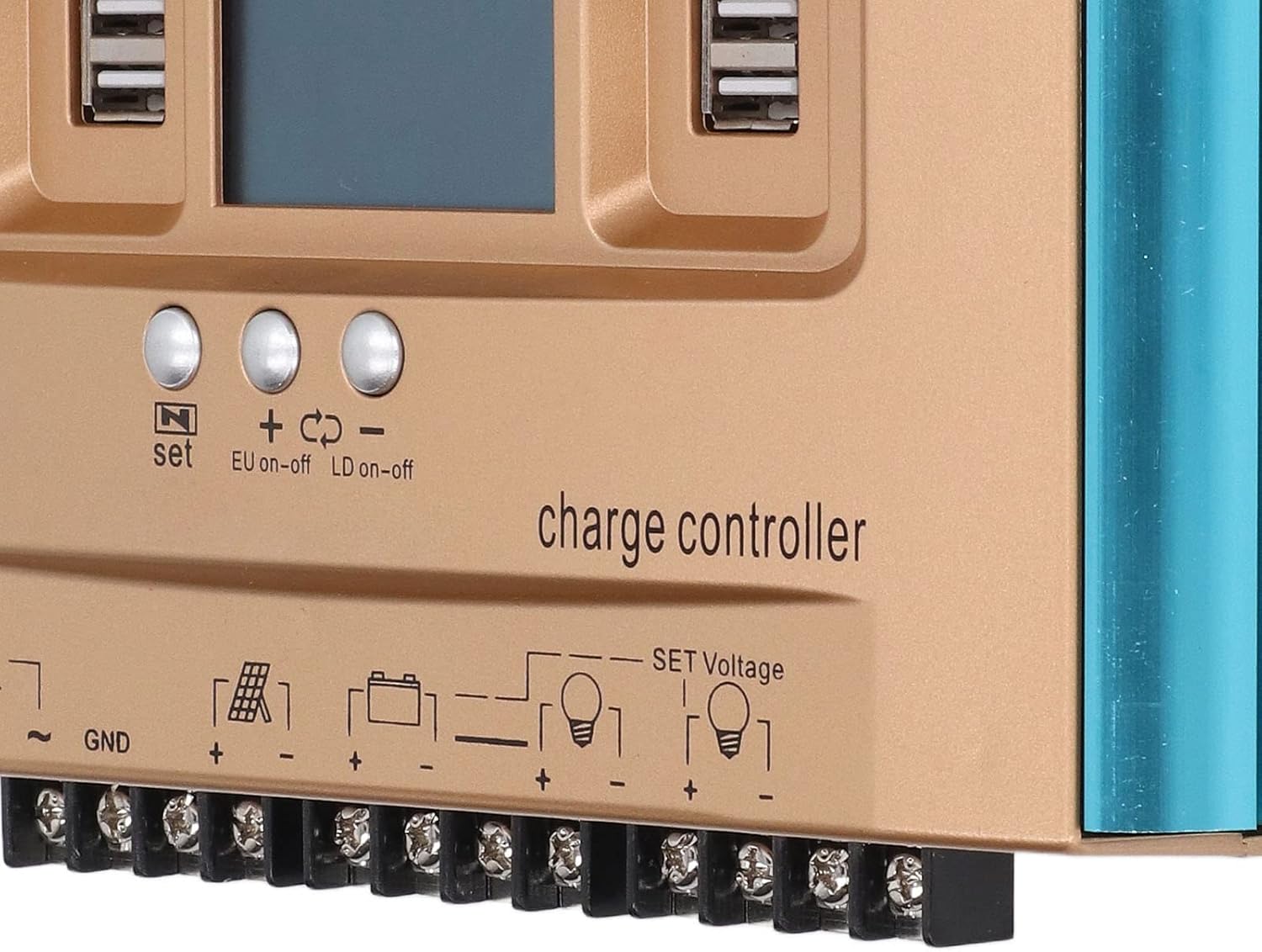

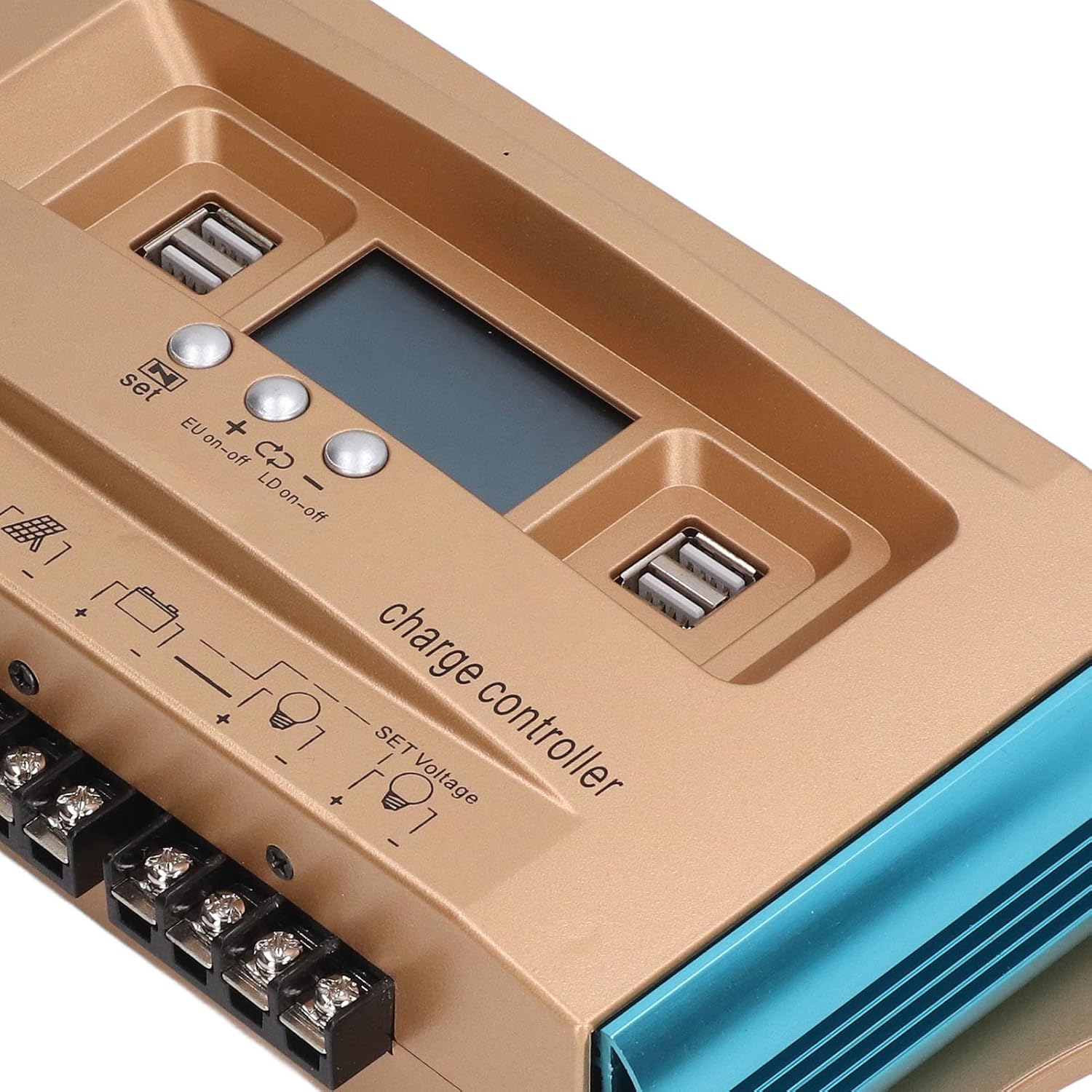

MPPT Solar Charge Regulator, 60A 780W, 12–60V - High Efficiency Overcharge Protection, Digital LCD Display, Ideal for RV Off - Grid Systems (100A)

[Efficient Solar Charging Technology]: Harness maximum power point tracking for optimized energy harvest and battery replenishment, reducing downtime and boosting performance.
[Advanced Digital Programming]: Customize float, cutoff, and recovery voltages via intuitive LCD display and user-friendl
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Item Type: Solar Charge Controller
    Material: PC
    Voltage: 12V, 24V, 36V, 48V, 60V
    Rated Discharge Current: 10A, 20A, 20A, 30A
    12V Float Voltage: 14. 2V (default adjustable) 12.0-15.0V
    12V Discharge Cut Off Voltage: 10.7V (default value adjustable) 9.0-11.5V
    12V Discharge Recovery Voltage: 12.5V (default, adjustable) 11.0-13.0V
    24V Float Voltage: 28.4V (recognition adjustable) 24.0-29. 0V
    24V Discharge Cut Off Voltage: 19. 0V (default adjustable) 18 0-22. 0V
    24V Salt Recovery Voltage: 22. 0V (default, adjustable) 22 0-26. 0V
    36V Float Voltage: 42.0V (default, adjustable) 36.0-45.0V
    36V Power Generation Shoe Stop Voltage: 30.0V (default, adjustable) 27.0-83.0V
    36V Discharge Recovery Voltage: 30.0V (default, adjustable) 36.0-42.0V
    48V Float Voltage: 56.0V (default, adjustable) 48.0-60.0V
    48V Discharge Cut Off Voltage: 40.0V (default, adjustable) 36.0-44.0V
    48V Discharge Recovery Voltage: 50.0V (default, adjustable) 48.0-56.0V
    60V Float Voltage: 71.0V (default, adjustable) 60.0-75. 0V
    60V Discharge Cut Off Voltage: 50.0V (default, adjustable) 45.0-55. 0V
    60V Discharge Recovery Voltage: 63.0V (default, adjustable) 60.0-70.0V
    Standby Current: Less than 10mA
    USB Output: 50V 2A Maximum
    Working Temperature: -10℃ to +60℃

    Package List:
    1 x Solar Charge Controller1 x Manual

    Note:
    If it is not set, it cannot be charged with lithium.
