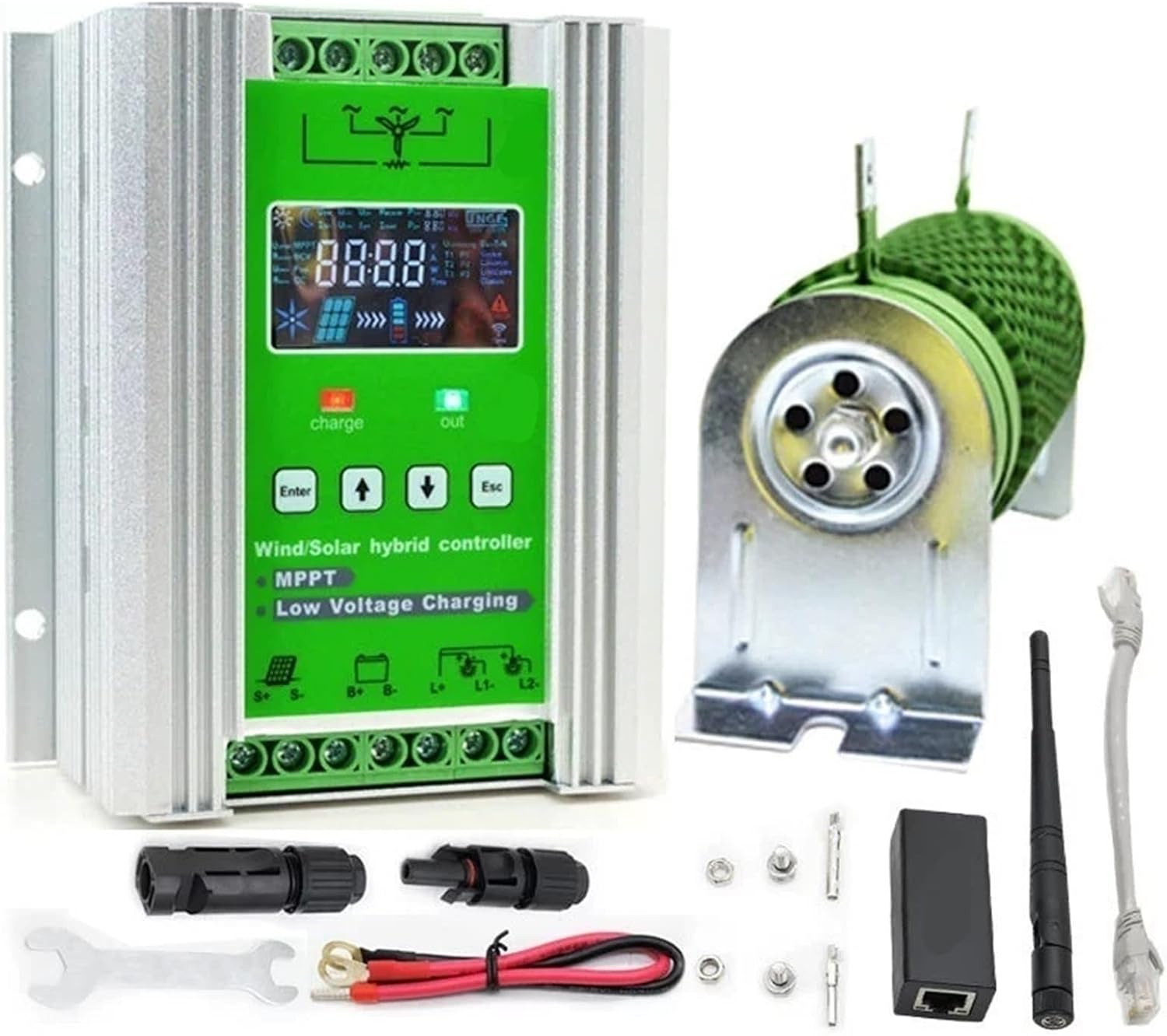

Product Description:
This type controller is 12/24/48V system voltage automatically reorganize, the system voltage depends on your battery bank, for example, if your battery bank is 24V, then your the system voltage is 24V, in the same way, DC load Rated Voltage is 24V.
Below is the matching recommendation for these different system voltage:12V battery bank: 12V wind generator +about 18V Vmp solar panel array24V battery bank: 24V wind generator + about 36V Vmp solar panel array48V battery bank: 48V wind generator + about 72V Vmp solar panel arrayBelow is clarification for hybrid controller model:eg. ws3000W1515means 1500W Wind + 1500W Solarmeans The system can support rated 1500W wind generator and rated 1500W solar panel array.If you need the latest parameter sheet, please share us your email, we will sent to you.*Note1: For our Deluxe version hybrid controller,The default is leadacid battery, you can enter the BatTN battery type setting interface to change it.
*Note2: For our Deluxe version hybrid controller, we have two system voltage version, 12/24V or 12/24/48V automatically reorganization*
Product Highlights.
The controller adopts color screen design, the display information is more comprehensive, the display interface is clearer, the controller supports WIFI module and GPRS module to expand and implement APP cloud monitoring (optional).

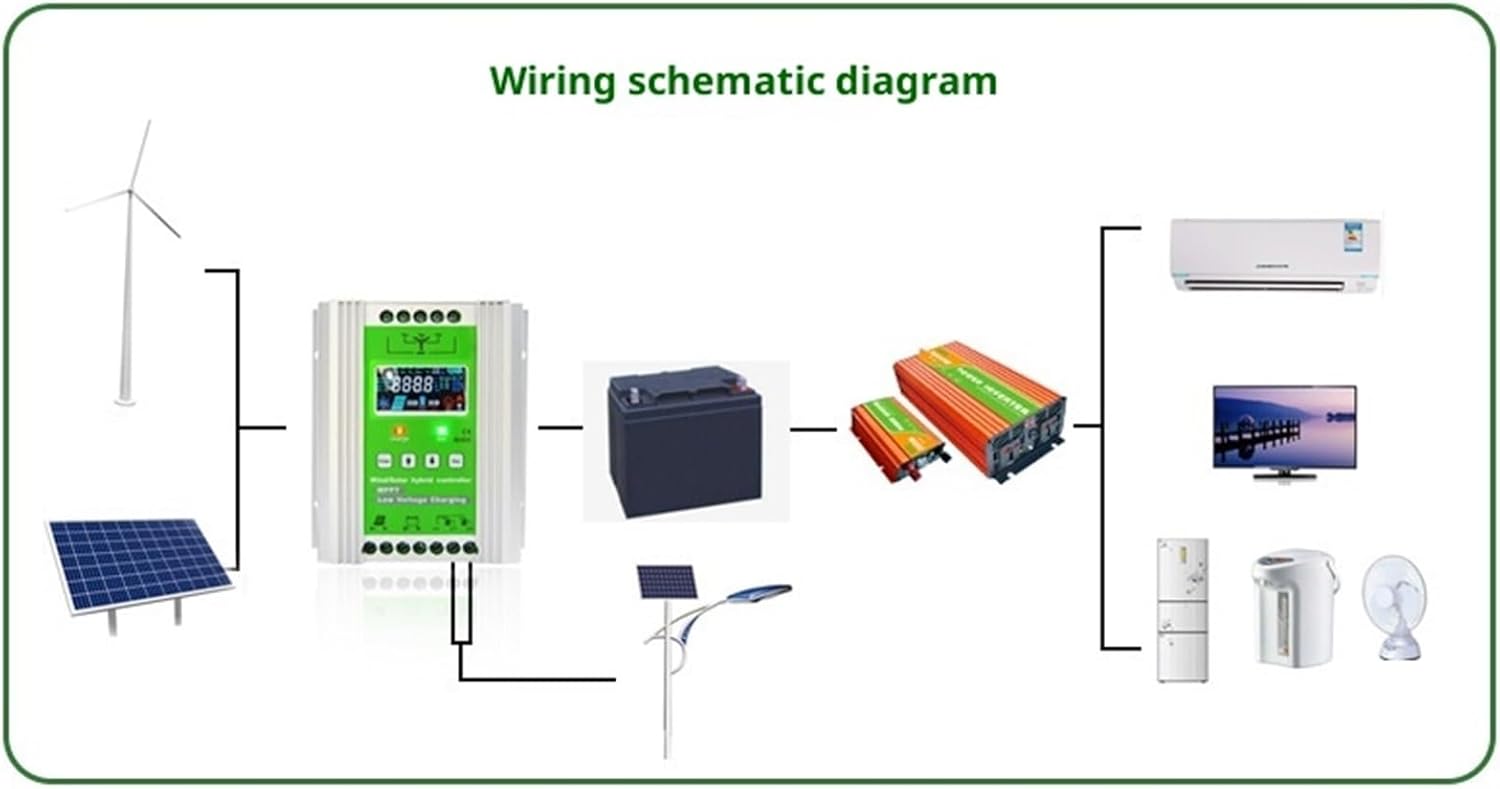

Product Application.
The controller is suitable for wind solar off-grid system, automatically controls charging and discharging, and can be applied in communication base stations, household systems, street lighting systems, monitoring and other fields.

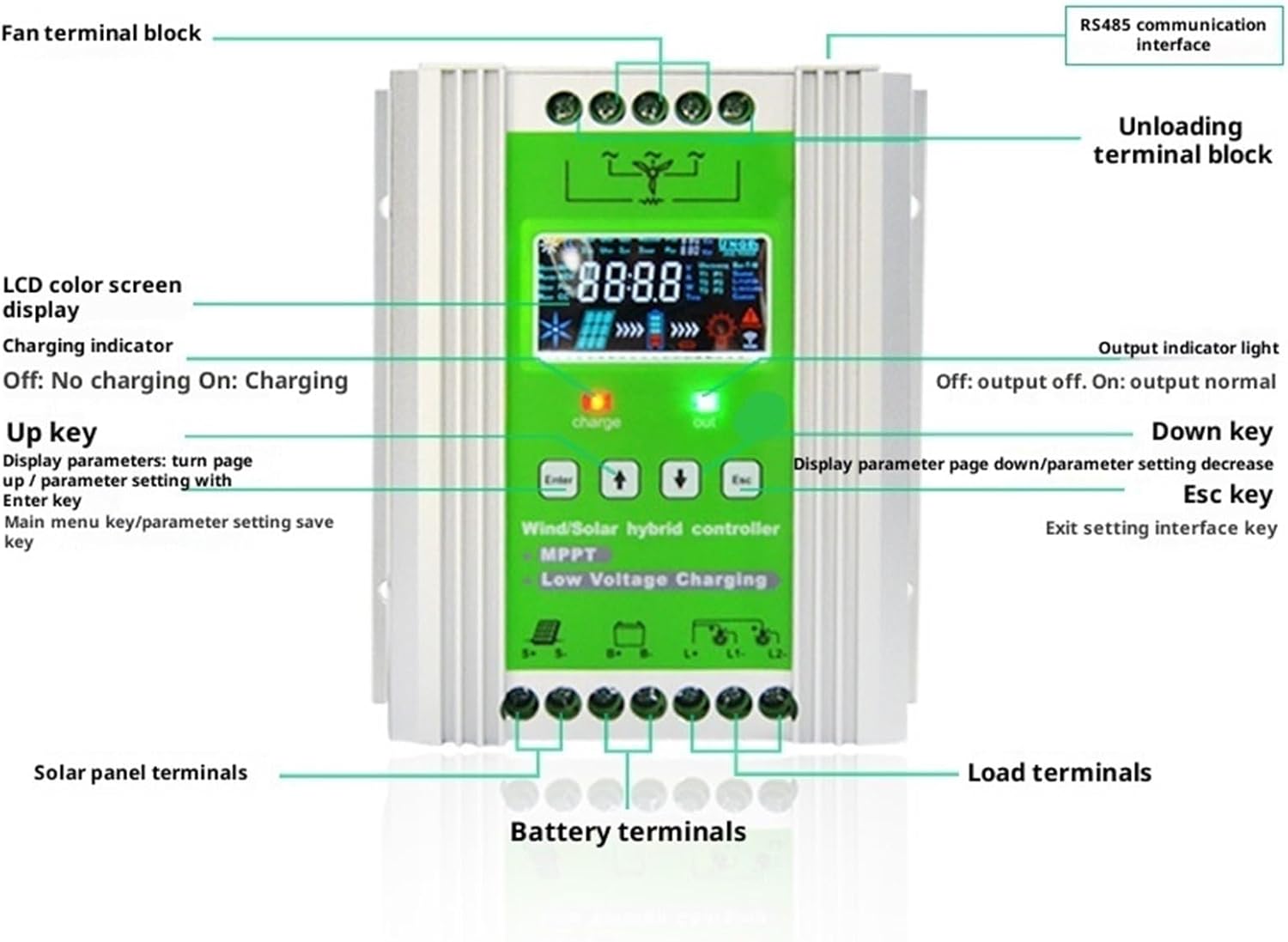

Product Features.
(1) The display adopts color screen design, the display information is more comprehensive, the display interface is clearer, and the 4-key man-machine interface and operation setting are more convenient;
(2) The control algorithm used for Wind charging ensures charging at low wind speed;
(3) Wind three-stage charging mode: charging; lifting charging; floating charging.
(4) Solar three-stage charging mode: CC (constant current); lifting charging; floating charging.
(5) 12V/24V battery system automatically recognizes, or 12V/24V/48V battery system automatically recognizes (Optional).
(6) can provide communication protocol to facilitate unified management and secondary development for customer;
(7) The controller operating parameters can be viewed and set through the mobile phone APP( Optional );
(8) The controller has comprehensive protection functions such as over charge, over discharge and overload;
(9) Four battery types charging mode can be selected for operation: Lead-acid battery, Ternary lithium battery, Lithium iron phosphate, Custom ;
(10) The controller has various load control modes, the load has two outputs, and the output power and time can be set;
(11) The controller has wide adaptability, adaptive day and night.

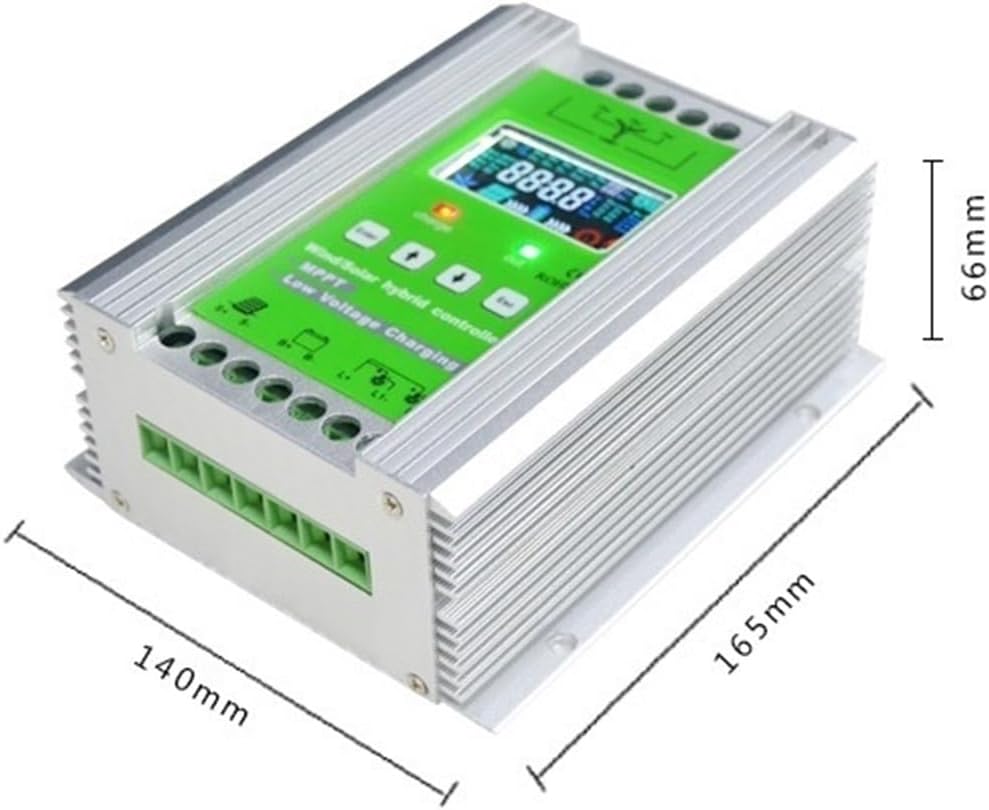

Product Parameter:

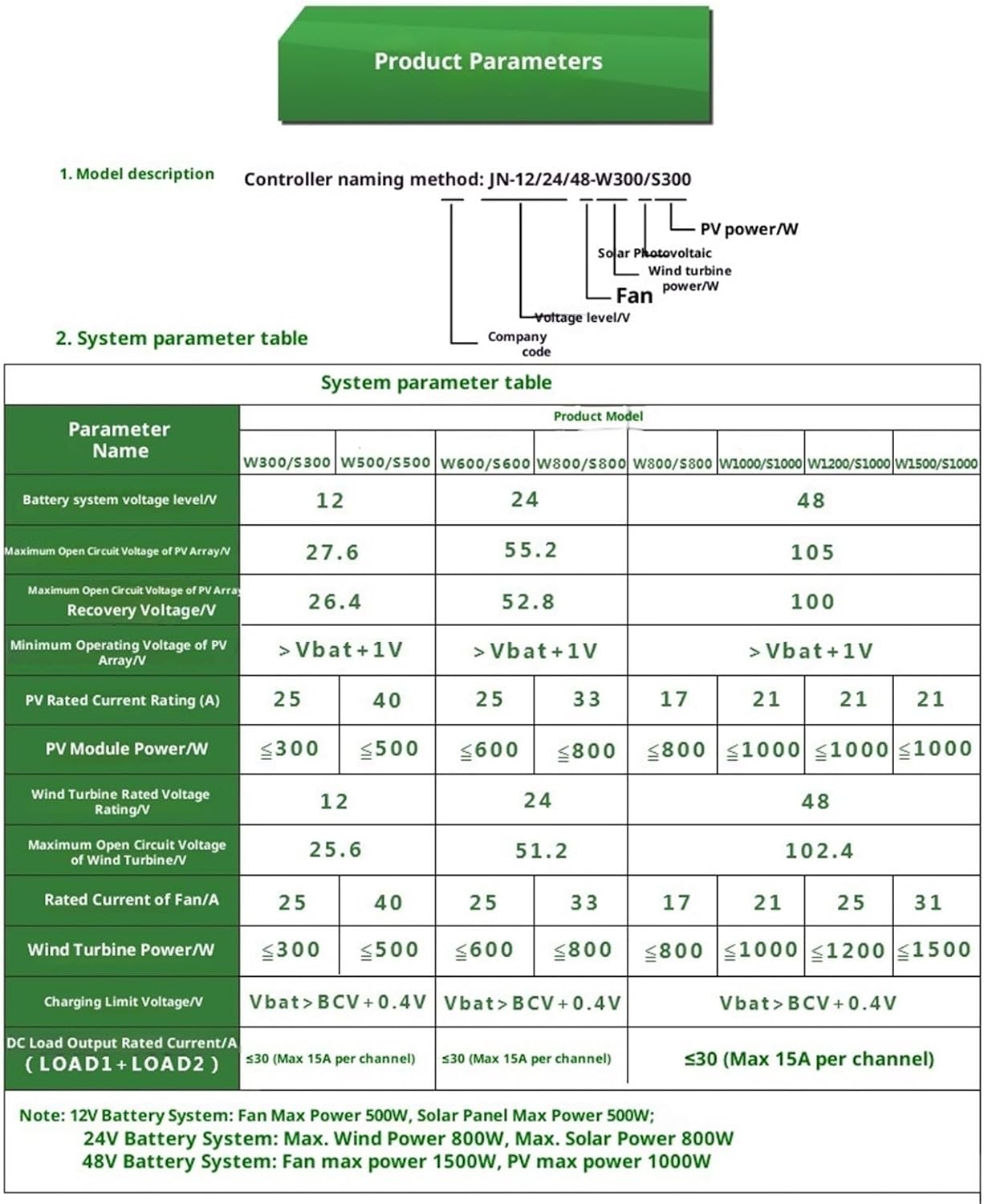

1. System Parameter
System Rated Voltage
12V(9V-16VDC) / 24V(18V-32VDC) / 48V(42V-60VDC)
Solar Module
Voc
27.6V(12V) / 55.2V(24V) / 105V(48V)
Vmp
>Vbat+1V
Imp
Power ÷ Rated Voltage +1A (eg:2000W Solar Module ÷ 48V( Rated Voltage)=43A)
Workable Power
0W~1000W
0W~1200W
0W~1500W
0W~1200W
0W~2500W
0W~3000W
0W~3000W
Wind
Rated Voltage
12VAC(20.8VDC)/ 24VAC (41.6VDC)/ 48VAC(83.1VDC)
Rated Current
Power ÷ Rated Voltage +1A (eg:2000W Solar Module ÷ 48V( Rated Voltage)=43A)
Workable Power
0W~1000W
0W~1200W
0W~1500W
0W~2000W
0W~2000W
0W~2500W
0W~3000W
Max Open circuit voltage
25.6VAC(12VAC) / 51.2V(24VAC) / 102.4V(48VAC)
Special Note: The following are the optimal parameter , Suggest do not modify
Uunder
Over Discharge Voltage
10.8V / 21.6V / 43.2V
Runder
Over Discharge Return
13.1V / 26.2V / 52.4V
Uover
Over Charge Voltage
15.5V / 31.0V / 62.0V
Over Charge Return
15.0V / 30.0V / 60.0V
BCV
Increase Charge
14.4V / 28.8V / 57.6V
Float
Floating Charge
13.8V / 27.6V / 55.2V
Ufanbraking
Wind Breaking Voltage
25.6V / 51.2V / 102.4V
DC Load
Out Power
0W~360W
0W~720W
0W~1440W
Rated Voltage
12VDC
24VDC
48VDC
Current Max
60A
60A
60A
Conversion Efficiency
>98%
Operation Mode
Default to streetlight mode

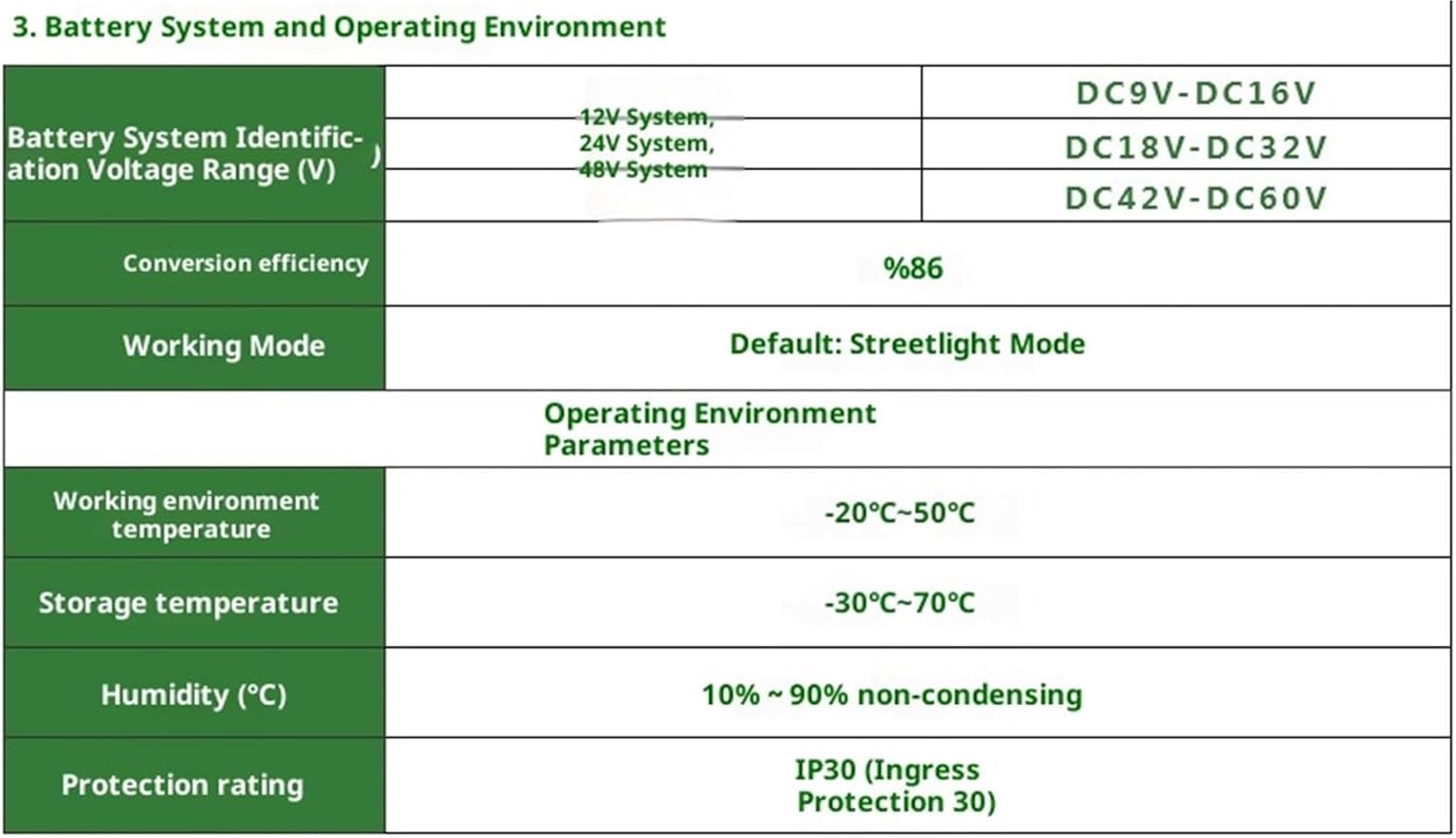

Environment
Temperature
1) Working:-20°C~50°C; 2)Storage:-30°C~70°C
Humidity (°C)
10% ~ 90% No condensation
Protection Grade
IP30
2. Battery Parameter
Lead acid battery (single 12V)
System rated voltage / V
12V system (1 string)
24V system (2 strings)
48V system (4 strings)
12V default value
Overvoltage (overcharge) / V
13~17V
26~34V
52~68V
15.5V
Overvoltage return / V
13~17V
26~34V
52~68V
15V
Increase charging voltage / V
9~15V
18~30V
36~60V
14.4V
Floating charge voltage / V
9~15V
18~30V
36~60V
13.8V
Undervoltage /V
7~13V
14~26V
28~52V
10.8V
Undervoltage return voltage /V
9~15V
