Wind Solar Hybrid Charge Controller, 18000W Wind Solar Charge Controller, 12V/24V 24V/48V Automatic Identification Off Grid Controller Boost MPPT 24V/48V

Power your off-grid energy systems with this advanced Wind Solar Hybrid Charge Controller, designed to efficiently manage wind turbines and solar panels in one compact unit. Built with MPPT boost technology, protecting your batteries and equipment.

Product Highlights:
- MPPT Boost: Maximizes energy efficiency with MPPT technology, supporting up to 18,000W combined power (wind + solar).
- Dual Power Supply: Dual-input design automatically switches between solar and battery
- Smart Load Modes: Choose from 3 modes tailored for street lighting (Mode 1/3) or 24/7 surveillance (Mode 2)
- Real-Time Monitoring: Backlit LCD displays critical data (battery voltage, load status, daylight cycles) for instant troubleshooting.
- Robust Cooling: Multi-angle heat sink and compact design (6.6”x5.7”x2.4”, 5.2 lbs) ensure heat dissipation in tight spaces.
- Easy Installation: Same-side terminals reduce wiring complexity for faster setup in gardens, rooftops, or marine environments.
- Overload Protection: Safeguards systems by diverting excess energy to external resistors, preventing battery/turbine damage.

Product Parameters:
Max Power Capacity: 18,000W (combined wind + solar)
System Voltage: 12V/24V/48V Auto-Sensing
Load Modes: Mode 1 (Light Control), Mode 2 (24-Hour), Mode 3 (Light + Time)
Display: Backlit LCD with real-time parameter tracking

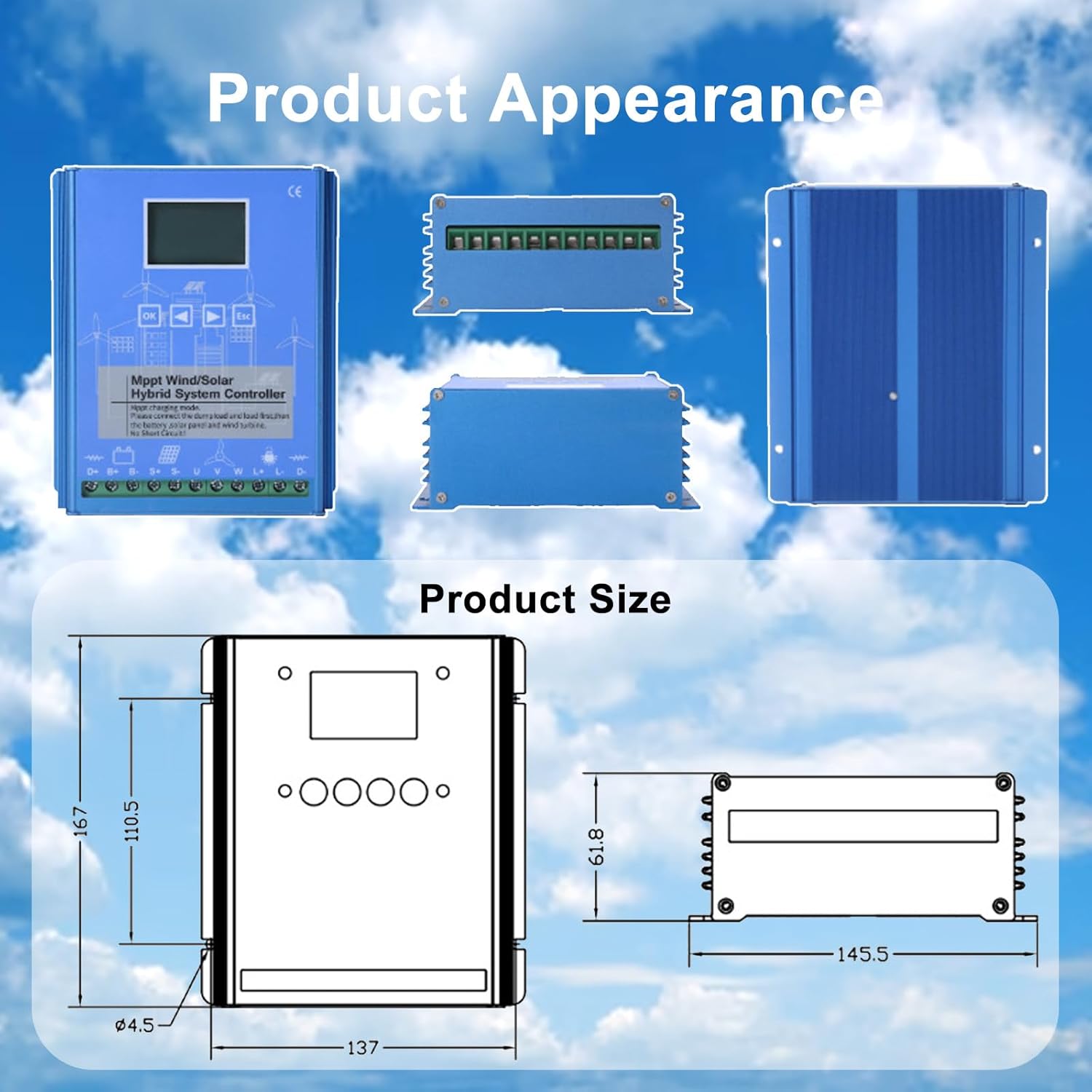

Dimensions: 167x145.5x61.8mm (6.6”x5.7”x2.4”)
Weight: 2.35kg (5.2 lbs)
Operating Temp: -20°C to 45°C (-4°F to 113°F)
Humidity: 35-85% RH (Non-Condensing)
Compliance: Meets (Wind + Solar Power)/System Voltage ≤40A; Wind/Solar Current ≤25A

Ideal For: Solar street lights (parks, driveways), off-grid cabins, RVs, marine applications, garden security systems, and remote monitoring.

Packing List:
1 X Wind solar hybrid controller
1 X External unloading device
