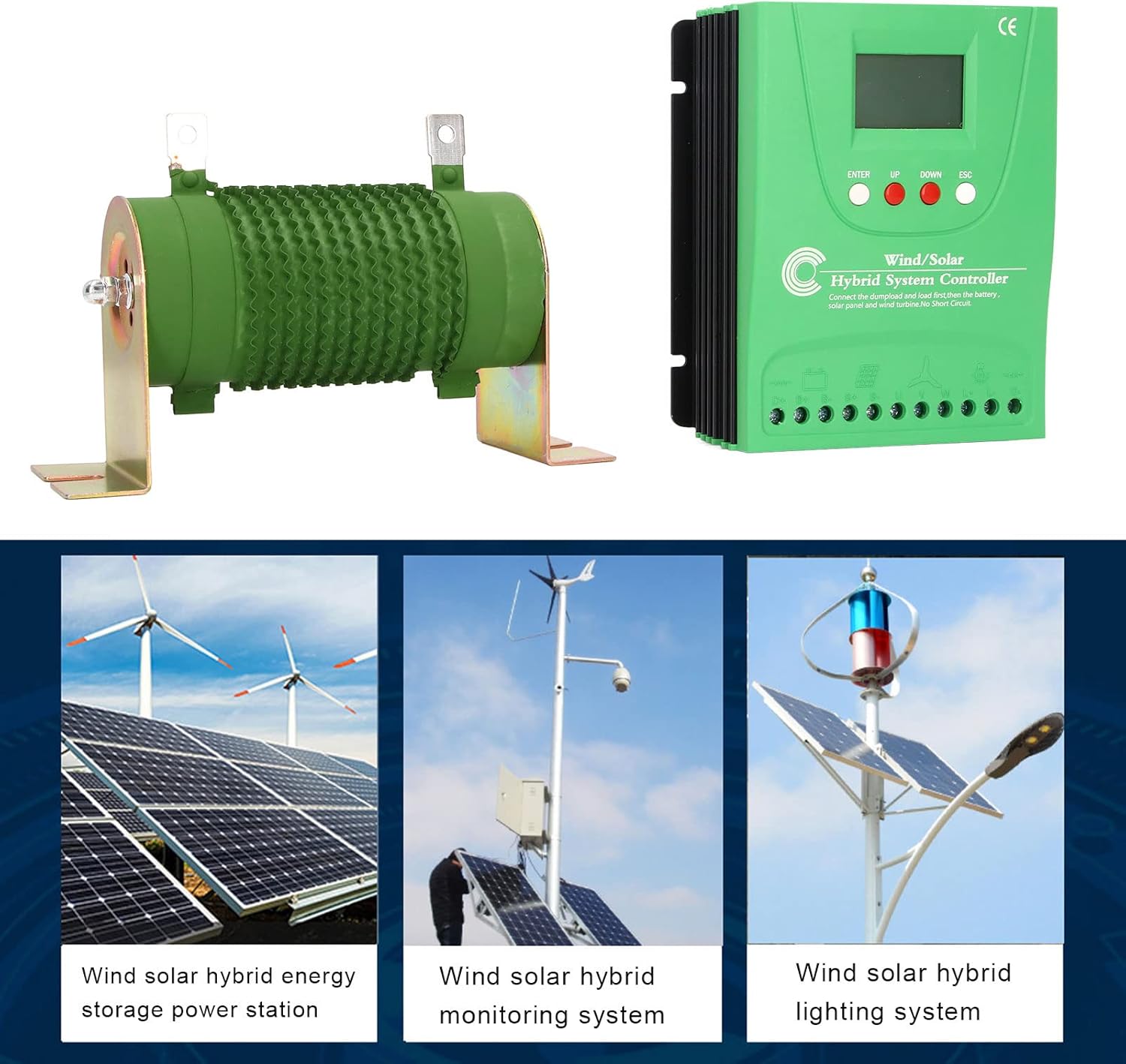

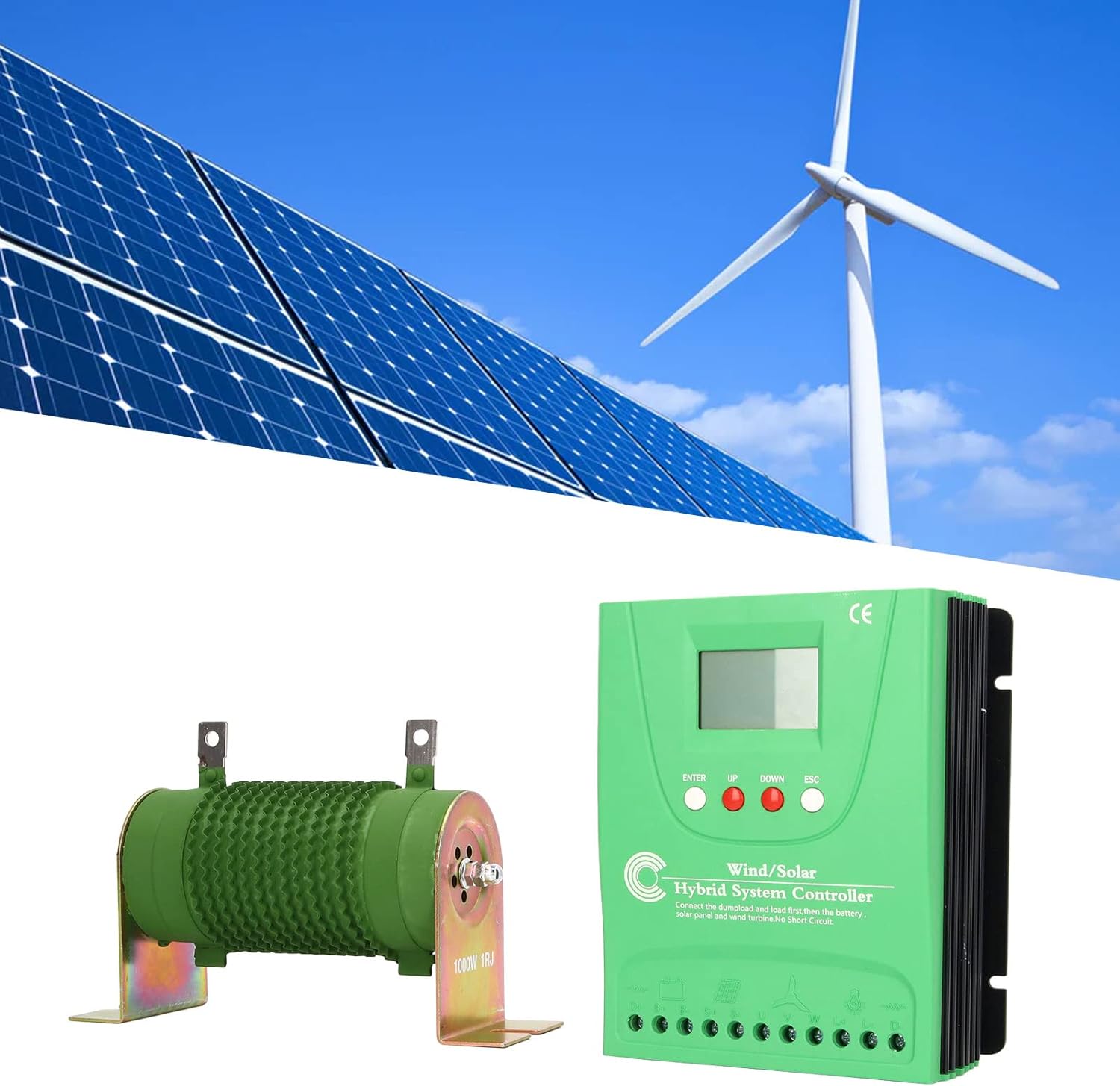

Wind Solar Hybrid Charge Controller, 24V 48V MPPT Boost Charge Regulator with LCD Display and Dump Load, for Off Grid Wind Solar Hybrid Systems (GPI48280)

Spec:
Item Type: Wind Solar Hybrid Charge Controller
Host Size: Approx. 174 x 145.5 x 70 mm / 6.9 x 5.7 x 2.8 in
Shell Color: Green
Material: ABS
System Rated Voltage: 24/48V automatic identification
Model GPI-48220 GPI-48280
Battery Voltage 24V 48V 24V 48V
Wind Turbines Rated Power 600 1200 800 1600
PV Module Rated Power 500 1000 600 1200 Maximum Input Voltage: Wind turbines No Load Current (DC): ≤0.05A
The Controller Takes Power: Battery or photovoltaic panel to take power

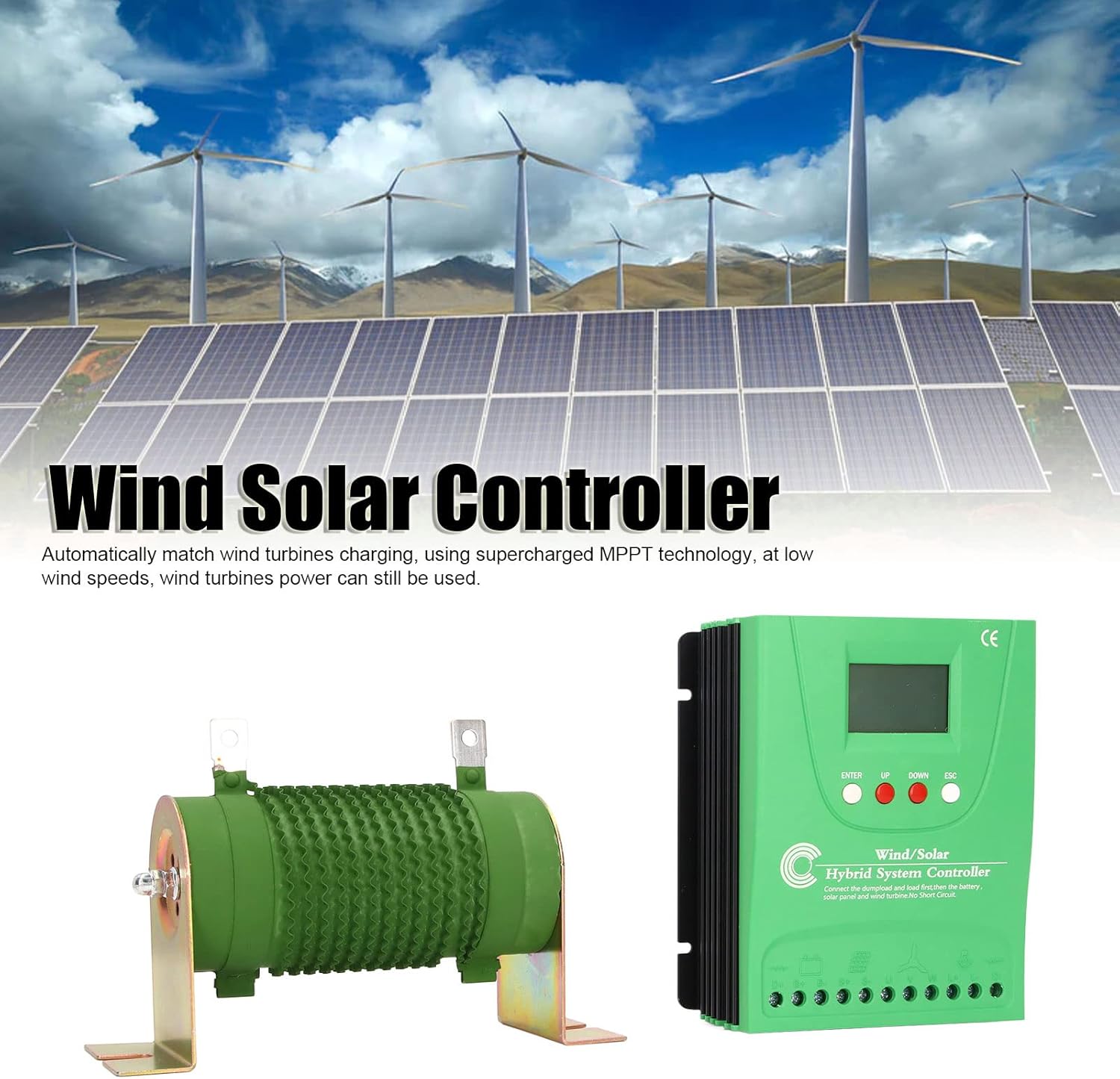

Control Method: Fan MPPT boost charging function, PWM unloading function, PWM overcurrent limiting function
Load: A variety of working modes are available: pure light control mode, normally open mode, light control + time control mode (four periods + morning light)
Display Mode: LCD, Chinese display, clear and intuitive
Display Parameters: Voltage, battery power, current, power, load mode, temperature, etc.
Protection Type: Solar battery anti reverse charging protection, battery open circuit protection, battery reverse connection protection, overcurrent and overvoltage soft automatic braking protection, overload protection, etc.

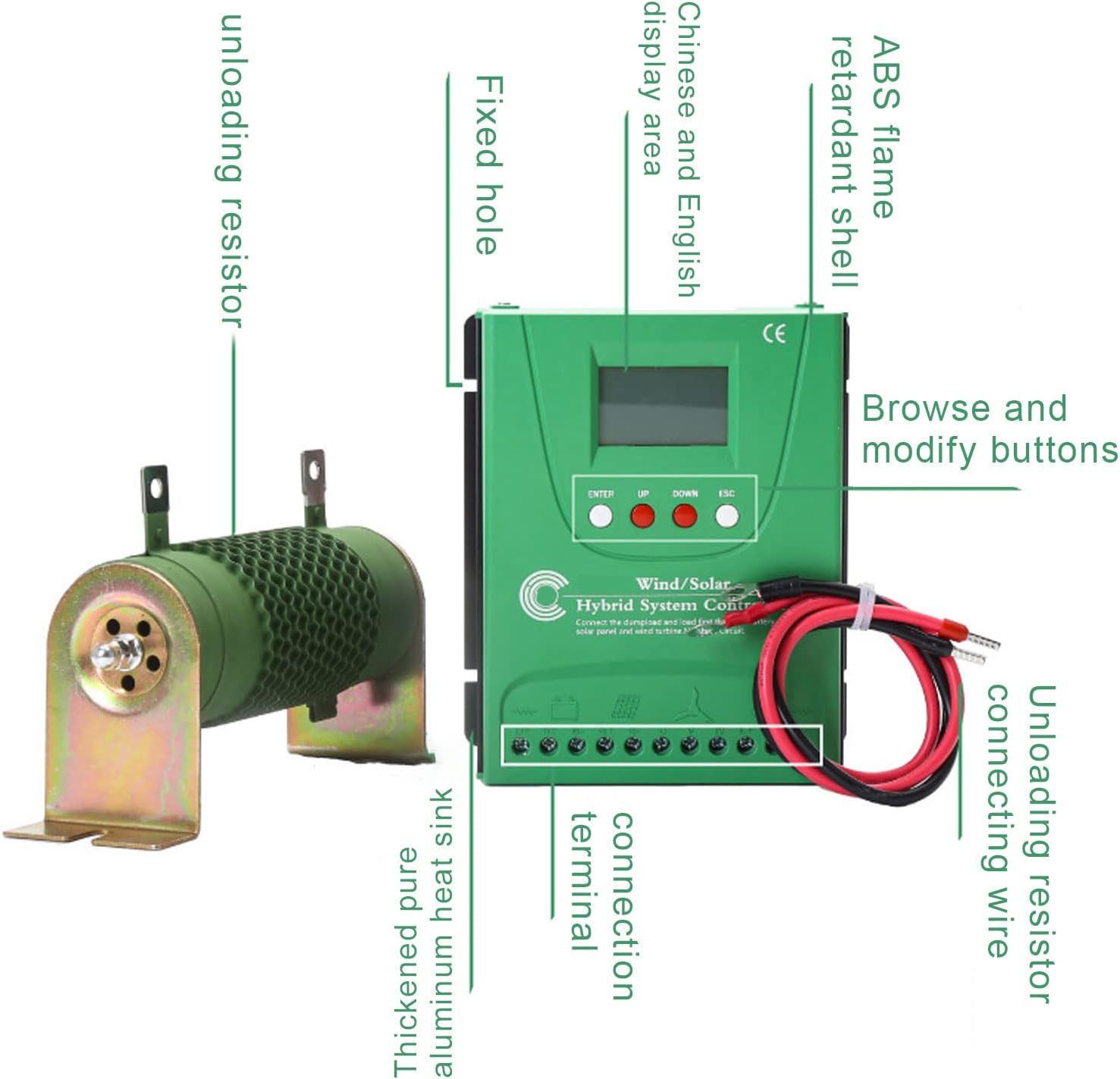

Heat Dissipation Method: Aluminum heat dissipation and self cooling
Operating Temperature And Humidity Range: -20~+55℃/35~85%RH (but no condensation)
Weight: Approx. 2289g / 80.7oz
Applicable Battery: Genera lithium battery

Note:
1. Please read this user manual carefully before installation. The process requires professional and technical personnel to operate. Before installation and maintenance, ensure that the controller is in a safe and de energized state!
2. Please install the controller in a dust‑free, dry and ventilated place, and avoid rainwater infiltration and direct sunlight
3. When installing in the cabinet, there should be enough space around the controller or reliable heat dissipation through the box
4. Keep away from corrosive gas and strong
